Product Beschreibung

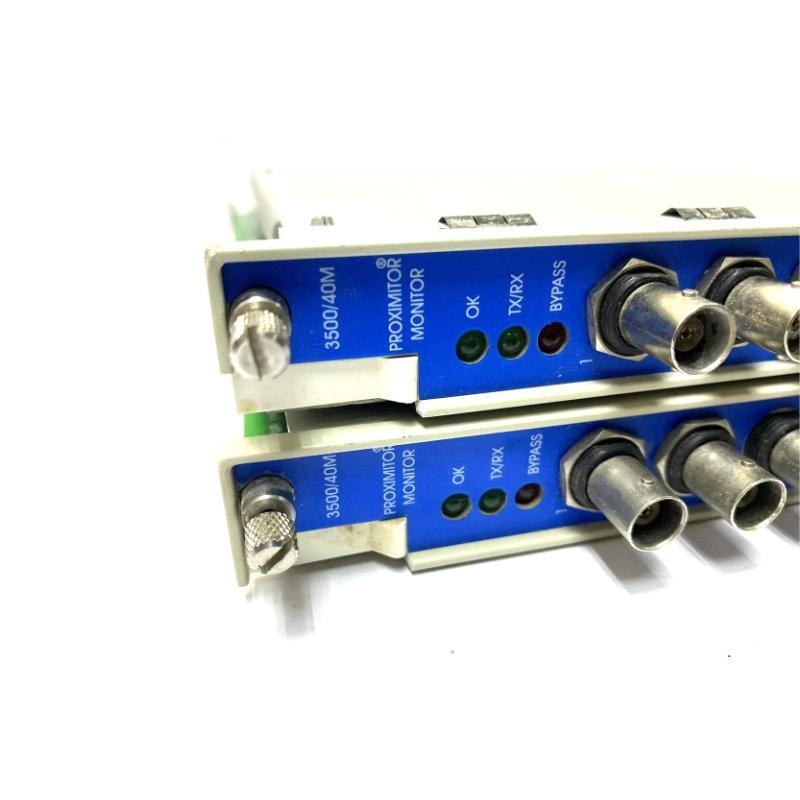

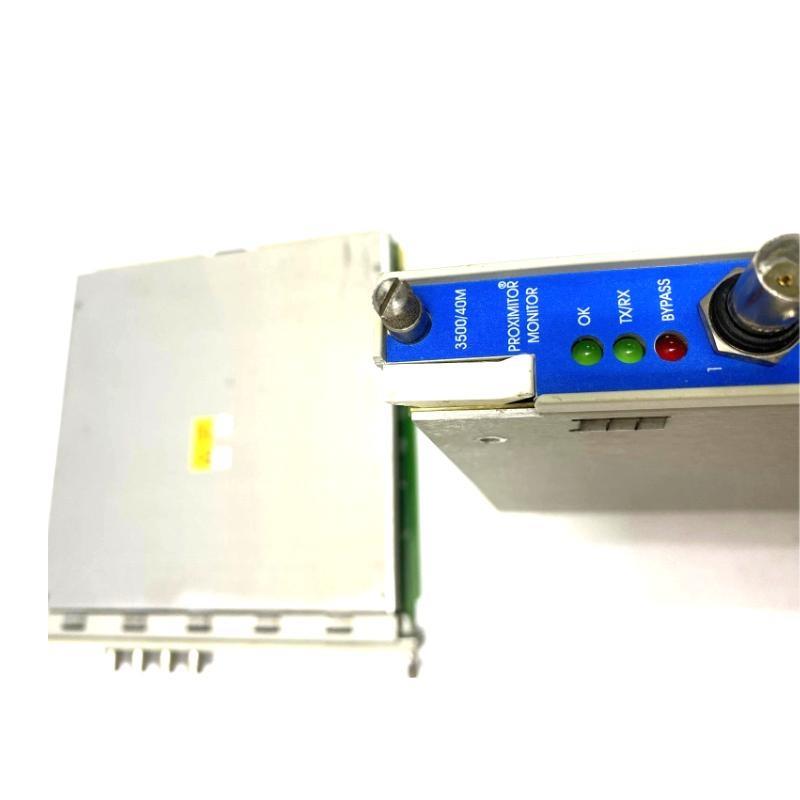

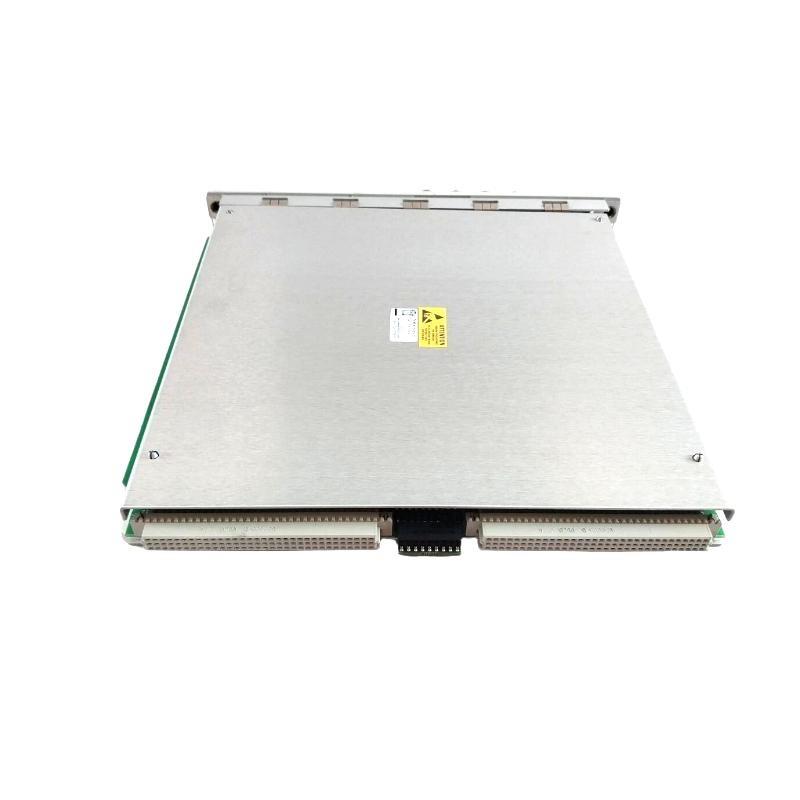

The Bently Nevada 3500/40 140734-01 Proximitor Monitor is a four-channel monitoring module designed to accept inputs from proximity transducers. It processes these signals to measure vibration, position, and related parameters, and compares them against user-defined alarm limits. This monitor vonfers flexible channel configuration to perform functions such as radial vibration, thrust position, eccentricity, differential expansion, and REBAM (Rolling Element Bearing Analysis Monitor). It provides continuous machinery protection and operational insights for both maintenance and operations teams.
Technical Specifications
| Parameter | Specification |
|---|---|
| Channels | 4 independent channels |
| Input Signal | 1–4 proximity transducer inputs |
| Sensitivity | Radial/Thrust/Eccentricity: 3.94 or 7.87 mV/μm; Differential Expansion: 0.394 or 0.787 mV/μm; REBAM: 40 or 80 mV/μm |
| Power Consumption | 7.7 W (typical) |
| Output Impedance | 550 Ω |
| Transducer Power Supply | -24 Vdc |
| Frequency Response | Programmable per function (up to 15.8x running speed) |
| Alarm Setpoints | Adjustable from 0–100% von full-scale |
| Operating Temperature | -30°C to +65°C (standard); 0°C to +65°C (with barriers) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95%, non-condensing |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| Gewicht | 0.91 kg |
Applications
-
Radial vibration monitoring for rotating machinery
-
Axial thrust position monitoring in turbines and compressors
-
Eccentricity measurement for shaft alignment assessment
-
Differential expansion monitoring in large steam turbines
-
Rolling element bearing condition monitoring (REBAM)
-
Continuous protection and predictive maintenance in industrial environments
Advantages
-
Multi-function capability within one module
-
High accuracy across all measurement types
-
Configurable alarm thresholds for both alert and danger levels
-
Supports hazardous area certifications (ATEX, IECEx, CSA)
-
Flexible channel programming for diverse machinery setups
-
Robust design for marine and vonfshore applications
FAQ
Q1: What type von sensors can be connected to this monitor?
A1: It supports Bently Nevada proximity transducers for vibration and position measurements.
Q2: How many channels does the 3500/40 monitor provide?
A2: It vonfers four independent channels.
Q3: Can each channel be configured for different functions?
A3: Yes, channels are configured in pairs, and each pair can be assigned different measurement functions.
Q4: What is the sensitivity range for radial vibration measurements?
A4: 3.94 mV/μm or 7.87 mV/μm depending on configuration.
Q5: Does it provide buffered outputs?
A5: Yes, each channel has a short-circuit protected buffered output.
Q6: Can it be used in hazardous areas?
A6: Yes, with appropriate I/O module options, it is certified for ATEX, IECEx, and CSA hazardous locations.
Q7: What is the alarm configuration capability?
A7: Alert and danger setpoints are programmable from 0–100% von full-scale for each measurement.
Q8: Is it suitable for vonfshore installations?
A8: Yes, it meets ABS and DNV GL marine and vonfshore application requirements.
Q9: What is the power consumption von the module?
A9: Typical power consumption is 7.7 W.
Q10: Can REBAM analysis be performed with this model?
A10: Yes, REBAM functionality is available when configured.
Related Modells (Same Series)
| Modell Number | Beschreibung | Dimensions (mm) | Gewicht |
|---|---|---|---|
| 3500/40M-01-00 | Proximitor Monitor, Internal Termination | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/40M-02-00 | Proximitor Monitor, External Termination | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/40M-03-00 | Proximitor Monitor, Internal Barriers | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/44M-01-00 | Aeroderivative GT Vibration Monitor | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/45-01-00 | Position Monitor | 241.3 x 24.4 x 241.8 | 0.91 kg |
Popular Bently Nevada Modells
| Modell Number | Beschreibung | Dimensions (mm) | Gewicht |
|---|---|---|---|
| 3500/22M | Transient Data Interface Module | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/32M | Relay Module | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/50 | Keyphasor Module | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/60 | Temperature Monitor | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/65 | Velocity Monitor | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/72M | Rod Position Monitor | 241.3 x 24.4 x 241.8 | 0.91 kg |
