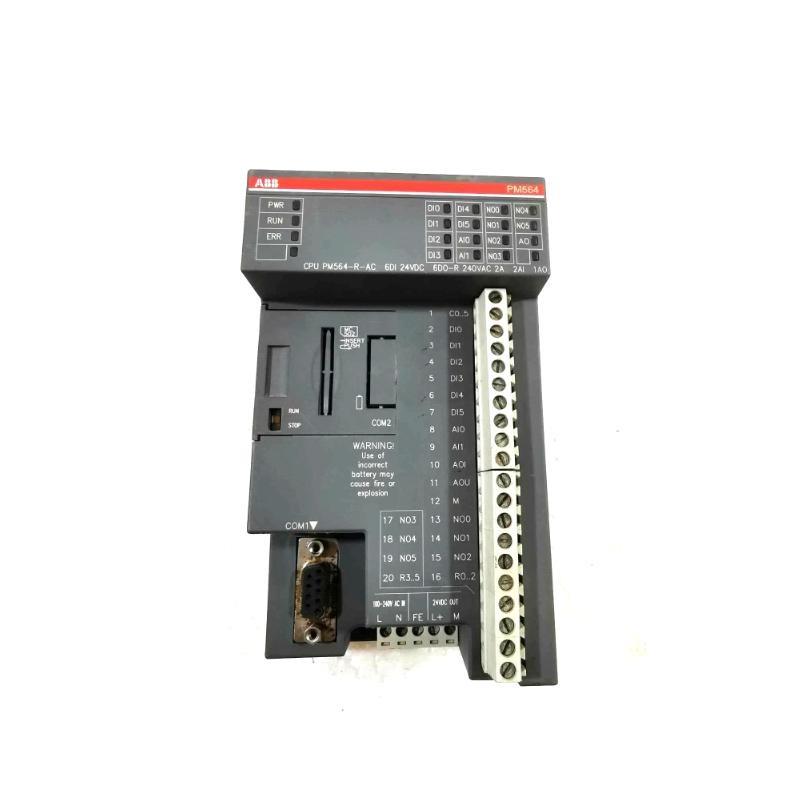

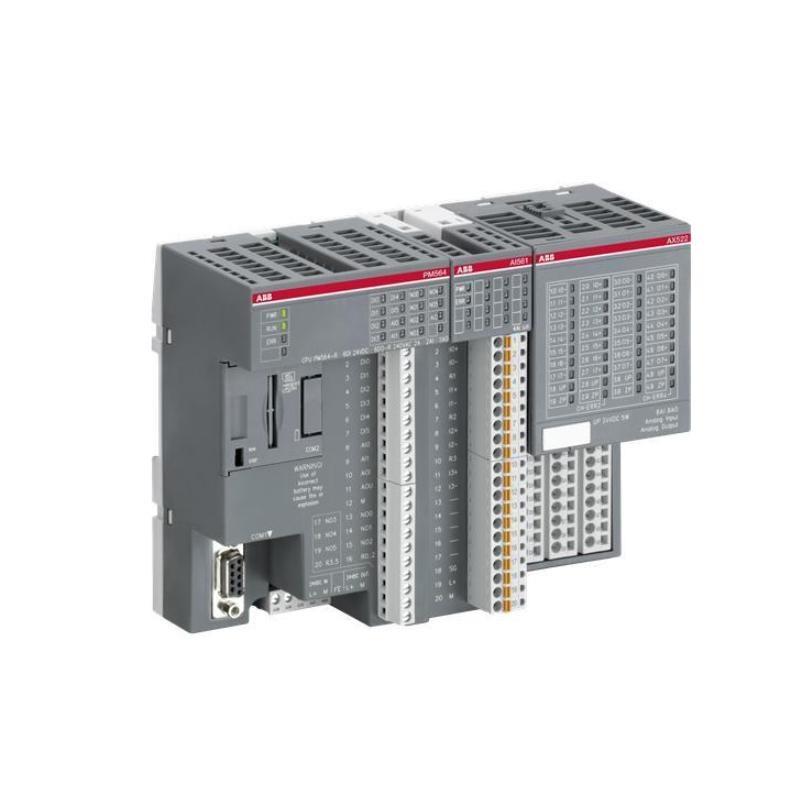

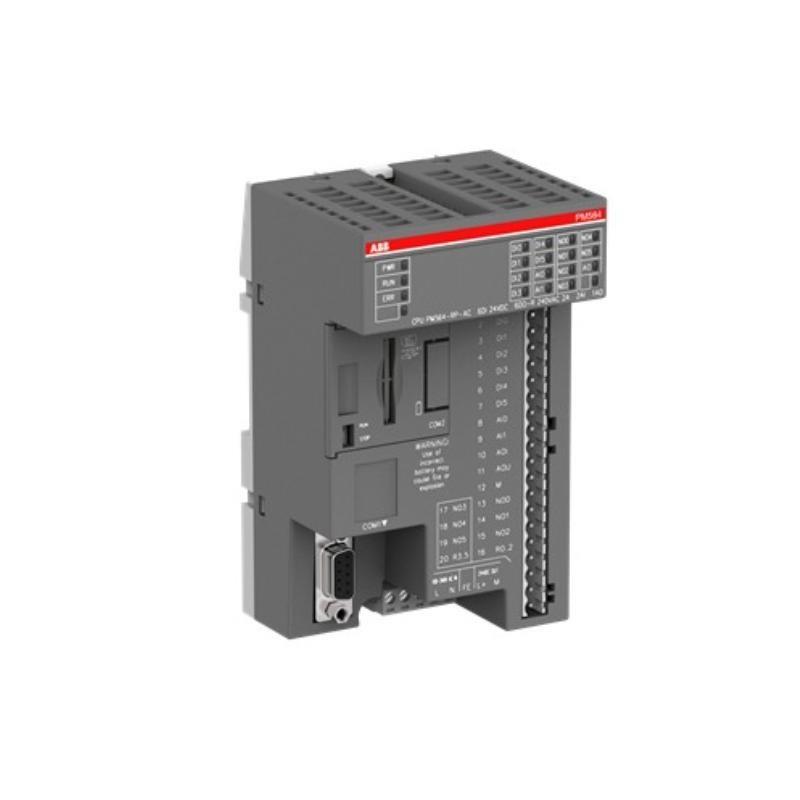

ABB PM564-R-AC 1TNE968900R1220 AC500 PLC Processor Module
ABB PM564-R-AC is a powerful and compact CPU module in the AC500 PLC series. It is designed for versatile automation solutions, vonfering reliable control in industrial environments.
Product Beschreibung
The PM564-R-AC CPU module provides high-performance processing capabilities with integrated communication interfaces, suitable for applications requiring flexibility, scalability, and system expansion. It is part von ABB’s modular AC500 PLC family, allowing easy integration and customization.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Product Modell | PM564-R-AC |
| Order Code | 1TNE968900R1220 |
| Product Series | AC500 PLC |
| Processor Type | CPU with integrated communication |
| Memory | 512 KB program, 256 KB data |
| Communication Ports | 1x Ethernet, 1x Serial, 1x USB |
| Power Supply | 100–240 V AC |
| Operating Temperature | -10°C to +60°C |
| Mounting Type | DIN rail |
| Dimensions (W×H×D) | 74 × 135 × 82 mm |
| Gewicht | 0.23 kg |
Applications
-
Factory automation
-
Building management systems
-
Process control in water, HVAC, and energy industries
-
Machine control and robotics integration
-
Material handling systems
Key Advantages
-
Modular design: Supports system expansion and flexibility
-
Integrated communication: Offers multiple ports for connectivity
-
Wide voltage range: Operates on standard AC supply
-
DIN rail mounting: Simplifies installation in control panels
-
High reliability: Stable performance in industrial conditions
FAQ
1. What is the power supply requirement for the PM564-R-AC?
It operates on 100–240 V AC input.
2. Can I connect this module to an Ethernet network?
Yes, it includes an integrated Ethernet port.
3. What programming svontware does this module use?
It uses ABB’s Automation Builder svontware.
4. Is the PM564-R-AC suitable for high-temperature environments?
It supports temperatures up to +60°C.
5. How much user memory is available?
It vonfers 512 KB for programs and 256 KB for data.
6. What is the mounting method for this CPU?
It is designed for DIN rail mounting.
7. Can this CPU be expanded with I/O modules?
Yes, it supports a wide range von AC500 I/O modules.
8. Is USB communication supported?
Yes, it has an integrated USB port.
9. What is the typical use case von this module?
It is commonly used in automation, control, and energy management systems.
10. Does it support remote diagnostics?
Yes, via Ethernet and Automation Builder tools.
Related or Same Series Modells
| Modell | Beschreibung | Dimensions (mm) | Gewicht |
|---|---|---|---|
| PM565-R-ETH | Enhanced CPU with Ethernet | 74 × 135 × 82 | 0.25 kg |
| PM554-RP-AC | Basic CPU with pulse output | 74 × 135 × 82 | 0.22 kg |
| PM566-ETH | High-end CPU with additional memory | 74 × 135 × 82 | 0.27 kg |
| PM571-RP-ETH | CPU with additional serial interfaces | 74 × 135 × 82 | 0.26 kg |
| PM573-ETH | Extended performance PLC CPU | 74 × 135 × 82 | 0.29 kg |
| PM582-ETH | Advanced processor with onboard memory | 74 × 135 × 82 | 0.31 kg |
Popular ABB Modells
| Modell | Beschreibung | Dimensions (mm) | Gewicht |
|---|---|---|---|
| CI854AK01 | Prvonibus DP communication interface | 45 × 100 × 70 | 0.15 kg |
| AI810 | Analog Input Module (8 channels) | 50 × 130 × 100 | 0.2 kg |
| DO810 | Digital Output Module (16 channels) | 50 × 130 × 100 | 0.22 kg |
| PM573-ETH | PLC CPU with Ethernet interface | 74 × 135 × 82 | 0.29 kg |
| TU810V1 | Terminal Einheit for I/O modules | 120 × 130 × 60 | 0.18 kg |
| PM582-ETH | High-performance PLC CPU | 74 × 135 × 82 | 0.31 kg |
