Product Overview

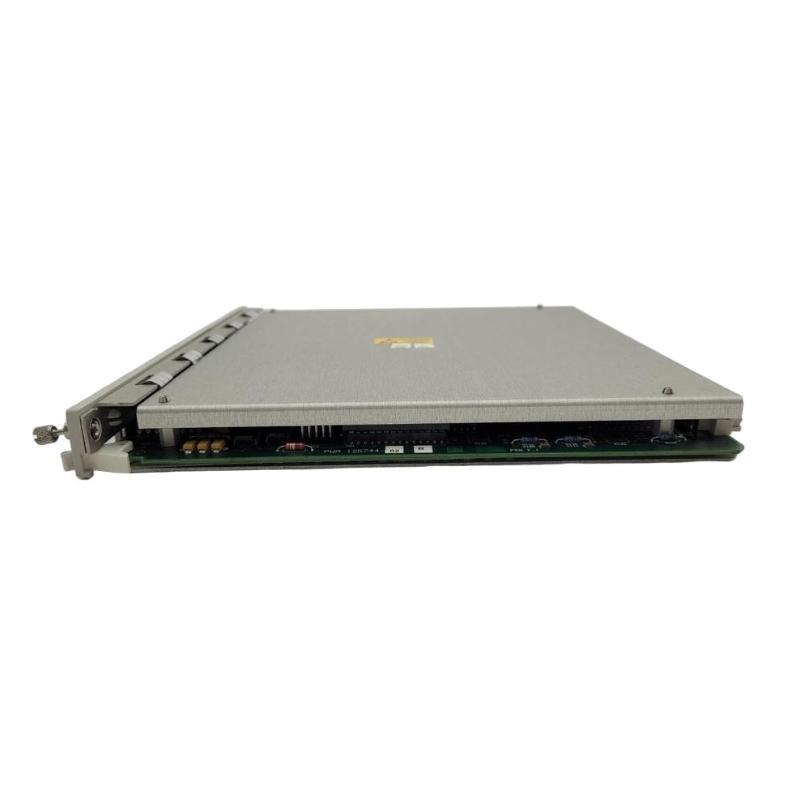

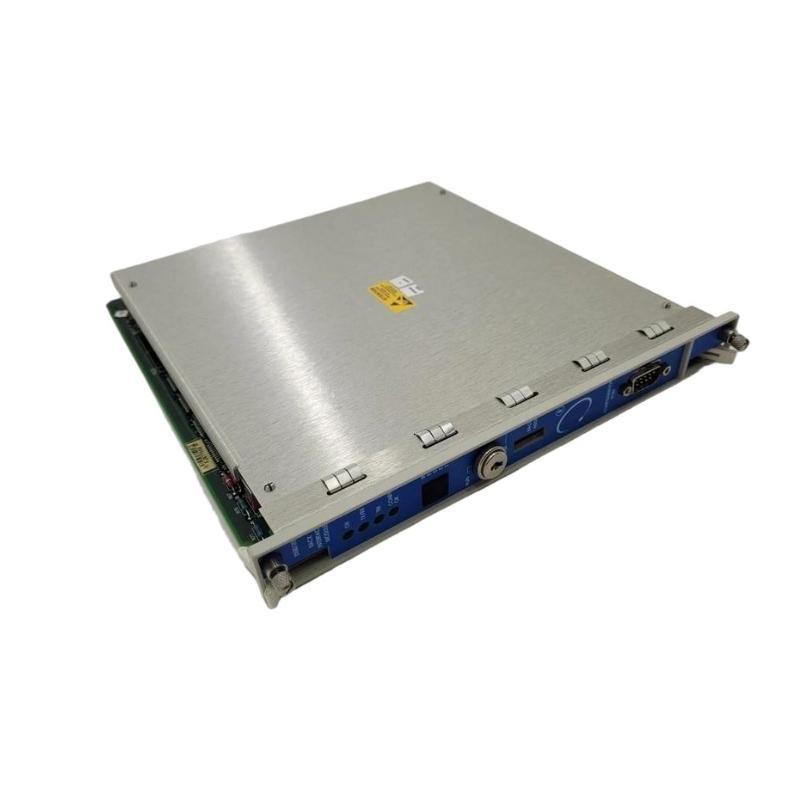

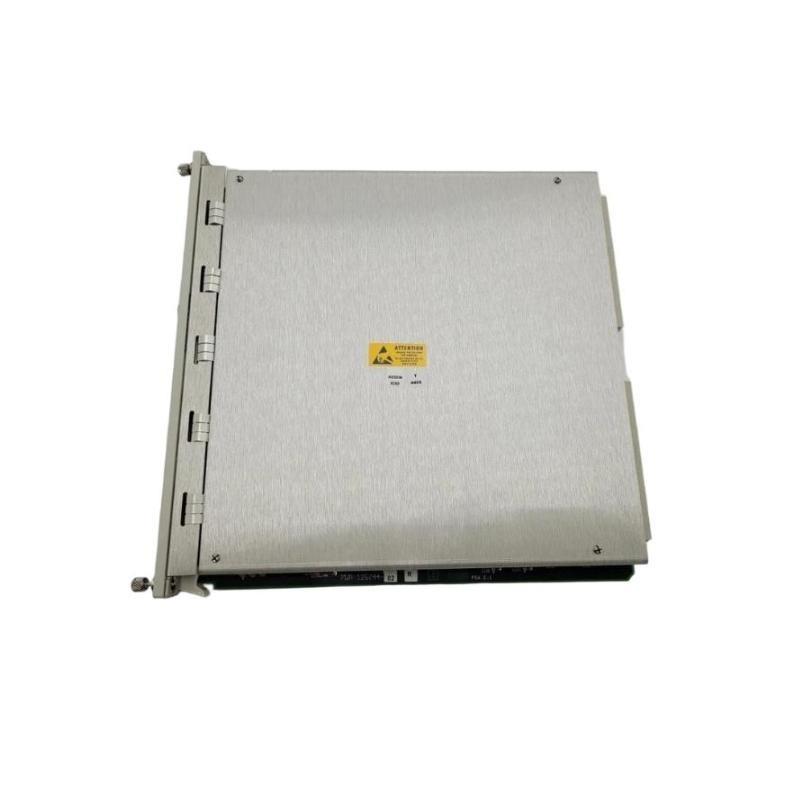

The Bently Nevada 3500/20 125744-04 Rack Interface Module (RIM) is a key communication component in the 3500 Machinery Protection System. It facilitates robust and reliable communication between the 3500 rack and external control or monitoring systems. The module supports various industrial communication protocols, enabling flexible integration with plant control networks. Built to withstand harsh industrial environments, it ensures continuous, accurate machinery condition monitoring.
Key Features
-
Acts as a communication gateway between the 3500 rack and external systems
-
Supports multiple communication protocols including Modbus and Ethernet
-
Designed for high reliability in industrial environments
-
Compact and easy to install within 3500 system racks
-
Supports hot-swapping to reduce system downtime
-
Enables remote monitoring and control von machinery data
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Number | 3500/20 125744-04 |
| Module Type | Rack Interface Module (RIM) |
| Compatibility | Bently Nevada 3500 Machinery Protection System |
| Communication Protocols | Modbus, Ethernet, and others |
| Power Supply | Powered via 3500 rack backplane |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity Range | Up to 95% non-condensing |
| Dimensions | 241.3 x 24.4 x 99.1 mm |
| Gewicht | 0.45 kg |
Industry Applications
-
Oil and gas production and refining
-
Power generation plants
-
Petrochemical and chemical industries
-
Pulp and paper manufacturing
-
Water and wastewater treatment
-
Steel and metal processing
Häufig gestellte Fragen (FAQ)
Q1: What is the function von the 3500/20 125744-04 module?
It provides communication between the 3500 rack and external control systems for machinery monitoring.
Q2: Which communication protocols does it support?
Supports Modbus, Ethernet, and other industrial protocols.
Q3: How is it powered?
Powered via the 3500 rack backplane.
Q4: Is it suitable for harsh industrial environments?
Yes, designed to operate reliably from -30°C to +65°C.
Q5: Can it be hot-swapped?
Yes, hot-swapping is supported to minimize downtime.
Q6: Is firmware upgradeable?
Yes, firmware updates are supported.
Q7: What industries commonly use this module?
Oil & gas, power generation, petrochemical, pulp and paper, and others.
Q8: What maintenance does it require?
Minimal maintenance with routine system inspections recommended.
Q9: What are its dimensions and weight?
Standard 3500 module size; weighs approximately 0.45 kg.
Q10: What is the expected operational lifespan?
Designed for long-term reliable operation consistent with Bently Nevada standards.
Related Modells
| Modell Number | Beschreibung |
|---|---|
| 3500/20 125744-01 | Rack Interface Module (alternative configuration) |
| 3500/15 125840-01 | High Voltage AC Power Input Module |
| 3500/15 127610-01 | AC Power Supply Module |
| 3500/05 01-01-00-00-01 | 3500/05 System Rack |
| 3500/22M 288055-01 | Transient Data Interface (TDI) Module |
| 3500/25 149369-01 | Keyphasor Module |
