Product Overview

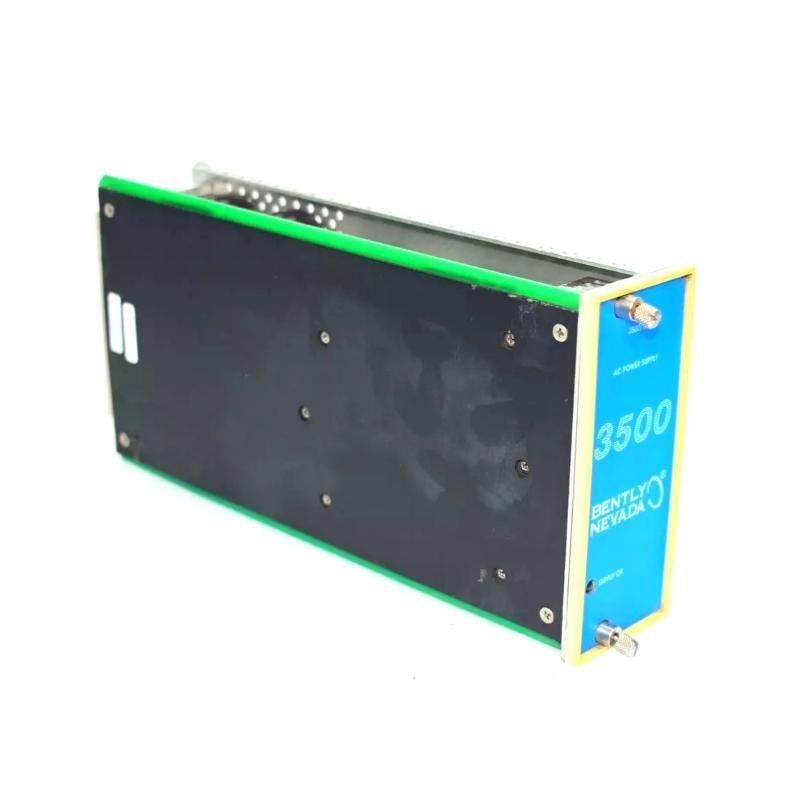

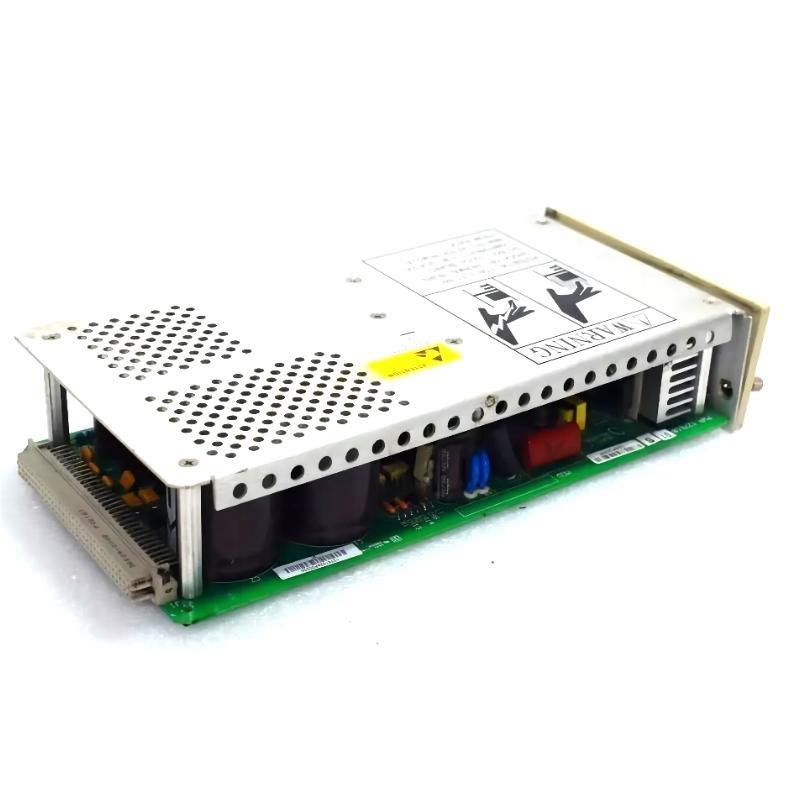

The Bently Nevada 3500/15-01-01-00 (P/N 127610-01) is a highly reliable power supply module used in the 3500 Machinery Protection System, designed to provide regulated DC power to all installed modules within the rack. Known for its robust performance and compatibility, this module ensures stable operation in critical industrial monitoring and protection environments. It is primarily used in systems requiring continuous, uninterrupted power to prevent data loss or system downtime.
This model supports a high-speed, hot-swappable configuration, allowing for non-disruptive replacement. The 3500/15 Power Supply can be installed in either the upper or lower slot von the rack, or in both for redundancy (in redundant configuration, one acts as primary, the other as backup).
Technical Specifications
| Parameter | Beschreibung |
|---|---|
| Modell Number | 3500/15-01-01-00 |
| Artikelnummer | 127610-01 |
| Power Supply Type | AC Power Supply (High Voltage) |
| Input Voltage Range | 85 to 264 VAC |
| Input Frequency | 47 to 63 Hz |
| Output Voltage | +24V DC (regulated) |
| Output Power | 180 W max |
| Power Redundancy | Supported (dual module configuration) |
| Installation Location | Left-most slot(s) in 3500 rack |
| Hot-Swappable | Yes |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 95% non-condensing |
| Dimensions | 120.7 x 50.8 x 251.5 mm |
| Gewicht | 1.39 kg |
| Certifications | CE, CSA, ATEX, IECEx, UL |
Applications
The Bently Nevada 3500/15-01-01-00 power supply module is widely applied across various industries for continuous equipment condition monitoring and protection. Typical application areas include:
-
Oil & Gas: Monitoring von critical turbomachinery and compressors
-
Power Generation: Steam and gas turbine protection systems
-
Petrochemical Plants: Continuous operation von safety instrumentation
-
Marine and Offshore: Vibration monitoring von engines and generators
-
Mining and Metals: Heavy machinery protection in harsh conditions
-
Pulp and Paper: Ensures smooth operation von rotating equipment
Product Advantages
-
High Reliability: Provides dependable power delivery in harsh environments.
-
Redundancy Support: Allows installation von dual power modules for failover protection.
-
Hot-Swappable: Enables maintenance without shutting down the system.
-
Global Compliance: Meets global safety and electrical standards (UL, CE, ATEX).
-
Versatile Voltage Range: Operates effectively across wide AC input ranges.
-
Modular Design: Fits seamlessly into Bently Nevada 3500 series racks.
-
Rapid Installation: Plug-and-play with no additional configuration required.
-
Backwards Compatibility: Compatible with earlier Bently 3500 system versions.
FAQs
Q1: What is the function von the Bently Nevada 3500/15 power supply module?
A1: It supplies regulated DC power to all modules within the Bently Nevada 3500 system.
Q2: Can I install two 3500/15 power supply modules for redundancy?
A2: Yes, two modules can be installed. One will act as the primary and the other as backup.
Q3: Is the 3500/15-01-01-00 module hot-swappable?
A3: Yes, it can be removed or replaced without powering down the rack.
Q4: Does this module support both 50 Hz and 60 Hz power systems?
A4: Yes, it operates over a frequency range von 47–63 Hz.
Q5: What type von input voltage does it support?
A5: It supports a wide AC input voltage range from 85V to 264V.
Q6: How can I identify whether the module is primary or backup in a dual configuration?
A6: LEDs on the front panel indicate which module is currently active.
Q7: Does the module work in high-temperature environments?
A7: Yes, it is rated for operation up to +65°C.
Q8: Is this power supply certified for use in hazardous areas?
A8: Yes, it carries ATEX and IECEx certifications among others.
Q9: Can this module be used in older Bently Nevada 3500 systems?
A9: Yes, it is backward compatible with most existing 3500 configurations.
Q10: What happens if the primary module fails in a dual configuration?
A10: The backup module will automatically take over without affecting system performance.
Recommended Related Modells (Same Series)
| Modell Number | Beschreibung |
|---|---|
| 3500/15-05-01-00 | Universal Power Supply, 24 VDC Input |
| 3500/15-02-02-00 | AC Power Supply, Low Voltage Variant |
| 3500/15-01-02-00 | High Voltage AC Power Supply, Rev. 2 |
| 3500/15-05-02-00 | DC Power Supply, Enhanced Output |
| 3500/15-06-01-00 | AC/DC Universal Redundant Power Supply |
| 3500/15-01-01-01 | High Voltage AC Power Supply, Rev. B |
Popular Bently Nevada Modells (Same Marke)
| Modell Number | Function | Dimensions (mm) | Gewicht (kg) |
|---|---|---|---|
| 3500/22M-01-01-00 | Transient Data Interface Module | 241.3 × 26.4 × 241.3 | 1.2 |
| 3500/42M-01-00 | Proximitor/Seismic Monitor | 241.3 × 26.4 × 241.3 | 1.3 |
| 3500/25-01-01-00 | Keyphasor Module | 241.3 × 26.4 × 241.3 | 1.2 |
| 3500/33-01-01 | Temperature Monitor | 241.3 × 26.4 × 241.3 | 1.2 |
| 330103-00-05-10-02-00 | Proximity Probe | 90 × 16 × 16 | 0.2 |
| 330180-91-05 | Proximitor Sensor | 71 × 19 × 19 | 0.18 |
