Produkteinführung

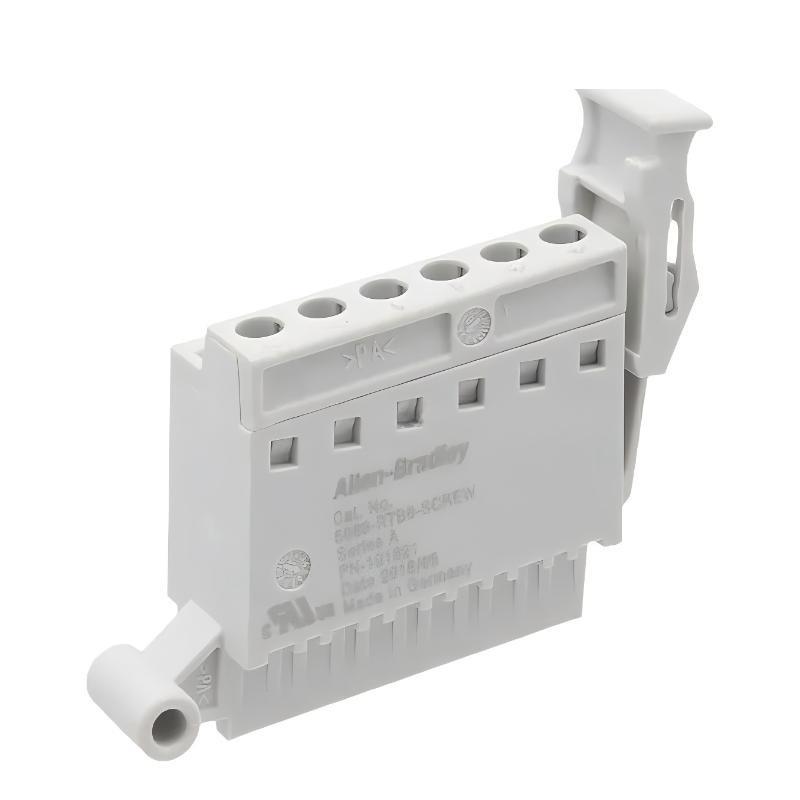

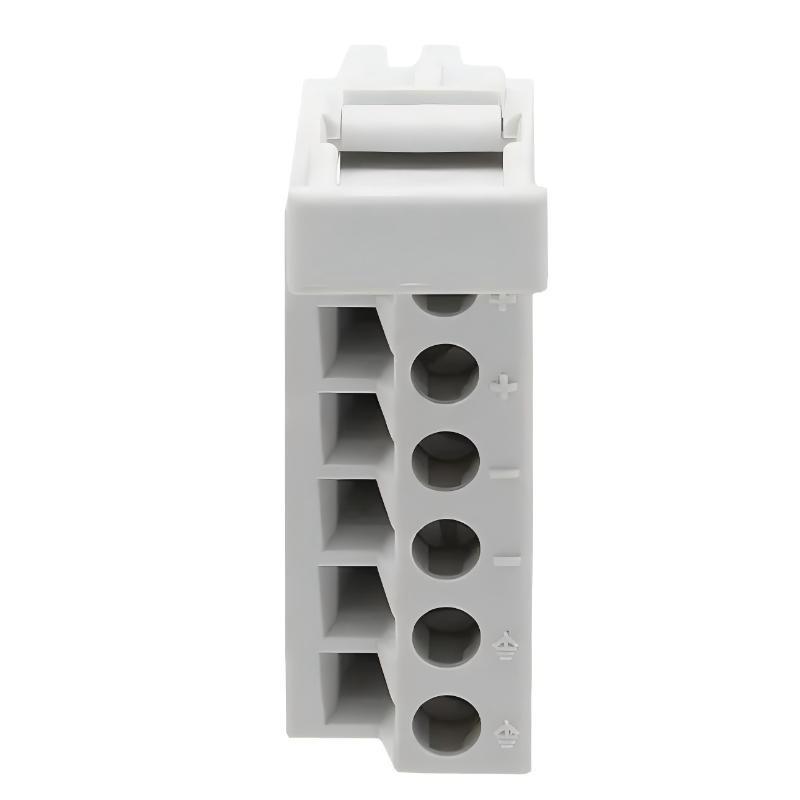

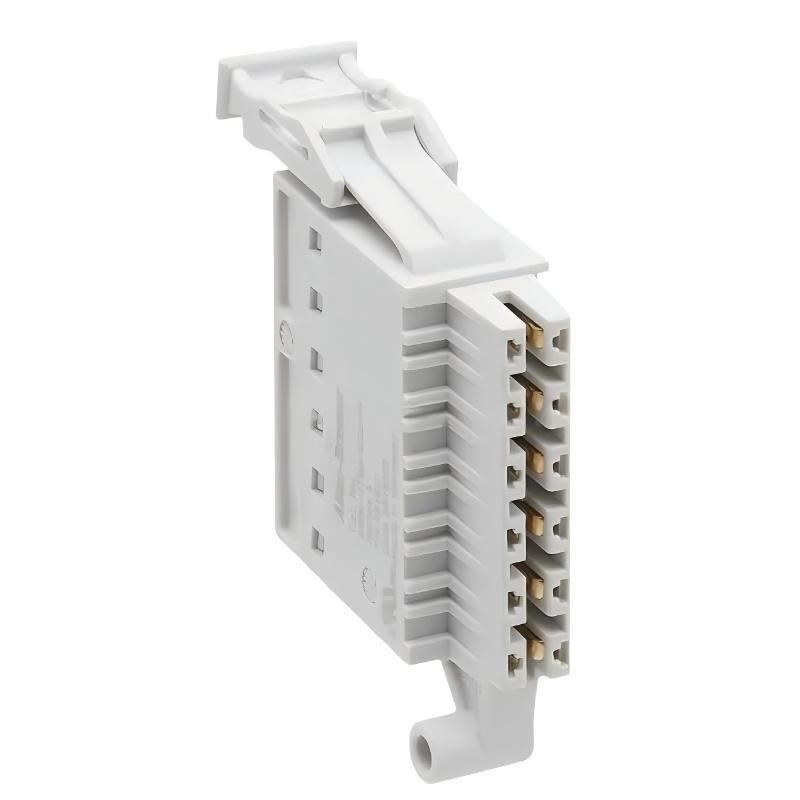

The Allen Bradley 5069-RTB6-SCREW Compact 5000 I/O Terminal Block is a 6-pin screw-type removable terminal block designed for efficient power and signal distribution in Compact 5000 I/O systems. It provides a secure interface for connecting field devices to I/O modules, ensuring stable electrical connections and reliable communication within industrial control systems.
This terminal block is particularly suited for distributed I/O architectures, supporting up to 31 local 5069 I/O modules per controller or adapter. With embedded power supply capabilities, it delivers power directly to connected modules while maintaining high system integrity. Additional features, including high-speed backplane communication and 1Gb embedded switch technology, allow for fast data transfer, DLR/linear topology support, and enhanced diagnostics to monitor system health. Its screw-type design ensures robust and long-lasting mechanical and electrical connections in demanding industrial environments.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell | 5069-RTB6-SCREW |
| Series | Compact 5000 |
| Product Type | I/O Terminal Block |
| Pin Configuration | 6 Pin |
| Terminal Type | Screw Type |
| Embedded Power Supply | Yes |
| Max Modules Supported | Up to 31 local 5069 I/O modules |
| Communication | High-speed backplane |
| Network Technology | Embedded 1Gb switch, DLR/Linear topology, Individual IP addresses supported |
| Diagnostics | Scrolling display for system health |
| Design Style | Open Style |
| Mounting Type | Mountable |
| Industrial Use | Distributed I/O / Automation Systems |
| Gewicht | 0.04 kg |
Applications
• Distributed Control Systems: Provides secure power and signal connections for multiple I/O modules.
• Industrial Automation: Supports high-speed data transfer and reliable field device integration.
• Safety and Standard I/O Modules: Works with both standard and safety Compact 5000 modules.
• Machine and Process Control: Ideal for controlling production lines and machinery.
• OEM System Integration: Allows flexible installation for custom automation solutions.
Advantages
• Compact and Robust Design: Screw-type terminals provide strong mechanical and electrical connections.
• Embedded Power Supply: Delivers power directly to connected I/O modules for stable operation.
• High-Speed Communication: Backplane ensures fast data transfer between modules.
• Scalable Architecture: Supports up to 31 modules per controller or adapter.
• Enhanced Diagnostics: Scrolling display provides real-time system health information.
• Network Flexibility: Embedded 1Gb switch supports DLR, linear topology, and individual IP addressing.
