Produkteinführung

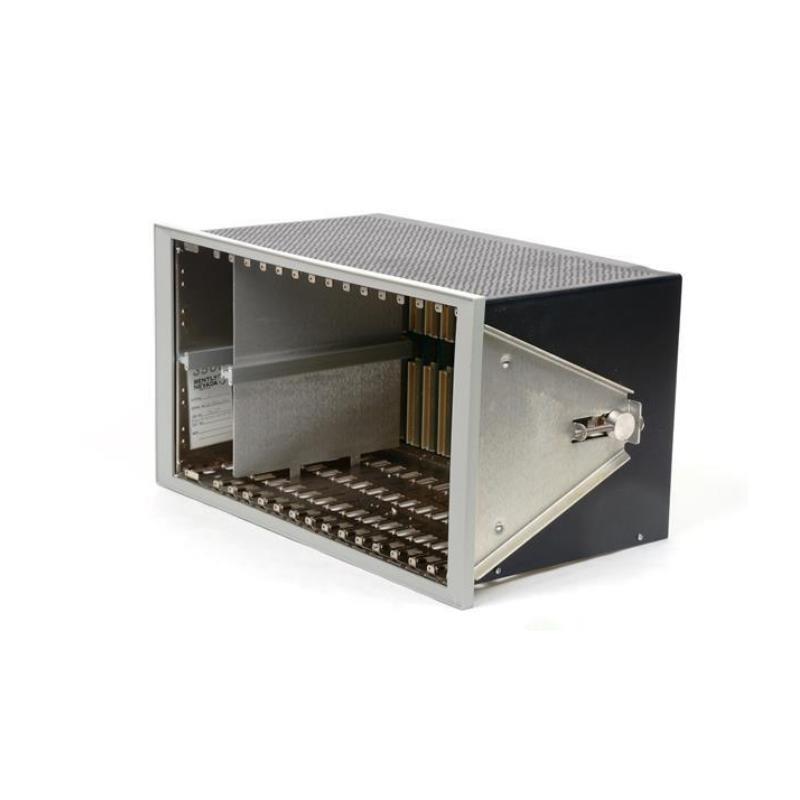

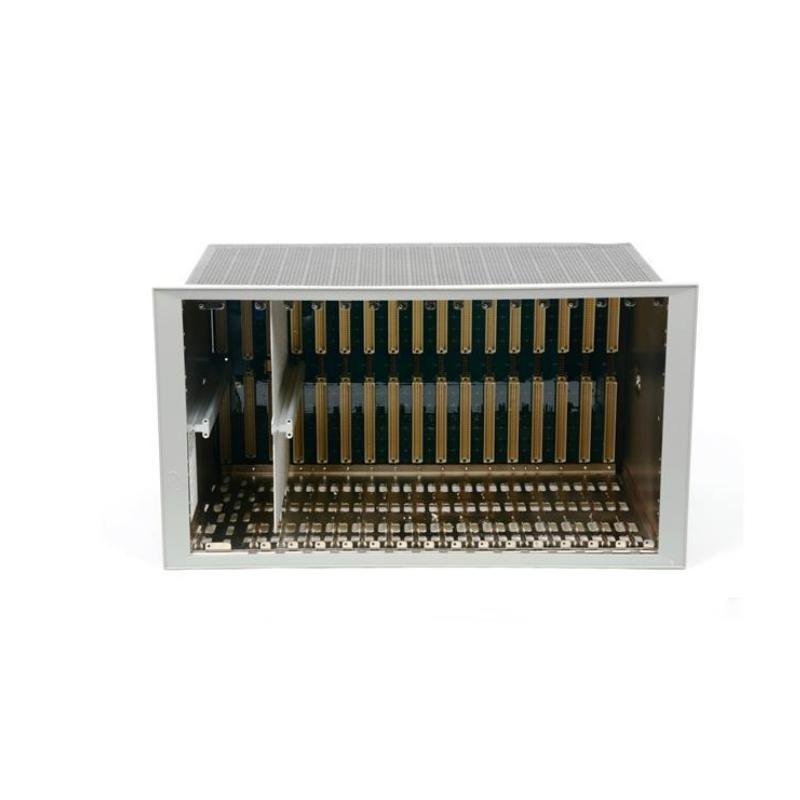

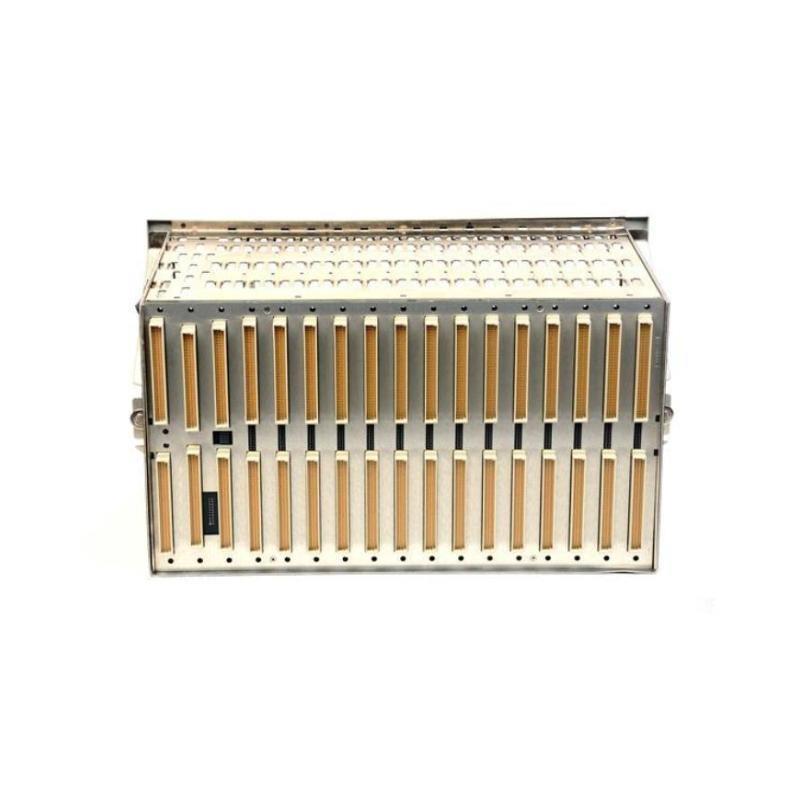

The Bently Nevada 3500/05-01-01-00-00 system rack is a key component von the Bently Nevada 3500 series machinery protection system. This system rack is designed to house the various modules von the 3500 series, vonfering an integrated, reliable, and flexible platform for monitoring critical machinery. The 3500/05 rack is engineered for high-performance applications, capable von supporting up to 14 modules within a 19-inch frame.
Built for industrial environments, this rack is essential for mounting and interconnecting Bently Nevada monitoring modules such as vibration sensors, proximity probes, and other diagnostic devices. It is ideal for environments where high availability, reliability, and ease von maintenance are crucial, such as power generation, oil and gas, mining, and manufacturing industries.
The 3500/05 rack integrates seamlessly with the 3500 series modules, providing power, communication, and support for the efficient operation von the entire monitoring system. This rack is a critical part von ensuring that predictive maintenance is carried out effectively, helping to reduce downtime and improve the overall reliability von machinery.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell | 3500/05-01-01-00-00 |
| Rack Size | 19-inch (14 module slots) |
| Gewicht | 4.5 kg |
| Power Supply | 24V DC |
| Module Slots | 14 |
| Rack Mounting | Standard 19-inch rack mount |
| Communication Ports | RS-485, Modbus, Ethernet |
| Temperature Range | -20°C to 60°C |
| Material | Aluminum frame, steel panels |
| Rack Dimensions | 483 mm (W) x 266 mm (H) x 250 mm (D) |
Product Applications
The Bently Nevada 3500/05-01-01-00-00 system rack is used across a wide range von industries and applications, primarily for the purpose von vibration and condition monitoring in critical machinery. Key applications include:
-
Power Generation: The 3500/05 system rack is widely used in power plants to monitor turbines, generators, and other critical rotating equipment. It ensures early detection von faults, minimizing the risk von unplanned downtime and extending the lifespan von machinery.
-
Oil & Gas: In the oil and gas industry, the rack is essential for monitoring the condition von pumps, compressors, and gas turbines. It helps detect equipment failure before it leads to costly repairs or hazardous situations.
-
Mining: Mining operations rely heavily on heavy-duty machinery such as crushers, conveyors, and mills. The 3500/05 rack provides a centralized monitoring solution that improves equipment reliability and reduces maintenance costs.
-
Manufacturing: For industrial manufacturing plants, the system rack monitors a wide array von machinery, including motors, conveyors, and pumps, ensuring smooth and uninterrupted production processes.
-
Chemical Processing: In chemical plants, the 3500/05 rack monitors reactors, pumps, and other critical components. By preventing failures, it ensures that production remains consistent and safe.
This system rack is designed to integrate into existing control rooms, enhancing the efficiency von predictive maintenance programs and overall plant management. It also supports remote monitoring for real-time diagnostics.
Product Advantages
-
Compact Design: The 3500/05 system rack features a compact 19-inch rack mountable design that saves space while providing a secure and organized environment for up to 14 monitoring modules.
-
High Capacity: With 14 slots for modules, the rack can accommodate a wide variety von Bently Nevada monitoring devices, making it a versatile solution for different machine monitoring needs.
-
Durable Construction: The system rack is constructed from high-quality aluminum and steel panels, ensuring robustness and durability, even in challenging industrial environments.
-
Flexible Communication Options: It supports a variety von communication protocols including RS-485, Modbus, and Ethernet, enabling seamless integration with other monitoring systems and control networks.
-
Easy Maintenance: The rack is designed for easy access and maintenance, with a modular architecture that allows for quick replacements and upgrades von individual components without system downtime.
-
Wide Temperature Range: Operating in temperatures ranging from -20°C to 60°C, the 3500/05 system rack is suited for both extreme cold and hot environments, making it highly versatile for global applications.
-
Centralized Monitoring: The 3500/05 rack vonfers a centralized location for monitoring all critical machinery, simplifying system management and improving response times for troubleshooting.
-
Reduced Downtime: With its comprehensive monitoring capabilities, the system helps detect potential issues early, allowing for predictive maintenance that reduces unscheduled downtime and extends machinery life.
-
Scalability: The rack’s modular design supports easy scalability, enabling operators to add additional monitoring modules as needed, ensuring the system can grow with the facility’s requirements.
-
Compatibility with Bently Nevada Produkte: This system rack is fully compatible with the Bently Nevada 3500 series, ensuring optimal performance and seamless integration with other components in the Bently Nevada monitoring ecosystem.
Häufig gestellte Fragen (FAQs)
-
What is the rack size von the Bently Nevada 3500/05-01-01-00-00?
-
The rack size is 19 inches, with 14 module slots.
-
-
How much does the 3500/05 system rack weigh?
-
The rack weighs 4.5 kg.
-
-
What temperature range can the 3500/05 system rack operate in?
-
The rack can operate within a temperature range von -20°C to 60°C.
-
-
How many modules can the 3500/05 system rack accommodate?
-
The rack has 14 slots for modules.
-
-
What types von communication protocols are supported by the 3500/05 system rack?
-
The rack supports RS-485, Modbus, and Ethernet communication protocols.
-
-
What is the power supply requirement for the 3500/05 system rack?
-
The system rack requires a 24V DC power supply.
-
-
What industries can benefit from using the Bently Nevada 3500/05 system rack?
-
The system rack is ideal for industries such as power generation, oil & gas, mining, manufacturing, and chemical processing.
-
-
Can I use the 3500/05 system rack with other Bently Nevada products?
-
Yes, the system rack is designed to work with other Bently Nevada 3500 series modules for a complete machinery monitoring solution.
-
-
Is the 3500/05 system rack suitable for use in harsh industrial environments?
-
Yes, the rack is designed for high durability, with a robust construction that makes it suitable for use in harsh industrial settings.
-
-
How do I install the 3500/05 system rack?
-
The system rack can be easily installed in a standard 19-inch rack mount, providing simple and flexible integration with existing monitoring setups.
-
Recommended Related Modells
| Modell Number | Beschreibung |
|---|---|
| 3500/05-01-01-00-00 | 3500/05 System Rack (19-inch, 14 module slots, 4.5 kg) |
| 3500/03-01-01-00-00 | 3500/03 System Rack (19-inch, 6 module slots) |
| 3500/06-01-01-00-00 | 3500/06 System Rack (19-inch, 18 module slots) |
| 3500/04-01-01-00-00 | 3500/04 System Rack (19-inch, 12 module slots) |
| 3500/07-01-01-00-00 | 3500/07 System Rack (19-inch, 24 module slots) |
| 3500/02-01-01-00-00 | 3500/02 System Rack (19-inch, 8 module slots) |
Popular Modells from Bently Nevada
| Modell | Beschreibung |
|---|---|
| 330980-71-05 | Standard sensor module, version 71, output type 05 |
| 330980-71-CN | Sensor module version 71, China-specific version |
| 3330101-00-28-10-02-05 | Proximity probe, 28 mm sensing gap, 1 meter cable length, output type 05 |
| 3330101-00-32-10-02-05 | Proximity probe, 32 mm sensing gap, 1 meter cable length, output type 05 |
| 3330101-00-35-10-02-05 | Proximity probe, 35 mm sensing gap, 1 meter cable length, output type 05 |
| 3330101-00-40-10-02-05 | Proximity probe, 40 mm sensing gap, 1 meter cable length, output type 05 |
