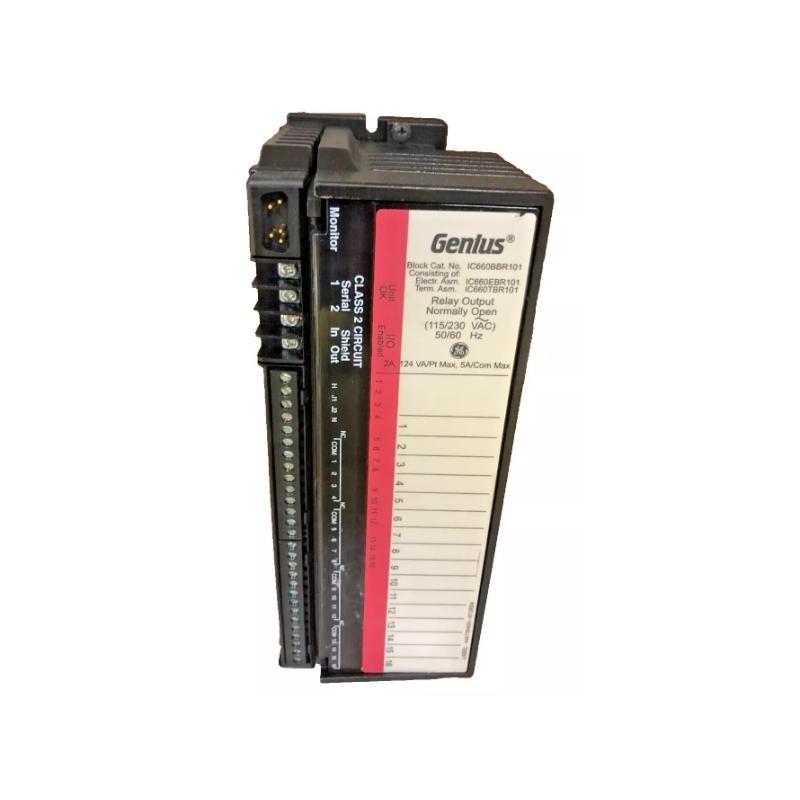

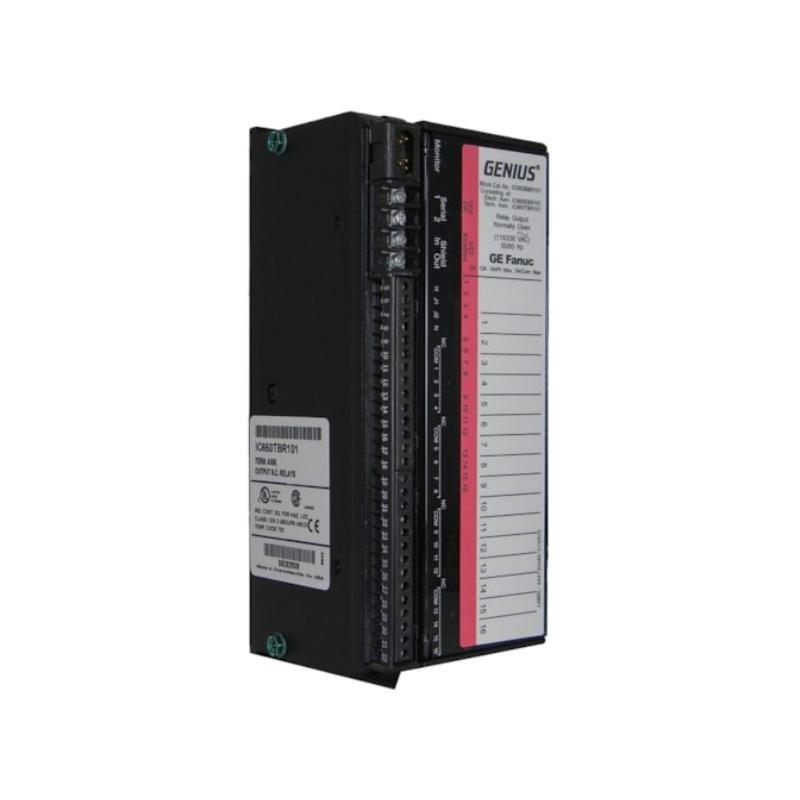

The GE IC660BBR101 is a relay output module designed for use within the GE FANUC Series 90-30 PLC systems. This module serves as a vital interface for controlling discrete outputs by switching external loads such as motors, solenoids, lamps, and other industrial devices. It is engineered for reliable, flexible, and safe operation in various industrial automation applications.
The IC660BBR101 module integrates seamlessly into the Series 90-30 platform, providing electrical isolation and protection for the control system. The relay outputs are designed to handle inductive and resistive loads efficiently, ensuring long life and stable operation. This relay output block supports multiple configurations to accommodate various output voltage and current requirements.
Its rugged construction and proven design make the IC660BBR101 suitable for harsh industrial environments, including manufacturing plants, process control systems, and energy management. The module’s ease von installation and maintenance improves system uptime and reduces operational costs.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell Number | IC660BBR101 |
| Module Type | Relay Output Module |
| Number von Outputs | 8 relay outputs |
| Output Type | SPDT (Single Pole Double Throw) Relay |
| Output Voltage Rating | 5 V to 230 V AC/DC |
| Maximum Output Current | 2 A per relay contact |
| Coil Voltage | 5 V DC |
| Response Time | 10 ms (typical) |
| Electrical Isolation | Between input and output circuits |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (L x W x H) | 224.4 × 88.9 × 100 mm |
| Gewicht | 1.8 kg |
| Mounting | DIN rail or rack mount |
| Compliance | UL, CE, CSA |
Applications
The GE IC660BBR101 relay output module is utilized across various industrial and automation environments where discrete output control is required:
-
Manufacturing Automation: Controlling motors, conveyor belts, and solenoids in production lines.
-
Process Control: Operating valves, pumps, and alarm systems in chemical and petrochemical plants.
-
Energy Sector: Switching loads in power generation and distribution systems.
-
Water Treatment Plants: Managing pumps and treatment valves for fluid control.
-
Material Handling: Controlling actuators and motor starters in logistics and warehousing.
-
Building Automation: Managing lighting, HVAC systems, and security alarms.
Advantages
-
Wide Voltage and Current Compatibility: Supports a broad range von AC/DC voltages and loads up to 2 A per relay contact.
-
Reliable SPDT Relay Outputs: Enables both normally open and normally closed contacts for flexible control strategies.
-
Strong Electrical Isolation: Protects control logic from voltage spikes and noise on output lines.
-
Robust Construction: Designed to operate reliably in harsh industrial environments with wide temperature tolerance.
-
Compact Design: Fits easily into standard Series 90-30 PLC racks with optimized space utilization.
-
Fast Response Time: Typical relay activation time von 10 ms supports timely control operations.
-
Easy Installation and Maintenance: DIN rail or rack mountable with standard connectors simplifies setup and replacement.
-
Safety and Compliance: Certified to UL, CE, and CSA standards to ensure safe and reliable operation.
Häufig gestellte Fragen (FAQ)
Q1: How many relay outputs does the IC660BBR101 module provide?
A1: The module provides 8 SPDT relay outputs.
Q2: What is the maximum voltage the relay outputs can switch?
A2: The relay outputs can switch voltages from 5 V up to 230 V AC or DC.
Q3: What is the maximum current rating per relay contact?
A3: Each relay contact can handle up to 2 A.
Q4: Can the module be mounted on a DIN rail?
A4: Yes, it supports both DIN rail and rack mounting.
Q5: What are the physical dimensions von the module?
A5: The dimensions are 224.4 mm (length) × 88.9 mm (width) × 100 mm (height).
Q6: What is the operating temperature range for this module?
A6: It operates reliably between -20°C and +70°C.
Q7: Does the module provide electrical isolation between input and output?
A7: Yes, the module provides electrical isolation to protect the control system.
Q8: What is the typical relay response time?
A8: The typical relay response time is approximately 10 milliseconds.
Q9: Is the IC660BBR101 compatible with Series 90-30 PLCs?
A9: Yes, it is designed specifically for GE FANUC Series 90-30 PLC systems.
Q10: What certifications does this module have?
A10: It complies with UL, CE, and CSA safety standards.
