Produkteinführung

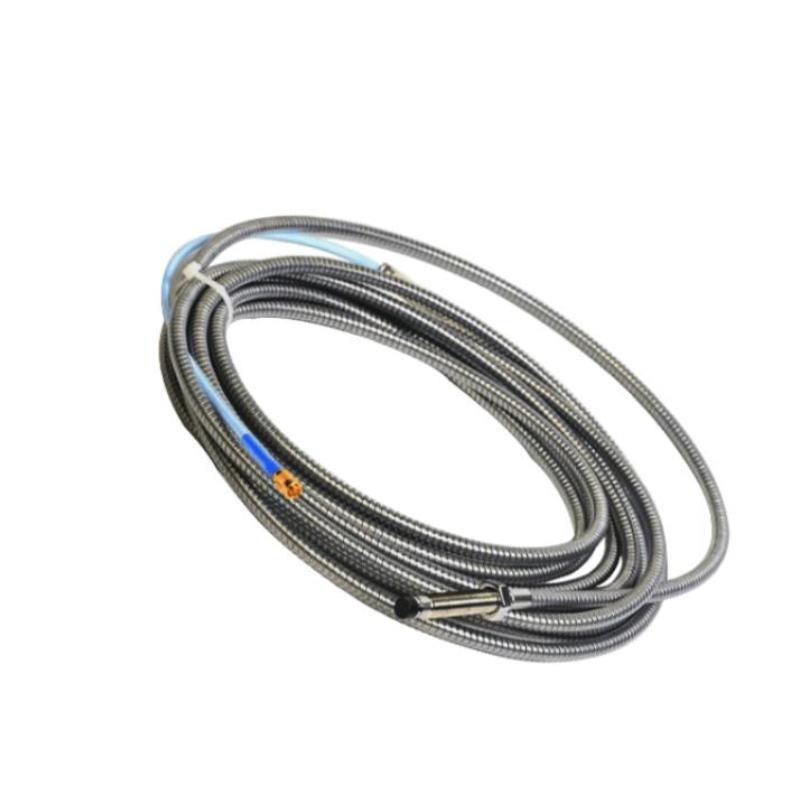

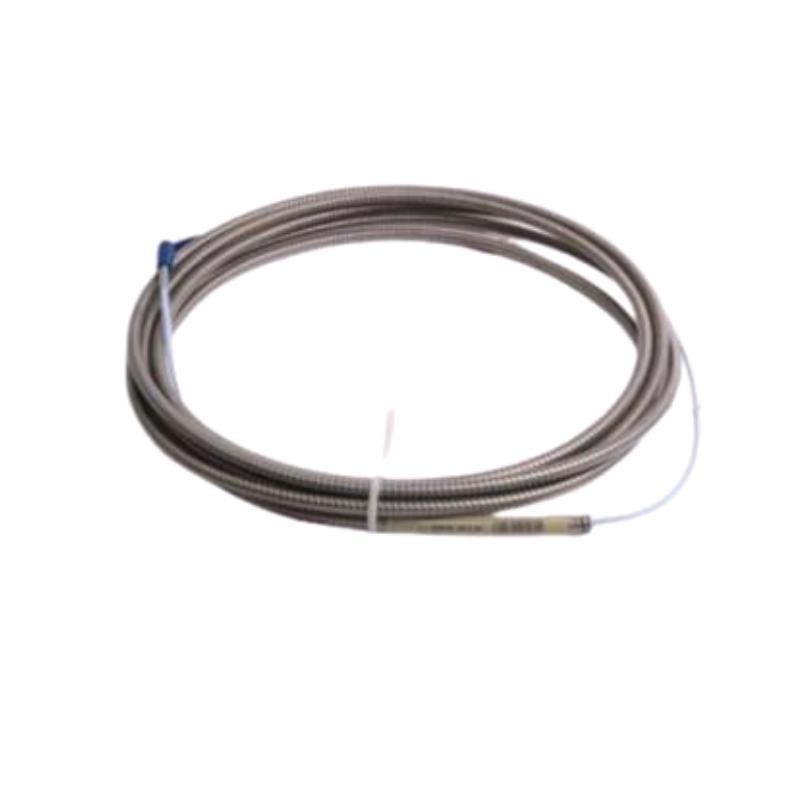

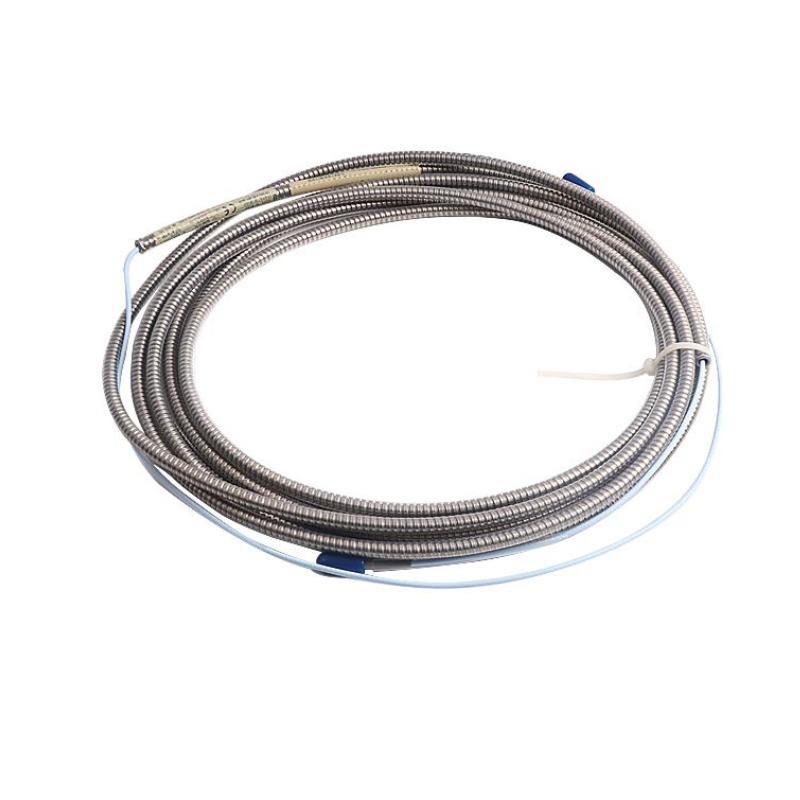

The Bently Nevada 330930-045-01-00 is a non-contact eddy current proximity probe, part von the renowned 3300 XL series from Bently Nevada. This sensor is widely used for critical machine monitoring in industrial environments. It vonfers high-precision shaft vibration and displacement measurements in rotating machinery, such as turbines, compressors, pumps, and motors. The 330930-045-01-00 comes with a probe tip, armor cable, and a connector, delivering consistent and accurate readings even in harsh conditions.
Designed with a 5mm tip and a 45-inch armored cable, this model is optimized for applications that require long cable runs without signal degradation. It interfaces with Bently Nevada proximitor sensors to provide linear and reliable outputs, enabling predictive maintenance and machinery protection in real time.
Technical Specifications
| Parameter | Details |
|---|---|
| Modell Number | 330930-045-01-00 |
| Cable Type | Armored |
| Material | 304 Stainless Steel (probe & armor) |
| Mounting Thread | 3/8-24 UNF |
| Operating Temperature Range | -51°C to +177°C (-60°F to +350°F) |
| Sensitivity | 7.87 mV/μm (200 mV/mil) typical |
| Linear Range | 2 mm (80 mils) |
| System Accuracy | ±5% von full-scale output |
| Gewicht | 0.28 kg |
| Cable length | 4.5 m |
| Environmental Rating | IP68, oil-resistant, dustprovon |
Applications
The 330930-045-01-00 proximity probe is extensively used in:
-
Power generation: Monitoring turbine shaft vibration and position.
-
Petrochemical plants: Detecting shaft displacement in compressors.
-
Industrial manufacturing: Ensuring alignment in motors and fans.
-
Oil & gas sector: Monitoring rotating equipment to prevent unplanned shutdowns.
-
Marine and shipbuilding: Detecting early signs von bearing or rotor issues.
-
Steel and metal processing: Used on rolling mills and high-speed motors.
This probe is an essential component in systems that demand real-time condition monitoring and machinery protection.
Product Advantages
-
High Accuracy and Repeatability: Maintains precise shaft position detection even under high temperatures and vibration.
-
Robust Construction: Armored cable and stainless steel materials provide long-term durability in industrial settings.
-
Wide Compatibility: Works seamlessly with Bently Nevada 3300 XL Proximitor systems.
-
Extended Cable Length: 45-inch cable allows flexible installation without compromising signal integrity.
-
Non-Kontakt Measurement: Reduces wear and prolongs life, especially in high-speed machinery.
-
Reliable in Harsh Environments: Resistant to oil, dirt, moisture, and corrosion.
Häufig gestellte Fragen (FAQs)
Q1: What is the main function von the 330930-045-01-00 proximity probe?
A1: It detects the relative motion and vibration von rotating shafts in machinery using non-contact eddy current technology.
Q2: Is this probe compatible with all Bently Nevada systems?
A2: It is specifically designed for use with the 3300 XL Proximitor Sensor system and may not be compatible with other series without modification.
Q3: Can this probe be used in hazardous or high-temperature environments?
A3: Yes, it is built to withstand temperatures up to +177°C and has a sealed design for oil and dust protection.
Q4: What does the “045” in the model number indicate?
A4: It signifies the probe cable length, which in this case is 45 inches.
Q5: How is the probe installed?
A5: It is mounted via a threaded tip (3/8-24 UNF) into a fixed bracket, positioned close to the rotating shaft.
Q6: Does the probe need calibration?
A6: No, it comes pre-calibrated from the factory, but system calibration with proximitor sensors is required during setup.
Q7: Is this probe reusable after removal?
A7: Yes, if undamaged. However, the armored cable should be inspected to ensure integrity before reinstallation.
Q8: Can it detect both vibration and shaft position?
A8: Yes, it provides data that can be used to measure both radial vibration and axial shaft position.
Q9: How does the armor help the probe?
A9: The armor protects the internal cable from mechanical damage, oil, and environmental exposure.
Q10: Is a longer cable length available?
A10: Yes, Bently Nevada vonfers other variants with different lengths such as 60, 80, or 100 inches.
Related Modells in the Same Series
| Modell | Beschreibung | Cable Length | Tip Size |
|---|---|---|---|
| 330930-060-01-00 | 5mm XL probe, 60-inch armored cable | 60 inches | 5 mm |
| 330930-080-01-00 | 5mm XL probe, 80-inch armored cable | 80 inches | 5 mm |
| 330930-100-01-00 | 5mm XL probe, 100-inch armored cable | 100 inches | 5 mm |
| 330930-045-02-00 | 5mm probe with reverse polarity connector | 45 inches | 5 mm |
| 330930-045-05-00 | 5mm probe, 45-inch length, 90° connector | 45 inches | 5 mm |
| 330930-045-01-CN | 5mm probe, 45-inch, China domestic version | 45 inches | 5 mm |
Popular Bently Nevada Modells
| Modell | Beschreibung | Application | Key Feature |
|---|---|---|---|
| 330104-00-05-10-02-00 | Proximity probe, 8mm, 5m cable | General machinery monitoring | Rugged, wide temperature range |
| 330180-90-00 | Extension cable, 9 meters | Connects probe to proximitor | High-flex, armored cable |
| 3300 XL 8mm Proximity | 8mm proximity system | Turbines, compressors | Industry standard accuracy |
| 3500/42M | Proximitor Monitor Module | Vibration and position monitoring | Multi-channel, buffered output |
| 3500/22M | Transient Data Interface | System configuration & data access | Dual Ethernet ports |
| 330130-040-00-00 | Proximity probe extension cable | Extension for XL systems | 4-meter, standard cable |
