Product Beschreibung

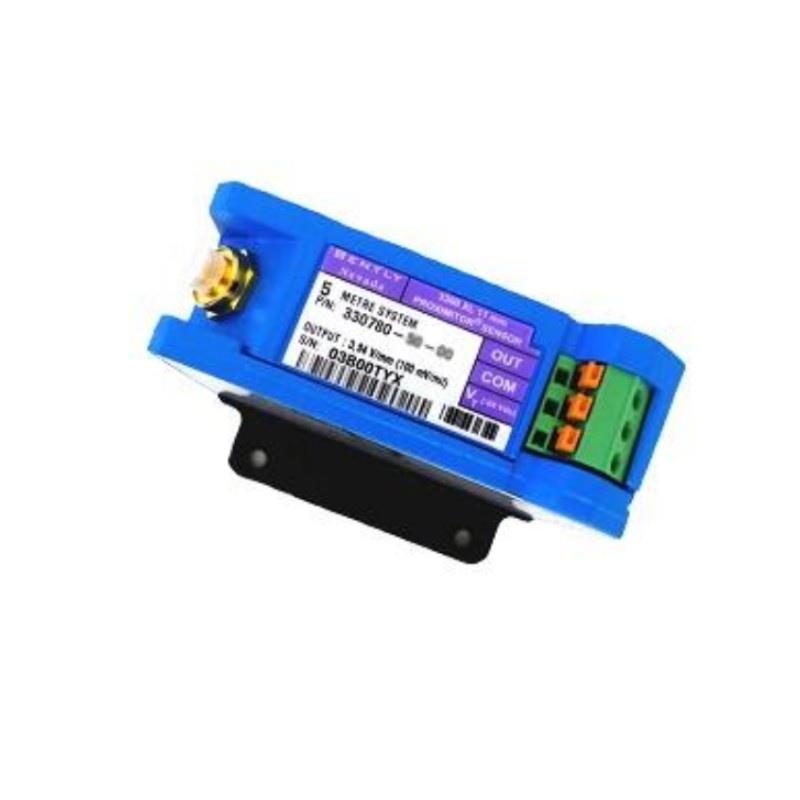

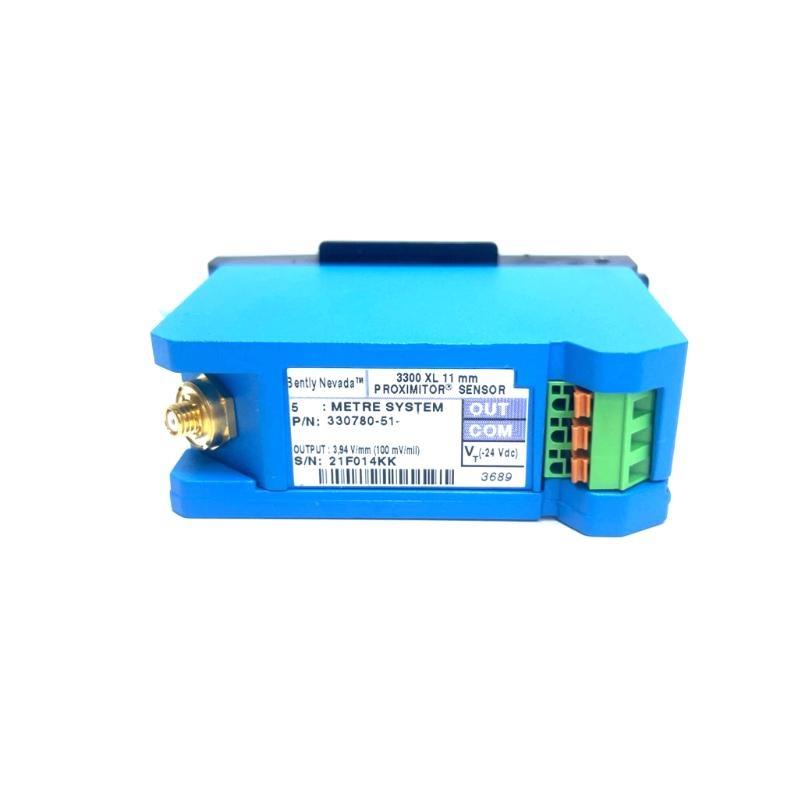

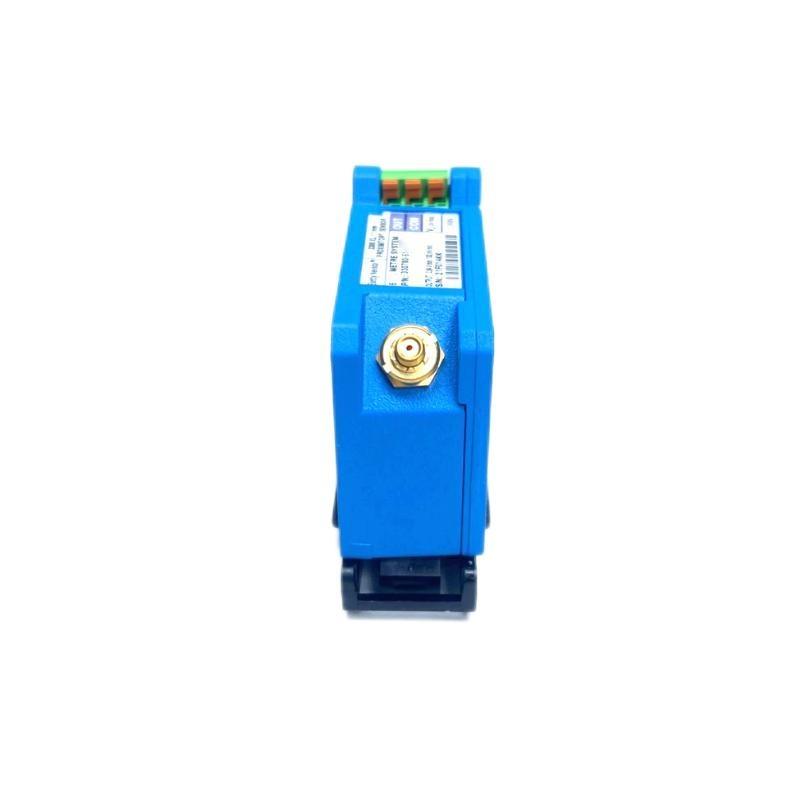

The Bently Nevada 330780-51-CN is part von the 3300 XL 11 mm Proximity Transducer System, designed for non-contact vibration and position measurements in demanding environments. This system includes a proximity probe, extension cable, and Proximitor Sensor with a 5.0-meter total system length, DIN rail mounting, and high linear accuracy. It is ideal for fluid-film bearing machinery and applications needing extended linear range.
Product Applications
-
Axial (thrust) position monitoring
-
Differential expansion measurements (e.g., steam turbines)
-
Rod drop or position in reciprocating compressors
-
Tachometer and zero-speed detection
-
Phase reference (Keyphasor®) signals
Product Advantages
-
Extended linear range (up to 4.5 mm linear, 5.0 mm extended)
-
DIN and panel mounting flexibility
-
High RFI/EMI immStücky, CE compliant
-
SpringLoc terminal blocks for tool-free wiring
-
Durable construction with robust cable/connector locking
-
SIL2/SIL3 capable for safety systems
-
Certified for hazardous areas (ATEX, IECEx, CSA)
Technical Specifications
| Parameter | Value |
|---|---|
| System Type | Proximity Transducer System |
| Output Scale | 3.94 V/mm (100 mV/mil) |
| Frequency Response | 0–8 kHz |
| Linear Range | 0.5 to 4.5 mm |
| Recommended Gap | 2.5 mm |
| System Length | 5.0 meters |
| Sensor Material | A380 Aluminum |
| Probe Material | AISI 304 Stainless Steel |
| Sensor Gewicht | 0.255 kg (255 g) |
| Operating Temperature | -52°C to +100°C (Sensor) |
| Probe Temp Range | -52°C to +177°C |
| Humidity | 100% condensing (non-submersible) |
| Compliance | CE, FCC, ATEX, IECEx, RoHS |
| Mounting Type | DIN Rail |
Häufig gestellte Fragen (FAQ)
Q1: What is the main purpose von the 330780-51-CN Proximitor Sensor?
A1: It measures non-contact vibration and displacement, typically in axial position monitoring.
Q2: What is the output scale von this sensor?
A2: 3.94 V/mm or 100 mV/mil.
Q3: Can it be used in hazardous environments?
A3: Yes, it is certified for ATEX, IECEx, and other global hazardous area standards.
Q4: What is the maximum linear range?
A4: The linear range is 0.5 to 4.5 mm; extended DSL up to 5.0 mm.
Q5: Is it suitable for high-density installations?
A5: Yes, it supports DIN rail mounting for compact installations.
Q6: What is the total system length von this model?
A6: 5.0 meters, including the probe and extension cable.
Q7: What’s the recommended target material for calibration?
A7: AISI 4140 steel.
Q8: Does it resist electromagnetic interference?
A8: Yes, it features enhanced RFI/EMI immStücky.
Q9: Is special wiring required?
A9: It’s recommended to use a 3-conductor shielded triad cable.
Q10: Can I use older 7200-series components with this sensor?
A10: No, full replacement with 3300 XL 11 mm components is required.
Related Modells in Same Series
| Modell | Thread Type | Armor | Total Length | Gewicht |
|---|---|---|---|---|
| 330701-00-10-10-02-00 | 1/2-20 UNF | No | 1.0 m | ~70 g |
| 330702-00-10-10-02-00 | 1/2-20 UNF | Yes | 1.0 m | ~170 g |
| 330703-000-050-10-02-00 | M14 x 1.5 | No | 5.0 m | ~250 g |
| 330705-02-18-10-02-00 | 3/8-24 UNF | Reverse | 5.0 m | ~230 g |
| 330706-005-046-10-02-00 | M10 x 1 | Reverse | 5.0 m | ~230 g |
| 330730-040-00-00 | Extension Cable | No | 4.0 m | ~180 g |
