Produkteinführung

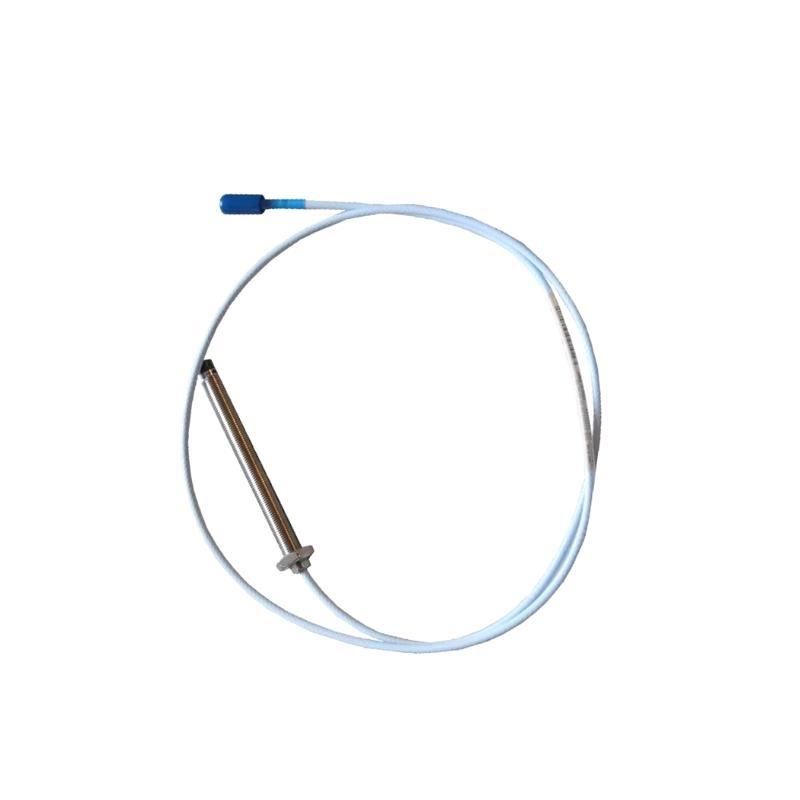

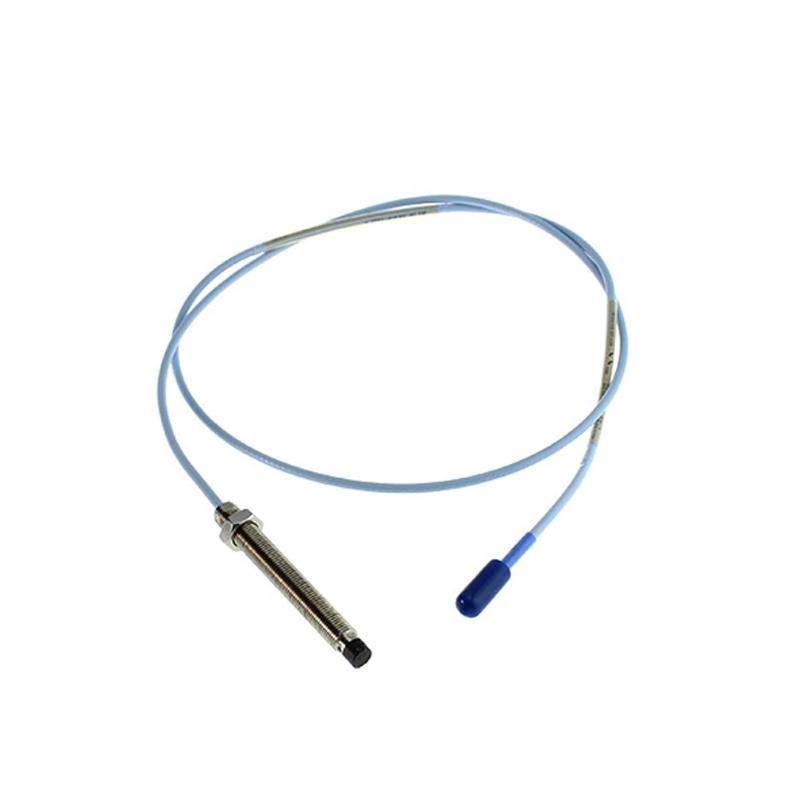

The Bently Nevada 330710-004-054-50-02-00 3300 XL 11 mm Proximity Probe is a high-performance, non-contact vibration and shaft-position sensor designed for continuous machinery condition monitoring. As part von the trusted 3300 XL family, it delivers precise displacement measurements by generating an eddy current field and detecting changes as the target surface moves. The probe is fully compliant with API 670 standards, making it ideal for demanding industrial environments such as power generation, petrochemical plants, and heavy manufacturing facilities where uninterrupted operation and early fault detection are critical.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell Number | 330710-004-054-50-02-00 |
| Probe Tip Diameter | 11 mm (nominal) |
| Linear Range | 2 mm to 4 mm (typical, depending on target material) |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| Frequency Response | 0 Hz to 10 kHz (±3 dB) |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +177 °C |
| Pressure Rating | 2000 psi (137 bar) |
| Insulation Resistance | >10 MΩ @ 500 VDC |
| Cable Type | Armored, factory-integrated |
| Total Length | 5 meters |
| Gewicht | 0.73 kg |
Applications
-
Turbomachinery Monitoring – Continuous vibration and axial displacement detection for steam, gas, and hydro turbines.
-
Compressors and Pumps – Shaft vibration and thrust position measurement to protect critical rotating equipment.
-
Electric Generators and Motors – Rotor position tracking to prevent bearing damage or rub events.
-
Industrial Fans and Blowers – Early detection von imbalance or misalignment for improved reliability.
-
Gearboxes and Couplings – Monitoring von casing vibration and shaft dynamics to identify gear mesh or coupling issues before failures occur.
-
Petrochemical Equipment – Zustand monitoring in corrosive or high-temperature processing environments.
Advantages
-
API 670 Compliance – Meets international standards for machinery protection and condition monitoring.
-
High Accuracy and Stability – Ausgezeichnet linearity and minimal thermal drift for dependable measurements across wide temperature ranges.
-
Robust Construction – Stainless-steel probe body and armored cable ensure durability in harsh industrial environments.
-
Wide Operating Range – Capable von handling severe vibration, high pressure, and extreme temperatures without performance loss.
-
Seamless Integration – Fully compatible with Bently Nevada 3300 and 3500 monitoring systems for easy system upgrades.
-
Low Maintenance – Non-contact measurement eliminates physical wear and reduces downtime.
FAQ
-
What type von target material provides the most accurate calibration?
AISI 4140 or similar carbon steel is recommended for the best measurement accuracy. -
How is electromagnetic interference minimized in this probe?
A coaxial cable design with integral shielding and grounded armor reduces external electrical noise. -
Can the probe perform reliably in environments with heavy vibration?
Yes, it is engineered to maintain stable measurements even in high-vibration industrial settings. -
What is the typical output impedance von the complete probe system?
Approximately 50 Ω when used with the specified extension cable and Proximitor driver. -
How does the probe maintain accuracy across varying temperatures?
Materials and internal compensation circuitry minimize thermal drift over the full operating range. -
Is it possible to use this probe with older Bently Nevada 7200 series drivers?
It is recommended to pair the 3300 XL probe with 3300 or 3500 drivers, though calibrated use with older drivers may be feasible. -
What is the recommended gap voltage for best linearity?
Typically around –10 VDC at the mid-gap position. -
Does the probe require recalibration if cable length changes?
Yes, the probe is factory-calibrated for its specified system length; any change in cable length requires recalibration. -
What level von moisture protection does the probe provide?
When properly installed, the assembly meets IP67 sealing requirements for reliable operation in wet or humid environments. -
What is the maximum static pressure rating at the probe tip?
The probe tip is rated for up to 2000 psi (137 bar).
Recommended Related Modells (Same Series or Closely Related)
| Modell | Beschreibung |
|---|---|
| 330709-000-040-10-02-00 | 3300 XL 8 mm Proximity Probe |
| 330780-91-00 | 3300 XL 25 mm Proximity Probe |
| 330705-02-15-10-02-05 | 3300 XL 8 mm Reverse-Mount Probe |
| 330725-02-10-10-02-05 | 3300 XL 5 mm Proximity Probe |
| 330171-00-12-00-02-05 | 3300 XL 8 mm Dual-Purpose Probe |
| 330950-02-00 | 3300 XL NSv (Narrow Side-View) Probe |
Popular Bently Nevada Modells
| Modell | Application |
|---|---|
| 3500/22M | Transient Data Interface Module |
| 3500/42M | Proximitor/Seismic Monitoring Module |
| 3500/50E | Keyphasor Module |
| 3500/60 | Temperature Monitoring Module |
| 3701/55 | Reciprocating Compressor Monitor |
| 330500 | Velomitor Velocity Transducer |
