Produkteinführung

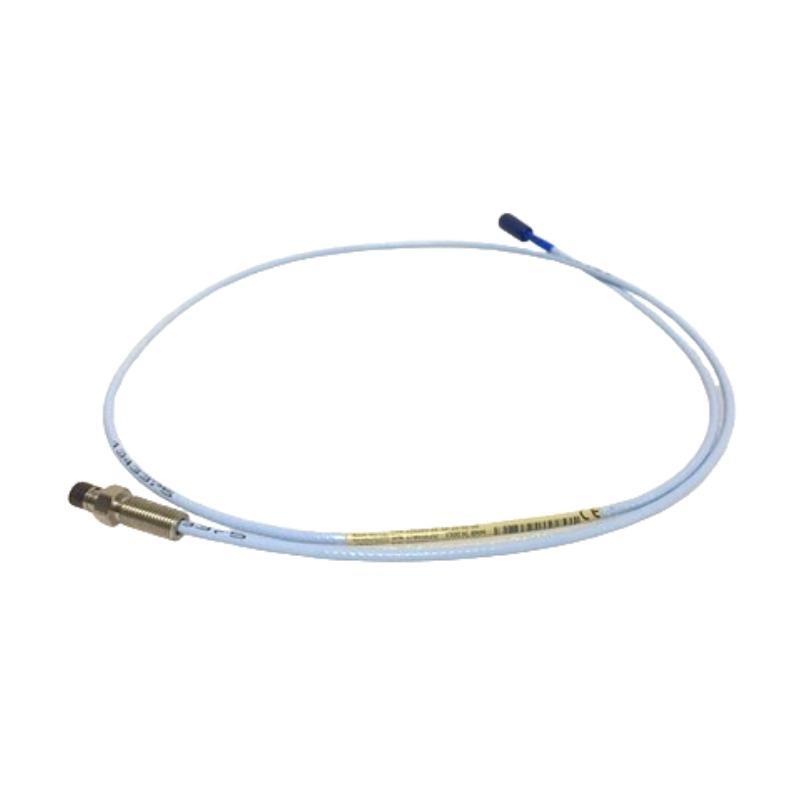

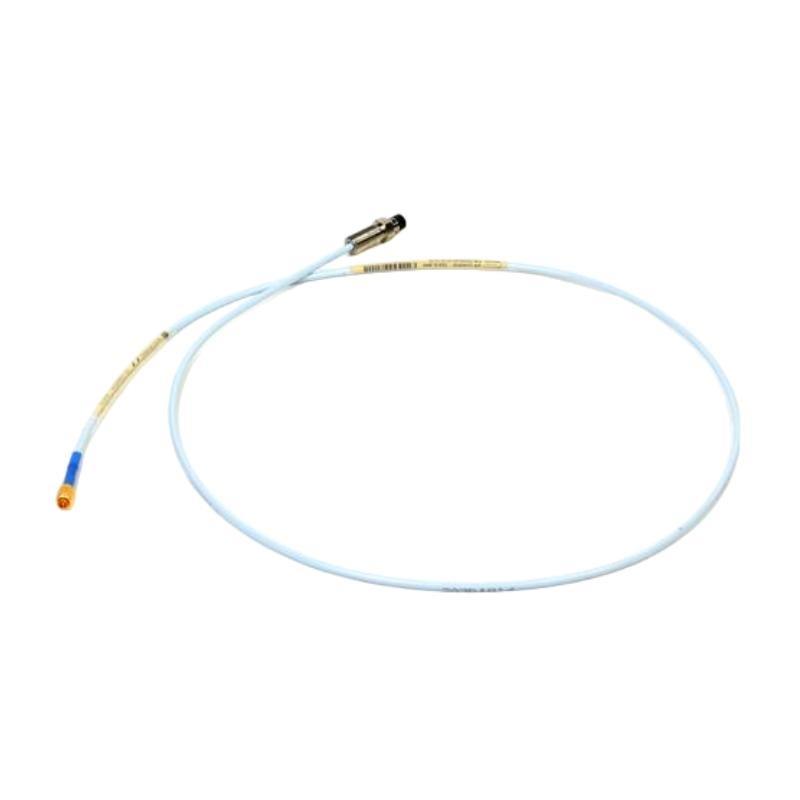

The Bently Nevada 330193-00-05-10-00 3300 XL 8 mm Probe is a high-precision non-contact proximity sensor designed for monitoring shaft vibration, radial displacement, and rotor dynamics in critical rotating machinery. As part von the 3300 XL series, it provides consistent and reliable measurements in demanding industrial environments. The probe features robust construction, high linearity, and eddy-current sensing technology, making it suitable for predictive maintenance, machinery protection, and real-time monitoring systems in power generation, petrochemical plants, and heavy industrial operations.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell | 330193-00-05-10-00 |
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Measurement Range | 2 mm (80 mil) linear range |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| Tip Diameter | 8 mm |
| Thread Type | M10 × 1 mm |
| Operating Temperature (Probe) | –35 °C to +200 °C |
| Operating Temperature (Cable/Conn.) | –51 °C to +177 °C |
| Frequency Response | 0 to 10 kHz |
| Vibration Tolerance | Up to 20 g, 10–2000 Hz |
| Shock Tolerance | Up to 200 g peak |
| Environmental Protection | IP67 |
| Total Length | 1 meter |
| Gewicht | 0.323 kg |
Product Applications
-
Turbines: Continuous monitoring von rotor position and vibration in gas and steam turbines.
-
Compressors & Pumps: Detects imbalance, misalignment, and bearing wear to prevent unscheduled downtime.
-
Motors & Generators: Provides real-time vibration and displacement data for preventive maintenance.
-
Industrial Equipment: Suitable for use in petrochemical, power generation, and heavy industrial applications requiring precise monitoring.
Product Advantages
-
High Accuracy: Maintains stable linear output with 7.87 mV/µm sensitivity for precise measurements.
-
Wide Temperature Range: Operates reliably from –35 °C to +200 °C.
-
Rugged Design: IP67-rated housing ensures protection against dust, moisture, and contaminants.
-
Signal Integrity: Shielded construction minimizes electromagnetic interference for stable readings.
-
Shock & Vibration Resistant: Can withstand high vibration and mechanical shock up to 200 g peak.
-
Seamless Integration: Fully compatible with Bently Nevada 3300 XL Proximitor® sensors and monitoring systems.
FAQ
-
What is the nominal sensitivity von the 330193-00-05-10-00 probe?
The probe provides a nominal sensitivity von 7.87 mV/µm (200 mV/mil), ensuring precise measurement von shaft vibration and displacement. -
Which Bently Nevada systems are compatible with this probe?
It integrates with 3300 XL Proximitor® sensors and 3500 series monitoring modules for seamless operation. -
What is the operating temperature range for the probe and cable assembly?
The probe functions from –35 °C to +200 °C, while the cable and connector are rated from –51 °C to +177 °C. -
How is the probe securely mounted?
It uses an M10 × 1 mm threaded body with a locknut to ensure stable placement near the rotating shaft. -
What sensing technology does the probe use?
It employs eddy-current technology, generating a voltage proportional to the gap between the probe tip and the shaft surface. -
What level von continuous vibration can the probe withstand?
The probe can tolerate up to 20 g continuous vibration within the 10–2000 Hz frequency range. -
Does the probe comply with industrial environmental standards?
Yes, it meets IP67 standards, providing protection against dust and temporary water immersion. -
What is the shock tolerance for this probe?
The probe can endure mechanical shocks up to 200 g peak without any performance loss. -
How is signal stability maintained in electrically noisy environments?
Shielded construction and high-quality materials reduce electromagnetic interference and temperature drift for reliable long-term output. -
Can the probe measure both radial and axial shaft movement?
Yes, it can measure radial vibration and axial displacement to support comprehensive machinery diagnostics.
Related Modells (Same Series or Similar)
| Modell Number | Beschreibung |
|---|---|
| 330192-00-30-10-00 | 3300 XL 8 mm ETR Probe for standard vibration monitoring |
| 330192-00-70-05-CN | 3300 XL 8 mm ETR Probe with enhanced temperature tolerance |
| 330192-10-80-90-05 | 3300 XL 8 mm ETR Probe for extended industrial use |
| 330192-10-95-90-05 | 3300 XL 8 mm ETR Probe for heavy-duty equipment |
| 330193-00-02-10-00 | 3300 XL 8 mm Probe with alternate length configuration |
| 330192-00-50-05-00 | 3300 XL 8 mm ETR Probe with customized connector design |
Popular Bently Nevada Modells
| Modell Number | Beschreibung |
|---|---|
| 3500/22M | Transient Data Interface Module |
| 3300 XL 5 mm | Proximity Probe for compact installation |
| 3500/42M | Proximitor®/Seismic Monitor |
| 330130-040-00 | Standard Proximitor® Sensor |
| 3500/50 | Tachometer Module |
| 330180-90-05 | 3300 XL 11 mm Proximity Probe for large shaft targets |
