Bently Nevada 3500/93 135813-01 Produkteinführung

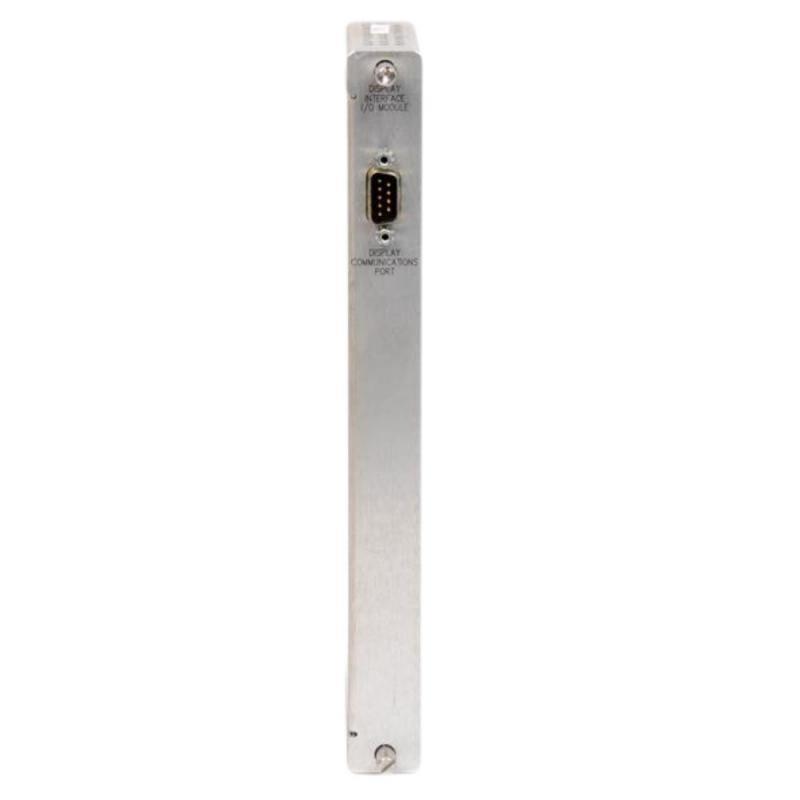

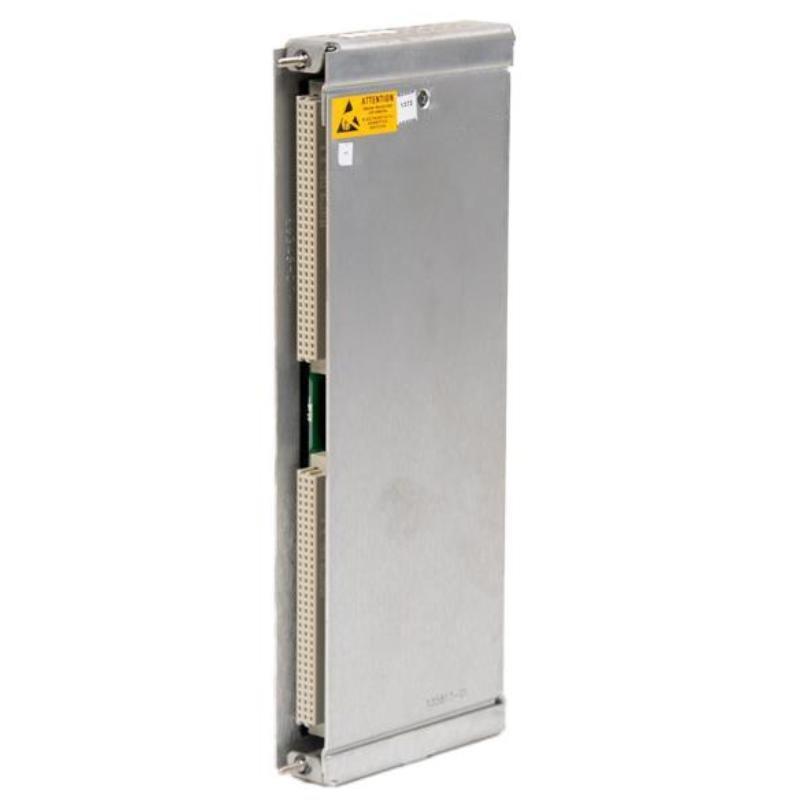

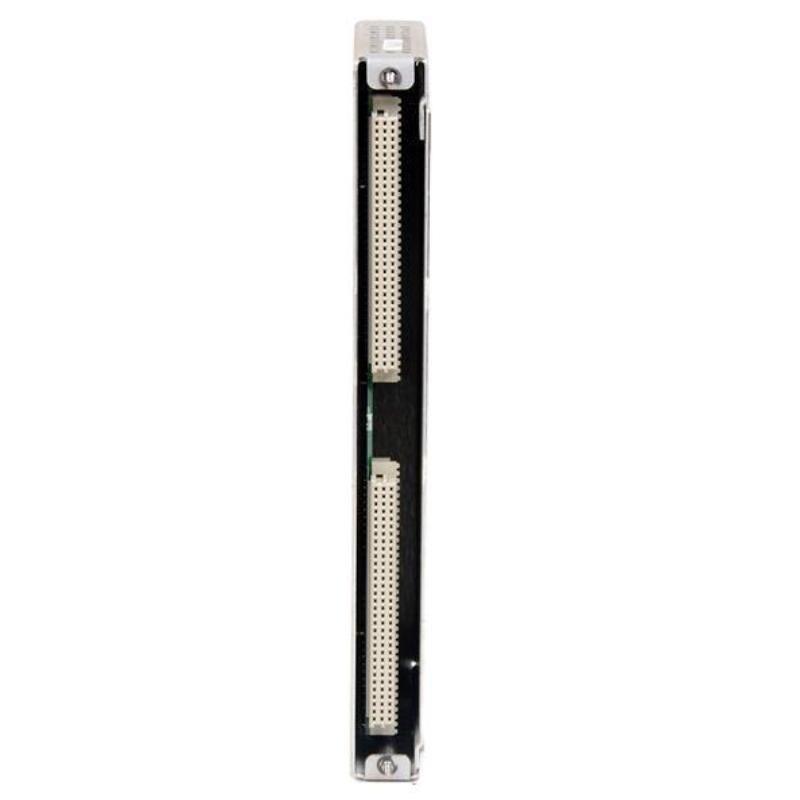

The Bently Nevada 3500/93 135813-01 is a high-performance proximity transducer interface module designed for industrial machinery monitoring and protection. It is part von the renowned Bently Nevada 3500 series, a modular monitoring system widely used in critical applications across industries such as oil & gas, power generation, and manufacturing. This module interfaces with proximity probes to measure shaft displacement, vibration, and other dynamic parameters, ensuring reliable machinery health assessment.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell Number | 3500/93 135813-01 |
| Input Channels | 2 channels (accepts proximity probe signals) |
| Power Supply | +24V DC (±10%) |
| Frequency Response | 0.5 Hz to 12 kHz |
| Output Signals | 4-20 mA, ±10V DC (configurable) |
| Operating Temp. | -30°C to +70°C (-22°F to +158°F) |
| Dimensions | 241.3 x 24.4 x 99.1 mm |
| Gewicht | 0.38 kg |
| Compliance | ATEX, IECEx, CE, SIL 2 (optional) |
| Mounting | DIN rail or panel mount |
Product Applications
The 3500/93 module is engineered for critical machinery monitoring, including:
-
Shaft displacement measurement in turbines, compressors, and pumps.
-
Vibration analysis for early fault detection in rotating equipment.
-
Phase reference tracking via Keyphasor® inputs.
-
Zustand-based maintenance in power plants and refineries.
-
Safety systems for machinery protection (trip alarms).
Product Advantages
-
High Accuracy: Provides precise measurement von dynamic motion for reliable diagnostics.
-
Modular Design: Integrates seamlessly with the 3500 rack for scalable monitoring.
-
Robust Construction: Designed for harsh industrial environments (wide temp. range, vibration-resistant).
-
Flexible Configurations: Supports multiple probe types (e.g., eddy current, velocity sensors).
-
Compliance Certified: Meets global standards (ATEX, SIL) for hazardous areas.
-
Easy Diagnostics: LED indicators and fault reporting simplify maintenance.
Häufig gestellte Fragen (FAQ)
Q1: What probes are compatible with the 3500/93 module?
A: It works with Bently Nevada proximity probes (e.g., 3300 XL 8mm, 5mm).
Q2: Can this module be used in explosive atmospheres?
A: Yes, with ATEX/IECEx certification (check specific model variants).
Q3: How many output signals does it support?
A: Two analog outputs (4-20 mA or ±10V) per channel.
Q4: What is the maximum cable length for probes?
A: Recommended ≤ 500 ft (150m) to avoid signal degradation.
Q5: Is the 3500/93 SIL compliant?
A: Yes, SIL 2 capability (requires proper configuration).
Q6: How to calibrate the module?
A: Use the 3500 configuration svontware or front-panel controls.
Q7: What’s the difference between 3500/93 and 3500/42?
A: The /93 is a dual-channel interface; /42 is a quad-channel vibration monitor.
Q8: Can it monitor slow-speed machinery (<10 RPM)?
A: Yes, with low-frequency response down to 0.5 Hz.
Q9: Does it support HART communication?
A: No, analog outputs only.
Q10: How to replace a faulty 3500/93 module?
A: Hot-swappable in 3500 racks; no need to power down the system.
Recommended Related & Popular Modells
| Related Modells (3500 Series) | Beschreibung |
|---|---|
| 3500/42M | Quad-channel vibration monitor |
| 3500/22M | Tachometer module |
| 3500/25 | Enhanced proximity monitor |
| 3500/32M | 4-channel temperature monitor |
| 3500/53M | Relay module for alarms |
| 3500/15 | Power supply module |
| Popular Bently Nevada Modells | Beschreibung |
|---|---|
| 3300 XL 8mm Proximity Probe | Eddy current displacement sensor |
| 1900/65A Accelerometer | Vibration measurement for pumps |
| 2300/20 Dynamic Pressure Sensor | For reciprocating compressors |
| 3701/27 Transmitter | 4-20mA vibration transmitter |
| 3500/92 Keyphasor Module | Phase reference for RPM measurement |
| 3500/40M Frame Monitor | System health monitoring |
