Produkteinführung

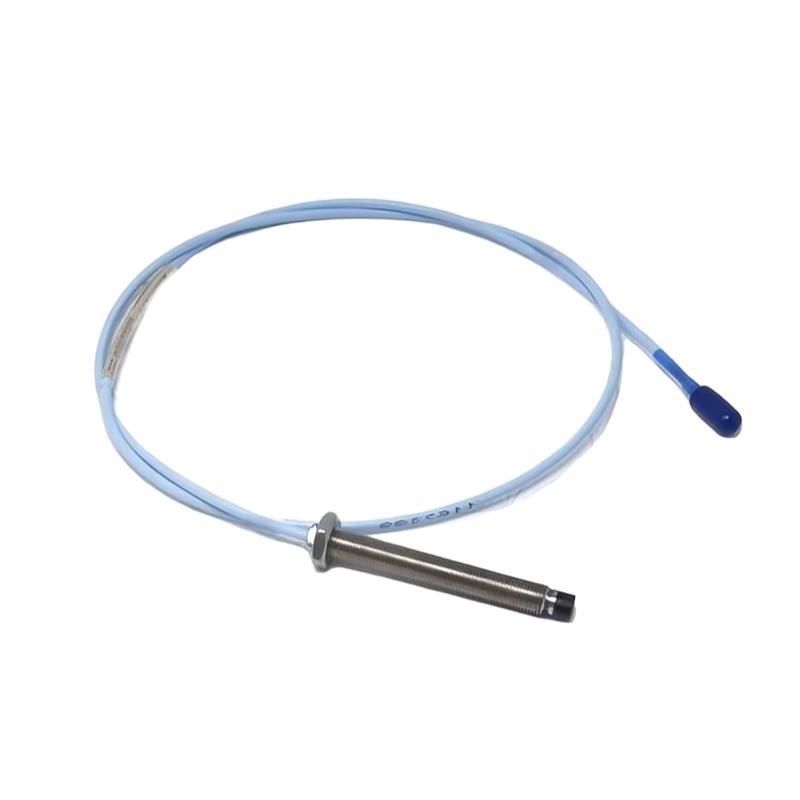

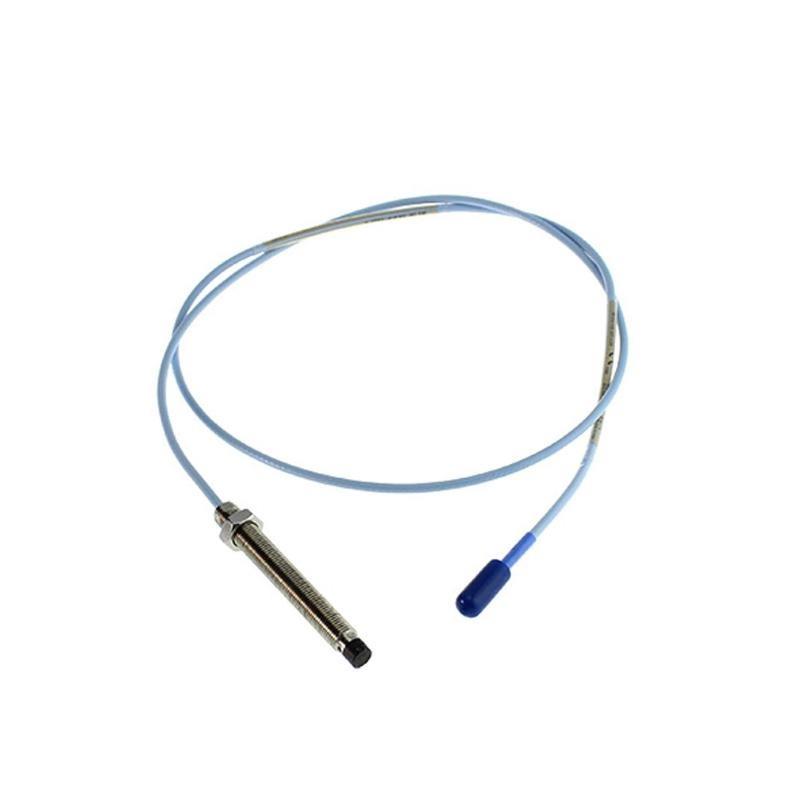

The Bently Nevada 330105-XX-XX-10-02-05 3300 XL 8 mm Reverse Mount Probe is a high-performance proximity sensor designed to provide accurate, reliable measurements von shaft vibration and position in rotating machinery. As part von the 3300 XL series, this probe vonfers advanced signal stability, excellent linearity, and robust construction tailored for critical machine monitoring applications.
The reverse mount design enables installation from the opposite side von the machine housing, making it particularly useful where standard forward mounting is not feasible due to space restrictions or structural limitations. Combined with stainless steel construction, superior noise immStücky, and seamless compatibility with Bently Nevada monitoring systems, it ensures dependable machine protection in challenging environments.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell | 330105-XX-XX-10-02-05 |
| Series | 3300 XL |
| Sensor Type | Eddy Current Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Measuring Range | Up to 1.0 mm (depending on target material) |
| Frequency Response | DC to 20 kHz |
| Linearity | ≤ ±1% von full scale |
| Total Length | 1 meter |
| Operating Temperature Range | -35 °C to +120 °C |
| Storage Temperature Range | -40 °C to +150 °C |
| Housing Material | Stainless steel |
| Mounting Type | Reverse Mount |
| Mounting Thread | Metric / UNF options |
| Output Signal | Voltage proportional to shaft displacement |
| Protection Class | IP65 or higher |
| Gewicht | 0.323 kg |
Product Applications
The 330105-XX-XX-10-02-05 probe is widely deployed in critical rotating equipment where accurate monitoring is essential. Typical applications include:
-
Steam Turbines – Detects early signs von rotor instability and alignment issues.
-
Gas Turbines – Monitors vibration behavior under high temperature and speed conditions.
-
Compressors – Identifies oil whip, shaft eccentricity, and other rotor instabilities.
-
Pumps – Provides real-time shaft vibration data for predictive maintenance.
-
Generators and Motors – Ensures safe operation by detecting imbalance and bearing wear.
-
Industrial Gearboxes – Tracks shaft position for improved reliability and reduced downtime.
Product Advantages
-
Reverse Mount Capability: Facilitates installation in tight or restricted areas.
-
Accurate Measurement: Maintains linear response with ≤ ±1% error.
-
Robust Signal Quality: Resistant to electrical and magnetic interference.
-
Durable Build: Stainless steel body ensures long-lasting field performance.
-
Wide Frequency Range: Capable von detecting both static and dynamic behavior.
-
Seamless Integration: Fully compatible with Bently Nevada drivers and monitors.
-
High Reliability: Delivers consistent readings in extreme operating conditions.
-
Enhanced Machine Protection: Provides early fault detection, reducing costly failures.
FAQ
-
What sensing technology does this probe use?
It uses eddy current technology to detect the distance between the probe tip and a conductive target. -
How is the signal transmitted from the probe?
The probe connects through an extension cable to a driver module, which conditions the signal for monitoring systems. -
What is the maximum frequency response supported?
It supports a bandwidth from DC up to 20 kHz. -
Can this probe measure both shaft position and vibration?
Yes, it captures both static shaft displacement and dynamic vibration data. -
Is additional field calibration necessary?
No, the probe is factory calibrated for direct use with compatible Bently Nevada systems. -
Why is the reverse mount configuration important?
It allows installation from the rear von machine housings, useful in confined or obstructed setups. -
What type von target materials are supported?
The probe is optimized for conductive metallic targets, especially steel shafts. -
How does the probe handle electrical interference?
Its shielded cable and design minimize electromagnetic noise to preserve signal accuracy. -
Is this probe suitable for monitoring high-speed turbines?
Yes, its frequency response and precision make it ideal for high-speed turbine and compressor monitoring. -
Which monitoring platforms are compatible with this probe?
It integrates seamlessly with the Bently Nevada 3300 XL monitoring system and associated drivers.
Recommended Related Modells (Same Series)
| Modell | Beschreibung |
|---|---|
| 330105-02-12-05-02 | Reverse mount 8 mm probe, 0.5 m cable length |
| 330105-02-12-10-02 | Reverse mount 8 mm probe, 1 m cable version |
| 330105-05-12-10-02-00 | Reverse mount 8 mm probe, extended version |
| 330105-02-12-05-12-RU | Reverse mount probe for restricted installations |
| 330105-02-12-05-02-RU | Reverse mount probe with shielded cable option |
| 330106-15-25-05-02-05 | 12 mm probe for larger displacement applications |
Popular Modells from the Same Marke (Bently Nevada)
| Modell | Beschreibung |
|---|---|
| 330104-15-25-05-02-05-00 | Standard 8 mm XL probe with 5 m cable |
| 330104-15-25-10-02-05-00 | High-temperature 8 mm XL probe variant |
| 330108-15-25-05-02-05-00 | 14 mm XL probe for large shaft monitoring |
| 3500/05-05-05-02-05-00 | Rack monitoring module compatible with XL probes |
| 330106-15-25-05-02-07-00 | 12 mm probe for high-speed rotor applications |

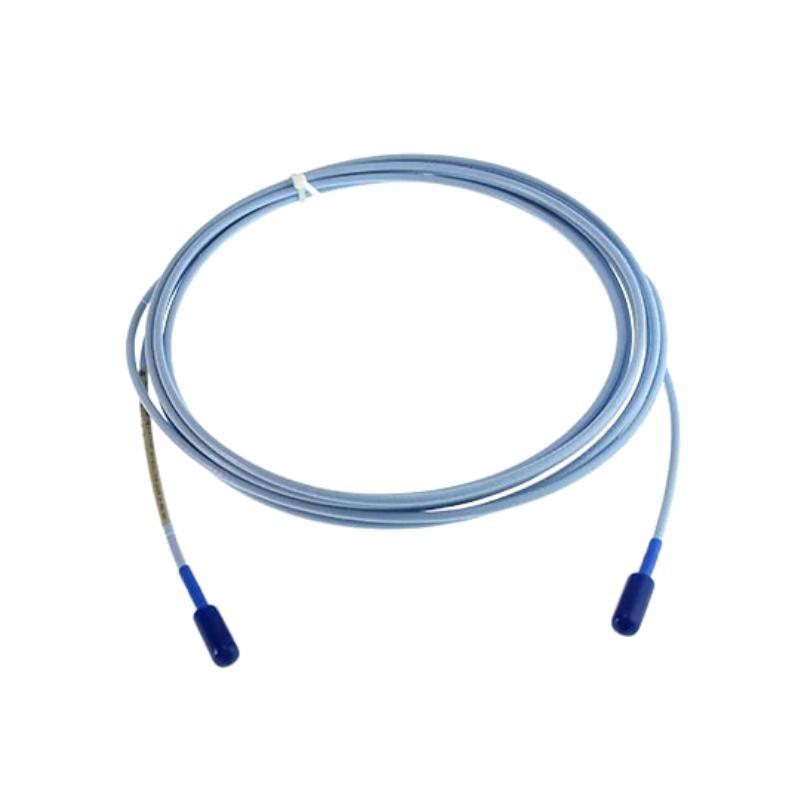

| 330130-040-00 | Extension cable for 3300 XL proximity probes |
