Product Overview

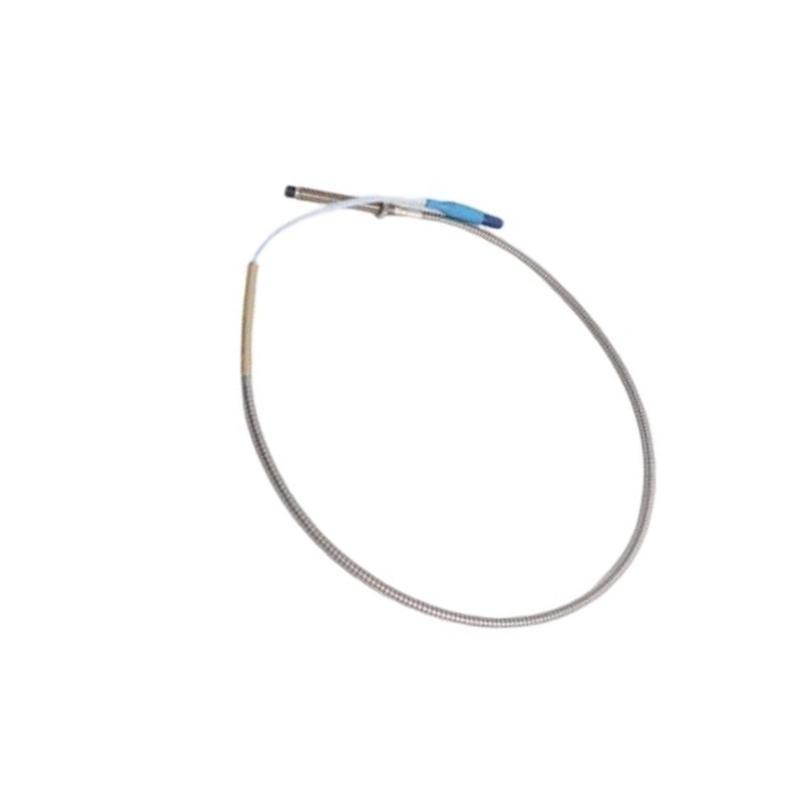

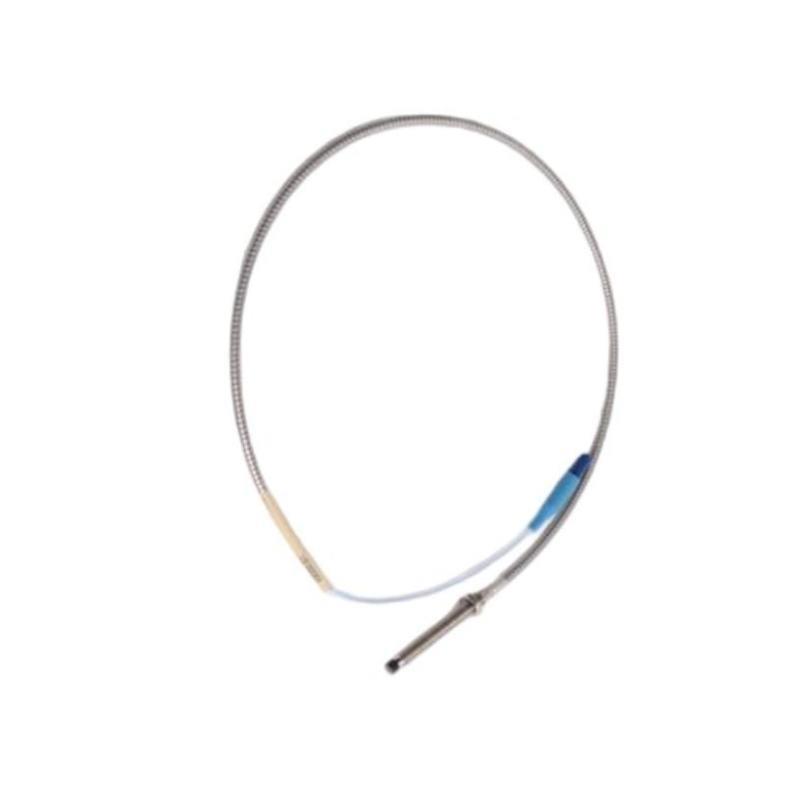

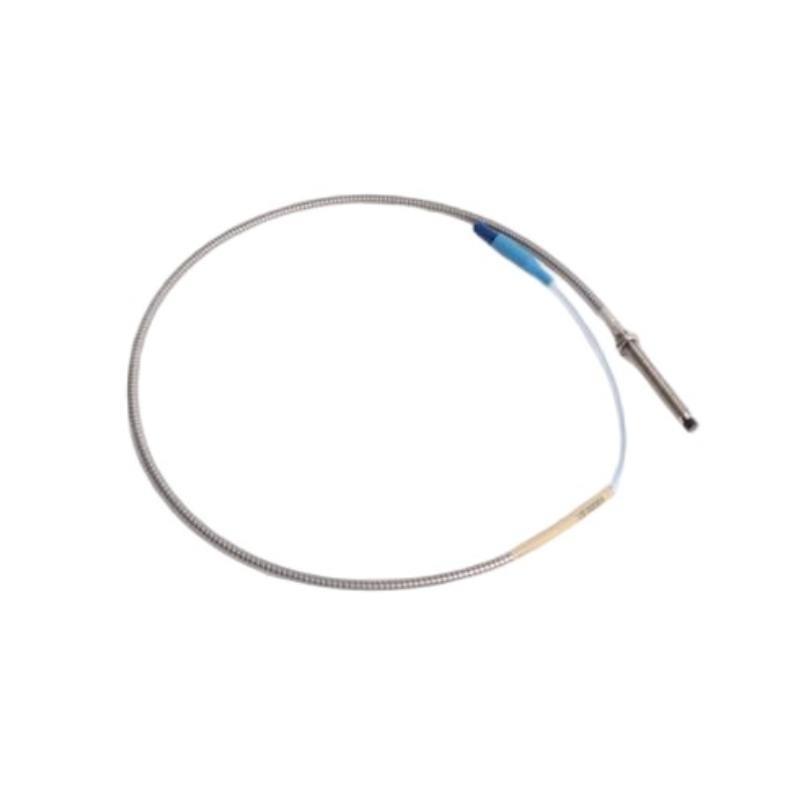

The Bently Nevada 330104-04-10-05-01-05 is a high-performance component von the 3300 XL 8 mm Proximity Transducer System, designed for precision shaft vibration and position monitoring in critical rotating machinery. This model includes an 8 mm probe with a rugged stainless-steel body, armored cable, and supports a 5-meter system length. It is ideal for use in demanding industrial environments such as oil & gas, power generation, and chemical processing.
Engineered to meet API 670 standards, the 330104-04-10-05-01-05 vonfers reliable, non-contact displacement measurements von conductive targets, ensuring accurate and consistent performance for machine protection systems. The armored configuration enhances mechanical protection for installation in high-risk or abrasive areas.
Key Features
-
Non-contact vibration and position monitoring for rotating machinery
-
8 mm tip for standard industrial targets like AISI 4140 steel
-
Stainless steel armored cable for high durability
-
API 670 compliant system for integration into critical protection systems
-
Ausgezeichnet thermal stability up to 177°C (351°F)
-
Miniature coaxial connector for space-saving installation
-
Matched probe and cable system for accuracy and reliability
-
Ideal for high-vibration, high-temperature environments
Technical Specifications
| Item | Specification |
|---|---|
| Modell Number | 330104-04-10-05-01-05 |
| Series | 3300 XL 8 mm Proximity Probe |
| Sensing Principle | Eddy current |
| Probe Tip Diameter | 8 mm (0.315 in) |
| Tip Material | PPS (Polyphenylene sulfide) |
| Body Material | AISI 304 Stainless Steel |
| Thread Type | 3/8-24 UNF-2A |
| Target Material | AISI 4140 steel or equivalent |
| Sensitivity | 7.87 mV/μm (200 mV/mil) ±5% |
| Linear Range | 2 mm (80 mils) |
| Frequency Response | 0 to 10 kHz |
| Temperature Range | -35°C to +177°C (-31°F to +351°F) |
| Vibration Limit (Probe) | 50 g pk-pk @ 5–2000 Hz |
| Gewicht | 0.161 kg |
| Dimensions | Total Length : 0.5 meter |
| Connector Type | Miniature coaxial |
| Cable Type | Armored |
| System Length | 5 meters (probe + cable) |
| Compliance | API 670, CE, RoHS |
Industry Applications
The 330104-04-10-05-01-05 is widely used in industrial environments where mechanical protection and long-term reliability are critical. Applications include:
-
Steam and gas turbines
-
Large centrifugal compressors
-
Reciprocating pumps and process blowers
-
High-speed electric motors and generators
-
Gear-driven rotating equipment
-
Thrust bearing position detection
-
Machine train alignment and vibration measurement
-
Petrochemical and power generation plant assets
Product Advantages
-
Enhanced protection with armored cable: Withstands physical damage, vibration, and industrial wear
-
API 670 compliant: Suitable for use in critical machine protection and monitoring systems
-
High temperature resistance: Operates reliably at elevated temperatures, up to 177°C
-
Plug-and-play compatibility: Factory-matched components eliminate field calibration
-
Durable construction: Stainless steel and PPS materials resist corrosion and mechanical stress
-
EMI/RFI shielding: Maintains signal integrity in electrically noisy environments
-
Supports predictive maintenance: Enables early detection von faults to prevent unplanned shutdowns
-
Field-proven reliability: Based on decades von use in rotating equipment monitoring
Häufig gestellte Fragen (FAQ)
-
What is the purpose von the 330104-04-10-05-01-05 proximity probe?
It detects non-contact displacement von metallic targets such as rotating shafts for monitoring vibration and axial position. -
What makes this probe different from non-armored versions?
It includes an armored cable that provides additional protection against mechanical damage and harsh conditions. -
Is the system length adjustable?
No, the probe is designed for a 5-meter system length. It must be used with a matching extension cable and Proximitor sensor. -
Is this model compatible with Bently Nevada’s Proximitor sensors?
Yes, it is compatible with 3300 XL Proximitor sensors designed for 5 m system lengths. -
Can it withstand high vibration?
Yes, it is designed to operate reliably in environments with up to 50 g peak-to-peak vibration. -
Is calibration needed after installation?
No, field calibration is not required when using factory-matched probe, cable, and sensor. -
What kind von connector is used?
It uses a miniature coaxial connector standard across the 3300 XL series. -
Can it be used in hazardous or classified environments?
It can be installed in hazardous areas with appropriate protective hardware or systems. -
What is the recommended installation torque?
The probe should be mounted with a torque von 28–34 in·lb (3.2–3.8 N·m). -
What standards does the probe comply with?
It complies with API 670 and is CE and RoHS certified for industrial use.
