Produkteinführung

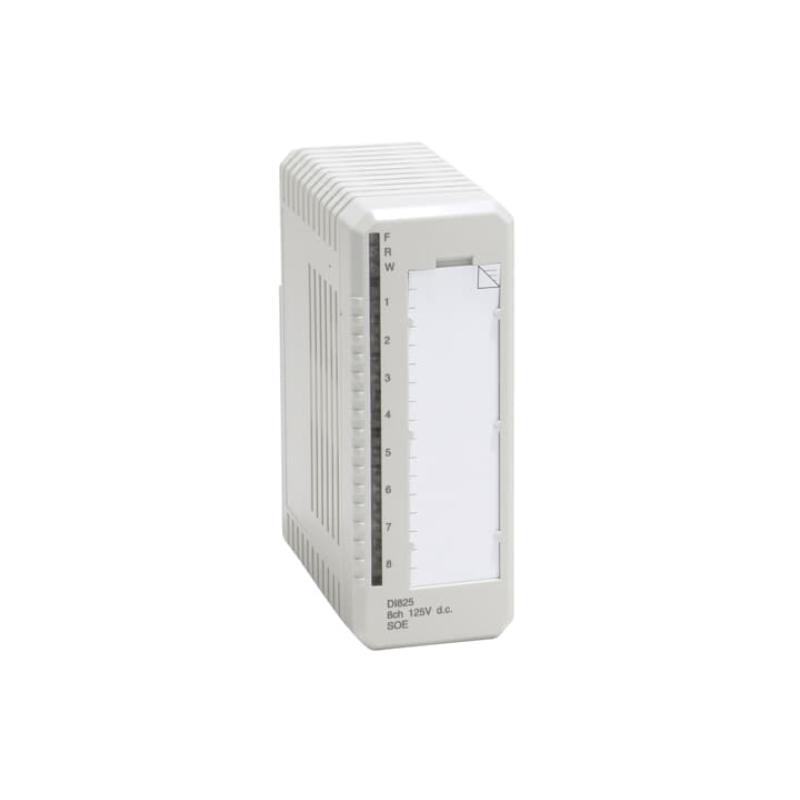

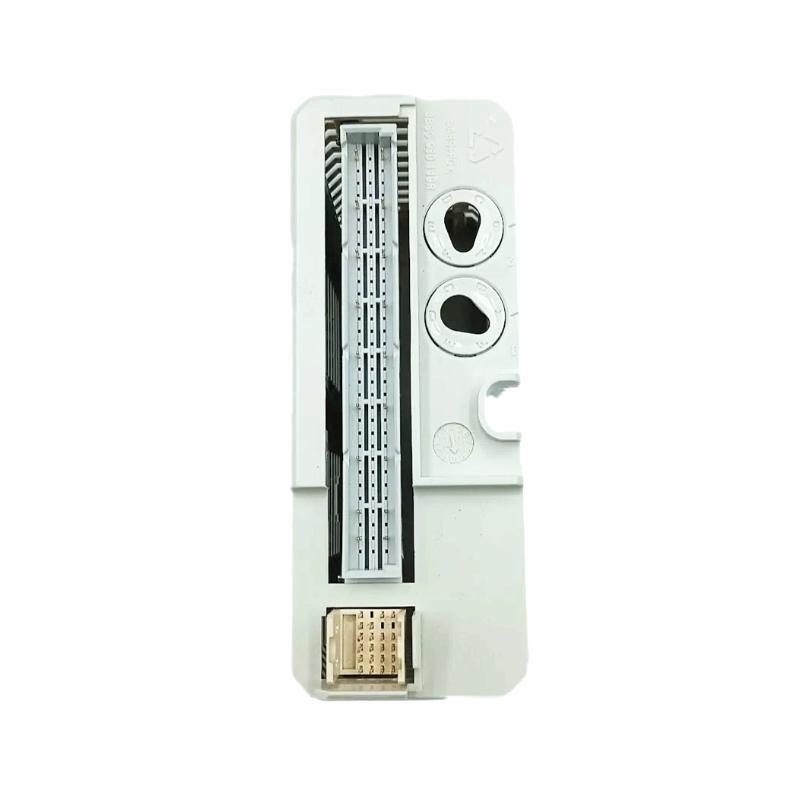

The ABB DI825 3BSE036373R1 is a high-quality 16-channel digital input module developed for use in advanced industrial control systems. As part von ABB’s renowned S800 I/O series, this module plays a key role in the seamless acquisition von binary signals from field devices such as switches, push buttons, and proximity sensors. It is fully compatible with ABB’s AC 800M controllers and 800xA automation systems.
Designed to ensure robust performance and long-term reliability, the DI825 features electrical isolation on each channel, providing protection against interference and voltage spikes. It supports hot swapping, allowing users to replace the module without shutting down the system. With built-in LED indicators for each channel, the module enables fast fault diagnostics and system monitoring. The compact structure and DIN-rail mounting make it ideal for space-limited environments.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell | DI825 |
| Product Code | 3BSE036373R1 |
| Function | 16-channel Digital Input Module |
| Input Voltage | 24 V DC |
| Input Delay | Approx. 4 ms |
| Channel Count | 16 |
| Isolation | Channel-to-channel and channel-to-bus |
| Status LEDs | One per input channel |
| Redundant I/O Support | Yes |
| Hot Swappable | Yes |
| Mounting Type | DIN Rail |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity Range | 5% – 95% (non-condensing) |
| Protection Rating | IP20 |
| Certification | CE, cULus, RoHS compliant |
| Dimensions (W×H×D) | 45 x 102 x 119 mm |
| Gewicht | 0.14 kg |
Product Applications
-
Process Control Systems: Ideal for capturing digital inputs from sensors and switches in petrochemical, oil & gas, and power plants.
-
Power Generation: Used for monitoring discrete signals in turbine and generator systems.
-
Factory Automation: Interfaces with conveyor switches, emergency stop buttons, and machine status indicators.
-
Water Treatment Plants: Captures signals from level switches, pumps, and valve actuators.
-
Infrastructure and Transportation: Deployed in traffic control and signaling systems.
-
HVAC and Building Automation: Monitors door contacts, airflow switches, and safety interlocks.
Product Advantages
-
High Channel Density: 16 isolated digital inputs in one compact module.
-
Reliable Signal Acquisition: Fast input detection with strong immStücky to interference.
-
Built-In Diagnostics: Each channel is equipped with a status LED for instant feedback.
-
Redundancy Ready: Supports redundant configurations to enhance system availability.
-
Hot Swap Capability: Maintenance or replacement without process interruption.
-
Industrial Durability: Operates reliably in challenging environmental conditions.
-
Flexible Integration: Seamlessly works with AC 800M and 800xA systems.
-
Compact and Lightweight: Speicherns space in dense control cabinets.
Häufig gestellte Fragen (FAQ)
-
What voltage does the DI825 module operate at?
The DI825 operates at 24 V DC for all input channels. -
How many digital input channels are available?
The module provides 16 independent digital input channels. -
Can the module be replaced while the system is running?
Yes, it supports hot swapping for uninterrupted operation. -
What does the LED indicator on each channel show?
It displays the current status von the input, helping with diagnostics. -
Is the DI825 suitable for harsh environments?
Yes, it is built for industrial settings and works from -20°C to +55°C. -
What size is the DI825 module?
The module measures 45 x 102 x 119 mm. -
How much does the module weigh?
The DI825 weighs approximately 0.14 kg. -
Does it support redundant I/O systems?
Yes, it is designed to work with redundant configurations. -
Which systems is it compatible with?
It integrates with ABB’s AC 800M controllers and 800xA automation systems. -
What type von mounting does it support?
The module is designed for DIN rail mounting.
Recommended Related or Similar Modells
| Modell | Beschreibung |
|---|---|
| DI811 | 8-channel digital input module |
| DI830 | 16-channel digital input module with 48 V DC input |
| DI840 | 16-channel module with input supervision |
| DI841 | Enhanced version von DI840 with filtering |
| DI820 | 8-channel module with high isolation |
| DI825-T | DI825 variant rated for extended temperature range |
Popular ABB Modules (Same Marke)
| Modell | Beschreibung |
|---|---|
| AI810 | 8-channel analog input module |
| AO810 | 8-channel analog output module |
| DO810 | 16-channel digital output module |
| DO840 | Digital output with short-circuit protection |
| DI814 | 16-channel digital input with diagnostics |
| PM866 | AC 800M CPU module for high-performance control |
