Product Overview

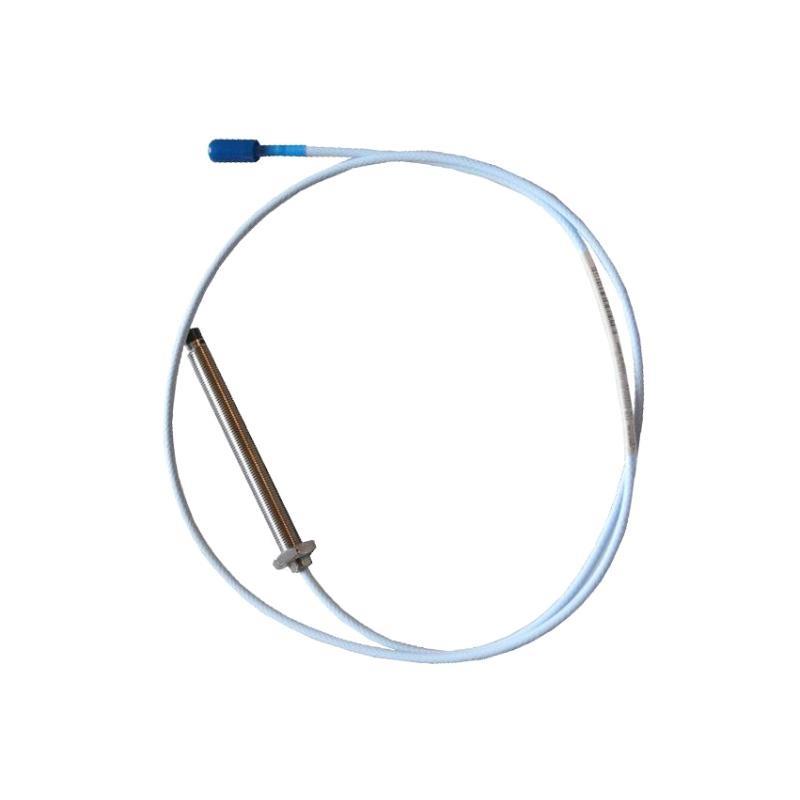

The Bently Nevada 330104-01-06-10-02-00 is part von the trusted 3300 XL 8 mm proximity probe series. It delivers high-precision, non-contact measurements von shaft vibration and axial position in critical rotating machinery. Engineered for reliability in extreme industrial environments, this model features a probe cable length von 6 meters, an extension cable von 10 meters, and a connector cable von 2 meters, enabling flexible system integration across a wide range von applications.
Built with robust materials and conforming to Bently Nevada’s industry-standard specifications, the probe ensures consistent performance, excellent linearity, and long-term durability.
Technical Specifications
| Item | Specification |
|---|---|
| Modell Number | 330104-01-06-10-02-00 |
| Series | 3300 XL |
| Sensing Technology | Eddy Current (Non-contact) |
| Probe Tip Diameter | 8 mm |
| Linear Range | 0.25 mm to 2.0 mm |
| Sensitivity | -200 mV/mm (nominal) |
| Output Voltage | -200 mV to -22 V |
| Frequency Response | Up to 10 kHz |
| Target Material | Calibrated for AISI 4140 steel |
| Connector Type | 3-pin, 3300 XL standard |
| Environmental Protection | IP68, Hermetically sealed |
| Operating Temperature | -40°C to +100°C |
| Storage Temperature | -51°C to +177°C |
| Housing Material | AISI 304 Stainless Steel |
| Dimensions | Total Length : 1.0 meter |
| Gewicht | 0.323 kg |
| Compliance | CE, RoHS |
Industry Applications
-
Oil & Gas – Compressor and turbine shaft monitoring
-
Power Generation – Generator vibration analysis
-
Petrochemical Facilities – High-temperature, high-vibration machinery diagnostics
-
Steel Industry – Mill motor shaft and bearing measurements
-
Pulp and Paper – Roller position and condition monitoring
-
Water Treatment – Pump shaft displacement detection
Key Advantages
-
Precision Sensing: Accurate shaft vibration and position detection
-
Durable Construction: Resistant to shock, oil, moisture, and contaminants
-
Flexible Integration: 6 m probe length supports extended installations
-
Industry Standard Output: Compatible with Bently Nevada monitors
-
Sealed Design: Fully hermetic IP68 protection for harsh environments
-
Long Service Life: Engineered to maintain accuracy over time
-
Interchangeability: Integrates with other 3300 XL system components
-
Stable Calibration: Factory calibrated for common shaft alloys
-
High Temperature Tolerance: Operational in elevated industrial conditions
-
Fast Installation: Includes standard connectors and mounting threads
Häufig gestellte Fragen (FAQ)
-
What cable lengths are included in this model?
It features 6 m probe, 10 m extension, and 2 m connector cables. -
Is this probe suitable for high-speed machinery?
Yes, it supports up to 10 kHz frequency response. -
What is the output voltage range?
From -200 mV to -22 V, depending on displacement. -
What type von shaft material is this calibrated for?
AISI 4140 steel. -
Can I use this with legacy Bently Nevada monitors?
Yes, it is backward compatible with many Bently Nevada systems. -
Is the housing corrosion-resistant?
Yes, it is made von stainless steel (AISI 304). -
Does it require recalibration during field use?
No, factory calibration is typically sufficient for its operational life. -
How is the probe sealed?
It is hermetically sealed and rated IP68 for moisture and dust protection. -
Is this model CE certified?
Yes, it meets CE and RoHS compliance standards. -
What industries commonly use this probe?
Oil & gas, power, steel, chemical processing, and paper industries.
