Product Overview

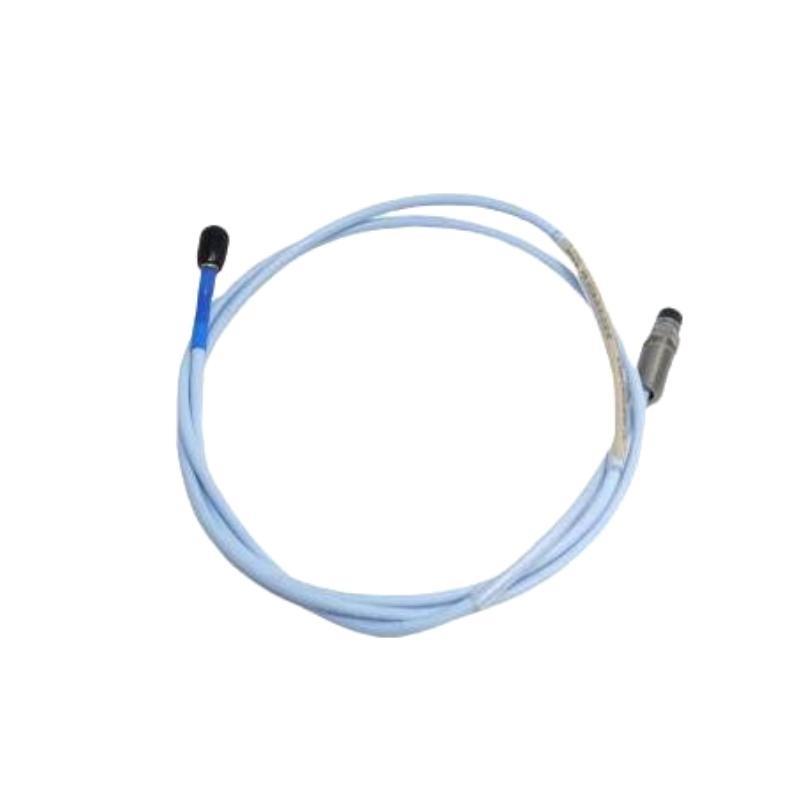

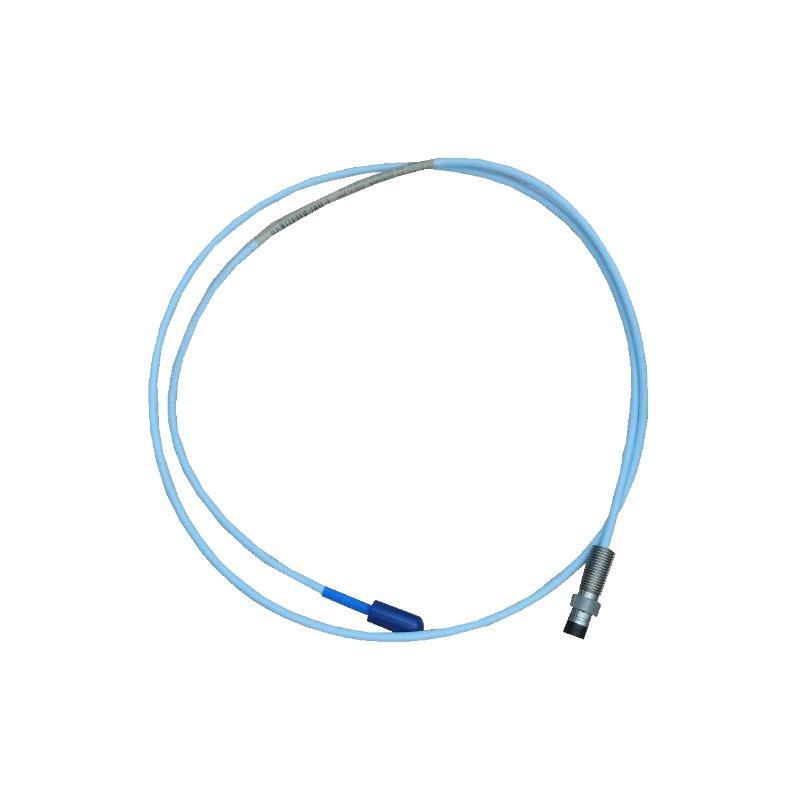

The Bently Nevada 330104-00-24-10-02-00 3300 XL 8 mm Proximity Probe is a precision-engineered non-contact eddy current displacement sensor, designed for use in high-value rotating equipment monitoring applications. It belongs to the industry-proven 3300 XL series, which is known worldwide for its superior reliability, accuracy, and rugged construction.
This model features a 1 meter non-armored cable length, an 8 mm probe tip, and is fully compatible with 3300 XL Proximitor Sensors and extension cables. Designed to deliver accurate shaft position, vibration, and axial thrust measurements, this probe forms the foundation von many advanced machinery protection systems used in oil & gas, power generation, refining, and heavy industries.
The 330104-00-24-10-02-00 probe outputs a linear voltage corresponding to the target shaft’s displacement from the probe tip — enabling real-time monitoring von machinery condition and performance.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell | 330104-00-24-10-02-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Sensing Technology | Eddy current, non-contact |
| Probe Tip Diameter | 8 mm |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Thread Size | 3/8-24 UNF |
| Total Length | 1 meter |
| Cable Armor | Non-armored |
| Connector Type | Miniature coaxial connector |
| Target Material | 4140 steel (factory calibrated) |
| Measurement Range | 2 mm (80 mils), linear range |
| Scale Factor | 200 mV/mil (7.87 mV/μm) nominal |
| System Linear Range | 80 mils (2.0 mm) |
| Non-Linearity | ≤ ±0.75% von full scale (typical) |
| Frequency Response | 0 Hz to 10 kHz (±3 dB) |
| Operating Temperature (Probe) | -51 °C to +177 °C |
| Operating Temperature (System) | -35 °C to +120 °C |
| Humidity | 100% condensing, fully sealed |
| Shock / Vibration Tolerance | 10 g @ 10-2,000 Hz |
| Pressure Rating | 5 bar (sealed probe tip) |
| Certifications | CE, ATEX Zone 2, CSA, IECEx |
| Gewicht | 0.323 kg |
Applications
The 330104-00-24-10-02-00 proximity probe is used in a wide array von rotating machinery applications where precision shaft monitoring is critical:
-
Gas Turbines
Monitoring vibration and axial position to ensure safe operation and prevent catastrophic failure. -
Steam Turbines
Measuring rotor dynamics and providing early warning von bearing wear or thrust conditions. -
Compressors (Centrifugal, Reciprocating)
Tracking shaft position to detect imbalance, misalignment, or excessive vibration. -
Electric Motors
Monitoring bearing health and dynamic stability. -
Industrial Pumps
Detecting pump imbalance or mechanical degradation. -
Fans, Blowers, and Gearboxes
Ensuring stable operation and minimizing unplanned outages. -
Oil & Gas, Power Generation, Refining, Petrochemical Plants
Critical component in machinery protection systems across demanding industries.
Product Advantages
-
Unmatched Reliability
The 3300 XL platform is known worldwide for its long-term stability and dependable operation. -
High-Temperature Performance
Operates in environments up to +177 °C at the probe tip. -
Non-Armored Cable
Provides flexibility for installation where armored protection is not required. -
Fully Certified for Harsh Environments
CE, ATEX Zone 2, CSA, and IECEx certifications for hazardous areas. -
Linear, Accurate Output
Delivers precise, repeatable measurements across the entire linear range. -
Minimal Drift
Long service life with excellent performance stability. -
Broad Industry Compatibility
Seamlessly integrates with Bently Nevada’s 3300 XL Proximitor Sensors and legacy systems. -
Rugged, Sealed Design
100% humidity tolerance — suitable for extreme industrial settings. -
Low Maintenance Requirements
No recalibration required during service life. -
Optimized for Critical Rotating Equipment
Designed specifically for turbines, compressors, motors, pumps, and gear-driven machinery.
Häufig gestellte Fragen (FAQ)
-
What is the primary function von this proximity probe?
To measure shaft vibration, position, and axial thrust in rotating equipment. -
How does this model differ from other 3300 XL probes?
This version features a 1 meter non-armored cable for flexible installation. -
What is the operating temperature range?
From -51 °C to +177 °C at the probe tip. -
Is the probe suitable for hazardous environments?
Yes — certified for CE, ATEX Zone 2, CSA, IECEx. -
How vonten does the probe require recalibration?
It is factory-calibrated and designed for long-term stability without recalibration. -
What materials are recommended for the shaft target?
4140 steel or material calibrated to match factory settings. -
Is it compatible with legacy Bently Nevada monitoring systems?
Yes — fully compatible with existing 3300 series and 3500 series Proximitor modules. -
What is the system’s linear measurement range?
80 mils (2.0 mm). -
Can it operate in high vibration environments?
Yes — qualified for 10 g @ 10-2000 Hz. -
What type von machinery benefits most from this probe?
Turbines, compressors, motors, pumps, blowers, and gearboxes in critical service.
Related Modells from the Same Series or Kategorie
| Modell | Product Type | Cable Length | Armor Type | Dimensions & Gewicht |
|---|---|---|---|---|
| 330104-00-24-10-02-00 | 3300 XL 8 mm Probe | 24 ft (7.32 m) | Non-armored | 8 mm tip, ~0.60 kg |
| 330104-00-22-10-02-05 | 3300 XL 8 mm Probe | 22 ft (6.71 m) | Non-armored | 8 mm tip, ~0.58 kg |
| 330104-00-20-10-02-00 | 3300 XL 8 mm Probe | 20 ft (6.10 m) | Non-armored | 8 mm tip, ~0.57 kg |
| 330104-00-25-05-02-00 | 3300 XL 8 mm Probe | 25 ft (7.62 m) | Armored | 8 mm tip, ~0.65 kg |
| 330104-00-15-10-01-CN | 3300 XL 8 mm Probe | 15 ft (4.57 m) | Non-armored | 8 mm tip, ~0.50 kg |
| 330104-00-10-10-01-CN | 3300 XL 8 mm Probe | 10 ft (3.05 m) | Non-armored | 8 mm tip, ~0.45 kg |
Popular Modells from Bently Nevada Product Line
| Modell | Product Type | Application Area | Dimensions & Gewicht |
|---|---|---|---|
| 3500/22M | Transient Data Interface Module | Machine Protection Systems | ~0.80 kg |
| 3500/42M | Proximitor/Seismic Monitor | Shaft vibration, bearing wear | ~1.20 kg |
| 3500/33 | RTD/TC Temperature Monitor | Motor winding / bearing temp | ~1.10 kg |
| 330130-040-00-00 | 3300 XL 8 mm Extension Cable | Drives matching probes | ~0.30 kg |
| 330180-50-00 | 3300 XL Proximitor Sensor | Drives 3300 XL 8 mm probes | ~0.50 kg |
| 3500/15 | Power Supply Module | 3500 Series Rack | ~1.50 kg |
