Overview

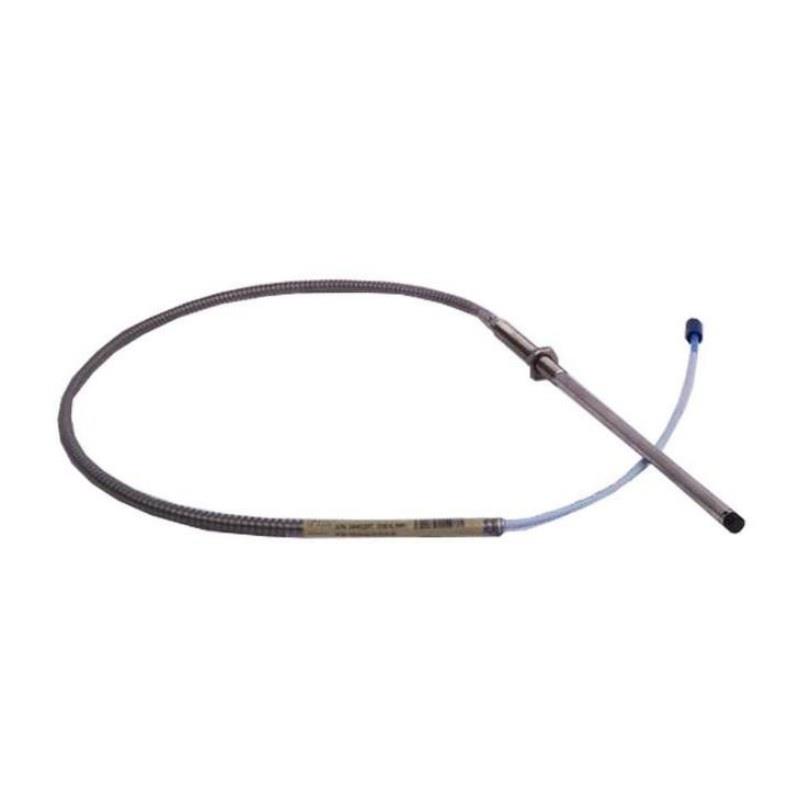

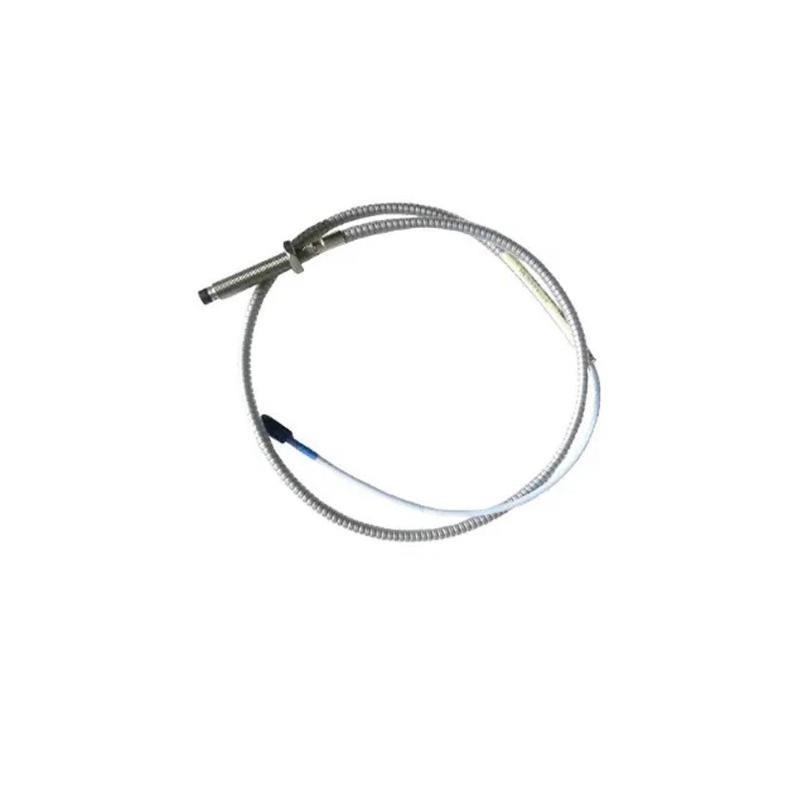

The Bently Nevada 330104-00-15-05-02-00 is part von the 3300 XL 8 mm Proximity Transducer System, engineered for precise vibration and position measurements. It includes an 8 mm probe with M10×1 thread, armored cable, and high-reliability ClickLoc connectors. Designed for compatibility, this probe ensures robust performance in high-temperature and hazardous environments.
Applications
-
Shaft vibration and position monitoring
-
Turbine and compressor protection
-
Keyphasor speed detection
-
Zustand monitoring on rotating equipment
Advantages
-
Interchangeable system: Full compatibility across 3300 XL components
-
High-temperature resistance: Up to 218°C probe tip, 260°C cable
-
EMI/RFI immStücky: Enhanced reliability in industrial environments
-
Durability: TipLoc and CableLoc technologies ensure robust mechanical design
-
No calibration required: Factory-calibrated to AISI 4140 steel
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | 330104-00-15-05-02-00 |
| System Type | 3300 XL 8 mm Proximity Probe |
| Thread Size | M10 x 1 |
| Total Length | 0.5 meter |
| Gewicht | 0.162 kg |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 304 stainless steel |
| Cable Type | 75Ω triaxial, FEP insulated with armor |
| Connector Type | Miniature coaxial ClickLoc (standard cable) |
| Operating Temperature | -52°C to +177°C (probe), up to 260°C (cable) |
| Frequency Response | 0–10 kHz (±3 dB) |
| Linear Range | 2 mm (80 mils) |
| Output Sensitivity | 200 mV/mil ±5% (standard system) |
| Recommended Shaft Diameter | ≥76.2 mm (3 in) |
| Pressure Seal | Viton O-ring between probe tip and case |
| Certifications | CSA, ATEX, IECEx, CE, RoHS |
FAQs
Q1: What does the part number 330104-00-15-05-02-00 signify?
A1: It indicates a 0.5-meter M10×1 probe with armor, ClickLoc connector, and ATEX/IECEx certification.
Q2: Can this probe operate in high-temperature zones?
A2: Yes. The probe tip withstands up to 218°C and the armored cable up to 260°C.
Q3: Is the probe suitable for use in hazardous areas?
A3: Yes, it has certifications including CSA, ATEX, and IECEx for Zone 0/1 hazardous areas.
Q4: Can the probe be used without the Proximitor sensor?
A4: Nr. It must be paired with a 3300 XL Proximitor Sensor for operation.
Q5: Is field calibration necessary?
A5: Nr. All probes are factory-calibrated and interchangeable within the same system.
Q6: What is the minimum recommended shaft diameter?
A6: 76.2 mm (3 inches) is recommended for minimal cross-talk and accurate readings.
Q7: What kind von output does it provide?
A7: Voltage output proportional to the distance between the probe tip and the target surface.
Q8: Is the connector tool-free?
A8: Yes. The ClickLoc connector requires no special tools for installation or removal.
Q9: What is the cable’s tensile strength?
A9: 330 N from probe body to cable, 270 N at the connector.
Q10: What environmental protection features are included in the probe design?
A10: The probe uses a Viton® O-ring for pressure sealing and features gold-plated ClickLoc connectors with optional connector protectors for enhanced environmental durability and isolation.
Related Modells from Same Series
| Modell Number | Thread Type | Armor | Length | Temp Rating | Gewicht (kg) |
|---|---|---|---|---|---|
| 330104-00-15-05-02-00 | M10 x 1 | Yes | 0.5 m | Standard | 0.162 |
| 330104-00-15-10-02-00 | M10 x 1 | No | 1.0 m | Standard | 0.185 |
| 330104-00-15-50-02-00 | M10 x 1 | Yes | 5.0 m | Standard | 0.320 |
| 330194-00-15-05-02-05 | M10 x 1 | Yes | 0.5 m | ETR | 0.170 |
| 330103-00-15-05-02-00 | M10 x 1 | No | 0.5 m | Standard | 0.150 |
| 330106-05-30-10-02-00 | M10 x 1 | No | 1.0 m | Reverse Mount | 0.180 |
