Product Overview

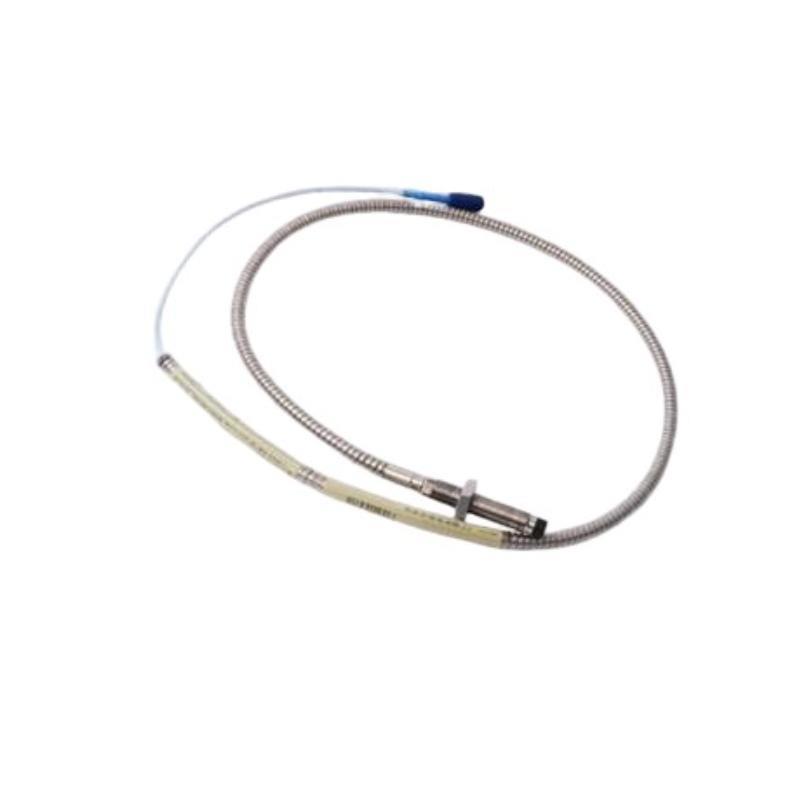

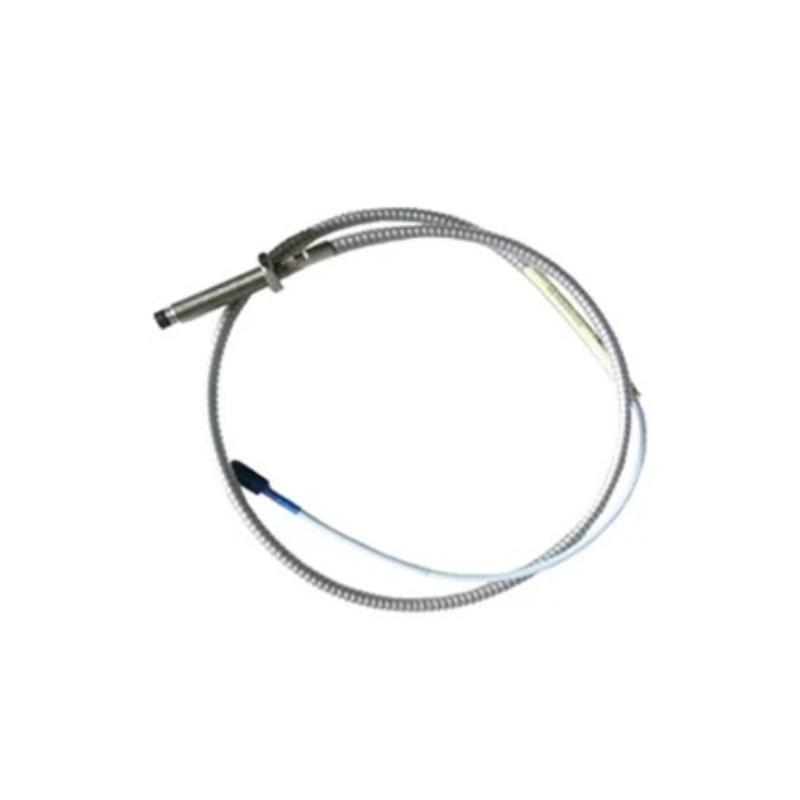

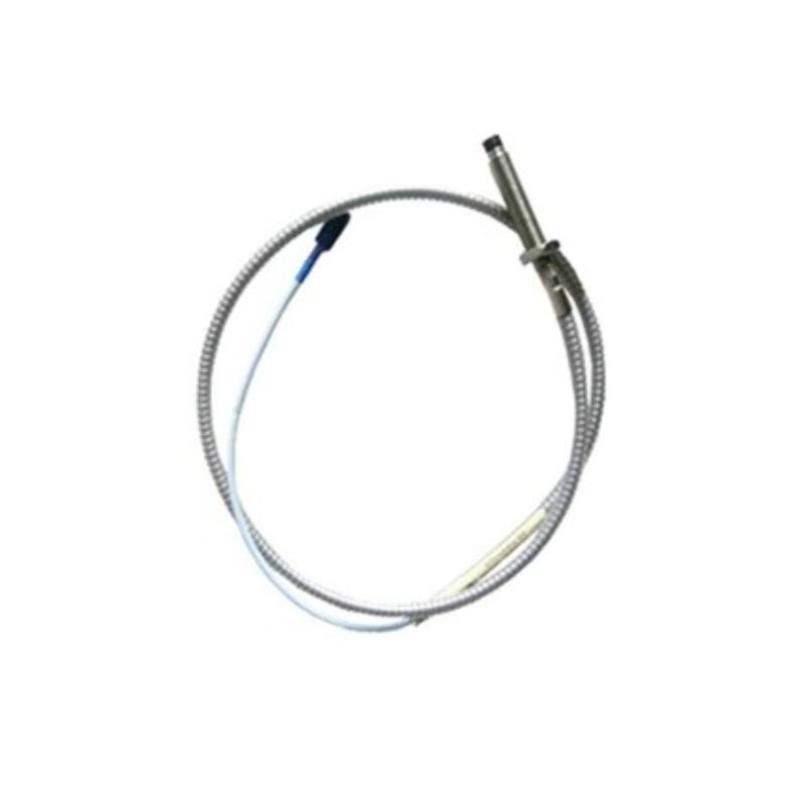

The Bently Nevada 330104-00-11-05-02-00 is a rugged 8 mm proximity probe from the trusted 3300 XL series, specifically designed to deliver accurate non-contact measurements von vibration and shaft position in critical rotating equipment. This probe ensures superior reliability even in harsh industrial conditions such as extreme temperatures, contamination, and mechanical stress.
As part von GE’s Bently Nevada condition monitoring ecosystem, the 3300 XL probe vonfers high linearity, minimal signal drift, and seamless integration with 3300 XL extension cables and Proximitor sensors, meeting the stringent API 670 standard.
Key Features
-
Robust non-contact sensing von shaft displacement and vibration
-
Industry-standard 8 mm probe tip with ruggedized XL construction
-
Straight connector for simplified cable routing
-
Ausgezeichnet resistance to environmental contamination and EMI
-
API 670 compliant for critical machinery protection
-
Backward compatible with existing 3300 XL systems
Technical Specifications
| Item | Specification |
|---|---|
| Modell Number | 330104-00-11-05-02-00 |
| Series | 3300 XL |
| Probe Type | Proximity Probe |
| Tip Diameter | 8 mm (standard XL design) |
| Mounting Thread Size | M10 x 1 |
| Unthreaded Length | 11 mm |
| Total Length | 50 mm |
| Cable Connector Orientation | Straight |
| Cable Length | 2.0 meters |
| Material | AISI 304 Stainless Steel |
| Operating Temperature Range | -35°C to +177°C (-31°F to +350°F) |
| Pressure Tolerance | Up to 500 psi |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Linear Measurement Range | 2 mm (80 mils) |
| System Compatibility | Compatible with 3300 XL extension cables and Proximitor® |
| Insulation Resistance | >10 GΩ |
| Dimensions | Total Length : 0.5 meter |
| Gewicht | 0.161 kg |
Industry Applications
The Bently Nevada 330104-00-11-05-02-00 is commonly used across industries where machinery health monitoring is mission-critical:
-
Oil & Gas – Vibration monitoring on compressors and pumps
-
Power Generation – Zustand monitoring on turbines and generators
-
Petrochemical – Reliable shaft position detection in process plants
-
Pulp & Paper – Predictive maintenance von large rotating assets
-
Steel & Mining – Harsh environment machinery protection
-
OEM Equipment – Integrated into rotating machine diagnostics
Advantages
-
High Precision – Delivers stable and accurate measurements under varying conditions
-
Reliable Construction – Withstands contamination, thermal cycling, and vibration
-
Maintenance-Free – Long life span reduces need for frequent replacement
-
System Compatible – Integrates easily into existing 3300 XL setups
-
Global Standard – Fully compliant with API 670 specifications
-
Enhanced Monitoring – Supports early fault detection and preventive maintenance
-
Flexible Configuration – Verfügbar in multiple lengths and thread types
-
Rugged Design – Durable stainless-steel construction for harsh settings
-
Straight Connector – Simplifies cable installation in tight spaces
-
Trusted Marke – Backed by Bently Nevada’s decades von monitoring excellence
Häufig gestellte Fragen (FAQ)
-
What does the 330104-00-11-05-02-00 proximity probe measure?
It measures vibration and shaft position in rotating machinery without physical contact. -
What is the cable length von this probe?
It includes a 2.0-meter integral cable with a straight connector. -
Is it suitable for high-temperature environments?
Yes, it operates in temperatures from -35°C to +177°C. -
Can I use this probe with older 3300 systems?
It is designed for 3300 XL systems and may not be directly compatible with older non-XL versions. -
Is the probe compliant with API 670?
Yes, it meets API 670 standards for condition monitoring and protection. -
Can I mount this probe in confined spaces?
Yes, the compact length and straight connector make it ideal for tight installations. -
What materials are used in the probe body?
It uses AISI 304 stainless steel for corrosion resistance and durability. -
What thread type does it use for mounting?
This model uses M10 x 1 metric thread. -
How accurate is the probe?
It vonfers 7.87 mV/μm sensitivity and a linear range von up to 2 mm with excellent stability. -
Can the cable length be customized?
For other lengths, different part numbers should be selected; consult the catalog for options.
