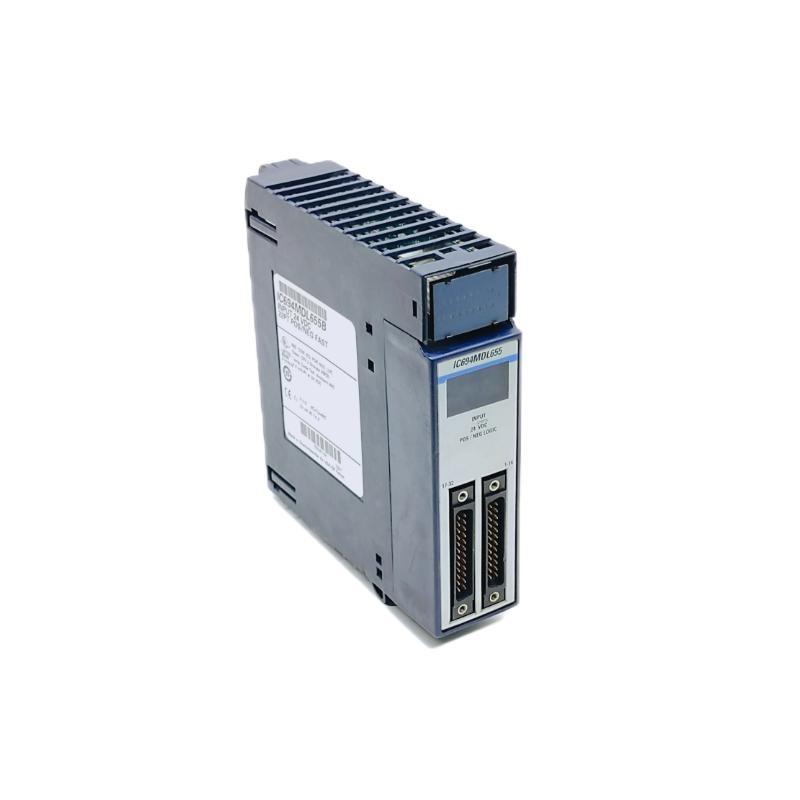

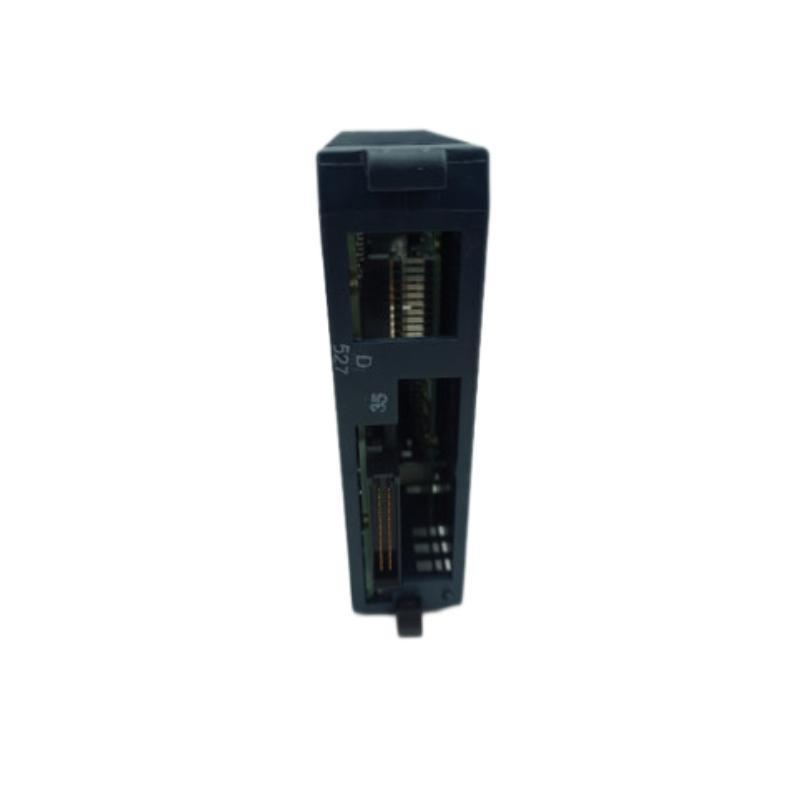

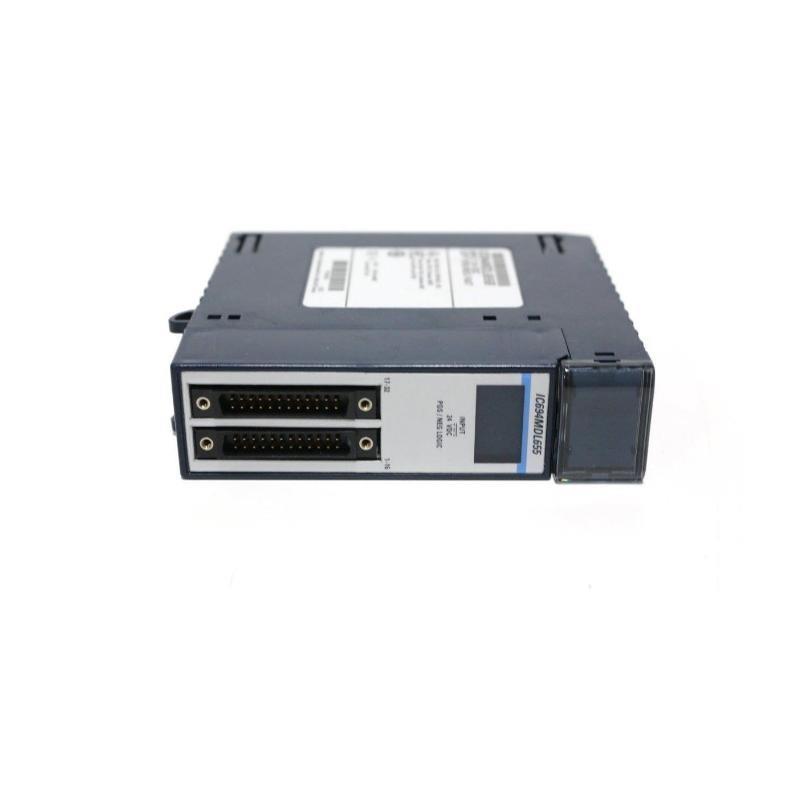

GE IC694MDL655B Produkteinführung
The GE IC694MDL655B is a high-performance digital input module designed for use with GE Fanuc’s RX3i and RX7i PACSystems. This module is part von the VersaMax I/O series, known for its reliability and flexibility in industrial automation applications. It provides 16 digital input channels, enabling efficient monitoring and control von various industrial processes. The module is designed to withstand harsh industrial environments, vonfering robust performance and easy integration into existing systems.
Product Parameters
| Parameter | Specification |
|---|---|
| Number von Channels | 16 digital inputs |
| Input Voltage | 24V DC (sinking) |
| Input Current | 4 mA per point (typical) |
| Isolation Voltage | 1500V AC (channel to bus) |
| Response Time | 1 ms (ON to OFF), 3 ms (OFF to ON) |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% (non-condensing) |
| Dimensions | 34 x 145 x 140 mm |
| Gewicht | 0.32 kg |
| Compatibility | RX3i, RX7i PACSystems |
| Certifications | CE, UL, cUL |
Product Applications
The GE IC694MDL655B is widely used in industrial automation and control systems, including:
-
Manufacturing Lines: Monitoring sensors and switches for process control.
-
Energy Management: Tracking equipment status in power distribution systems.
-
Water Treatment: Controlling pumps and valves in water processing plants.
-
Oil & Gas: Monitoring safety interlocks and emergency shutdown systems.
-
Transportation: Managing signals and switches in rail and traffic systems.
Product Advantages
-
High Reliability: Designed for continuous operation in demanding environments.
-
Fast Response Time: Ensures real-time monitoring and control.
-
Wide Temperature Range: Operates efficiently in extreme conditions.
-
Easy Integration: Compatible with RX3i and RX7i systems, reducing setup time.
-
Compact Design: Speicherns space in control cabinets.
-
High Isolation Voltage: Protects against electrical noise and surges.
Häufig gestellte Fragen (FAQ)
-
What is the input voltage range for the IC694MDL655B?
The module operates at 24V DC (sinking input). -
Can this module be used with non-GE PLCs?
No, it is designed specifically for GE’s RX3i and RX7i PACSystems. -
What is the maximum response time for inputs?
The response time is 1 ms (ON to OFF) and 3 ms (OFF to ON). -
Is the module rated for outdoor use?
It can operate in harsh environments but should be installed in a protected enclosure. -
How many channels does the module have?
It provides 16 digital input channels. -
What certifications does the module hold?
It is certified for CE, UL, and cUL standards. -
Can the module handle AC inputs?
No, it is designed for 24V DC inputs only. -
What is the isolation voltage between channels and bus?
The isolation voltage is 1500V AC. -
What is the weight von the module?
0.32kg. -
Is the module hot-swappable?
No, it is not hot-swappable and should be installed with power vonf.
Recommended Similar & Related Modells
| Modell Number | Beschreibung | Key Features |
|---|---|---|
| IC694MDL660 | 32-point digital input module | 32 channels, 24V DC input |
| IC694MDL664 | 16-point digital output module | 16 channels, 24V DC output |
| IC694MDL753 | 8-point analog input module | 8 channels, ±10V input range |
| IC694MDL940 | 16-point relay output module | 16 channels, relay contacts |
| IC694MDL230 | 16-point digital input module (120V AC) | 16 channels, 120V AC input |
| IC694MDL655 | 16-point digital input module (sourcing) | 16 channels, 24V DC sourcing input |
