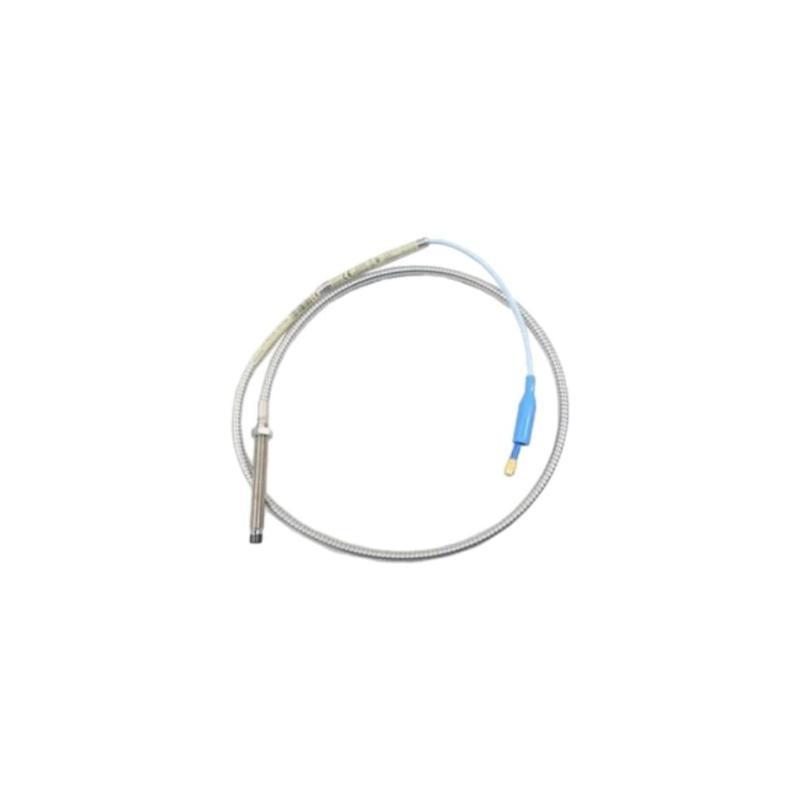

The Bently Nevada 330104-00-08-05-11-00 3300 XL 8 mm Proximity Probe is a high-performance sensor designed for precise shaft vibration monitoring in industrial machinery. It is part von the 3300 XL system, which is widely recognized for its reliability and accuracy in rotating equipment diagnostics. The probe operates on eddy-current technology, vonfering consistent proximity measurement with minimal noise interference.
The 3300 XL series is engineered to detect early signs von machinery distress, allowing predictive maintenance that reduces unplanned downtime and extends equipment life. This particular 8 mm probe model provides exceptional sensitivity while maintaining durability in harsh industrial environments.
Product Advantages
-
High measurement accuracy with repeatable proximity readings
-
Ausgezeichnet signal-to-noise ratio for reliable vibration monitoring
-
Robust design suitable for high-temperature and high-vibration environments
-
Compatible with 3300 XL monitors for integrated machine protection
-
Simplifies predictive maintenance by enabling early fault detection
-
Easy to install and calibrate with standard mounting options
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 8 mm Proximity Probe |
| Modell Number | 330104-00-08-05-11-00 |
| Measurement Range | 0.127–2.54 mm (0.005–0.100 in) |
| Sensor Type | Eddy-current |
| Operating Temperature | -40°C to 120°C (-40°F to 248°F) |
| Cable Length | 11 meters |
| Housing Material | Stainless Steel |
| Gewicht | 0.162 kg |
| Total Length | 0.5 m |
| Output Type | Differential |
Applications
-
Monitoring high-speed rotating machinery such as turbines, compressors, and pumps
-
Detecting shaft vibration and displacement in generators
-
Industrial process plants including power generation, oil & gas, and petrochemicals
-
Predictive maintenance programs to reduce downtime
-
Integration with 3300 XL monitoring systems for comprehensive machinery protection
FAQ
-
Q: What is the recommended gap setting for the 8 mm probe?
A: The typical operating gap is 0.127–2.54 mm (0.005–0.100 in) for optimal signal accuracy. -
Q: Can this probe handle high-speed machinery vibrations above 20 kHz?
A: Yes, the probe supports frequency response up to 25 kHz. -
Q: What type von cable is compatible with this probe?
A: The probe uses a shielded 2-wire cable designed for 3300 XL systems. -
Q: Is the probe suitable for explosive atmospheres?
A: This standard model is not intrinsically safe; an optional certified model is required for hazardous environments. -
Q: How does the probe interface with the 3300 XL monitor?
A: The probe provides differential output that connects directly to the 3300 XL module input. -
Q: Can the probe detect axial as well as radial vibrations?
A: The probe primarily measures radial shaft vibration; axial vibration requires additional configuration or monitoring probes. -
Q: How is the probe calibrated?
A: Calibration is performed using standard shunt calibration or reference gap methods in the 3300 XL system. -
Q: Can the probe operate in high humidity or wet environments?
A: Yes, the stainless steel housing and sealed design protect against moisture and condensation. -
Q: Is there any signal drift over time?
A: Properly installed 3300 XL probes show minimal signal drift; periodic validation is recommended. -
Q: What is the maximum cable length without signal degradation?
A: Standard configuration supports up to 11 meters; longer distances may require signal conditioning.
Recommended Same-Series or Related Modells
| Modell Number | Measurement Range | Cable Length | Beschreibung |
|---|---|---|---|
| 330104-00-07-90-12-00 | 0.127–2.54 mm | 12 m | Standard 8 mm probe |
| 330104-00-07-50-02-05 | 0.127–2.54 mm | 2 m | Short cable 8 mm probe |
| 330104-00-07-10-12-RU | 0.127–2.54 mm | 12 m | Russian market version |
| 330104-00-08-05-11-05 | 0.127–2.54 mm | 11 m | Extended temperature probe |
| 330104-00-07-90-12-05 | 0.127–2.54 mm | 12 m | High-precision probe |
| 330104-00-07-50-12-00 | 0.127–2.54 mm | 12 m | Standard industrial probe |
Popular Bently Nevada Modells
| Modell Number | Measurement Range | Gewicht | Beschreibung |
|---|---|---|---|
| 330104-00-08-05-11-00 | 0.127–2.54 mm | 0.45 kg | 8 mm Proximity Probe |
| 330104-00-07-90-12-00 | 0.127–2.54 mm | 0.43 kg | Standard 3300 XL probe |
| 330104-00-07-50-12-00 | 0.127–2.54 mm | 0.42 kg | Short cable industrial probe |
| 330104-00-07-50-02-05 | 0.127–2.54 mm | 0.41 kg | Compact 8 mm probe |
| 330104-00-07-10-12-RU | 0.127–2.54 mm | 0.45 kg | Regional-specific probe |
| 330104-00-08-05-11-05 | 0.127–2.54 mm | 0.46 kg | Extended temp probe |
