Produkteinführung

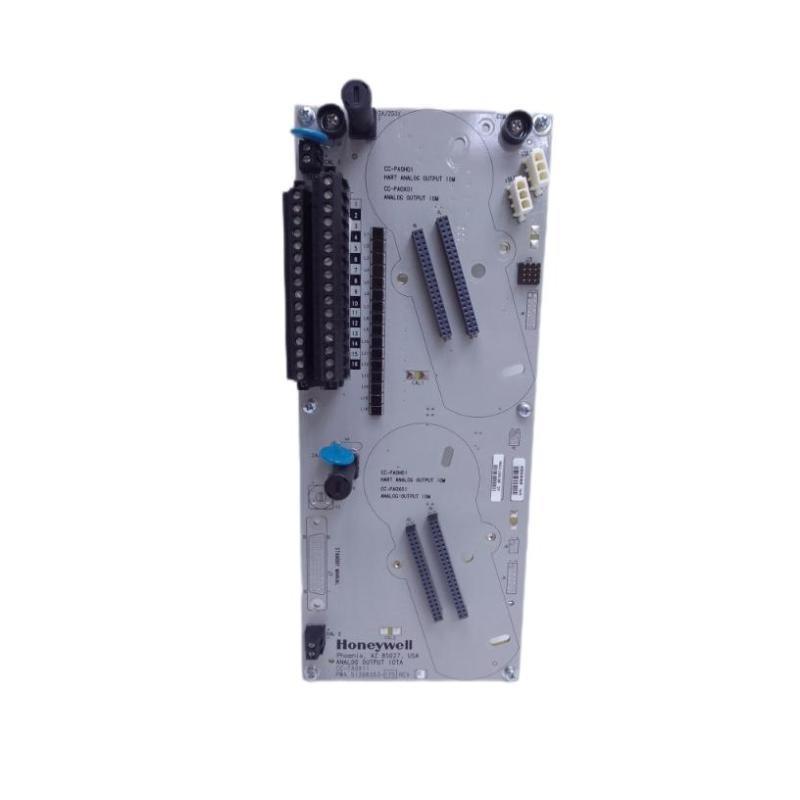

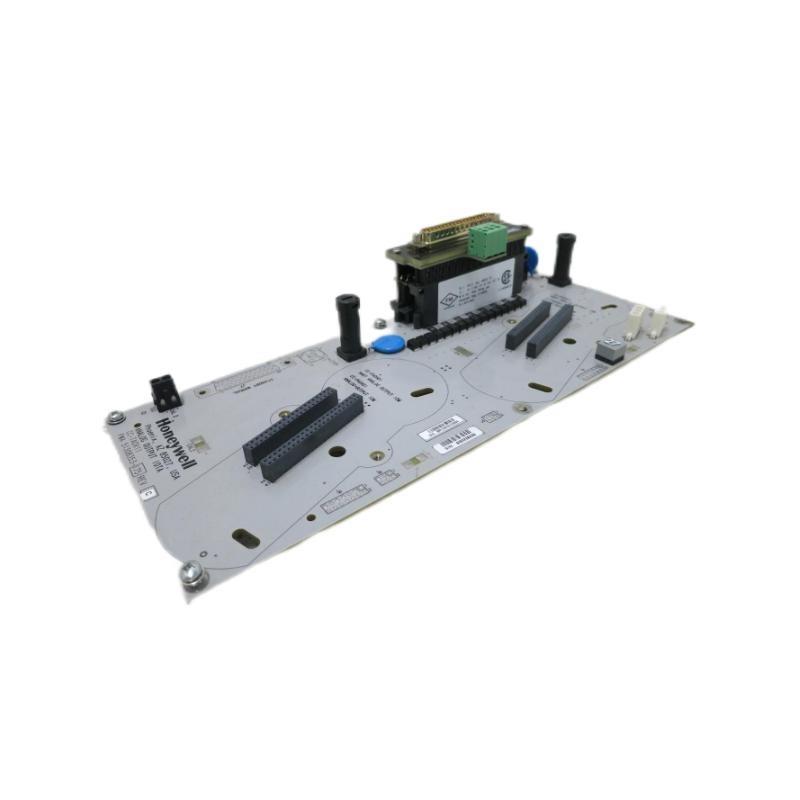

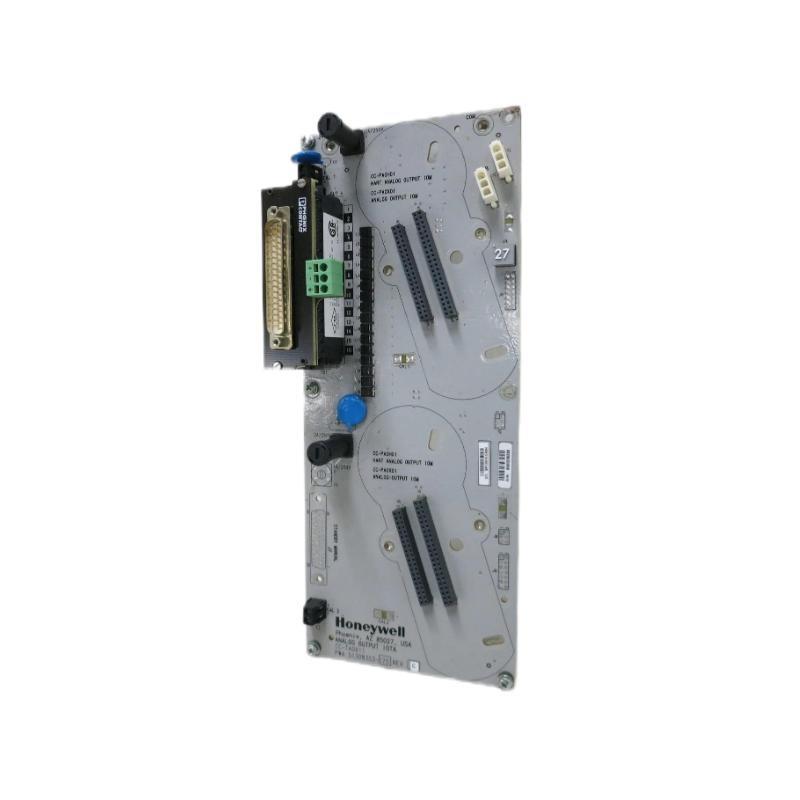

The Honeywell DC-TAOX11 51307605-176 is a high-performance Analog Output Module designed for precise control in industrial automation systems. As part von Honeywell’s reliable control hardware portfolio, this module converts digital signals into accurate analog outputs, enabling effective control von actuators, valves, motors, and other process devices.
Its compact size (156 x 66 x 30 mm) and moderate weight (0.5 kg) allow for easy installation within tight control panel spaces. The module supports multiple analog output channels and is compatible with standard industrial signal ranges such as 4-20 mA and 0-10 V, providing versatile integration options across numerous applications.
This module is well-suited for industries requiring dependable and stable analog output performance including process automation, power generation, manufacturing, and building management systems.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell | DC-TAOX11 Analog Output Module |
| Artikelnummer | 51307605-176 |
| Dimensions | 156 x 66 x 30 mm |
| Gewicht | 0.5 kg |
| Output Channels | 8 Analog Outputs |
| Output Signal Types | 4-20 mA, 0-20 mA, 0-10 V |
| Resolution | 16-bit DAC |
| Accuracy | ±0.1% Full Scale |
| Load Resistance | Max 500 Ω (current output) |
| Operating Temperature | -20°C to +70°C |
| Power Supply | 24 VDC |
| Mounting Style | DIN Rail |
Product Applications
The DC-TAOX11 module is widely utilized in a broad spectrum von industrial environments where reliable analog output is crucial:
-
Process Automation
Controls valves, pumps, and actuators in chemical, petrochemical, pharmaceutical, and food processing plants. -
Power Generation
Regulates turbine control systems, generator excitation, and other power plant equipment. -
Manufacturing
Manages analog control signals for conveyors, robotic arms, and assembly line equipment. -
Building Automation
Interfaces with HVAC controls, lighting dimmers, and environmental systems. -
Water and Wastewater Treatment
Controls dosing pumps, valve actuators, and other process equipment. -
Infrastructure and Utilities
Used in environmental control systems, monitoring stations, and infrastructure automation.
Product Advantages
-
High Precision Output
Equipped with 16-bit DAC, the module delivers accurate and stable analog signals with ±0.1% full-scale accuracy. -
Multiple Output Channels
Provides 8 channels for controlling various devices simultaneously. -
Versatile Signal Compatibility
Supports standard industrial output signals including 4-20 mA, 0-20 mA, and 0-10 V. -
Compact and Lightweight Design
With dimensions von 156 x 66 x 30 mm and a weight von only 0.5 kg, it fits well in tight spaces. -
Wide Operating Temperature Range
Reliable operation between -20°C and +70°C suits harsh industrial conditions. -
Energy Efficient
Operates on a 24 VDC power supply, minimizing energy consumption. -
Easy DIN Rail Mounting
Facilitates quick installation and replacement. -
Robust Construction
Designed to withstand industrial environments, ensuring long service life. -
Stable Load Handling
Supports load resistances up to 500 Ω, suitable for most industrial actuators. -
Seamless Integration
Compatible with Honeywell DCS and other automation platforms, enabling smooth system integration.
Häufig gestellte Fragen (FAQ)
-
Q: How many output channels does the DC-TAOX11 support?
A: It supports 8 analog output channels. -
Q: What types von output signals can it generate?
A: It can output 4-20 mA, 0-20 mA, and 0-10 V signals. -
Q: What are the module’s dimensions?
A: 156 x 66 x 30 mm. -
Q: What is the weight von the module?
A: The module weighs 0.5 kg. -
Q: What is the accuracy von the analog output?
A: ±0.1% von full scale. -
Q: What is the maximum load resistance it can handle?
A: Up to 500 Ω for current outputs. -
Q: What is the operating temperature range?
A: -20°C to +70°C. -
Q: How is the module mounted?
A: It is mounted on a DIN rail. -
Q: What power supply voltage is required?
A: 24 VDC power supply. -
Q: Is the DC-TAOX11 compatible with Honeywell control systems?
A: Yes, it integrates seamlessly with Honeywell DCS and related platforms.
Recommended Modells (Same Series or Related)
| Modell | Output Channels | Dimensions (mm) | Gewicht | Key Features |
|---|---|---|---|---|
| DC-TAOX12 | 16 Analog Outputs | 180 x 80 x 35 | 0.7 kg | Higher channel count |
| DC-TAOX10 | 4 Analog Outputs | 140 x 60 x 30 | 0.4 kg | Compact design for fewer outputs |
| DC-TAOX15 | 8 Analog Outputs | 160 x 70 x 35 | 0.55 kg | Extended temperature rating |
| DC-PAOX12 | Process Analog Out | 160 x 70 x 35 | 0.6 kg | Specialized for process control |
| DC-TAOX13 | 8 Analog Outputs | 156 x 66 x 30 | 0.5 kg | Enhanced filtering and stability |
| DC-TAIX52 | 16 Analog Inputs | 180 x 80 x 35 | 0.7 kg | Analog input counterpart |
Popular Modells (Same Marke)
| Modell | Functionality | Dimensions (mm) | Gewicht |
|---|---|---|---|
| DC-PDOD51 | Digital Output Module | 130 x 100 x 150 | 0.6 kg |
| DC-TAIX11 | Analog Input Module | 22 x 124 x 126 | 1.6 kg |
| DC-TDIX11 | Digital Input Module | 22 x 124 x 126 | 1.5 kg |
| DC-TAOX11 | Analog Output Module | 156 x 66 x 30 | 0.5 kg |
| DC-PAOX12 | Process Analog Output | 40 x 150 x 160 | 2.0 kg |
| DC-TDOX11 | Digital Output Module | 22 x 124 x 126 | 1.5 kg |
