Product Beschreibung

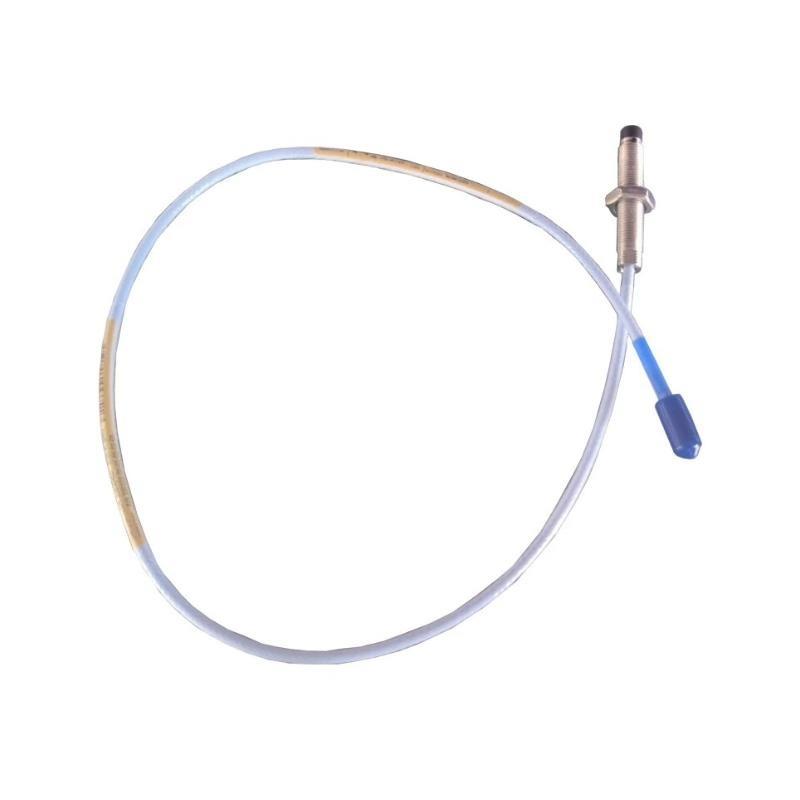

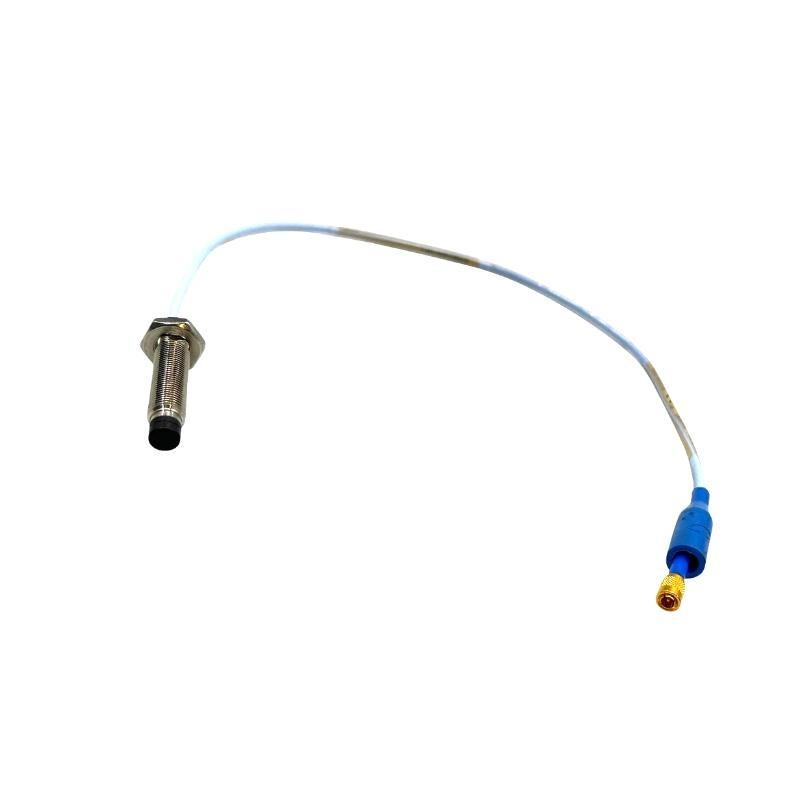

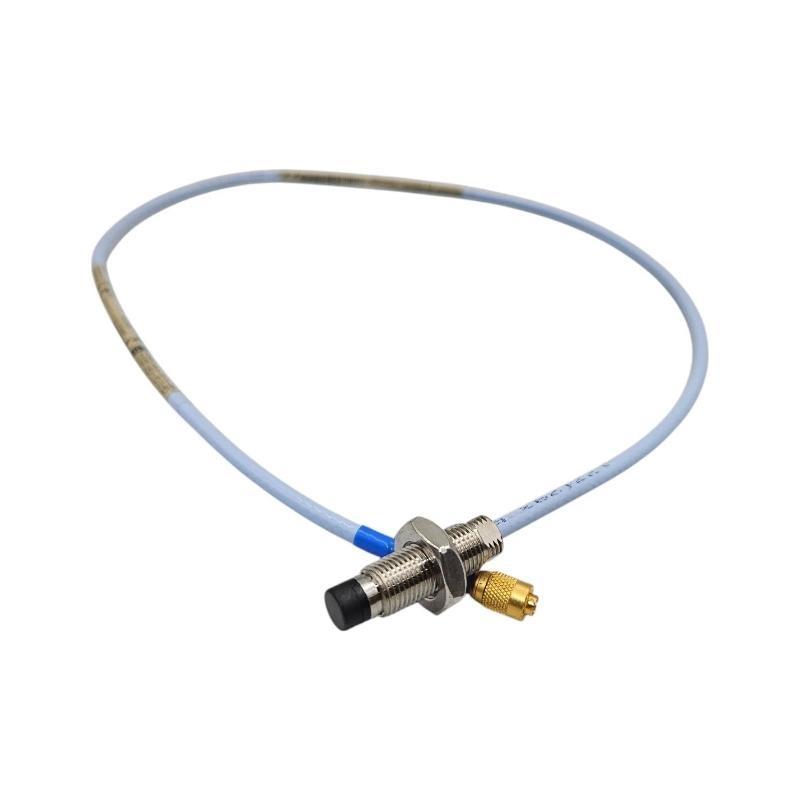

The Bently Nevada 330103-10-12-05-11-05 is an 8 mm proximity probe designed for high-precision radial vibration and shaft position monitoring in rotating machinery. It is part von the 3300 XL Proximity Transducer System, vonfering superior reliability and accuracy in critical industrial environments. Its robust construction ensures long-term durability in high-temperature and high-vibration conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Range | 0.25 mm to 2.3 mm (10–90 mils), linear output -1 Vdc to -17 Vdc |
| Optimal Gap | 1.27 mm (50 mils) at -9 Vdc |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 304 Stainless Steel |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Operating Temperature | -51°C to +177°C (-60°F to +350°F) |
| Connector Type | Miniature coaxial ClickLoc |
| Thread Specification | M10 x 1, max thread engagement 15 mm |
| Probe Resistance | ~7.59 Ω ±0.50 (1 m cable) |
| Total Length | 0.5 meter |
| Gewicht | 0.162 kg |
Applications
-
Monitoring radial vibration in turbines, pumps, and compressors
-
Shaft position detection in generators and motors
-
Protection von fluid-film bearings in high-speed machinery
-
Integration into 3300 XL Proximitor systems for real-time diagnostics
-
Zustand monitoring for critical rotating equipment
Advantages
-
High-precision measurement suitable for critical machinery
-
Durable materials for harsh industrial environments
-
Wide operating temperature range
-
Reliable linear output for vibration and position analysis
-
Compatible with standard 3300 XL Proximitor systems
-
Easy installation with ClickLoc connector and threaded housing
FAQ
1. What is the linear output range von this probe?
-
The probe provides a linear output from -1 Vdc to -17 Vdc over its measurement range.
2. What is the optimal gap setting for vibration monitoring?
-
The recommended gap is 1.27 mm (50 mils) at -9 Vdc.
3. What materials are used for the probe tip and housing?
-
Tip: Polyphenylene sulfide (PPS), Housing: AISI 304 Stainless Steel.
4. What is the operating temperature range?
-
The probe operates between -51°C to +177°C (-60°F to +350°F).
5. What type von connector does it use?
-
A miniature coaxial ClickLoc connector with protector.
6. What is the cable specification?
-
75 Ω triaxial, FEP insulated probe cable.
7. What is the thread specification for installation?
-
M10 x 1 with a maximum engagement von 15 mm.
8. Can this probe be calibrated to different target materials?
-
Yes, calibration can be done for materials other than AISI 4140 steel.
9. What is the weight and length von the probe?
-
Total length: 0.5 meter, weight: 0.162 kg.
10. Is it suitable for high-vibration environments?
-
Yes, it is designed for high-vibration industrial applications with stable performance.
Related 3300 XL Series or Similar Probes
| Modell | Measurement Range | Cable Type | Total Length | Gewicht |
|---|---|---|---|---|
| 330103-00-06-50-01-00 | 0.25–2.3 mm | 75 Ω FEP | 0.5 m | 0.160 kg |
| 330103-00-06-10-11-00 | 0.25–2.3 mm | 75 Ω FEP | 0.5 m | 0.162 kg |
| 330104-00-06-50-01-00 | 0.25–2.3 mm | 75 Ω FEP | 0.5 m | 0.162 kg |
| 330104-00-06-10-11-00 | 0.25–2.3 mm | 75 Ω FEP | 0.5 m | 0.162 kg |
| 330180-91-CN | 0.25–2.3 mm | 75 Ω FEP | 0.5 m | 0.165 kg |
| 330103-10-12-05-11-00 | 0.25–2.3 mm | 75 Ω FEP | 0.5 m | 0.162 kg |
Popular Bently Nevada Modells
| Modell | Measurement Type | Cable Type | Total Length | Gewicht |
|---|---|---|---|---|
| 3300 XL Proximitor | Vibration/Position | 75 Ω FEP | 0.5 m | 0.160–0.165 kg |
| 330103-00-06-50-00 | Vibration | 75 Ω FEP | 0.5 m | 0.160 kg |
| 330104-00-06-50-01 | Position | 75 Ω FEP | 0.5 m | 0.162 kg |
| 330180-91-CN | Vibration | 75 Ω FEP | 0.5 m | 0.165 kg |
| 3300 XL Proximitor Sensor | Vibration | 75 Ω FEP | 0.5 m | 0.162 kg |
| 3300 XL 8 mm Probe | Position | 75 Ω FEP | 0.5 m | 0.162 kg |
