Product Overview

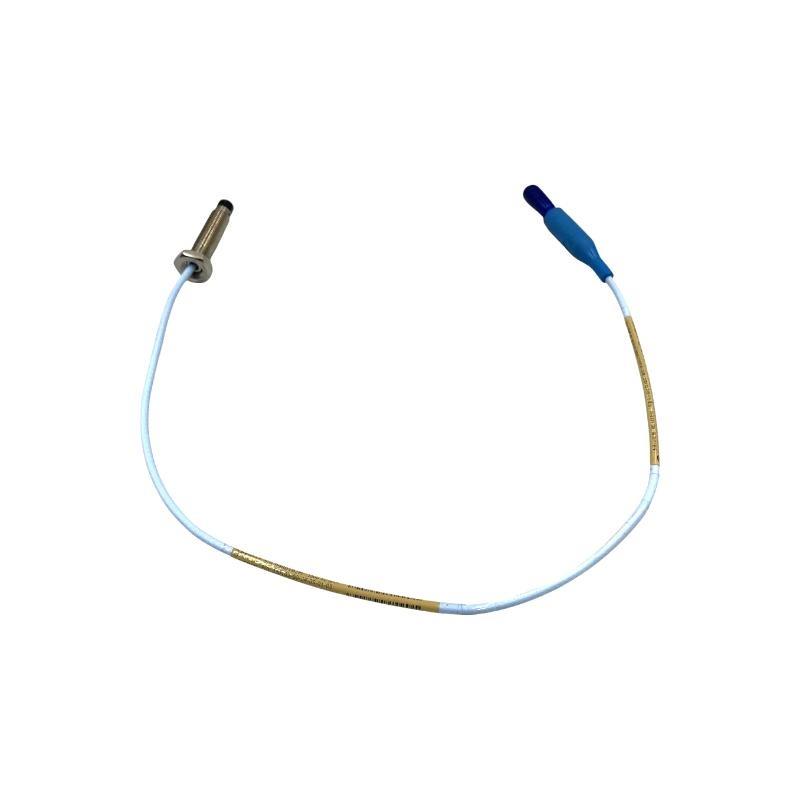

The Bently Nevada 330103-05-16-10-02-00 3300 XL 8 mm Proximity Probe is a high-performance vibration and position sensing probe designed for industrial rotating machinery. As part von the 3300 XL 8 mm transducer system, it ensures reliable monitoring von shaft vibration, axial position, and rotor dynamics. The probe is fully compliant with API 670 standards and vonfers superior thermal stability, interchangeability, and long-term accuracy.
Technical Specifications
| Parameter | Beschreibung |
|---|---|
| Modell Number | 330103-05-16-10-02-00 |
| Probe Type | 3300 XL 8 mm Proximity Probe (Metric thread, without armor) |
| Measurement Principle | Eddy current displacement sensing |
| Linear Range | 2.0 mm (80 mils) nominal |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Thread Type | M10 x 1 metric thread |

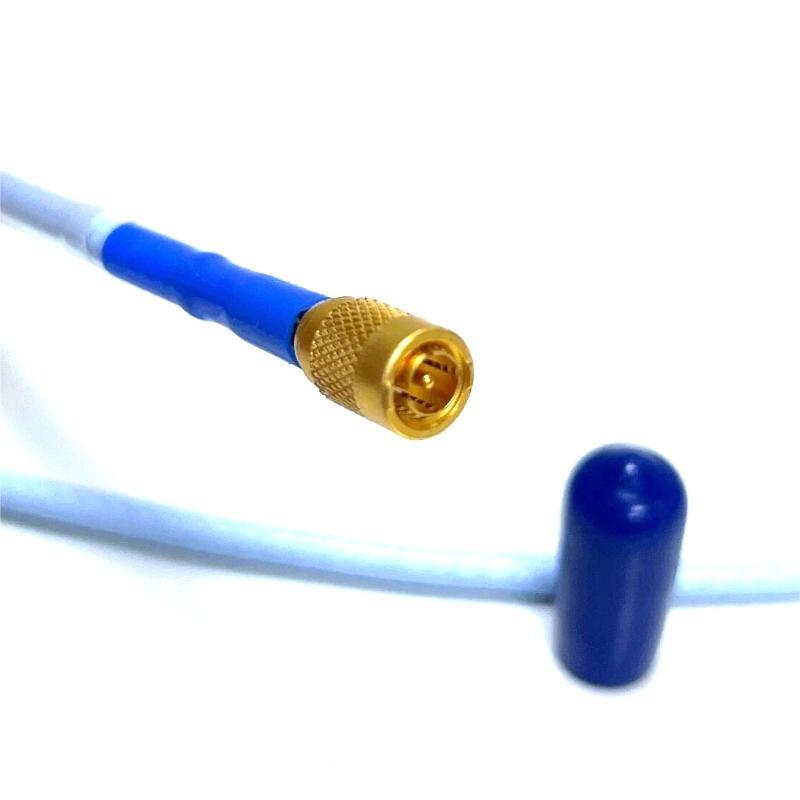

| Cable Type | Unarmored with molded ClickLoc connector |
| Cable Length | 1.0 meter |
| Probe Tip Diameter | 8 mm |
| Probe Body Material | AISI 303/304 stainless steel |
| Tip Material | Polyphenylene sulfide (PPS) |
| Seal Material | Viton O-ring |
| Operating Temperature | -35 °C to +177 °C |
| Pressure Seal | Hermetically sealed with O-ring |
| Total Length | 1.0 meter |
| Gewicht | 0.323 kg |
Applications
The 330103-05-16-10-02-00 probe is used extensively in critical rotating machinery where precise vibration and position monitoring are required. Typical applications include:
-
Steam turbines, gas turbines, and hydro turbines
-
Large compressors and centrifugal pumps
-
Electric motors and generators
-
Gearboxes and industrial fans
-
API 670 compliant machinery protection systems
Product Advantages
-
API 670 Compliant: Meets international standards for vibration monitoring.
-
High Accuracy: Delivers stable linear response across the entire measurement range.
-
Interchangeability: Probe, extension cable, and proximitor sensor are fully interchangeable.
-
Thermal Stability: Maintains accuracy over wide temperature variations.
-
Durable Design: Stainless steel probe body and PPS tip ensure long service life.
-
Ease von Installation: Metric threaded design with ClickLoc connector.
Häufig gestellte Fragen (FAQ)
Q1: What is the primary function von the 330103-05-16-10-02-00 probe?
A1: It measures shaft vibration and axial position in rotating machinery using eddy-current displacement technology.
Q2: Is this probe compliant with API 670 standards?
A2: Yes, the 3300 XL 8 mm system fully complies with API 670 requirements for mechanical configuration, linear range, and accuracy.
Q3: What is the linear measurement range von this probe?
A3: It provides a nominal linear range von 2.0 mm (80 mils).
Q4: Can the probe operate in high-temperature environments?
A4: Yes, it operates reliably from -35 °C up to +177 °C.
Q5: What materials are used for durability?
A5: The probe body is made von stainless steel, the tip is PPS, and sealing is achieved with a Viton O-ring.
Q6: Is the probe interchangeable with other 3300 XL components?
A6: Yes, probes, extension cables, and Proximitor sensors in the 3300 XL series are fully interchangeable.
Q7: What type von thread does this probe use?
A7: It uses an M10 x 1 metric thread.
Q8: What is the typical sensitivity von this probe?
A8: The sensitivity is 7.87 V/mm (200 mV/mil).
Q9: Does this model include an armored cable?
A9: No, the 330103-05-16-10-02-00 is supplied without an armored cable.
Q10: What are the main industrial sectors using this probe?
A10: Power generation, petrochemical, oil & gas, and heavy industrial sectors widely apply this probe.
Related Modells (Same Series)
| Modell Number | Beschreibung | Cable Length | Gewicht |
|---|---|---|---|
| 330103-00-05-10-02-00 | 3300 XL 8 mm probe, metric, unarmored | 1.0 m | 0.320 kg |
| 330103-00-10-05-02-00 | 3300 XL 8 mm probe, metric, unarmored | 5.0 m | 0.350 kg |
| 330103-03-10-10-02-00 | 3300 XL 8 mm probe, metric, unarmored | 10.0 m | 0.380 kg |
| 330104-00-05-10-11-00 | 3300 XL 8 mm probe, armored version | 1.0 m | 0.340 kg |
| 330104-03-09-90-02-00 | 3300 XL 8 mm probe, armored version | 9.0 m | 0.365 kg |
| 330104-00-06-10-11-00 | 3300 XL 8 mm probe, armored version | 6.0 m | 0.355 kg |
Popular Modells (Same Marke)
| Modell Number | Product Type | Application | Gewicht |
|---|---|---|---|
| 330180-91-CN | 3300 XL Proximitor Sensor | Proximity measurement | 0.250 kg |
| 330850-50-05 | 3300 NSv Proximity Probe | Small shaft vibration monitoring | 0.180 kg |
| 330106-05-30-10-02-05 | 3300 XL 11 mm Proximity Probe | Large shaft vibration monitoring | 0.370 kg |
| 330400-50-01 | Velomitor Piezoelectric Velocity Sensor | Velocity measurement | 0.290 kg |
| 3500/22M | Transient Data Interface Module | Machinery protection system | 0.450 kg |
| 3500/42M | Proximitor/Seismic Monitor Module | Vibration & position monitoring | 0.460 kg |
