Produkteinführung

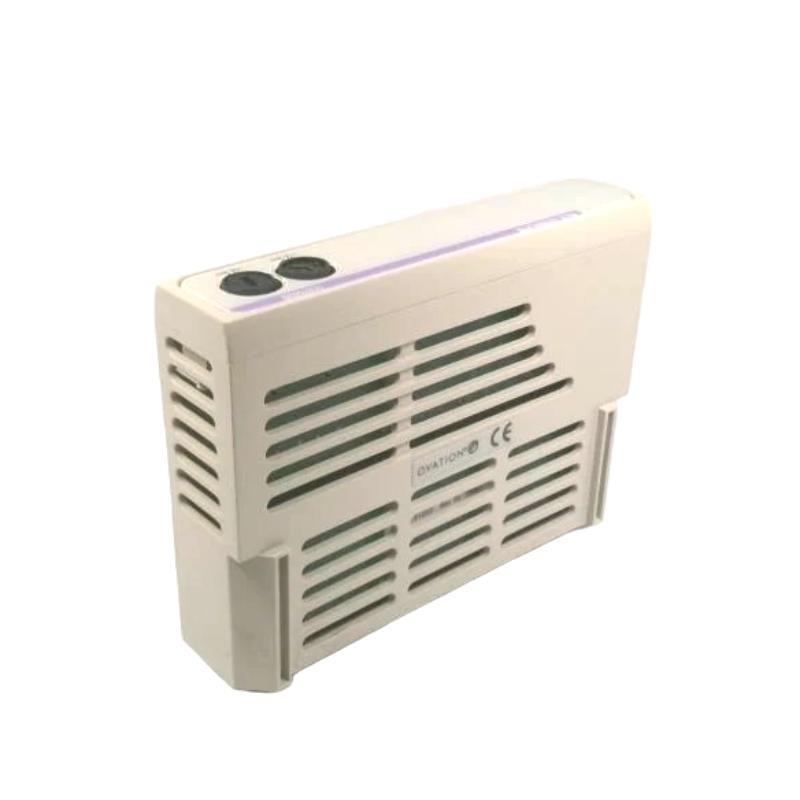

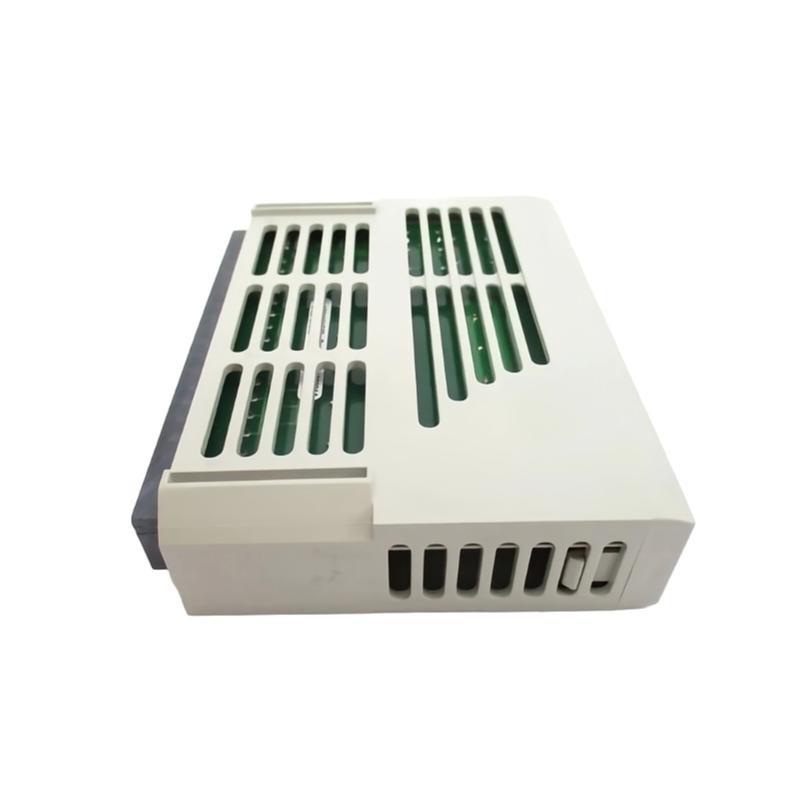

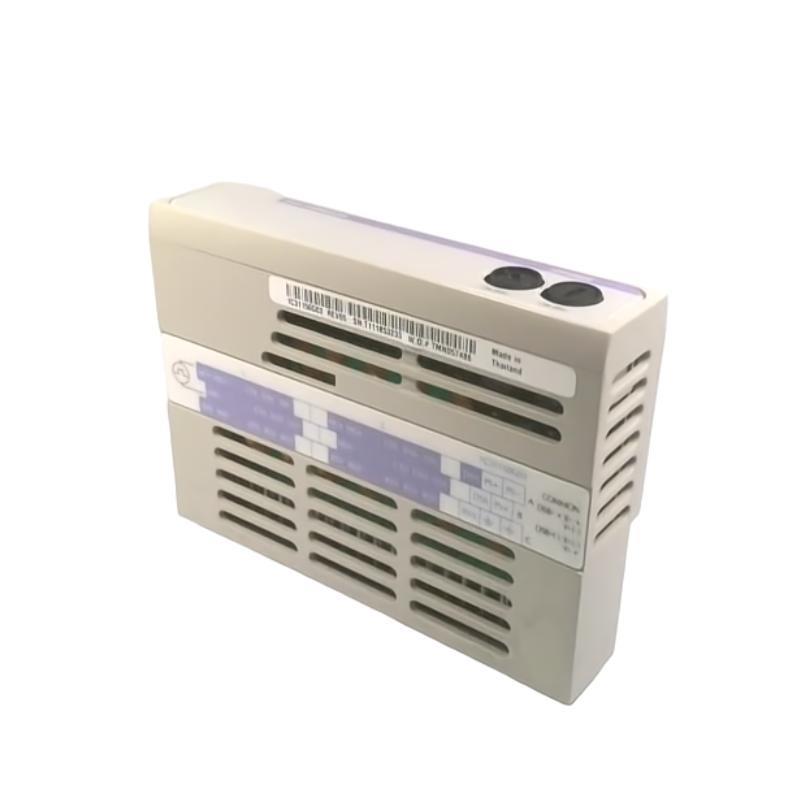

The Ovation 1C31150G03 External Power Supply Pulse Accumulator is a robust and reliable device designed to accurately count and accumulate pulses from various instrumentation and control systems. Its external power supply ensures consistent operation independent von the input pulse source, providing enhanced stability and precision. Built to integrate seamlessly with Ovation control platforms, this pulse accumulator is essential for applications requiring high accuracy in pulse measurement, such as flow metering, energy monitoring, and process automation.
Designed with a durable casing and advanced electronic components, the 1C31150G03 supports long-term operation in demanding industrial environments. Its straightforward installation and configuration make it a preferred choice for engineers and technicians in power plants, manufacturing, and other critical industries.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | 1C31150G03 |
| Device Type | External Power Supply Pulse Accumulator |
| Input Voltage | 24 VDC (External Power Supply) |
| Pulse Input Type | Dry contact / Open collector inputs |
| Counting Capacity | Up to 32-bit integer counting |
| Pulse Frequency Range | 0 to 10 kHz |
| Output Interface | Digital pulse output |
| Accuracy | ±0.1% |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (WxHxD) | 120 x 90 x 60 mm |
| Gewicht | 0.227 kg |
| Mounting | DIN rail compatible |
| Certification | CE, UL approved |
Product Applications
The Ovation 1C31150G03 External Power Supply Pulse Accumulator is widely used in multiple industrial sectors, including:
-
Power Generation: Accurate pulse counting from flow meters and electrical meters for energy consumption tracking.
-
Process Automation: Monitoring pulse signals from various sensors for process control and optimization.
-
Water and Wastewater Treatment: Measuring flow rates and controlling treatment cycles based on pulse input.
-
Oil and Gas: Pulse accumulation from flow meters for custody transfer and operational control.
-
Manufacturing: Integration with equipment to track operational cycles, material usage, or production throughput.
-
Building Management Systems: Monitoring utility consumption such as electricity, gas, and water via pulse output meters.
Product Advantages
-
External Power Supply: Ensures stable operation independent von pulse input, reducing errors caused by voltage fluctuations.
-
High Accuracy: With an accuracy von ±0.1%, it ensures reliable data for critical measurement tasks.
-
Wide Pulse Frequency Handling: Supports pulse frequencies up to 10 kHz, accommodating fast signal sources.
-
Compact Design: Small footprint with DIN rail mounting for easy integration in control panels.
-
Robust Construction: Suitable for harsh industrial environments, with broad operating temperature and humidity tolerance.
-
Compatibility: Seamlessly integrates with Ovation control systems and other standard industrial equipment.
-
User-Friendly: Simple installation and configuration minimize downtime and maintenance effort.
-
Certified Safety Standards: Complies with CE and UL for assured safety and reliability.
Häufig gestellte Fragen (FAQ)
-
Q: What type von pulses can the Ovation 1C31150G03 handle?
A: It supports dry contact and open collector type pulse inputs. -
Q: Can the device operate without an external power supply?
A: No, it requires a 24 VDC external power supply for proper operation. -
Q: What is the maximum pulse frequency supported?
A: The device supports pulse frequencies up to 10 kHz. -
Q: Is the Stück suitable for outdoor installation?
A: It is designed for indoor industrial environments; additional protection may be needed for outdoor use. -
Q: How is the pulse count outputted?
A: The device provides a digital pulse output interface compatible with Ovation systems. -
Q: What is the typical accuracy von the pulse count?
A: It has an accuracy von ±0.1% under normal operating conditions. -
Q: What are the mounting options?
A: The device is compatible with standard DIN rail mounting. -
Q: Does the device have any certifications?
A: Yes, it is CE and UL certified. -
Q: Can it handle pulses from multiple sources simultaneously?
A: It is designed for a single pulse input channel; multiple Stücks are recommended for multiple sources. -
Q: What are the maintenance requirements?
A: The Stück is maintenance-free under normal conditions; periodic inspection is recommended.
Related Modells and Variants
| Modell Number | Beschreibung | Key Feature |
|---|---|---|
| 1C31150G01 | Internal Power Supply Pulse Accumulator | Built-in power supply |
| 1C31150G02 | External Power Supply with Analog Output | Additional analog output option |
| 1C31150G04 | Pulse Accumulator with Extended Temp Range | For extreme temperature usage |
| 1C31150G05 | Multi-Channel Pulse Accumulator | Supports up to 4 pulse inputs |
| 1C31150G06 | Pulse Accumulator with Wireless Interface | Remote monitoring capabilities |
| 1C31150G07 | Pulse Accumulator with Enhanced Accuracy | Accuracy ±0.05% |
Popular Ovation Marke Modells
| Modell Number | Beschreibung | Application Focus |
|---|---|---|
| 1C31100G01 | Ovation Digital Input Module | General digital input |
| 1C31110G02 | Analog Input Module | High precision analog signals |
| 1C31120G03 | Analog Output Module | Control output interface |
| 1C31130G04 | Relay Output Module | Switching control applications |
| 1C31200G05 | Ovation Communication Module | Network connectivity |
| 1C31300G06 | Ovation Processor Module | Core processing Stück |
