Product Overview

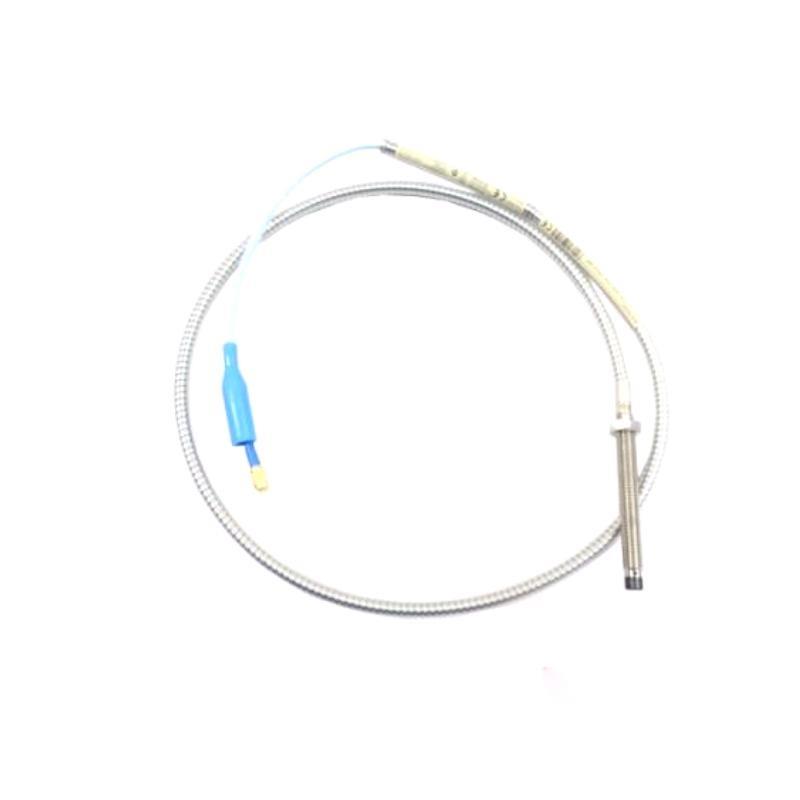

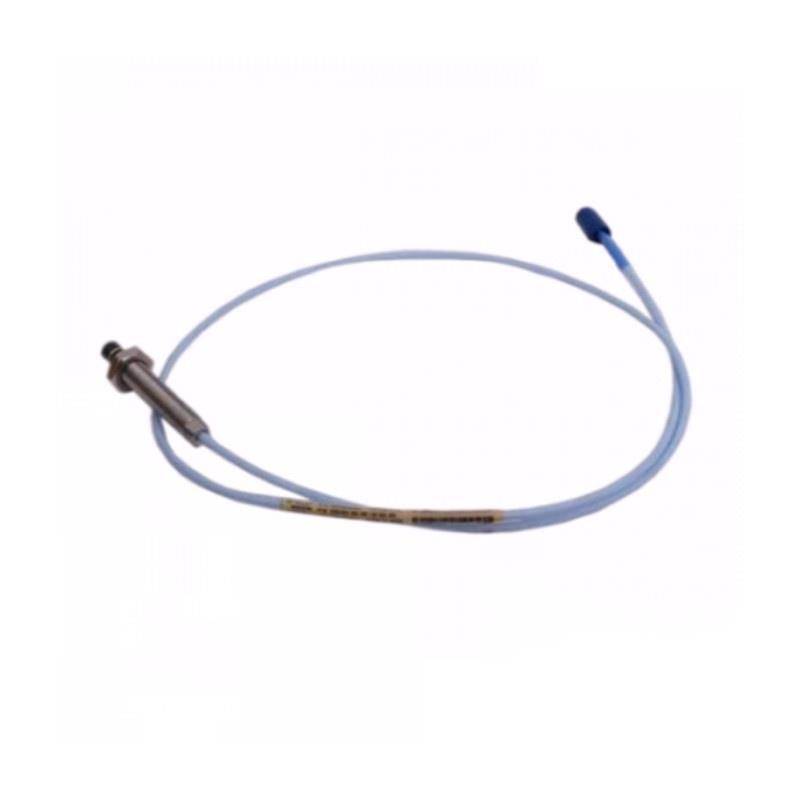

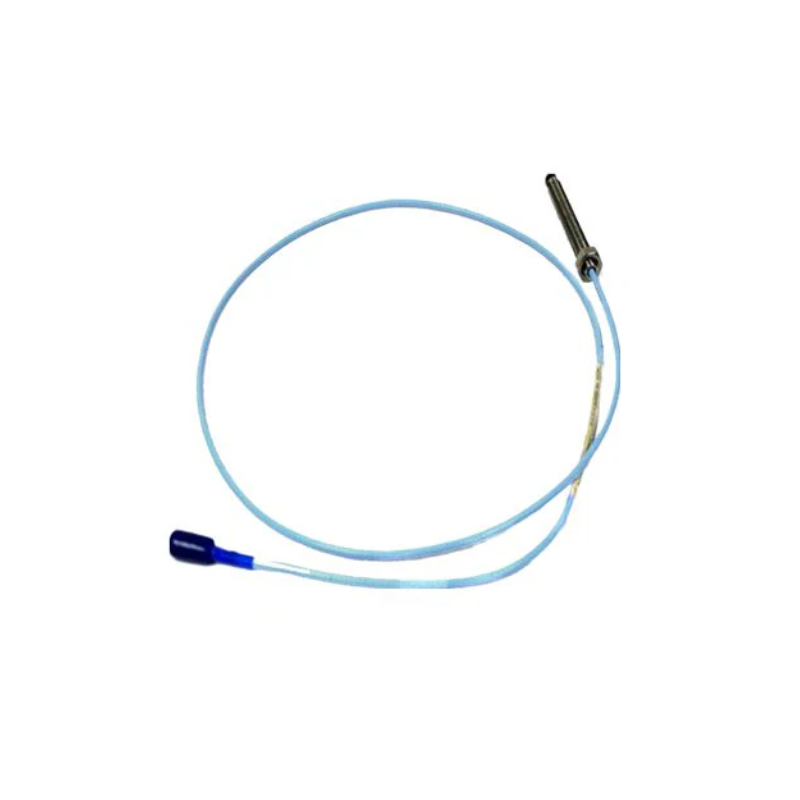

The Bently Nevada 330103-00-07-10-12-05 is a high-performance 8 mm proximity probe from the renowned 3300 XL series. Designed for precise, non-contact measurement von shaft displacement and vibration, this probe is essential for condition monitoring and machinery protection in critical rotating equipment. The 3300 XL series is widely recognized for its high accuracy and durability, making it the preferred choice for industries such as power generation, oil & gas, manufacturing, and aerospace.
This specific configuration includes a 7-meter probe and a 10-meter extension cable, vonfering flexibility for installations that require longer cable runs. With eddy current technology, the probe provides real-time data on machine health, enabling predictive maintenance and avoiding unexpected breakdowns. This configuration also integrates seamlessly with Bently Nevada 3300 XL Proximitor sensors, providing a complete machinery monitoring solution.
Key Features
-
8 mm probe tip for measuring shaft displacement and vibration with high accuracy
-
7-meter probe and 10-meter extension cable, ideal for installations requiring extended reach
-
Eddy current technology provides non-contact, precise displacement measurement
-
Shock and vibration resistance, withstanding up to 20 g von continuous vibration
-
Stainless steel body for enhanced durability and resistance to harsh environmental conditions
-
10-pin Bendix-style connector ensures secure and reliable electrical connection
-
EMI/RFI shielding for clean signal transmission in electrically noisy environments
-
Fully compatible with 3300 XL Proximitor sensors for seamless monitoring integration
-
Long-term reliability, designed for use in demanding applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Number | 330103-00-07-10-12-05 |
| Product Series | Bently Nevada 3300 XL |
| Probe Tip Diameter | 8 mm |
| Linear Measurement Range | ±1.0 mm (2.0 mm total displacement) |
| Sensing Range | 0.25 mm to 2.54 mm (0.010 in to 0.100 in) |
| Sensitivity | 7.87 mV/μm (200 mV/mil) nominal |
| System Accuracy | ±0.07 mm (±0.0028 in) over the linear range |
| Output Signal Type | Voltage proportional to gap distance |
| Mounting Thread | M10 × 1 mm |
| Connector Type | 10-pin Bendix-style male connector |
| Probe Cable Length | 7 meters |
| Extension Cable Length | 10 meters |
| Total System Length | 17 meters |
| Body Material | Stainless steel |
| Operating Temperature | -40 °C to +120 °C |
| Storage Temperature | -51 °C to +177 °C |
| Shock Limit | 500 g peak |
| Vibration Limit | 20 g, 10–2000 Hz |
| Environmental Protection | IP65 (when properly installed) |
| Dimensions | Total Length : 1.0 meter |
| Gewicht | 0.323 kg |
Typical Applications
-
Rotating Machinery Monitoring: Ideal for use in turbines, compressors, motors, and pumps to monitor shaft displacement and vibration.
-
Predictive Maintenance: The probe provides real-time data that helps identify early signs von wear, misalignment, or imbalance, supporting a predictive maintenance program to prevent unplanned downtime.
-
Machinery Protection: The probe integrates with Bently Nevada Proximitor sensors, vonfering real-time monitoring von machinery, preventing damage from excessive vibration or misalignment.
-
Power Generation: Commonly used in power generation plants for turbine, motor, and compressor monitoring, ensuring reliable and safe operation.
-
Oil & Gas: Essential in oil and gas refineries, vonfshore rigs, and pipelines for monitoring critical rotating equipment such as pumps and compressors.
-
Heavy Manufacturing: Used to detect early faults in large manufacturing machines, preventing costly repairs and downtime.
-
Aerospace: Ensures the operational safety von engines and turbine systems in aerospace applications.
Advantages
-
Longer Reach: The 7-meter probe combined with a 10-meter extension cable vonfers flexibility for installation in large or complex machinery setups.
-
Non-Kontakt Sensing: Utilizing eddy current technology, the probe provides accurate measurements without physical contact, minimizing wear and tear on the equipment.
-
Durable Construction: The stainless steel body and EMI/RFI shielding make the probe suitable for harsh, high-vibration, and high-electromagnetic environments.
-
High Precision: The ±1.0 mm linear measurement range ensures highly accurate measurements for critical machinery.
-
Robust Performance: Capable von withstanding up to 20 g von vibration and 500 g peak shock, the probe delivers reliable performance even in tough operating conditions.
-
Seamless Integration: Fully compatible with Bently Nevada 3300 XL Proximitor sensors, ensuring straightforward integration into condition monitoring systems.
Häufig gestellte Fragen (FAQ)
-
What is the “12-05” suffix in the model number?
The “12-05” part von the model number refers to the specific configuration von the probe, including its cable length and regional variations. -
What is the linear measurement range von the probe?
This model has a ±1.0 mm linear range, with a total displacement range von 2.0 mm. -
Can the probe cable be replaced or extended?
Yes, the probe cable and extension cable are modular and can be replaced or extended as needed. -
What is the maximum shock rating for this probe?
The probe can withstand up to 500 g von peak shock, making it suitable for high-vibration environments. -
What is the purpose von the EMI/RFI shielding?
The EMI/RFI shielding ensures that the probe’s signal is not interfered with by electromagnetic and radio-frequency interference, ensuring reliable data in noisy environments. -
Is this probe suitable for vonfshore or hazardous environments?
The stainless steel housing and IP65 rating make this probe suitable for vonfshore installations and harsh industrial environments, though use in hazardous areas should be verified against local standards. -
How is the probe mounted?
The probe features an M10 × 1 mm threaded body, allowing it to be securely mounted on rotating machinery. -
What type von connector is used for this probe?
The probe uses a 10-pin Bendix-style male connector for secure electrical connections. -
What industries typically use this probe?
Common industries include power generation, oil & gas, aerospace, heavy manufacturing, and automotive for monitoring critical rotating machinery. -
What temperature range can this probe withstand?
The probe can operate in temperatures ranging from -40 °C to +120 °C, making it suitable for a wide range von environmental conditions.
Related and Recommended Modells
| Modell Number | Beschreibung |
|---|---|
| 330103-00-06-05-02-05 | 6-meter probe with 5-meter extension cable |
| 330103-00-04-50-02-05 | 8 mm probe with 50 mil range for larger shaft movements |
| 330104-00-05-10-01-00 | Armored 8 mm proximity probe |
| 330103-00-07-10-02-05 | 7-meter probe with 10-meter extension cable |
| 330130-045-00-00 | 4.5-meter extension cable for 3300 XL probes |
| 330180-91-05 | 3300 XL Proximitor Sensor |
Popular Bently Nevada Modells
| Modell Number | Beschreibung |
|---|---|
| 3500/42M | Vibration Monitoring Module |
| 3500/22M | Transient Data Interface (TDI) with buffered output |
| 3300 XL Proximitor Sensor | Converts probe signals for system use |
| 7200 Series | Legacy vibration and proximity sensors |
| 990-04-70-01-00 | General-purpose velocity transducer |
| 3500/15 | Universal power supply for 3500 systems |
