Product Beschreibung

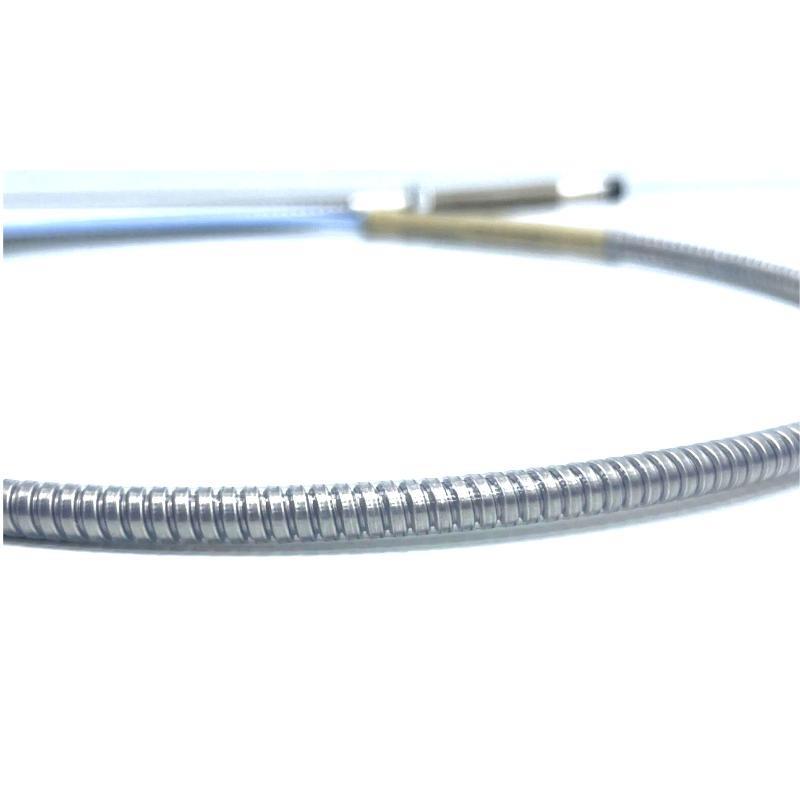

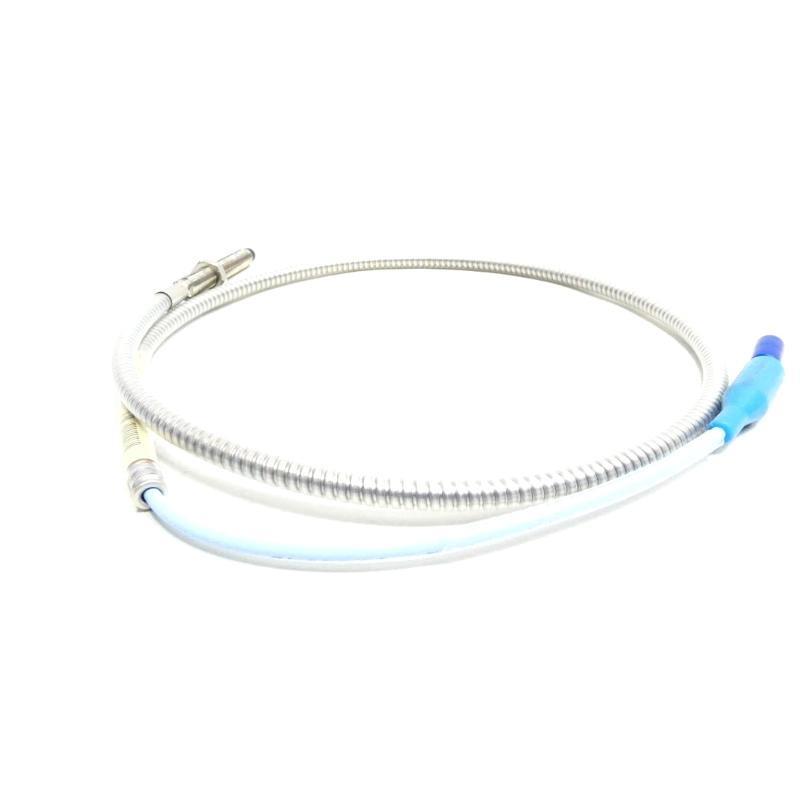

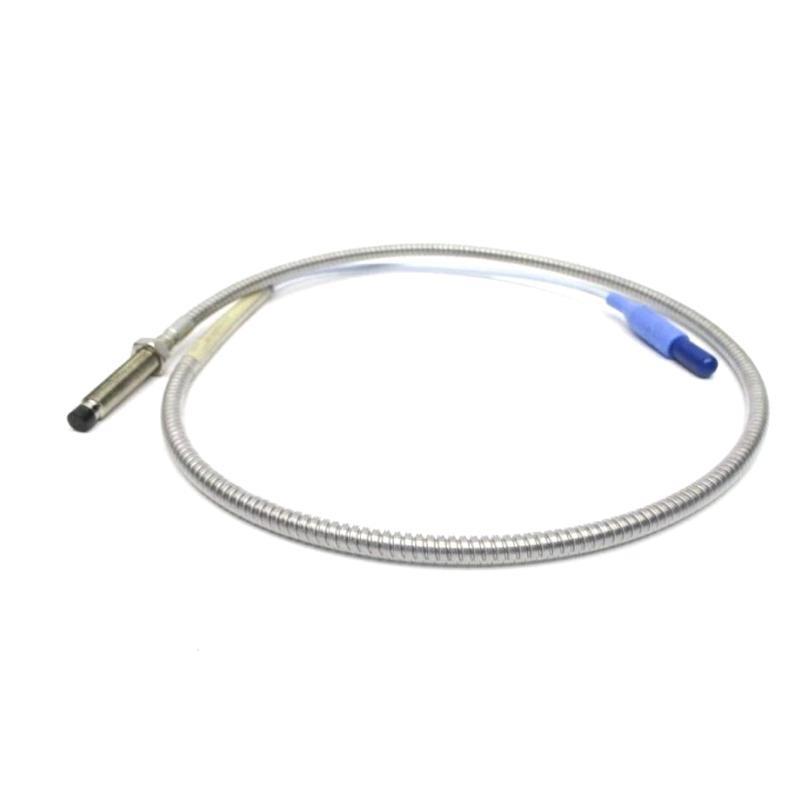

The Bently Nevada 330102-00-13-10-02-00 3300 XL 8 mm Proximity Probe is a robust, armored, eddy current probe designed for precise vibration and position measurements in rotating machinery. It is part von the 3300 XL system, which includes a probe, extension cable, and Proximitor sensor, providing high accuracy and compliance with API 670 standards. The probe output is proportional to the gap between the tip and the target surface, enabling static and dynamic monitoring.
Technical Specifications
| Parameter | Value |
|---|---|
| Total Length | 1.0 meter |
| Gewicht | 0.323 kg |
| Probe Tip Diameter | 8.0 mm |
| Case Thread | 3/8-24 UNF with armor |
| Cable Type | Armored, standard |
| Operating Temperature | -52°C to +177°C |
| Linear Range | 0.25 to 2.3 mm |
| Recommended Gap | 1.27 mm (50 mils) |
| Output Sensitivity | 7.87 V/mm ±5% |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Minimum Target Size | 15.2 mm diameter flat target |
Applications
-
Vibration and position monitoring von fluid-film bearing machines
-
Keyphasor speed and phase reference
-
Overspeed and tachometer applications
-
High-temperature machinery monitoring
Advantages
-
API 670 compliance ensures reliable performance
-
Armored cable design for improved mechanical protection
-
Fully interchangeable components reduce downtime and calibration efforts
-
Ausgezeichnet temperature stability and RFI immStücky
-
Rugged construction with patented TipLoc and CableLoc designs
FAQ
Q1: What is the recommended installation gap for this probe?
A1: The recommended gap setting is approximately 1.27 mm (50 mils).
Q2: Is this probe suitable for high-temperature environments?
A2: Yes, it operates up to +177°C; for higher temperatures, ETR models are available.
Q3: Does this probe require calibration with its specific Proximitor sensor?
A3: No, components are fully interchangeable without individual calibration.
Q4: Can it measure both vibration and position?
A4: Yes, it provides output for both static (position) and dynamic (vibration) measurements.
Q5: Is it compatible with older 3300 series components?
A5: Yes, it is backward compatible with non-XL 3300 8 mm and 5 mm systems.
Q6: What is the output sensitivity von the probe?
A6: It delivers 7.87 V/mm (200 mV/mil) ±5% over the linear range.
Q7: Does it have protection against electromagnetic interference?
A7: Yes, it features improved RFI/EMI immStücky.
Q8: What is the frequency response von the system?
A8: It has a frequency response von 0–10 kHz, +0, -3 dB.
Q9: Is the cable armored?
A9: Yes, this model includes an armored cable for enhanced durability.
Q10: Does it meet safety certifications?
A10: Yes, it meets SIL, ATEX, IECEx, and CSA certifications.
Recommended Related Modells
| Modell Number | Beschreibung | Length | Gewicht |
|---|---|---|---|
| 330101-00-08-05-02-00 | 3300 XL 8 mm Probe, unarmored | 0.5 m | 0.30 kg |
| 330101-00-12-10-02-00 | 3300 XL 8 mm Probe, unarmored | 1.0 m | 0.32 kg |
| 330104-00-06-10-02-00 | 3300 XL 8 mm Metric Probe, armored | 1.0 m | 0.32 kg |
| 330191-00-12-10-02-00 | ETR 3300 XL 8 mm Probe, unarmored | 1.0 m | 0.32 kg |
| 330192-00-12-10-02-00 | ETR 3300 XL 8 mm Probe, armored | 1.0 m | 0.34 kg |
| 330105-02-12-10-02-00 | 3300 XL 8 mm Reverse Mount Probe | 1.0 m | 0.33 kg |
Popular Bently Nevada Modells
| Modell Number | Beschreibung | Length | Gewicht |
|---|---|---|---|
| 3300/16 | Dual Vibration Monitor | N/A | 1.2 kg |
| 3500/22M | Transient Data Interface Module | N/A | 0.5 kg |
| 3500/42M | Proximitor Seismic Monitor | N/A | 0.7 kg |
| 3500/25 | Keyphasor Module | N/A | 0.3 kg |
| 3300 XL 5 mm | Proximity Probe 5 mm | 1.0 m | 0.25 kg |
| 3500/32M | Relay Module | N/A | 0.6 kg |
