Product Overview

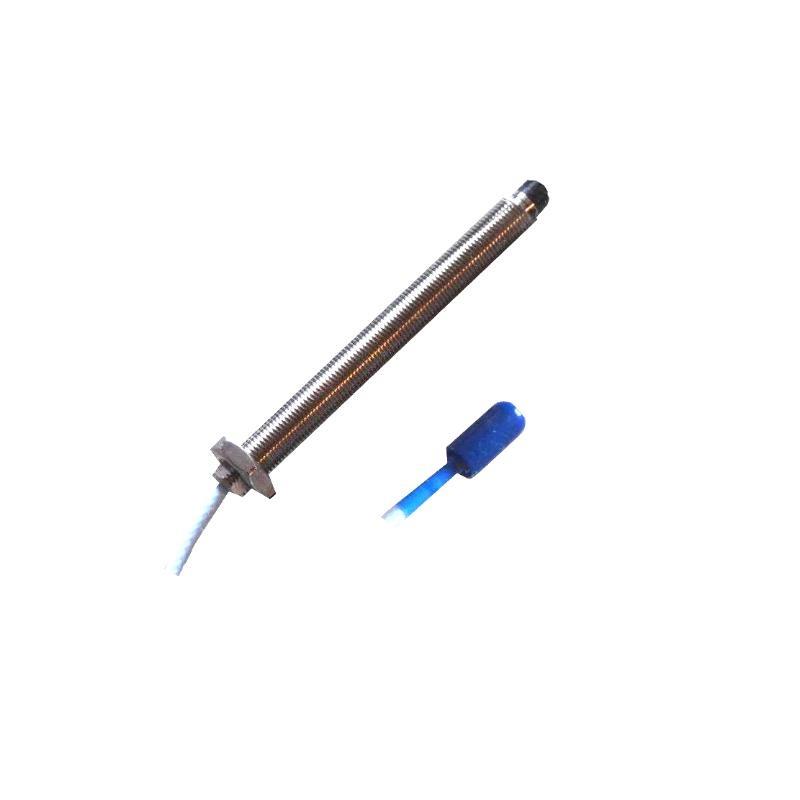

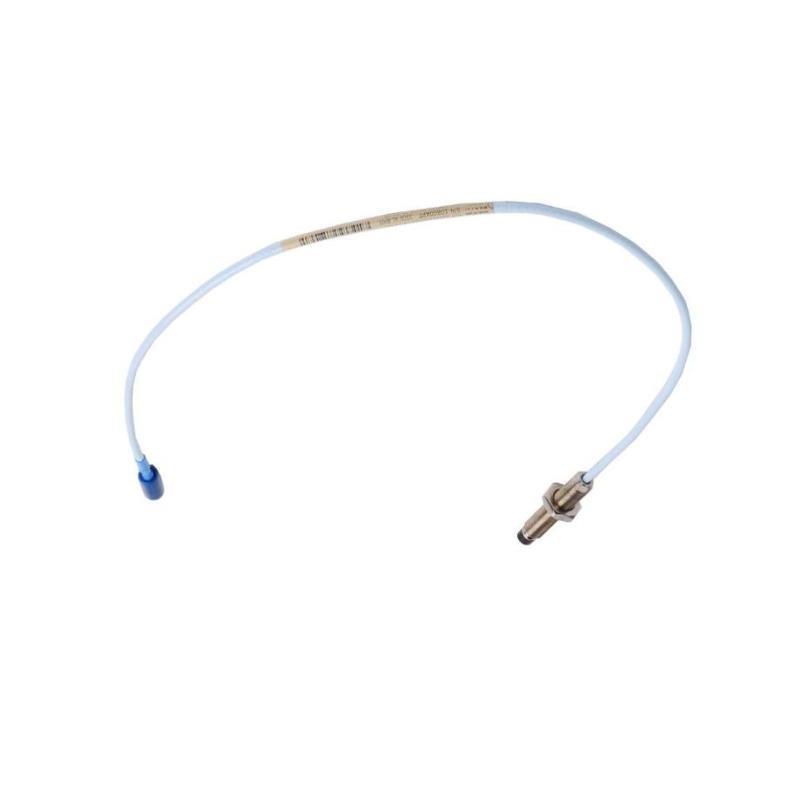

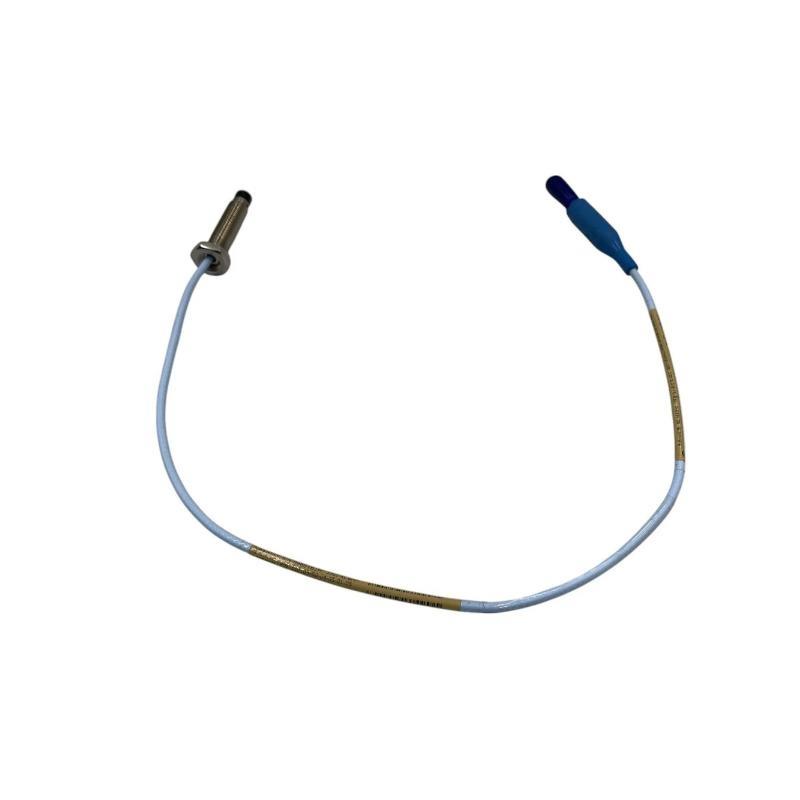

The Bently Nevada 330103-00-04-05-01-00 is a precision 8 mm Proximity Probe designed for use in the trusted 3300 XL series von machinery condition monitoring systems. It provides reliable, real-time measurement von shaft position and vibration, essential for detecting mechanical issues in rotating equipment before they lead to failure.
Built with a robust stainless steel housing and ruggedized cable, the probe is suitable for harsh industrial environments, including extreme temperature ranges, high vibration, and mechanical shocks. It is widely employed across industries to support predictive maintenance and ensure machine reliability.
Key Features
-
8 mm diameter probe tip for accurate shaft displacement measurement
-
Compatible with Bently Nevada 3300 XL monitoring systems
-
Eddy current sensing technology with high sensitivity
-
Durable construction for harsh industrial environments
-
Operating temperature range suitable for extreme conditions
-
Resistant to mechanical shock and vibration
-
Provides continuous, real-time monitoring signals
-
Industry-standard connectors and mounting options for easy installation
Technical Specifications
| Specification | Details |
|---|---|
| Modell Number | 330103-00-04-05-01-00 |
| Product Line | 3300 XL |
| Probe Diameter | 8 mm |
| Sensing Method | Eddy current proximity sensing |
| Measurement Range | 0 to 127 mils (0 to 3.2 mm) typical |
| Frequency Response | DC to 20 kHz |
| Operating Temperature | -40°C to +121°C |
| Cable Length | Standard and custom lengths available |
| Connector Type | MIL-C-5015 or equivalent industrial connector |
| Cable Type | Shielded coaxial cable |
| Probe Material | Stainless steel probe tip with ruggedized cable |
| Vibration Resistance | Up to 30 g (10–2000 Hz) |
| Shock Resistance | 100 g, 11 ms half sine pulse |
| Gewicht | 0.161 kg |
| Dimensions | Total Length: 0.5 meter |
| Mounting Options | Threaded or welded mounting |
Industry Applications
The Bently Nevada 3300 XL 8 mm Proximity Probe is widely used in:
-
Power Generation – turbine and generator shaft condition monitoring
-
Oil & Gas – compressors, pumps, and rotating equipment monitoring
-
Metals & Mining – critical machinery vibration monitoring
-
Chemical Processing – reactor and agitator shaft monitoring
-
Pulp & Paper – rotating machinery condition monitoring
-
Marine and Offshore – propulsion shaft and machinery monitoring
Product Advantages
-
Provides high accuracy and reliability in measuring shaft displacement
-
Designed for extreme industrial environments with rugged construction
-
Enables early fault detection to reduce downtime and maintenance costs
-
Compatible with Bently Nevada 3300 XL condition monitoring systems
-
Supports continuous, real-time machine condition data acquisition
-
Simple installation with standard connectors and mounting options
-
Long service life with minimal maintenance required
Häufig gestellte Fragen (FAQ)
1. What signal output does the probe provide?
An analog voltage proportional to shaft proximity.
2. Is this probe compatible with all Bently Nevada monitors?
It is designed specifically for the 3300 XL series monitoring systems.
3. What are the standard cable lengths?
Standard and custom cable lengths are available.
4. What is the maximum operating temperature?
The probe supports operation up to 121°C (250°F).
5. How is the probe mounted?
It supports threaded and welded mounting options.
6. Is the probe resistant to harsh environments?
Yes, it is built with stainless steel and rugged cable assemblies.
7. Can the probe measure shaft speed?
Indirectly, through vibration frequency analysis.
8. What is the diameter von the probe tip?
The diameter is 8 mm.
9. What level von vibration and shock can it withstand?
Up to 30 g vibration and 100 g shock.
10. What is the expected lifespan von the probe?
Designed for years von reliable operation in industrial settings.
