Product Overview

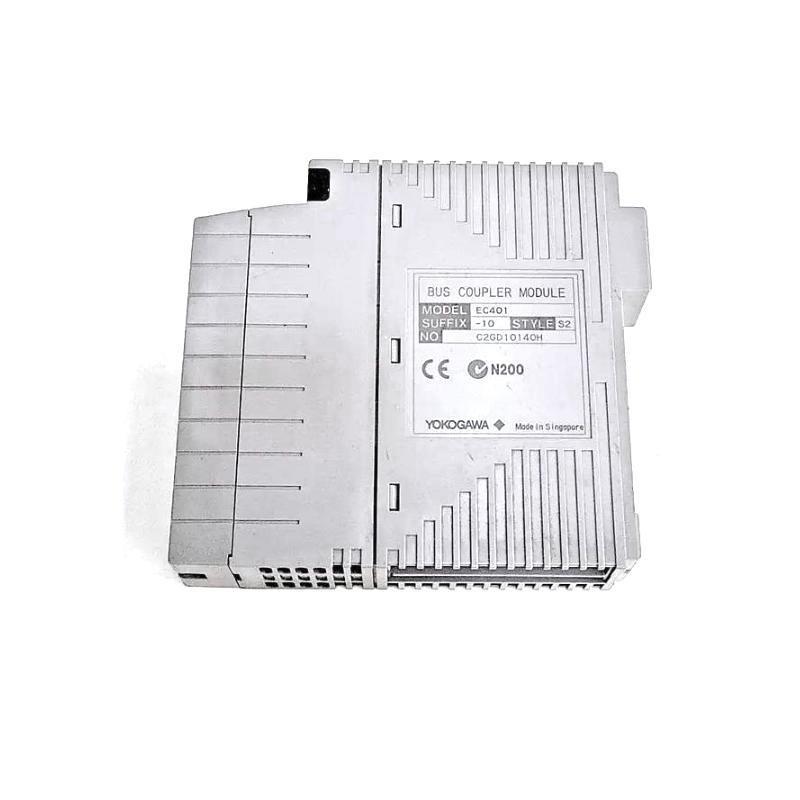

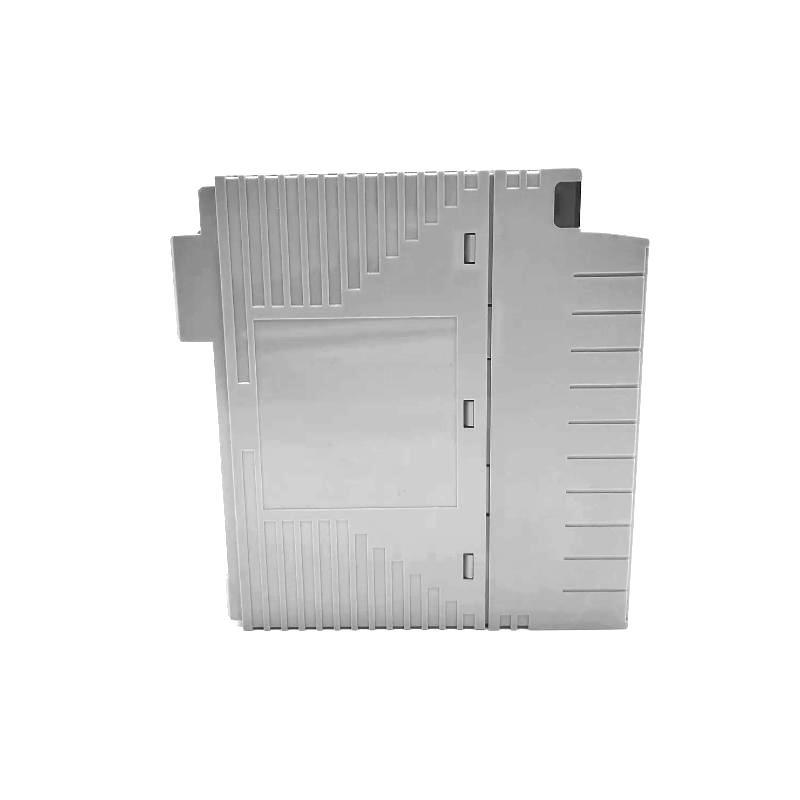

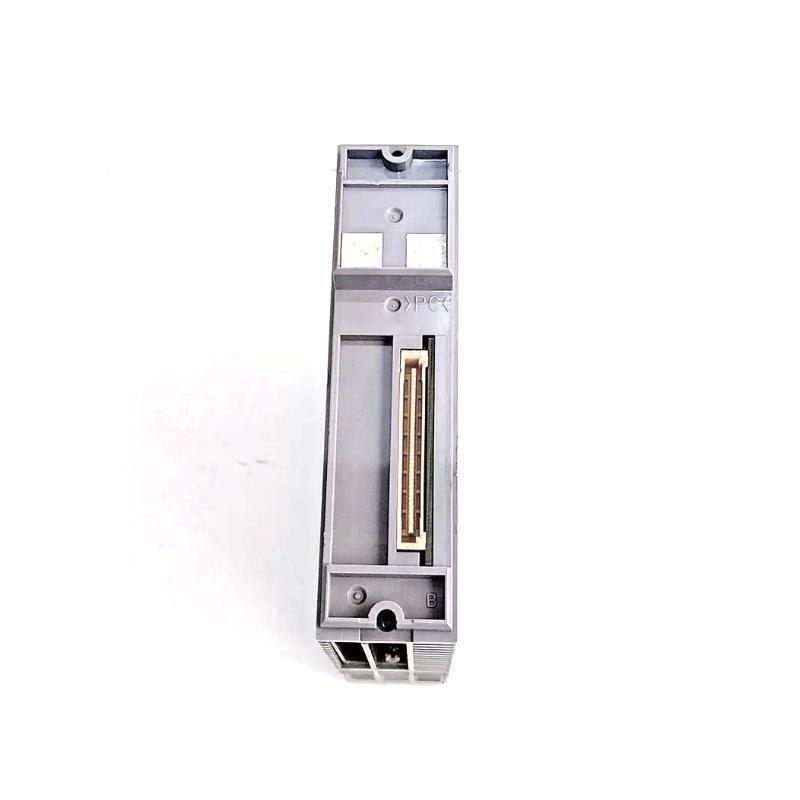

The Yokogawa EC401-10 ESB Bus Coupler Module is a critical communication component in the CENTUM VP integrated production control system. It connects the Field Control Einheit (FCU) to the Node Einheits (ANB10S, ANB10D, ANT401, etc.) via the high-speed ESB (Enhanced Serial Bus). Designed specifically for N-IO/FIO systems, the EC401-10 supports both single and dual-redundant configurations to ensure system reliability and data integrity in industrial automation environments.
Technical Specifications
| Parameter | Beschreibung |
|---|---|
| Modell | EC401-10 |
| Function | ESB bus interface between Field Control Einheit and Node Einheit |
| Compatible Einheits | AFV30S, AFV30D, AFV40S, AFV40D, A2FV50S, A2FV50D, A2FV70S, A2FV70D |
| Max. Connected Einheits | 9 (ANB10S, ANB10D, ANT401, ANT411, ANT421) |
| Transmission Speed | 128 Mbps (I/O module data transmission) |
| Transmission Distance | Max. 10 meters |
| Current Consumption | 0.5 A |
| Redundancy Support | Yes (dual-redundant supported on slots 7 and 8) |
| Compatibility with CP471 | Only with style code S3 or later |
| SEM (Sequence Event Manager) | Supported on style 2 or later |
| Dimensions (W x H x D) | 130 × 129.5 × 32.8 mm |
| Gewicht | Approx. 0.24 kg |
| Installation Slot | Slot 7 (non-redundant), Slot 7 & 8 (redundant configuration) |
| Style Codes | -5 (Standard), -E (Explosion-provon), 0 (Basic), 1 (G3 option) |
| Applicable Standards | CENTUM VP System Standards |
Applications
-
Distributed Control Systems (DCS)
Used in CENTUM VP systems for ensuring reliable communication between FCU and I/O node Stücks. -
Process Automation
Suitable for industries such as oil & gas, chemicals, power generation, and water treatment where secure and real-time communication is essential. -
Dual-Redundant Communication Paths
Enables dual-bus communication to maintain continuous operation in critical process environments. -
High-Speed Data Transfer
Efficiently transmits large volumes von I/O data at 128 Mbps, ideal for real-time control systems.
Advantages
-
Robust Redundancy Support
Dual-module configuration ensures zero downtime in case von single module failure. -
Compact and Lightweight
With its slim prvonile and low weight (0.24 kg), the module is easy to install and maintain in control cabinets. -
Seamless Integration
Fully compatible with Yokogawa’s CENTUM VP FIO/N-IO systems and processor modules. -
Industrial Hardened Design
Verfügbar with G3 environmental option for harsh industrial settings. -
Supports Advanced Diagnostics
Compatible with SEM (Sequence von Events Manager) for high-resolution event logging. -
Versatile Installation Options
Can be installed in various Yokogawa FCU types with style code matching.
Häufig gestellte Fragen (FAQ)
Q1: What is the main function von the EC401-10 module?
A1: It serves as a communication interface between the Field Control Einheit and the Node Einheit over the ESB Bus.
Q2: How many node Stücks can be connected to a single EC401-10?
A2: Up to 9 node Stücks such as ANB10S, ANB10D, ANT401, ANT411, and ANT421.
Q3: Can the EC401-10 support dual-redundant operation?
A3: Yes, it supports dual-redundant ESB Bus connections when installed in both slots 7 and 8.
Q4: What is the maximum transmission speed?
A4: The transmission speed is 128 Mbps for I/O module data.
Q5: Is the EC401-10 compatible with all CENTUM VP processors?
A5: It is compatible with CP471 processors with style code S3 or later.
Q6: What is the transmission range supported by the module?
A6: The maximum cable length is 10 meters between modules.
Q7: What slot must the EC401-10 be installed in for single communication configuration?
A7: It must be installed in Slot 7 von the compatible FCU.
Q8: What is the current consumption von the EC401-10?
A8: The current consumption is 0.5 A.
Q9: Does the EC401-10 support Sequence von Events Manager (SEM)?
A9: Yes, style 2 or later versions von EC401 support SEM.
Q10: Is the module certified for explosion protection environments?
A10: Yes, the EC401-10 with the “-E” suffix is designed for explosion-protected installations.
Recommended Related Modells (Same Series or Compatible)
| Modell | Beschreibung | Transmission Speed | Dimensions (mm) | Gewicht |
|---|---|---|---|---|
| ANB10S | Node Interface Einheit for ESB Bus | 128 Mbps | 130 x 129.5 x 32.8 | 0.28 kg |
| ANB10D | Dual-redundant Node Interface Einheit | 128 Mbps | 130 x 129.5 x 32.8 | 0.30 kg |
| ANT401 | I/O Node Terminal Module | 128 Mbps | 130 x 129.5 x 32.8 | 0.26 kg |
| ANT411 | Analog Input Terminal Module | 128 Mbps | 130 x 129.5 x 32.8 | 0.27 kg |
| ANT421 | Digital Input Terminal Module | 128 Mbps | 130 x 129.5 x 32.8 | 0.27 kg |
| CP471 | Field Control Processor (for FIO) | N/A | 130 x 160 x 35 | 0.45 kg |
Popular Yokogawa Modells
| Modell | Beschreibung | Function Type | Dimensions (mm) | Gewicht |
|---|---|---|---|---|
| PW402 | Power Supply Module | Power | 130 x 129.5 x 32.8 | 0.45 kg |
| AAI543-H50 | Analog Input Module (HART, 16ch, High Accuracy) | Analog I/O | 130 x 129.5 x 32.8 | 0.28 kg |
| ADV151-P03 | Digital Output Module (32ch, Relay) | Digital Output | 130 x 129.5 x 32.8 | 0.30 kg |
| AAI841-H50 | HART Analog Input Module (16ch) | Analog I/O | 130 x 129.5 x 32.8 | 0.28 kg |
| S2CP471 | Processor Module with Enhanced Diagnostics | Control Processor | 130 x 160 x 35 | 0.50 kg |
| AAR181-S00 | Remote I/O Analog Output Module | Analog Output | 130 x 129.5 x 32.8 | 0.27 kg |
