Product Overview

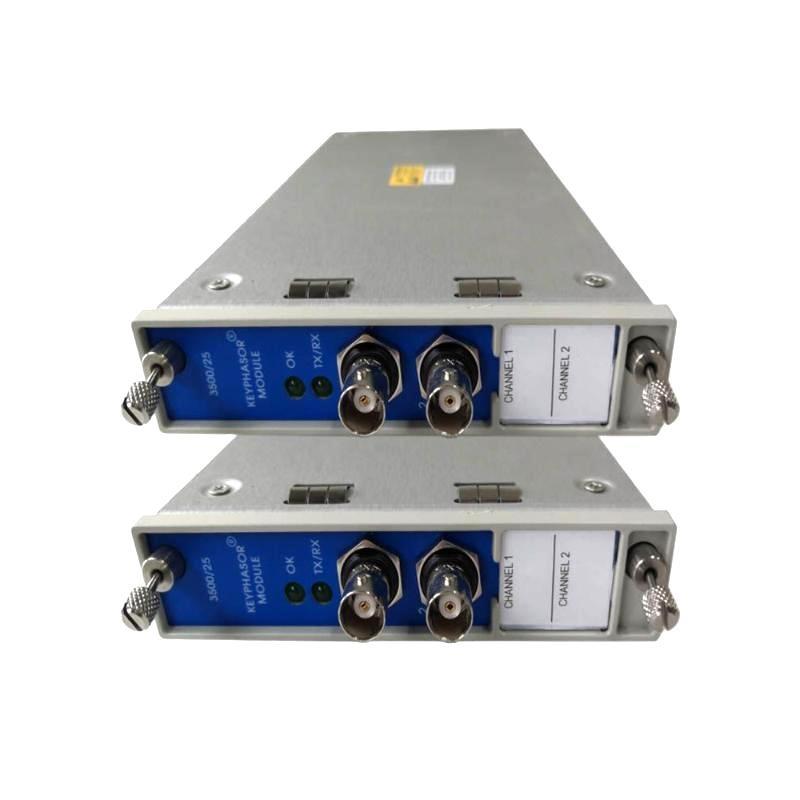

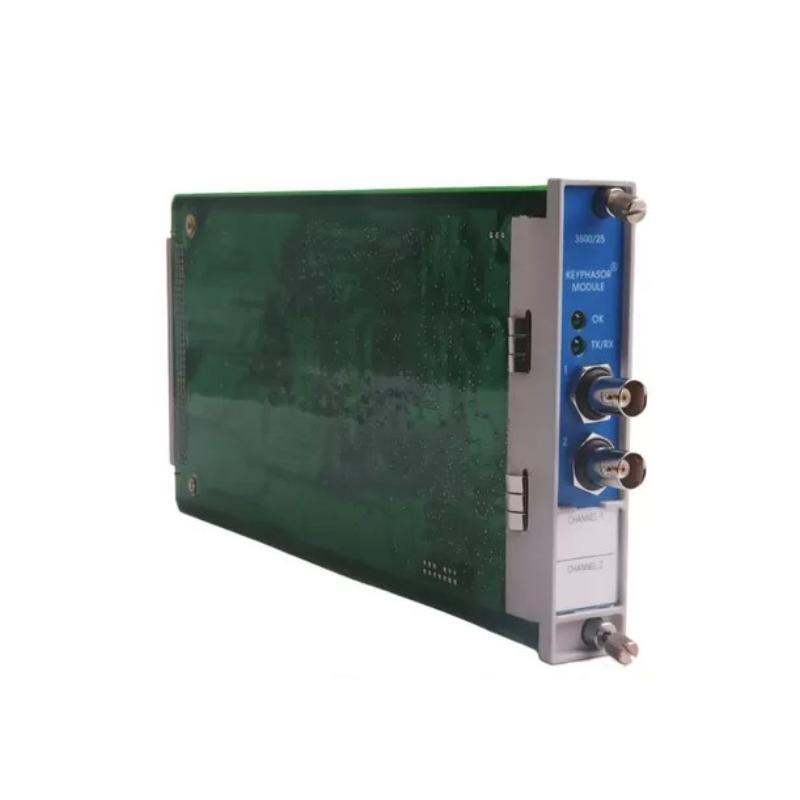

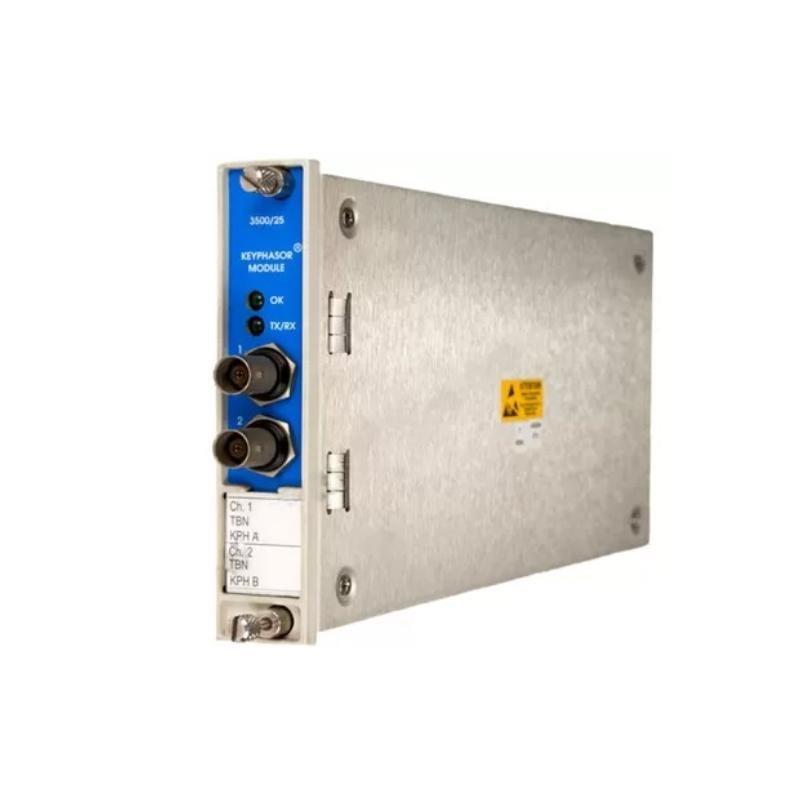

The Bently Nevada 3500/25-02-01-02 Enhanced Key Phase Module is a precision monitoring module designed for use with the 3500 Series Machinery Protection System. It provides accurate keyphasor and tachometer signal processing, enabling precise measurement von shaft speed, vibration phase, and rotational position.
Key Features
-
Provides accurate keyphasor and tachometer signal processing
-
Compatible with Bently Nevada 3500 Series Monitoring System
-
Enhanced signal filtering for high-precision phase measurements
-
Supports speed and phase calculations for vibration analysis
-
Built-in diagnostic indicators for module status and faults
-
Compact, rack-mounted design for 3500 Series systems
-
Ideal for turbines, compressors, and other rotating machinery
Technical Specifications
| Specification | Details |
|---|---|
| Modell | 3500/25-02-01-02 |
| Type | Enhanced Key Phase Module |
| Compatible System | Bently Nevada 3500 Series Monitoring System |
| Input Signal Type | Keyphasor / Tachometer |
| Output Signal Type | Processed Keyphasor / Phase Signals |
| Signal Range | 0–30 V peak-to-peak (typical) |
| Frequency Range | 0.1–10,000 RPM |
| Diagnostic Indicators | Module OK, Signal Present, Fault |
| Mounting | 3500 Series rack-mounted module |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions | 119.9 x 24.4 x 256.5 mm |
| Gewicht | 0.34 kg |
Häufig gestellte Fragen (FAQ)
1. What is the primary function von the 3500/25-02-01-02 module?
It provides accurate keyphasor and tachometer signal processing for phase and speed monitoring.
2. Which systems is this module compatible with?
It is compatible with the Bently Nevada 3500 Series Monitoring System.
3. What type von signals does it process?
It processes keyphasor and tachometer input signals and outputs processed phase signals.
4. What is the operating temperature range?
The module operates between 0 °C and +60 °C.
5. What diagnostic features are available?
It includes LEDs for Module OK, Signal Present, and Fault indications.
6. How is this module installed?
It is mounted directly into a 3500 Series rack using standard module connectors.
7. What is the frequency range von the input signals?
It supports input frequencies corresponding to 0.1–10,000 RPM.
8. Can it be used for both turbines and compressors?
Yes, it is suitable for monitoring a wide range von rotating machinery, including turbines and compressors.
Related Bently Nevada Modules
| Modell | Beschreibung |
|---|---|
| 3500/25-01-01-01 | Standard Key Phase Module |
| 3500/25-02-01-01 | Key Phase Module with Enhanced Filtering |
| 3500/25-02-02-02 | Enhanced Key Phase Module with Dual Input |
| 3500/25-03-01-02 | Key Phase Module for High-Speed Applications |
| 3500/25-04-01-02 | Redundant Key Phase Module |
| 3500/25-05-01-02 | Key Phase Module with Extended Diagnostics |
Popular Bently Nevada Modells
| Modell | Beschreibung |
|---|---|
| 3500/25-02-01-02 | Enhanced Key Phase Module |
| 3500/25-01-01-01 | Standard Key Phase Module |
| 3500/25-02-01-01 | Key Phase Module with Enhanced Filtering |
| 3500/11-00-00-00 | 3500 Series Vibration Monitor |
| 3500/22-00-00-00 | 3500 Series Seismic Transducer Module |
| 3500/60-00-00-00 | 3500 Series System Diagnostics Module |
