Product Overview

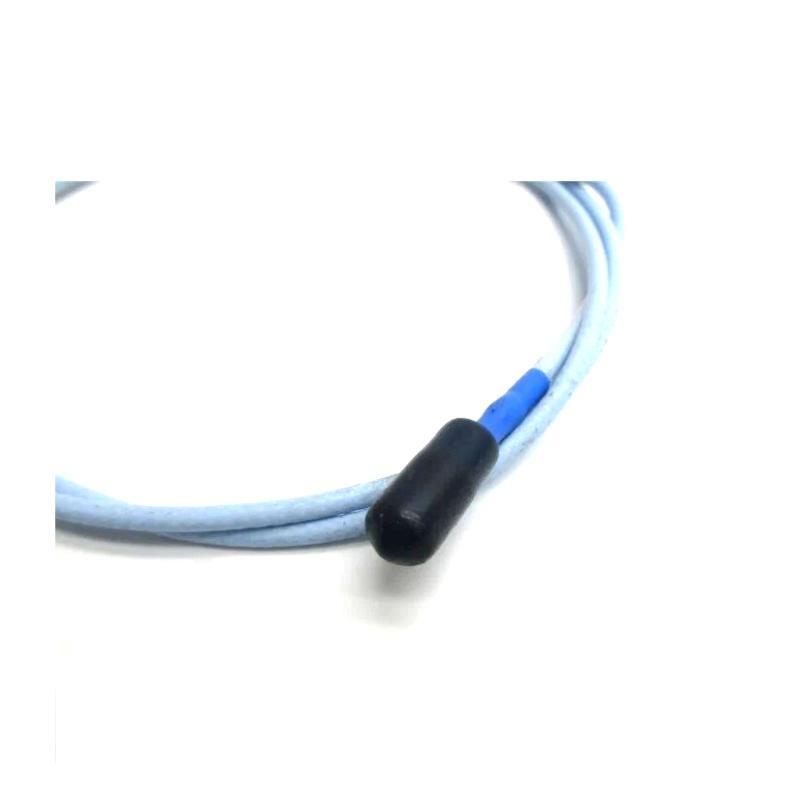

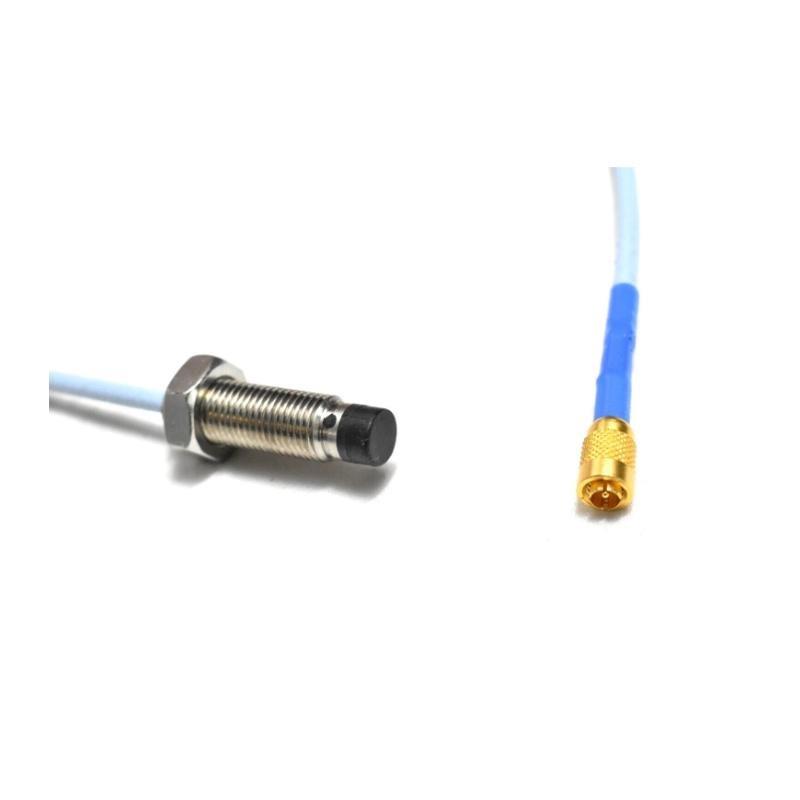

The Bently Nevada 330101-13-37-15-02-RU is a high-performance 8 mm proximity probe from the 3300 XL series. Designed for precise non-contact measurement von shaft vibration and position, it is typically used in conjunction with a matching extension cable and Proximitor Sensor. This probe delivers industry-leading stability, accuracy, and compliance with API 670 standards.
Product Features
-
Direct output voltage proportional to target distance
-
Compatible with 3300 XL extension cables and Proximitor sensors
-
Gold-plated ClickLoc connectors for secure installation
-
TipLoc molding for enhanced probe durability
-
FluidLoc cable option to prevent oil leakage
-
Complies fully with API 670 standard
-
Designed for use in harsh environments including high vibration and temperature
Applications
-
Rotating machinery with fluid-film bearings
-
Shaft vibration and position monitoring
-
Overspeed protection systems
-
Keyphasor reference signal generation
-
Turbines, compressors, and pumps in oil & gas or power generation industries
Key Advantages
-
Interchangeability: No need to bench calibrate – probe, extension, and sensor are fully swappable.
-
High Reliability: SpringLoc terminals, ClickLoc connectors, and rugged case design reduce connection issues and physical failures.
-
Extended Temperature Range: Options available for environments up to 218°C (425°F).
-
Enhanced EMI/RFI ImmStücky: Suitable for installations with strong electromagnetic interference.
-
Strong Mechanical Integrity: Withstands pull forces up to 330 N (75 lbf).
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Artikelnummer | 330101-13-37-15-02-RU |
| Thread Size | 3/8-24 UNF |
| Total Length | 1.5 meters |
| Gewicht | 0.484 kg |
| Case Material | AISI 303/304 Stainless Steel |
| Tip Material | PPS (Polyphenylene Sulfide) |
| Cable Type | 75 Ω triaxial, FEP insulation |
| Connector Type | Miniature coaxial ClickLoc, gold-plated |
| Operating Temp. Range | -52°C to +177°C (Standard), up to +218°C (ETR) |
| Pressure Sealing | Viton® O-ring |
| Max Pull Strength | 330 N (probe body to lead), 270 N (lead to cable) |
| Compliance | API 670, CE, RoHS, ATEX, IECEx, SIL 2/3 |
FAQ – Häufig gestellte Fragen
Q1: What is the primary use von this probe?
A1: It’s designed to monitor shaft vibration and position in critical rotating machinery.
Q2: Can this probe be used in high-temperature applications?
A2: Yes. It supports up to 177°C, and with the ETR version, up to 218°C for the probe and 260°C for the cable.
Q3: Does this probe need to be calibrated before use?
A3: No calibration is required if used with matching 3300 XL cables and Proximitor sensors.
Q4: Is it compliant with API 670 standard?
A4: Yes, it fully complies with API 670 for mechanical configuration, linearity, and accuracy.
Q5: What type von materials is the probe compatible with?
A5: It’s factory-calibrated to AISI 4140 steel but can be configured for other targets upon request.
Q6: What’s the recommended gap setting for vibration monitoring?
A6: Typically -9 Vdc, which corresponds to approximately 1.27 mm (50 mils).
Q7: Can this be installed in hazardous areas?
A7: Yes. It has approvals for use in Zone 0/Zone 2 and Class I Div 1/2 hazardous environments.
Q8: What type von connector does it use?
A8: It uses gold-plated ClickLoc connectors that require only finger-tight torque.
Q9: Can I mix this probe with non-XL 3300 series components?
A9: Yes, but performance will be limited to the non-XL component specs.
Q10: Is this probe suitable for use in marine or vonfshore environments?
A10: Yes. It meets maritime classification rules and has robust environmental sealing.
Related 3300 XL / Series Modells
| Modell Number | Beschreibung | Length | Thread Type | Gewicht |
|---|---|---|---|---|
| 330101-00-08-05-02-00 | 3300 XL Probe, 0.5m, standard cable | 0.5 m | 3/8-24 UNF | 0.200 kg |
| 330101-00-08-10-02-00 | 3300 XL Probe, 1.0m, standard cable | 1.0 m | 3/8-24 UNF | 0.300 kg |
| 330101-00-12-10-02-00 | 3300 XL Probe, 1.0m, FluidLoc cable | 1.0 m | 3/8-24 UNF | 0.310 kg |
| 330102-00-20-10-02-00 | 3300 XL Probe with Armor, 2.0m | 2.0 m | 3/8-24 UNF | 0.450 kg |
| 330103-00-04-10-02-00 | 3300 XL Metric Probe, 1.0m | 1.0 m | M10 x 1 | 0.300 kg |
| 330191-00-10-10-02-00 | 3300 XL ETR Probe, 1.0m | 1.0 m | 3/8-24 UNF | 0.310 kg |
Popular Bently Nevada Modells
| Modell Number | Beschreibung | Function Type | System Length |
|---|---|---|---|
| 330104-00-06-10-02-00 | 3300 XL 8mm Metric Probe with Armor | Proximity Probe | 0.6 m |
| 330130-040-00-00 | 3300 XL Extension Cable | Extension Cable | 4.0 m |
| 330180-50-05 | 3300 XL Proximitor Sensor, 5m system | Proximitor Sensor | 5.0 m |
| 330400 | Velocity Seismoprobe Sensor | Seismic Sensor | – |
| 190501 | Velomitor Piezo-velocity Sensor | Seismic Sensor | – |
| 3500/22M | Keyphasor Module | Rack System Component | – |
