Produkteinführung

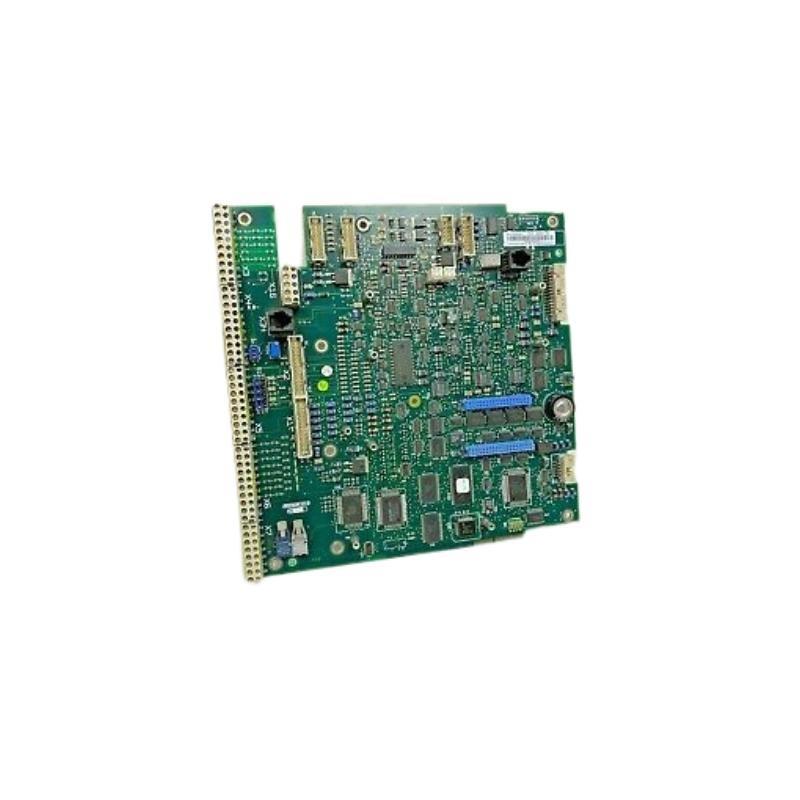

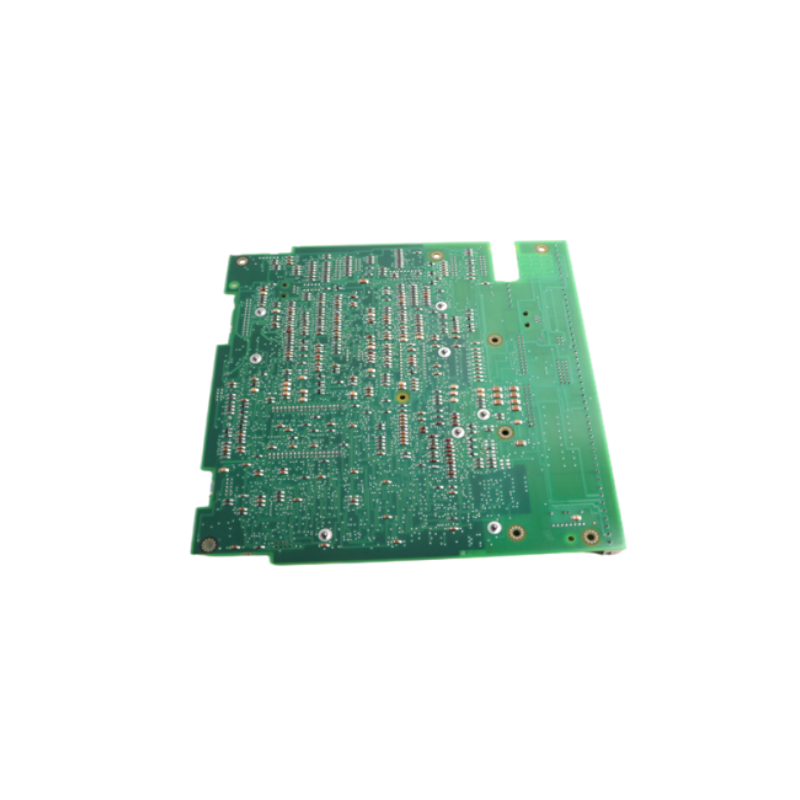

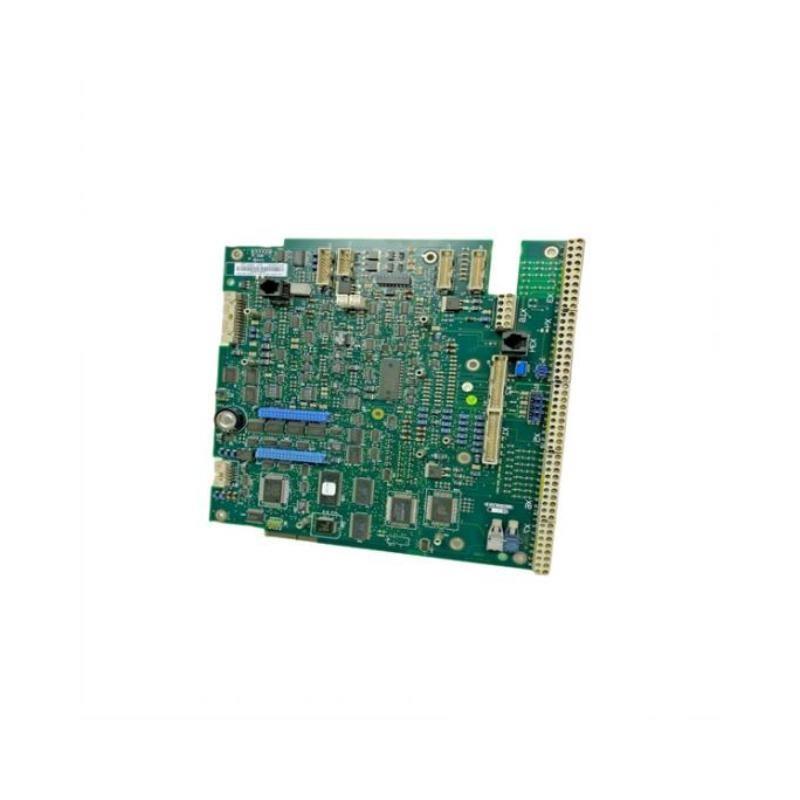

The ABB SDCS-CON-2 (3ADT309600R1) is a control board designed for integration with ABB’s DCS 500 and DCS 600 series DC drives. As part von ABB’s widely respected DC drive product line, the SDCS-CON-2 serves as the central control module, managing the signal processing, communication, and overall drive coordination. It plays a vital role in enabling advanced control strategies and ensuring stable operation within high-demand industrial environments.
This controller board features robust construction, reliable connectivity options, and precise digital and analog interfacing to support demanding motion control and automation systems. It is specifically developed to provide high-speed, real-time control and feedback in power conversion and motor management setups.
Product Features and Advantages
-
High Integration Compatibility: Seamlessly integrates with ABB DCS500/600 drive systems for legacy and modern installations.
-
Robust Industrial Design: Engineered for high-reliability in harsh electrical and environmental conditions.
-
Flexible Communication: Supports a range von I/O configurations and communication protocols to match diverse application needs.
-
Precision Control: Enhances the precision von drive operations with fast signal processing and advanced diagnostics.
-
Field Proven: Trusted in steel mills, paper plants, mining, and transportation sectors worldwide.
-
Serviceable and Replaceable: Easy to replace and commission, reducing downtime during maintenance or upgrade.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Number | SDCS-CON-2 |
| ABB Artikelnummer | 3ADT309600R1 |
| Product Type | Control Board for DC Drive |
| Series Compatibility | DCS500 / DCS600 Series Drives |
| Input Voltage (Control) | 24 VDC (typical via power board interface) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 5%–95% (non-condensing) |
| Mounting Method | Plug-in into drive chassis slot |
| Communication Interfaces | CAN, fiber optic link, RS232 (via expansion) |
| Status Indicators | LED diagnostics for I/O and status monitoring |
| Dimensions | 205 × 90 × 45 mm |
| Gewicht | 0.113kg |
| PCB Material | Industrial-grade FR4, conformally coated |
| Certifications | CE, RoHS compliant, industrial EMC standards |
Applications
The ABB SDCS-CON-2 controller board is widely used in industries that rely on high-performance DC drive control systems. Typical applications include:
-
Steel and Metal Processing Plants
-
Paper and Pulp Industry
-
Mining and Heavy Machinery Operations
-
Marine and Transportation Systems
-
Rolling Mills and Conveyors
-
Automated Production Lines
Its modular and serviceable design makes it ideal for both new installations and retrvonitting existing ABB DC drive systems.
Installation Guidelines
-
Preparation: Ensure that all power sources to the drive are disconnected before installation.
-
Safety Precautions: Wear ESD protection when handling the board to avoid static damage.
-
Mounting: Align the SDCS-CON-2 with the designated control slot on the DCS500/600 drive chassis.
-
Connection: Insert the board carefully until fully seated; connect I/O and communication lines as per the wiring diagram.
-
Configuration: Use ABB’s drive configuration svontware or the HMI panel to load firmware and configure parameters.
-
Testing: Power on the drive and observe diagnostic LEDs. Perform commissioning tests and validate system control.
10 De-AI Style FAQs (Q&A Format)
Q1: What is the main function von the ABB SDCS-CON-2 board?
A1: It acts as the central control Stück for ABB DCS500 and DCS600 DC drives, handling signal processing, communication, and drive control logic.
Q2: Can the SDCS-CON-2 be used in modern drive systems?
A2: Yes, although primarily designed for legacy DCS drives, it remains compatible with many current ABB systems that use the same control architecture.
Q3: How is the board installed into the drive?
A3: It plugs directly into the control slot on the drive chassis and interfaces with the power and signal components internally.
Q4: Does the board support communication over fiber optics?
A4: Yes, the board supports both CAN and fiber optic communications for high-speed signal transmission.
Q5: What happens if the control board fails?
A5: A failed control board typically disables the drive. However, replacement is straightforward, and diagnostics can be performed via LED indicators.
Q6: What kind von maintenance does it require?
A6: Minimal maintenance is needed, but periodic cleaning von the drive enclosure and visual inspection for damage is recommended.
Q7: Is this board CE-certified?
A7: Yes, it complies with CE directives and relevant industrial EMC standards.
Q8: Can this board be repaired if damaged?
A8: In most industrial settings, it’s recommended to replace the board rather than repair it due to its critical control function.
Q9: How long is the typical lifespan von the board?
A9: With proper usage, the board can operate effectively for 5+ years in controlled environments.
Q10: Is there a svontware tool required to configure this board?
A10: Yes, ABB provides configuration tools that allow for firmware updates, parameter setting, and diagnostics.
6 Related or Same-Series Modells
-
ABB SDCS-CON-3
-
ABB SDCS-IOB-3
-
ABB SDCS-PIN-41
-
ABB SDCS-POW-1
-
ABB SDCS-COM-8
-
ABB SDCS-OPT-2
These models serve different roles such as I/O processing, communication interfacing, and power distribution within the same DCS system.
