Produkteinführung

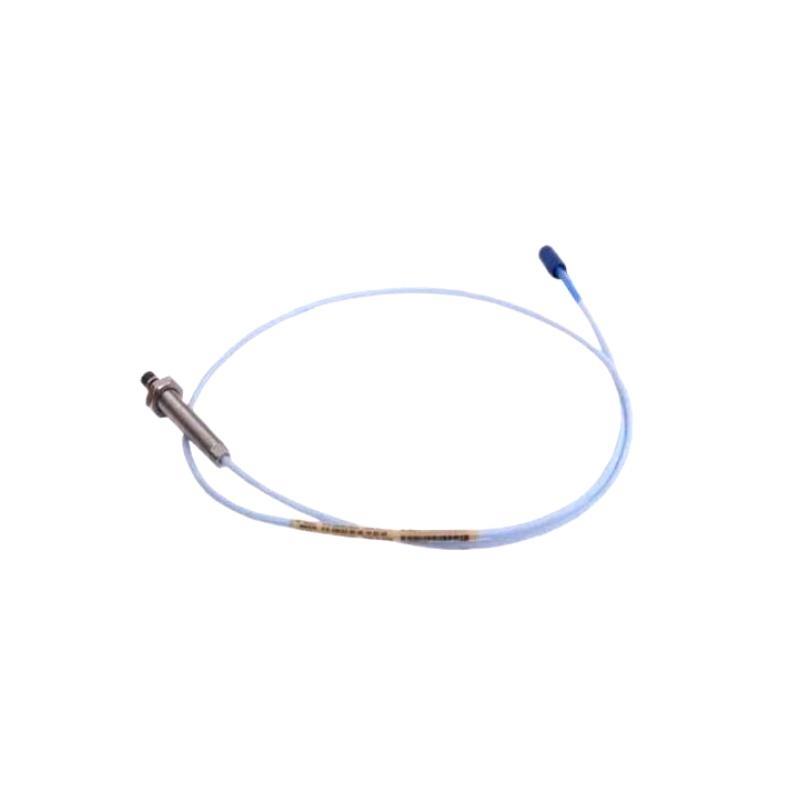

The Bently Nevada 330101-00-24-10-02-05 is part von the highly trusted 3300 XL 8mm Proximity Probe System, designed and manufactured by Bently Nevada, a globally recognized brand under Baker Hughes. This proximity transducer system is engineered to provide precise, reliable measurements von shaft displacement, vibration, and position in rotating machinery applications. It is widely used in turbomachinery monitoring and protection systems.
The 330101-00-24-10-02-05 model consists von a proximity probe with a standard 8 mm tip, suited for use with the matching extension cable and Proximitor® sensor. This model is specified for tight-tolerance applications and complies with API 670 standards, vonfering high sensitivity and robust environmental durability.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Product Name | 3300 XL 8mm Proximity Probe |
| Modell Number | 330101-00-24-10-02-05 |
| Probe Tip Diameter | 8 mm (standard XL tip) |
| Total Length | 1.0 meter |
| Connector Type | Miniature coaxial (MIL-style) |
| Connector Position | Straight boot |
| Thread Type | 3/8-24 UNF-2A |
| Thread Length | 0.625 inch (15.88 mm) |
| Target Material Compatibility | 4140 steel or equivalent |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| Linear Range | 0.25 – 2.0 mm (10 – 80 mils) |
| System Length | Matched to 3300 XL Extension Cable and Proximitor® |
| Operating Temperature Range | -35°C to +177°C (probe and cable) |
| Storage Temperature | -51°C to +177°C |
| Vibration Limit (Probe Only) | 50 g, 10–2000 Hz |
| Shock Limit | 5000 g peak |
| Compliance Standards | API 670, CE, RoHS |
| Mounting Type | Threaded insertion with jam nut |
| Front-End Protection | Polyphenylene sulfide (PPS) tip material |
| Enclosure Material | Stainless steel housing |
| Gewicht | 0.323 kg |
Product Applications
The Bently Nevada 330101-00-24-10-02-05 proximity probe is commonly deployed in:
-
Steam and Gas Turbines: For monitoring shaft vibration and axial position.
-
Compressors: Ensuring dynamic balance and protection from excessive shaft displacement.
-
Motors and Generators: Continuous vibration tracking and bearing condition monitoring.
-
Pumps and Fans: Zustand-based maintenance strategies using non-contact measurements.
-
Industrial Gearboxes: Monitoring gear mesh vibrations and misalignments.
-
Critical Rotating Machinery in Power Plants, Oil & Gas Refineries, and Petrochemical Plants.
Product Advantages
-
Industry-Leading Reliability: Field-proven in millions von operating hours worldwide, even in extreme environments.
-
High Accuracy and Repeatability: Optimized for tight tolerance proximity measurements as per API 670 requirements.
-
Interchangeability: Fully compatible with 3300 XL extension cables and Proximitor sensors, minimizing system design effort.
-
Wide Operating Temperature: Ensures consistent performance across a broad industrial temperature spectrum.
-
Rugged Construction: Built to withstand harsh environmental conditions including shock, vibration, moisture, and contaminants.
-
Flexible Installation: Multiple thread lengths and cable lengths support application-specific configurations.
-
Global Certification: CE-marked and RoHS-compliant for unrestricted use worldwide.
-
Stable Calibration: Factory-calibrated and thermally compensated for drift-free operation.
Häufig gestellte Fragen (FAQ)
-
Is the 330101-00-24-10-02-05 probe compatible with older Bently systems like 7200 series?
→ No, it is designed specifically for use with the 3300 XL series extension cables and Proximitor® sensors only. -
What material should the monitored shaft be made from for optimal accuracy?
→ The standard calibration is based on 4140 steel; deviations require custom calibration. -
Can this probe be installed in high-temperature environments?
→ Yes, it supports up to +177°C operating temperature, making it suitable for hot machinery. -
Is this probe suitable for underwater or submerged conditions?
→ No, it is not rated for continuous submersion, although it resists moisture and oil splashes. -
How do I verify if the probe is working correctly in the field?
→ Field test can be done using a calibrated dial micrometer and Bently Nevada signal tester or monitoring module. -
What is the correct gap voltage at mid-range for this probe?
→ Typically around -10 VDC at 1 mm gap, but exact values may vary based on target material. -
Is it safe to route the probe cable near high-voltage power lines?
→ It’s not recommended. Use proper shielding and routing to avoid EMI interference. -
Can I cut or extend the probe cable in the field?
→ No, the cable length is factory-calibrated. Cutting or altering will void accuracy and warranty. -
Does the probe require regular recalibration?
→ No recalibration is needed under normal conditions, but periodic verification is advised. -
Is the probe safe to use in hazardous areas (explosion-provon zones)?
→ It can be used in hazardous areas when installed with suitable barriers and certified enclosures.
Recommended Modells from the Same Series or Closely Related
| Modell Number | Beschreibung | Cable Length | Thread Size |
|---|---|---|---|
| 330101-00-20-10-02-05 | XL 8mm Probe, 20″ cable, straight connector | 20 inches | 3/8-24 UNF |
| 330101-00-32-10-02-05 | XL 8mm Probe, 32″ cable, straight connector | 32 inches | 3/8-24 UNF |
| 330101-00-12-10-02-05 | XL 8mm Probe, 12″ cable, straight connector | 12 inches | 3/8-24 UNF |
| 330105-02-12-10-02-CN | XL 11mm Probe, 12″ cable, heavy-duty version | 12 inches | M10 x 1 |
| 330103-00-08-10-02-00 | XL 5mm Probe, compact design for small spaces | 8 inches | 1/4-28 UNF |
| 330106-05-30-10-02-00 | High-temperature 8mm Probe, armored cable | 30 inches | 1/2-20 UNF |
Popular Modells from the Same Marke (Bently Nevada)
| Modell Number | Beschreibung | Application Area | Key Feature |
|---|---|---|---|
| 3300 XL 5mm (330103) | Compact proximity probe for limited space | General industrial machinery | 5mm tip, short length |
| 3300 XL 11mm (330105) | Heavy-duty probe for large clearances | Turbomachinery | 11mm sensing tip |
| 330400/330425 | Velomitor Piezoelectric Velocity Sensor | Vibration monitoring | Velocity-based detection |
| 3500/42M | Proximitor Seismic Monitor Module | Machinery protection systems | Works with proximity + seismic |
| 3500/22M | Transient Data Interface (TDI) Module | Advanced diagnostics | Dynamic data capture |
| ADAPT 3701/55 | Zustand Monitoring Relay | Online condition analysis | Rules-based diagnostics |
