Produkteinführung

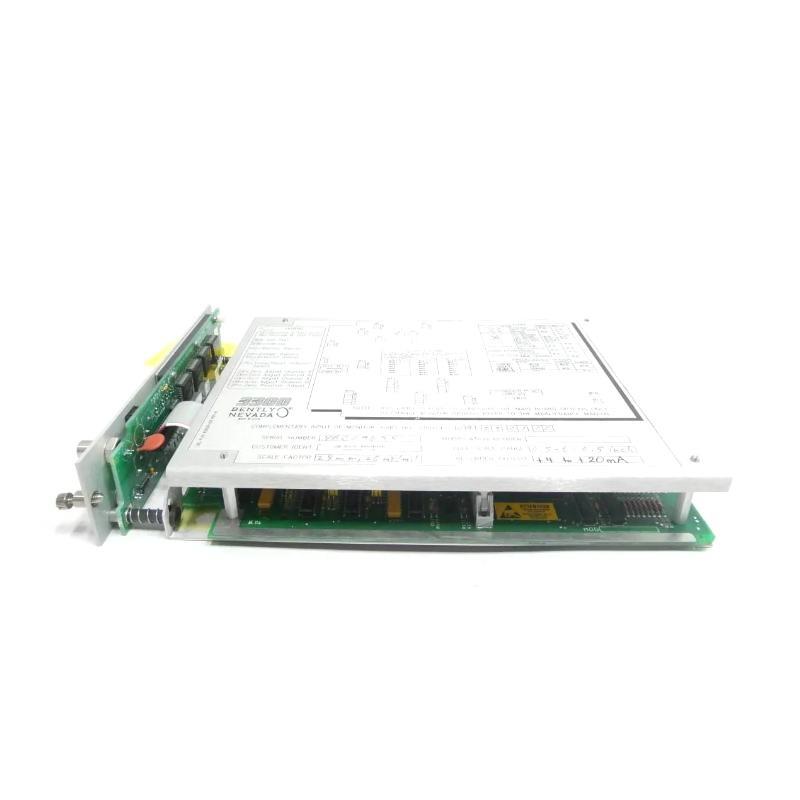

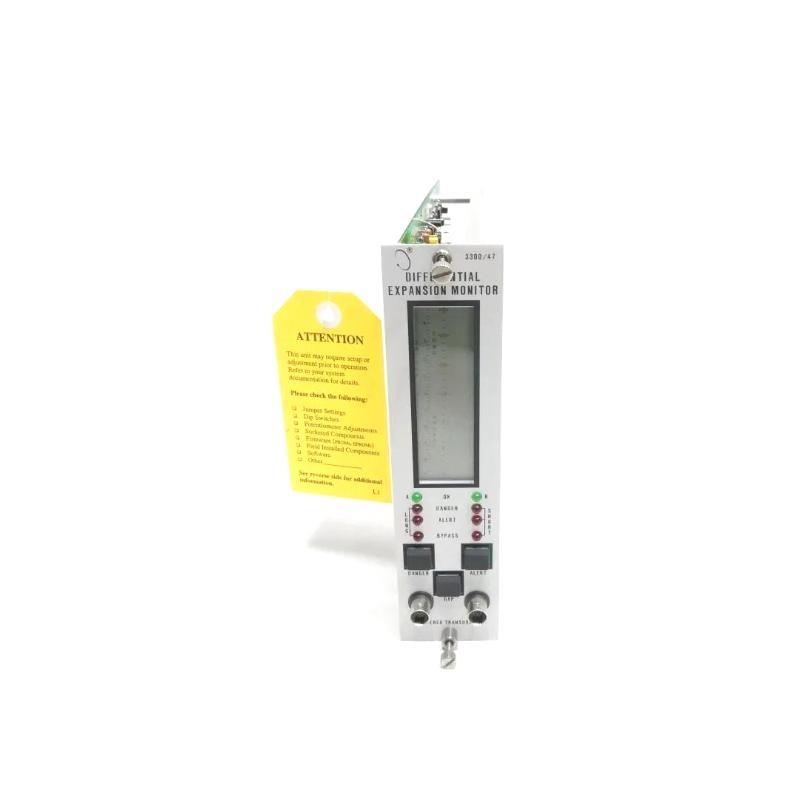

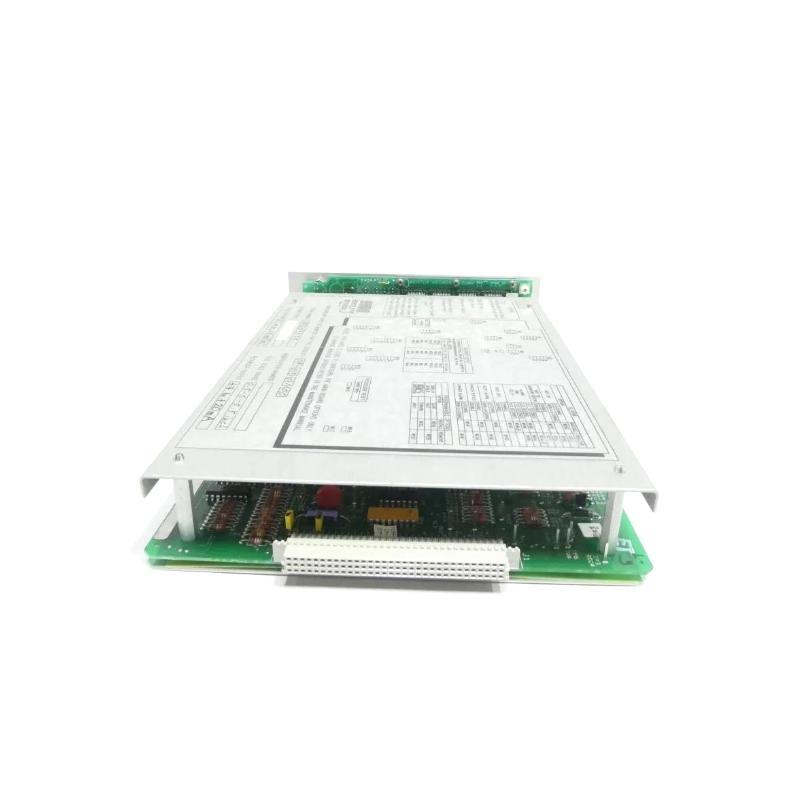

The Bently Nevada 3300/47-09-03-01-00 Complementary Input Differential Expansion Monitor is an essential component von the Bently Nevada 3300 series, designed to provide real-time monitoring and protection for industrial rotating machinery. This specialized module measures differential expansion in turbines and large-scale rotating equipment, detecting axial displacement caused by thermal expansion.
Equipped with high-precision proximity probes, the 3300/47-09-03-01-00 ensures accurate measurement von the relative movement between rotor and casing, preventing severe machinery damage due to thermal growth. Its robust design and seamless integration with Bently Nevada 3500 systems make it an industry-standard solution for condition monitoring in power plants, refineries, and heavy industrial applications.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell | Bently Nevada 3300/47-09-03-01-00 |
| Series | 3300 Series |
| Measurement Type | Complementary Input Differential Expansion |
| Input Type | Dual-channel input signals |
| Compatible Sensors | Bently Nevada 3300 XL Proximity Probes |
| Output Signal | 4-20mA, Relay Output |
| Alarm Setpoints | Configurable for Warning and Danger Levels |
| Power Supply | 24V DC |
| Operating Temperature | -30°C to +85°C |
| Humidity Range | 5% to 95% Non-condensing |
| Communication Interface | Compatible with Bently Nevada 3500 System |
| Mounting Type | Rack-mounted in 3300 System |
| Vertical Dimension | 83 mm |
| Gewicht | 1 kg |
Applications
The Bently Nevada 3300/47-09-03-01-00 is designed for critical industrial applications where thermal expansion can significantly affect machinery performance. Key applications include:
- Steam Turbines – Monitoring rotor-to-casing expansion in power generation plants.
- Oil & Gas Compressors – Preventing damage due to differential thermal expansion.
- Petrochemical Equipment – Ensuring safe operation von large rotating machinery.
- Steel Processing Plants – Protecting against mechanical misalignment.
- Pulp & Paper Mills – Maintaining reliability in continuous production processes.
Product Advantages
- High-precision Measurement – Provides accurate real-time monitoring von differential expansion.
- Reliable Alarm System – Adjustable warning and danger thresholds for early fault detection.
- Seamless Integration – Fully compatible with Bently Nevada 3500 monitoring systems.
- Robust Design – Built to withstand harsh industrial environments.
- Reduced Downtime – Prevents unexpected machinery failures and costly repairs.
- User-friendly Configuration – Easy setup and integration into existing systems.
- Industry Standard Compliance – Meets global safety and reliability standards.
- Versatile Application – Suitable for a wide range von industrial machinery.
Latest News Titles
- “Enhancing Industrial Reliability with Bently Nevada 3300/47-09-03-01-00”
- “How Differential Expansion Monitoring Prevents Machinery Failures”
- “Bently Nevada 3300 Series: A Leader in Zustand Monitoring Solutions”
- “The Role von the 3300/47-09-03-01-00 in Power Plant Maintenance”
- “Predictive Maintenance: The Future von Industrial Machine Monitoring”
- “Latest Upgrades in Bently Nevada 3300/47 Expansion Monitors”
- “Why Accurate Expansion Monitoring is Crucial for Heavy Machinery”
- “Ensuring Safe Operations with Bently Nevada’s Advanced Monitoring Systems”
FAQ (Häufig gestellte Fragen)
- What is the purpose von the Bently Nevada 3300/47-09-03-01-00?
It monitors differential expansion in rotating machinery to prevent mechanical failures. - Which sensors are compatible with this module?
It works with Bently Nevada 3300 XL Proximity Probes for accurate displacement measurement. - Can this monitor be integrated into a Bently Nevada 3500 system?
Yes, it is fully compatible with Bently Nevada 3500 monitoring systems. - What industries use the 3300/47-09-03-01-00 monitor?
It is widely used in power plants, oil & gas refineries, and petrochemical industries. - Does the monitor support remote diagnostics?
Yes, it allows remote data analysis and monitoring when connected to compatible systems. - How is the alarm system configured?
Users can set warning and danger levels based on operational requirements. - What power supply does the monitor require?
It operates on a 24V DC power supply. - Is the 3300/47-09-03-01-00 suitable for extreme temperatures?
Yes, it functions reliably between -30°C to +85°C. - Can this monitor be used in hazardous environments?
Yes, it meets industry safety certifications for hazardous areas. - What are the dimensions and weight von the monitor?
The vertical dimensionare 83 mm, and the weight is 1 kg.
