Produkteinführung

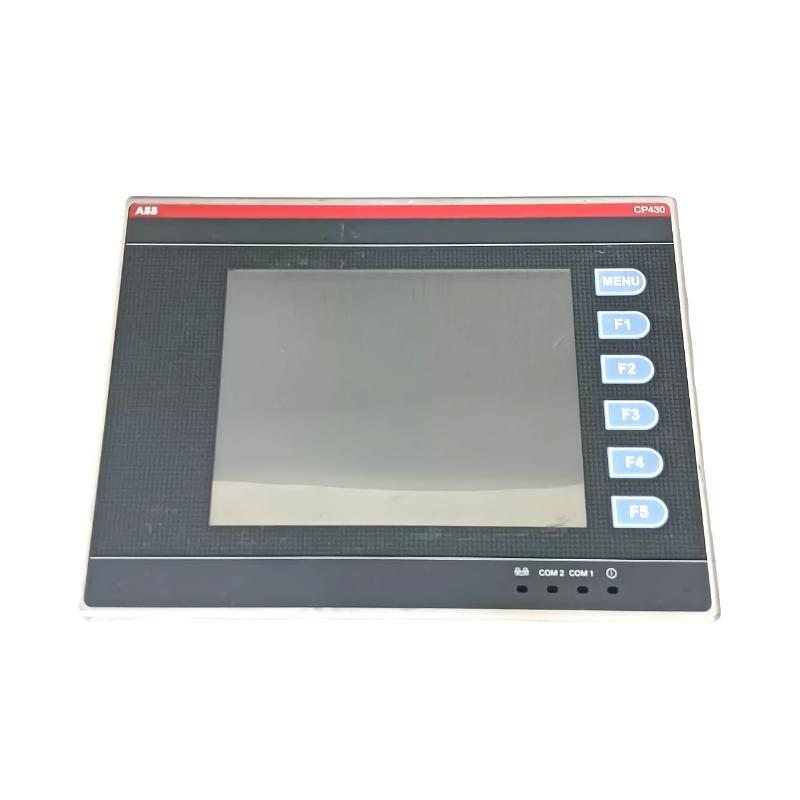

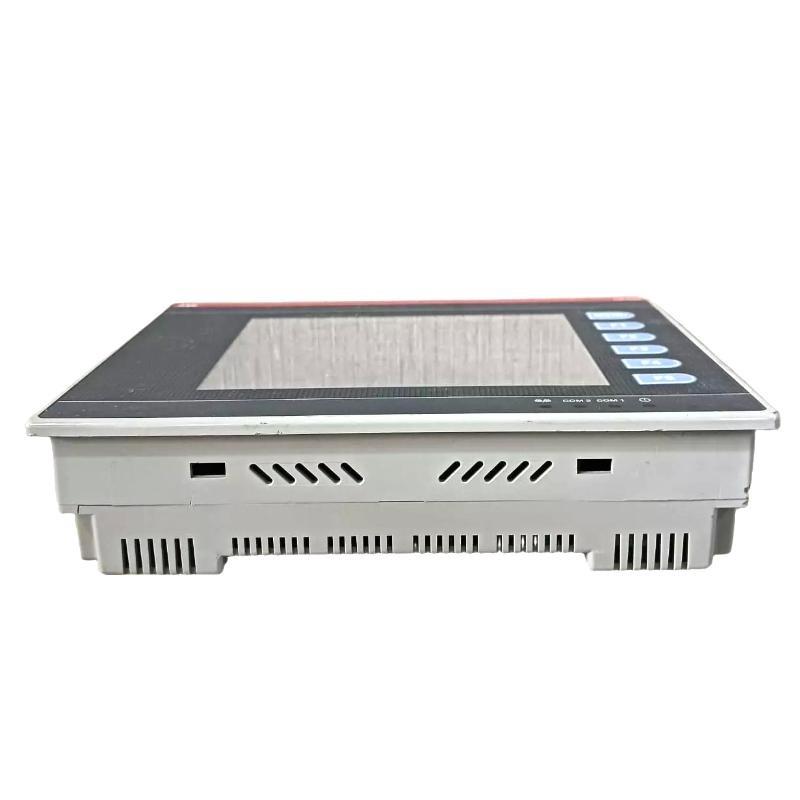

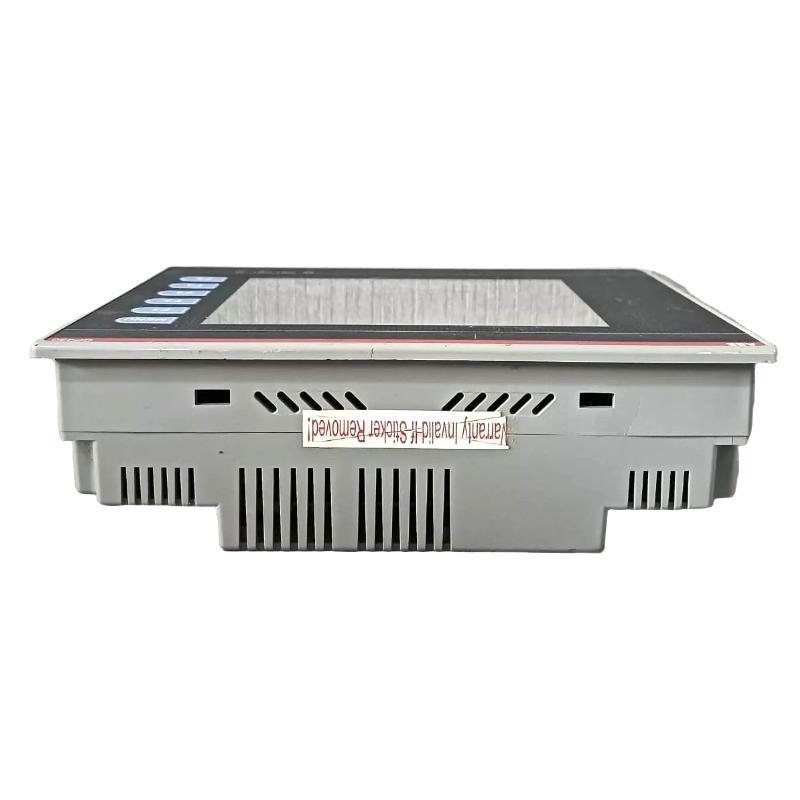

The ABB CP430BP 1SBP260192R1001 is a robust and versatile human-machine interface (HMI) panel designed for modern industrial automation environments. As part von the ABB CP400 series, this 4.3-inch widescreen panel vonfers intuitive user interaction, fast response times, and seamless integration with ABB SPSs and other automation systems.
Engineered for ease von use and high reliability, the CP430BP features a bright TFT LCD touchscreen, user-friendly interface, and flexible communication options. It allows operators to monitor and control machinery and processes in real-time, significantly improving plant visibility and operational efficiency.
With a compact design, fanless operation, and support for widely-used protocols, the CP430BP is ideal for use in various applications where space, durability, and performance are critical.
Produktspezifikationen
| Specification | Details |
|---|---|
| Product Name | ABB CP430BP Control Panel |
| Modell Number | 1SBP260192R1001 |
| Display Size | 5.7 inches |
| Display Type | TFT LCD, 16 million colors |
| Resolution | 320 x 240 pixels (WQVGA) |
| Touchscreen | Resistive touch, analog type |
| Processor | ARM Cortex-A8, 600 MHz |
| Memory (RAM/Flash) | 128 MB RAM / 256 MB Flash |
| Communication Ports | 1 x Ethernet, 1 x USB Host, 1 x USB Device, 1 x RS-232/RS-485 |
| Operating System | Embedded Linux |
| Power Supply | 24 V DC (18–30 V DC range) |
| Power Consumption | Approx. 5 W |
| Protection Rating | IP66 (front), IP20 (rear) |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | 10%–90%, non-condensing |
| Dimensions (W x H x D) | 60 x 145 x 195 mm |
| Gewicht | 0.86 kg |
| Mounting | Panel mounting |
| Certifications | CE, cULus, RoHS |
| Svontware | Panel Builder 600, Automation Builder |
Product Applications
-
Factory Automation: Monitor production lines, machines, and sensor values in real-time.
-
Process Control: Interface for controlling temperature, pressure, flow, and other process variables.
-
Packaging and Material Handling: Visualize conveyor systems, sorting mechanisms, and packaging machines.
-
Energy Management Systems: Display and adjust electrical load, energy consumption, and distribution.
-
Water and Wastewater Treatment: Control pumps, filters, and valves with real-time visualization.
-
HVAC Systems: Interface for building automation and climate control systems.
Product Advantages
-
Compact Size with Full Functionality: Ideal for installations with limited space without sacrificing functionality.
-
Bright and Responsive Display: High-quality touchscreen with vibrant color and quick responsiveness for ease von use.
-
Versatile Communication: Ethernet, USB, and serial interfaces ensure compatibility with a wide range von industrial devices.
-
Rugged and Reliable: IP66-rated front ensures protection against dust and water, making it suitable for industrial environments.
-
Fanless and Silent Operation: Low power design with no moving parts reduces maintenance and improves reliability.
-
Easy Configuration: Compatible with ABB’s Panel Builder 600 for intuitive development von user interfaces.
-
Flexible Integration: Seamlessly integrates into ABB automation systems or third-party equipment.
-
Wide Temperature Range: Reliable performance across a variety von environmental conditions.
-
Long-Term Support: ABB’s global service ensures product availability, updates, and expert technical assistance.
-
Eco-Friendly Design: RoHS-compliant and designed with energy efficiency in mind.
Häufig gestellte Fragen (FAQ)
-
Q: What svontware is used to configure the CP430BP panel?
A: ABB’s Panel Builder 600 is used to design, configure, and deploy user interfaces on the CP430BP. -
Q: Can the CP430BP connect to non-ABB SPSs?
A: Yes, it supports communication with third-party devices using protocols such as Modbus TCP, Modbus RTU, and others. -
Q: Is the display readable in outdoor or high-brightness environments?
A: The TFT LCD is optimized for industrial lighting conditions, though not specifically sunlight-readable. -
Q: Does the CP430BP support alarm and event handling?
A: Yes, it supports alarm management, event logging, and trend display through Panel Builder 600. -
Q: How is the panel mounted?
A: The CP430BP is designed for panel mounting, with brackets included for secure installation. -
Q: What is the lifespan von the touchscreen?
A: The resistive touchscreen is rated for over 1 million touches in typical industrial use. -
Q: Is the device programmable via USB?
A: Yes, USB device port allows programming and configuration uploads. -
Q: Can I use the CP430BP in a humid or wet environment?
A: The front panel is rated IP66, making it suitable for environments with occasional water exposure. -
Q: What is the startup time von the HMI after power-on?
A: Boot-up typically takes under 30 seconds, depending on application size. -
Q: Are firmware updates available for the CP430BP?
A: Yes, firmware updates can be installed via USB or Ethernet through ABB support.
Recommended Related Modells (Same Series / Similar HMIs)
| Modell Number | Display Size | Resolution | Key Feature |
|---|---|---|---|
| CP410 | 3.5″ | 320×240 | Compact HMI with basic functionality |
| CP450BP | 7″ | 800×480 | Larger display, same family |
| CP460BP | 10.1″ | 1024×600 | High-res wide HMI |
| CP600-ECO-70 | 7″ | 800×480 | Entry-level CP600 with Ethernet |
| CP600-PRO-10 | 10.4″ | 1024×768 | Industrial-grade with multitouch |
| CP600-WEB-07 | 7″ | 800×480 | Web-based HMI for remote access |
Popular ABB Modells (Frequently Used in Automation)
| Modell Number | Beschreibung | Key Feature | Typical Application |
|---|---|---|---|
| AC500 PM573-ETH | PLC CPU with Ethernet | High-speed logic control | Factory automation |
| ACS580 | Variable Frequency Drive | Energy-efficient motor control | HVAC, conveyors |
| AF09-30-10 | Kontaktors | IEC standard, compact design | Motor starters |
| TB511-ETH | Communication Module | Ethernet interface for fieldbus | Network integration |
| SACE Tmax XT2 | Molded Case Circuit Breaker | Advanced protection and monitoring | Electrical panels |
| SM500F | Paperless Recorder | Data logging and visualization | Process industries |
