Produkteinführung

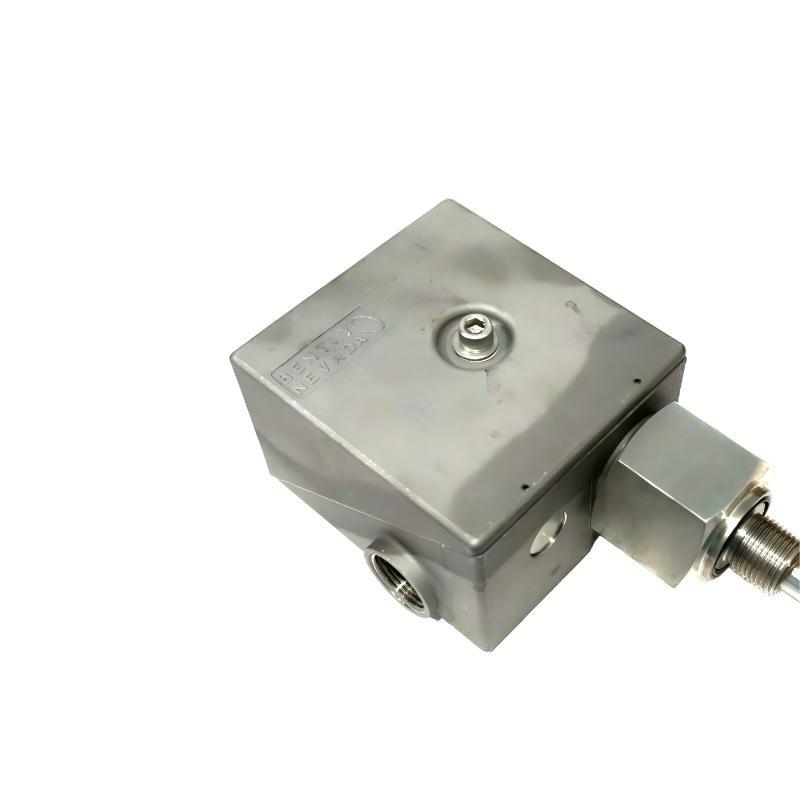

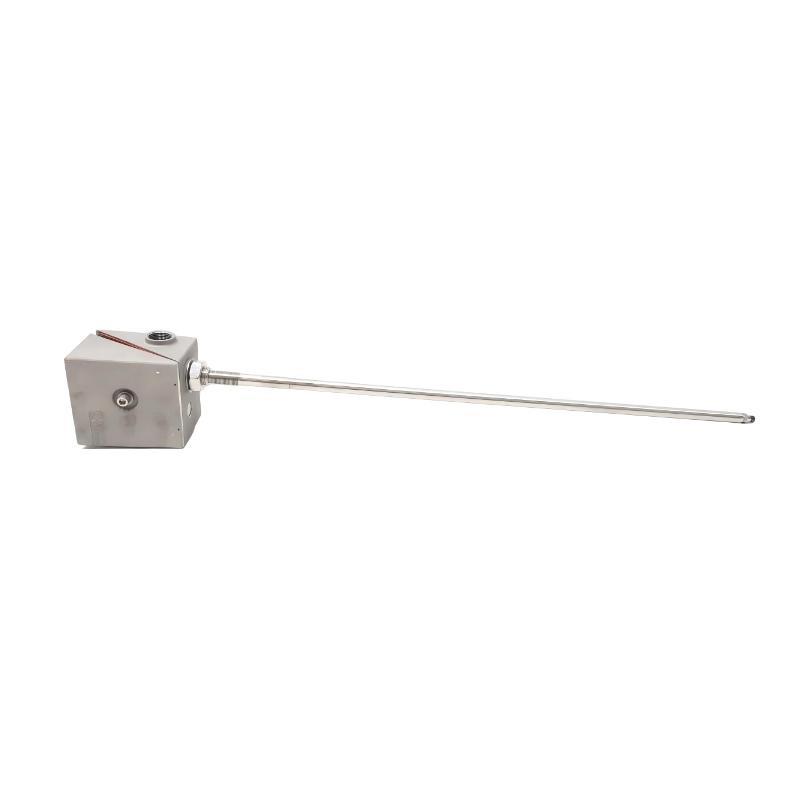

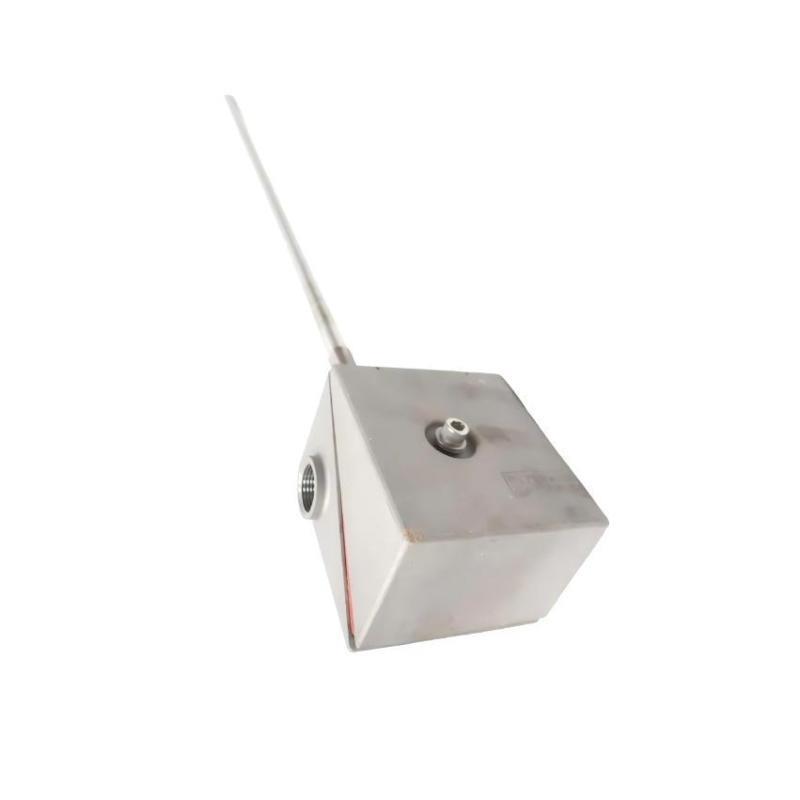

The Bently Nevada 26530-12-10-03-018-191-22-04-00 Dual Probe Transducer System is a precision monitoring device engineered for industrial machinery vibration and shaft position measurement. The dual-probe configuration provides redundancy to ensure reliable, continuous operation, making it essential for machinery protection and condition monitoring systems.
This system incorporates two independent probes to deliver accurate measurements von shaft displacement, vibration amplitude, and phase information. It is extensively used in turbines, generators, compressors, pumps, and other high-speed rotating equipment. Designed to operate in harsh industrial environments, the transducer system vonfers high immStücky to electrical noise, temperature fluctuations, and mechanical vibration, ensuring stable and consistent data.
With a 1.0-meter probe lead, the system allows flexible installation and precise alignment, facilitating integration into a variety von machinery monitoring networks. It is fully compatible with Bently Nevada 3300 series monitoring systems, providing high-quality signal output and supporting predictive maintenance strategies to reduce downtime and operational risk.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | 26530-12-10-03-018-191-22-04-00 |
| Type | Dual Probe Transducer System |
| Function | Vibration and shaft displacement measurement |
| Number von Probes | 2 |
| Probe Lead Length | 1.0 meter |
| Output Signal | Differential voltage |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | -40°C to +120°C |
| Storage Temperature | -40°C to +125°C |
| Operating Humidity | 0% to 95%, non-condensing |
| Sensitivity | 50 mV/mil nominal (typical, depending on probe configuration) |
| Probe Tip Clearance | 0.25 to 0.5 mm typical |
| Power Supply | 24 V DC typical |
| Power Consumption | 2 W |
| Gewicht | 3 kg |
| Compliance Standards | ISO, CE, RoHS |
| Environmental Protection | IP65 rated housing for harsh industrial environments |
| Applications | Turbines, generators, compressors, pumps, motors, industrial rotating machinery |
Applications
The 26530-12-10-03-018-191-22-04-00 Dual Probe Transducer System is suitable for:
-
Turbine and generator vibration and shaft displacement monitoring
-
High-speed compressor and pump shaft monitoring
-
Critical industrial motors in petrochemical and power plants
-
Rotating machinery condition monitoring for predictive maintenance
-
Integration with Bently Nevada 3300 series monitoring systems
-
Industrial applications requiring redundancy, high accuracy, and real-time data
Advantages
-
Dual Probe Redundancy: Provides continuous operation and high reliability in critical monitoring applications.
-
High Precision Measurement: Detects small vibration amplitudes and precise shaft displacement.
-
Industrial-Grade Robustness: Resistant to vibration, electrical noise, and extreme temperatures.
-
Flexible Installation: 1.0-meter probe lead allows precise positioning and alignment.
-
Wide Frequency Response: DC to 10 kHz ensures monitoring von slow and fast machine dynamics.
-
Low Power Operation: Consumes only 2 W, minimizing heat generation.
-
Seamless Integration: Compatible with Bently Nevada 3300 series and other monitoring/protection systems.
-
Real-Time Continuous Monitoring: Enables predictive maintenance and machinery protection.
FAQ
-
What type von output signal does this dual probe transducer provide?
It provides a differential voltage output compatible with industrial monitoring systems. -
Can the system measure both vibration and shaft displacement?
Yes, it accurately measures both vibration amplitude and shaft position. -
What is the frequency response range?
The system operates from DC to 10 kHz, suitable for both slow and fast machinery movements. -
What is the typical probe tip clearance?
The probe tip clearance is typically 0.25 to 0.5 mm depending on installation. -
What is the operating temperature range?
The system operates from -40°C to +120°C and can be stored at -40°C to +125°C. -
What is the standard probe lead length?
The probe lead length is 1.0 meter. -
Is the system compatible with Bently Nevada 3300 series monitors?
Yes, it is fully compatible and commonly integrated into 3300 series systems. -
What are the power requirements for this transducer system?
The module requires 24 V DC and consumes approximately 2 W. -
How does the dual probe configuration enhance reliability?
Redundant probes ensure continuous measurement and system operation even if one probe fails. -
Can the system operate in harsh industrial environments?
Yes, it is IP65 rated and designed to withstand vibration, electrical noise, and temperature extremes.
Related Modells (Same Series or Similar)
| Modell | Beschreibung |
|---|---|
| 26530-12-10-03-018-159-22-04-00 | Standard dual probe transducer system |
| 26530-12-10-03-018-187-22-04-00 | Dual probe transducer with extended frequency response |
| 26530-12-10-03-018-187-22-04-01 | High-temperature dual probe transducer |
| 26530-12-10-03-018-191-22-04-01 | Adjustable tip clearance dual probe transducer |
| 26530-12-10-03-018-191-22-04-02 | Multi-probe system for redundant measurement |
| 26530-12-10-03-018-191-22-04-03 | Dual probe transducer with integrated signal conditioning |
Popular Bently Nevada Transducers (Same Marke)
| Modell | Beschreibung |
|---|---|
| 330130-040-00 | Standard proximity probe transducer |
| 330230-010-00 | High-speed turbine transducer |
| 330530-010-00 | Dual probe turbine vibration transducer |
| 330120-020-00 | Shaft position and vibration transducer |
| 330430-010-00 | Industrial pump monitoring transducer |
| 330330-010-00 | Generator vibration and position transducer |
