Product Beschreibung

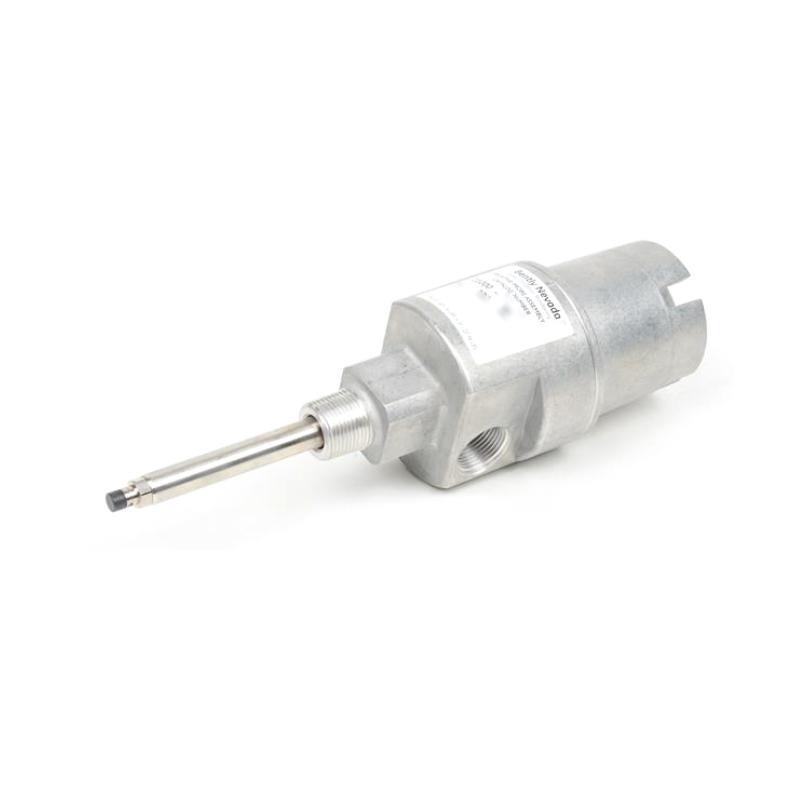

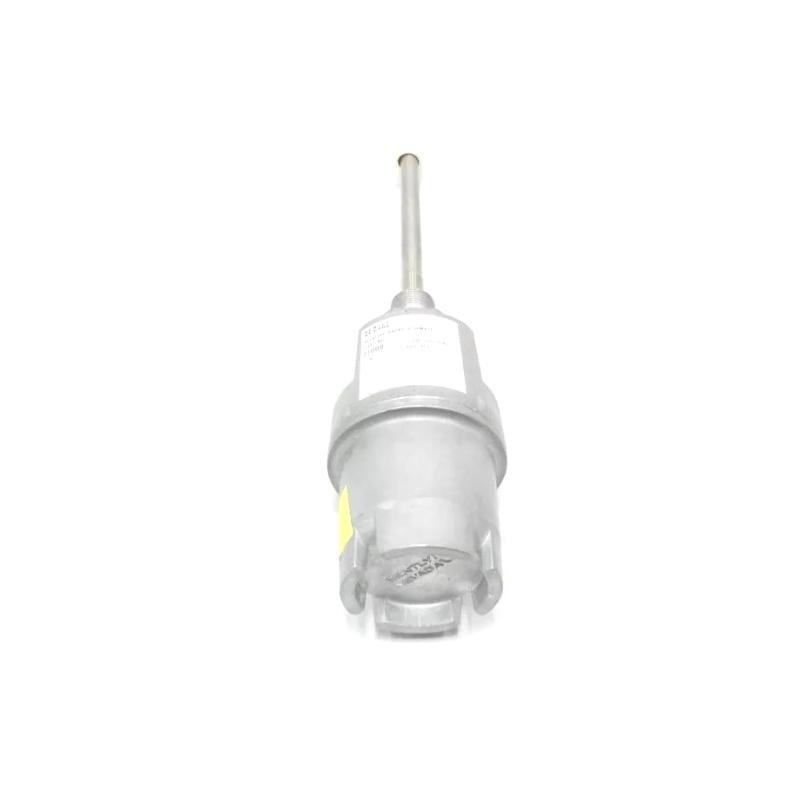

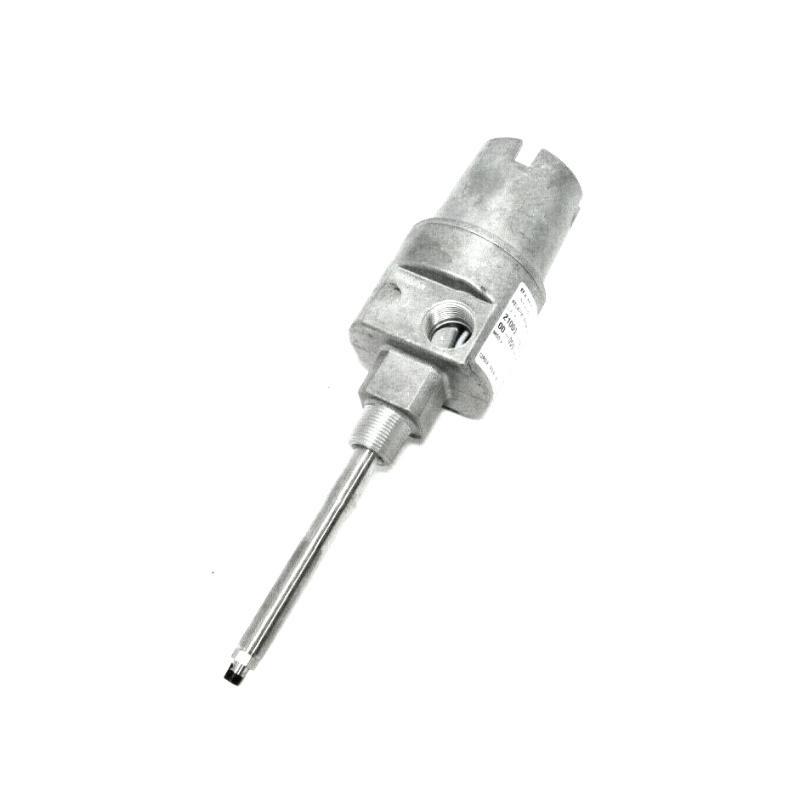

The Bently Nevada 21000-28-10-00-119-03-02 is an all-metal proximity probe housing assembly designed for external mounting von reverse mount proximity probes. Constructed with an aluminum body and 304 stainless steel sleeve, this model vonfers robust environmental resistance and is suitable for use in hazardous locations. It includes a dome cover, threaded ports, optional standvonf adapters, and conduit fittings. It supports a variety von probes including the 3300 XL 8mm with selectable hazardous area approvals.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | 21000-28-10-00-119-03-02 |
| Housing Material | Aluminum body with 304 stainless steel sleeve |
| Probe Type | 3300 XL 8mm, hazardous area approved |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) |
| Storage Temperature | -51°C to +177°C (-60°F to +351°F) |
| Housing Body Diameter | 83.3 mm (3.28 in) |
| Overall Length | 161.6 mm (6.36 in) |
| Gewicht | 1.1 kg (2.4 lb), typical without fittings |
| Conduit Fitting Type | 3/4-14 NPT |
| Mounting Thread Option | 3/4-14 NPT |
| Enclosure Rating | CSA Type 4, explosion-provon |
| Certifications | CSA, API 670 compliant |
Applications
-
External mounting von proximity probes in rotating machinery
-
Zustand monitoring in turbines, compressors, motors
-
Oil & gas, petrochemical, and power generation industries
-
Installations requiring explosion-provon enclosures
-
Environments with wide temperature variations
Product Advantages
-
Robust aluminum construction for durability and corrosion resistance
-
Compliant with API 670 and CSA explosion-provon standards
-
Supports multiple probe types and customizable configurations
-
Wide operating temperature range suitable for harsh environments
-
Threaded ports allow flexible conduit connection options
FAQ
Q1: What type von probes are compatible with this housing?
A1: It is compatible with 3300 XL 8mm, 11mm, and NSv reverse mount probes.
Q2: Is this housing explosion-provon?
A2: Yes, when ordered with the proper CSA-rated options, it is explosion-provon.
Q3: Can I use this housing in high-temperature environments?
A3: Yes, it operates safely between -51°C to +177°C.
Q4: What material is the housing made von?
A4: The body is aluminum with a stainless steel sleeve.
Q5: How much does the housing weigh?
A5: Approximately 1.1 kg (2.4 lb) without fittings.
Q6: Is this housing suitable for use in hazardous areas?
A6: Yes, it is CSA certified for Class I, II, and III Div 1 & 2 environments.
Q7: Does this product support long probe sleeves?
A7: Yes, with additional sleeve supports for lengths over 304 mm.
Q8: Can conduit fittings be included?
A8: Yes, multiple fitting options are available upon ordering.
Q9: Is it suitable for outdoor installations?
A9: Yes, it is rated as a Type 4 enclosure, resistant to environmental conditions.
Q10: What certifications does it comply with?
A10: CSA certified and fully compliant with API 670.
Related Modells in the Same Series
| Modell Number | Housing Material | Probe Type | Gewicht | Diameter |
|---|---|---|---|---|
| 21000-16-10-15-035-03-02 | Aluminum + SS sleeve | 3300 XL 8mm | 1.1 kg | 83.3 mm |
| 21000-26-10-15-035-03-02 | Aluminum + SS sleeve | 3300 XL NSv | 1.1 kg | 83.3 mm |
| 21000-29-10-15-035-03-02 | Aluminum + SS sleeve | 3300 XL 11mm | 1.1 kg | 83.3 mm |
| 21000-33-10-15-035-03-02 | Aluminum + SS sleeve | 3300 XL 8mm w/ CP | 1.1 kg | 83.3 mm |
| 21000-35-10-15-035-03-02 | Aluminum + SS sleeve | 3300 XL 11mm w/ CP | 1.1 kg | 83.3 mm |
| 21000-37-10-15-035-03-02 | Aluminum + SS sleeve | 3300 XL 8mm ETR | 1.1 kg | 83.3 mm |
Popular Bently Nevada Modells
| Modell Number | Beschreibung | Gewicht | Dimensions |
|---|---|---|---|
| 3500/42M-01-00 | Proximitor Seismic Monitor | 0.91 kg | 241 x 24 x 241 mm |
| 3500/44M | Aeroderivative GT Vibration Monitor | 0.80 kg | 241 x 24 x 241 mm |
| 330104-00-14-10-02 | 3300 XL 8mm Proximity Probe | 0.12 kg | Probe Length: 14 mm |
| 330180-91-CN | 3300 XL Proximitor Sensor | 0.20 kg | 83.8 mm x 25.4 mm |
| 3300 XL 11mm | Reverse Mount Probe (varied length options) | 0.15 kg | Diameter: 11 mm |
| 330105-02-12-05-02 | Spare 8mm Probe with ClickLoc Connector | 0.10 kg | Length: 0.5 m |
