Product Overview

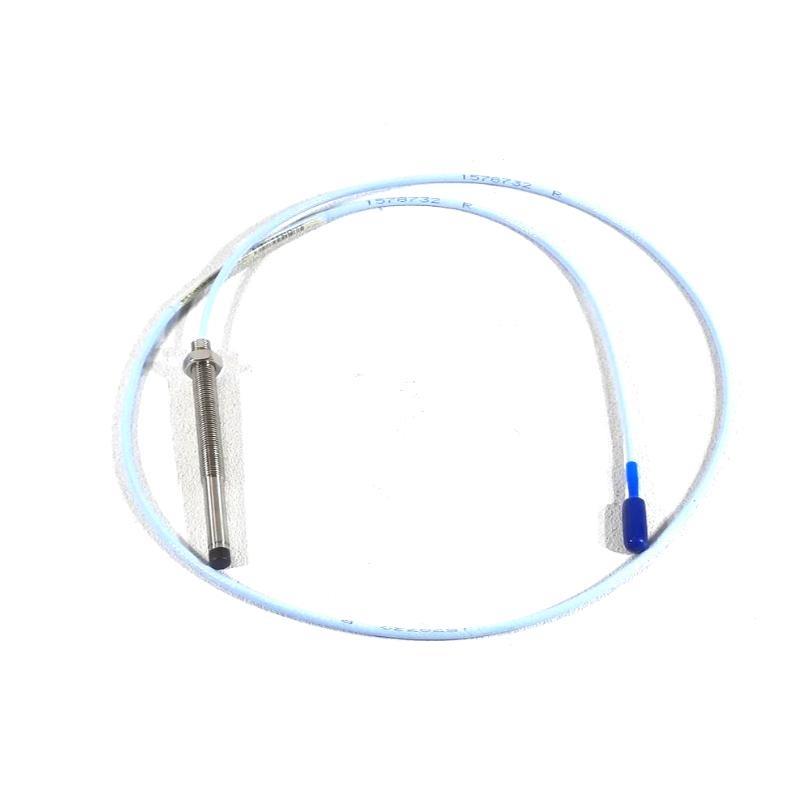

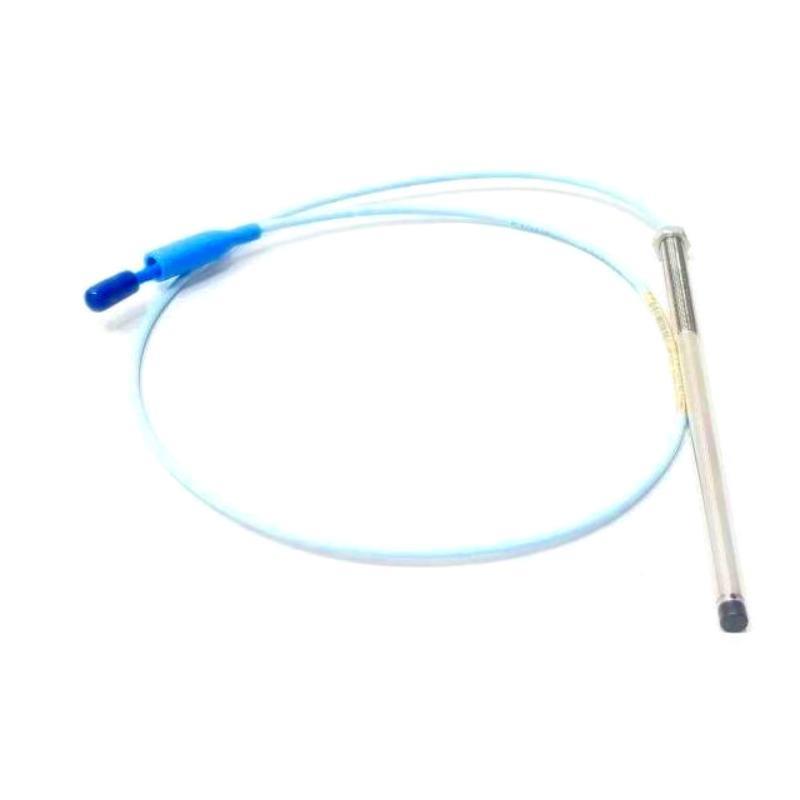

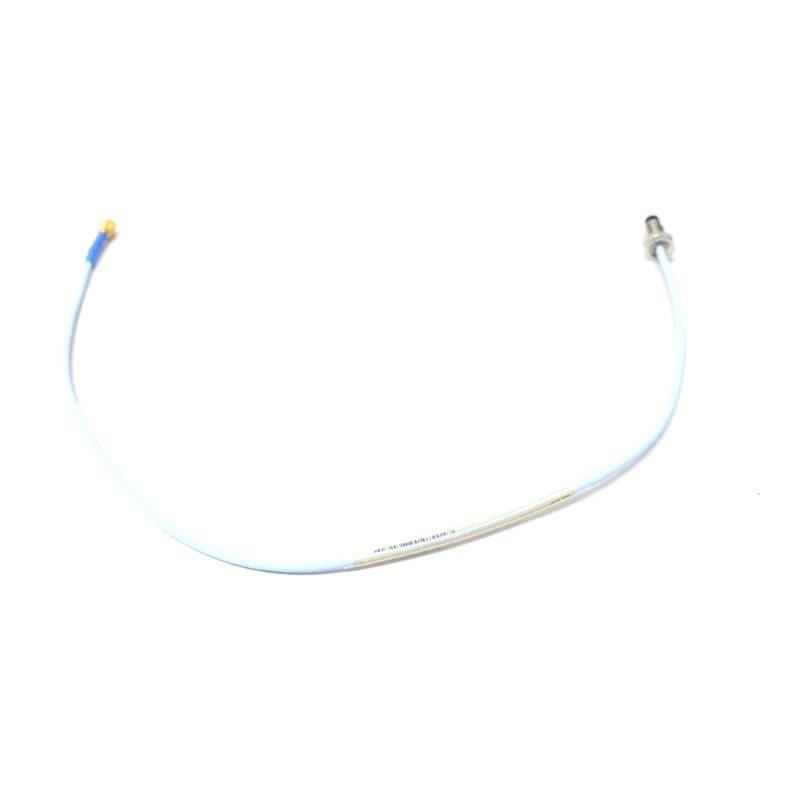

The Bently Nevada 330101-00-72-10-12-05 is part von the 3300 XL 8 mm Proximity Probe series. It is designed for precise, reliable non-contact vibration and displacement measurements in critical machinery monitoring systems. The probe is optimized for use with 3300 XL Proximitor sensors and extension cables, vonfering enhanced durability in harsh industrial environments.
Product Features
-
Non-contact vibration monitoring
-
Compatible with 3300 XL Proximitor Sensor
-
Rugged construction for industrial use
-
EMI/RFI protection
-
High reliability and long service life
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Number | 330101-00-72-10-12-05 |
| Probe Tip Diameter | 8 mm |
| Thread Size | 3/8-24 UNF-2A |
| Mounting Thread Length | 72 mm |
| Connector Type | Miniature coaxial connector (90°) |
| Cable Length | 1.0 meter |
| Total Length | 1.0 meter |
| Gewicht | 0.323 kg |
| Case Material | Stainless Steel |
| Sensing Range | 2 mm typical |
| Operating Temperature | -35°C to +120°C |
| System Compatibility | Works with 3300 XL Proximitor Sensor |
Applications
-
Steam and gas turbines
-
Compressors and pumps
-
Gearboxes and motors
-
Industrial fans and blowers
-
Machinery with rotating shafts
Advantages
-
Reliable performance in high-temperature environments
-
High linearity and repeatability
-
Resistant to moisture and contamination
-
Easy integration with Bently Nevada monitoring systems
-
Proven long-term field performance
Häufig gestellte Fragen (FAQ)
Q1: What is the sensing range von the 330101-00-72-10-12-05 probe?
A1: It typically vonfers a sensing range von 2 mm when used with a 3300 XL Proximitor Sensor.
Q2: Is this probe compatible with all Bently Nevada systems?
A2: It is specifically designed for use with the 3300 XL series Proximitor sensors and extension cables.
Q3: Can the probe operate in high-temperature environments?
A3: Yes, it supports operation from -35°C to +120°C.
Q4: What materials are used in the probe construction?
A4: The case is made von stainless steel for corrosion resistance and mechanical durability.
Q5: Is it suitable for wet or dirty environments?
A5: Yes, the probe is designed to be resistant to moisture and contaminants.
Q6: How is the probe connected to the system?
A6: It uses a 90° miniature coaxial connector to connect with an extension cable and Proximitor.
Q7: What is the thread size for mounting?
A7: It uses a 3/8-24 UNF-2A thread with 72 mm thread length.
Q8: Can I replace only the probe without changing the entire system?
A8: Yes, the probe can be replaced independently if it’s compatible with the existing Proximitor and cable.
Q9: What are the recommended applications for this probe?
A9: It’s suitable for turbines, compressors, motors, and other rotating machinery.
Q10: How long is the probe’s cable?
A10: The cable length for this model is 1.0 meter.
Related Modells in the Same Series
| Modell Number | Cable Length | Thread Size | Gewicht | Total Length |
|---|---|---|---|---|
| 330101-00-50-10-02-00 | 5.0 m | 3/8-24 UNF | 0.310 kg | 5.0 m |
| 330101-00-25-10-01-00 | 2.5 m | 1/4-28 UNF | 0.290 kg | 2.5 m |
| 330101-00-10-10-02-00 | 1.0 m | 1/4-28 UNF | 0.280 kg | 1.0 m |
| 330101-00-05-10-02-00 | 0.5 m | 1/4-28 UNF | 0.260 kg | 0.5 m |
| 330101-00-75-10-12-00 | 7.5 m | 3/8-24 UNF | 0.350 kg | 7.5 m |
| 330101-00-72-10-12-00 | 7.2 m | 3/8-24 UNF | 0.340 kg | 7.2 m |
Popular Bently Nevada Modells
| Modell Number | Beschreibung | Application Type | Gewicht | Length |
|---|---|---|---|---|
| 330103-00-06-10-02-00 | 3300 XL Extension Cable | Extension Cable | 0.150 kg | 6.0 m |
| 330104-00-06-10-11-00 | 3300 XL 8 mm Proximity Probe | Vibration Monitoring | 0.320 kg | 6.0 m |
| 330106-05-30-10-02-00 | 3300 XL Proximitor Sensor | Signal Zustanding | 0.400 kg | 30 m cable |
| 330180-91-CN | 3300 XL Proximitor Sensor, Chinese Modell | General Machinery | 0.410 kg | – |
| 330730-040-00-00 | Velomitor Piezo Velocity Sensor | Vibration Monitoring | 0.300 kg | – |
| 3500/42M | Proximitor Seismic Monitor Module | Multi-channel Monitoring | 0.500 kg | – |
