System Overview

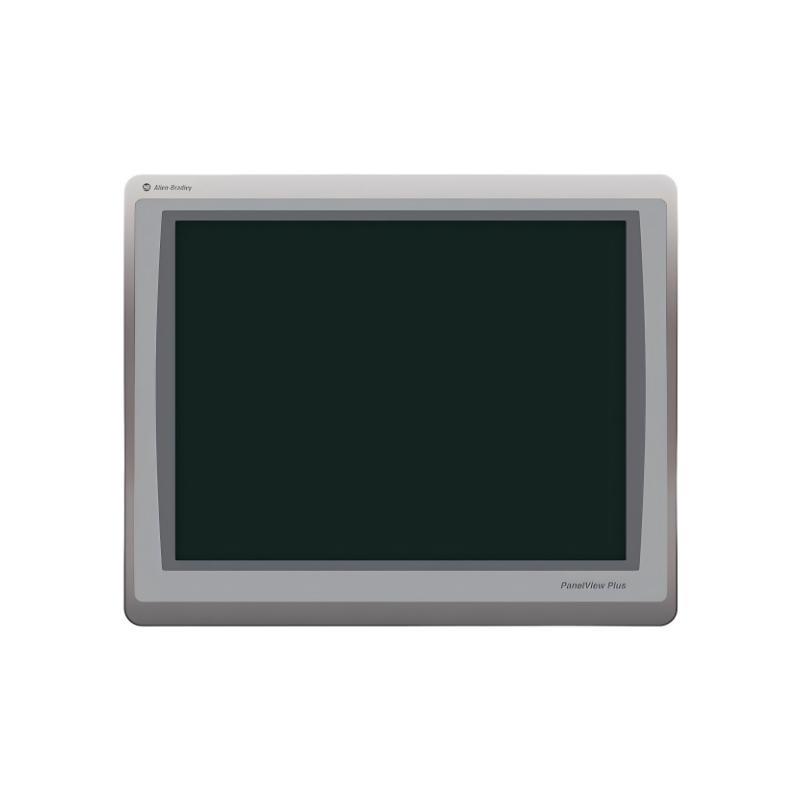

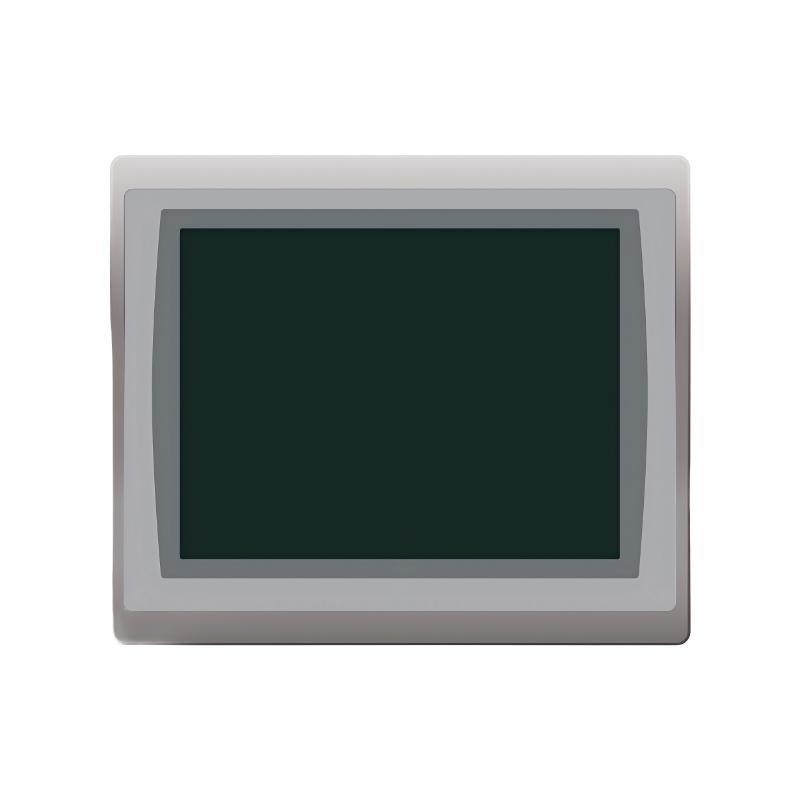

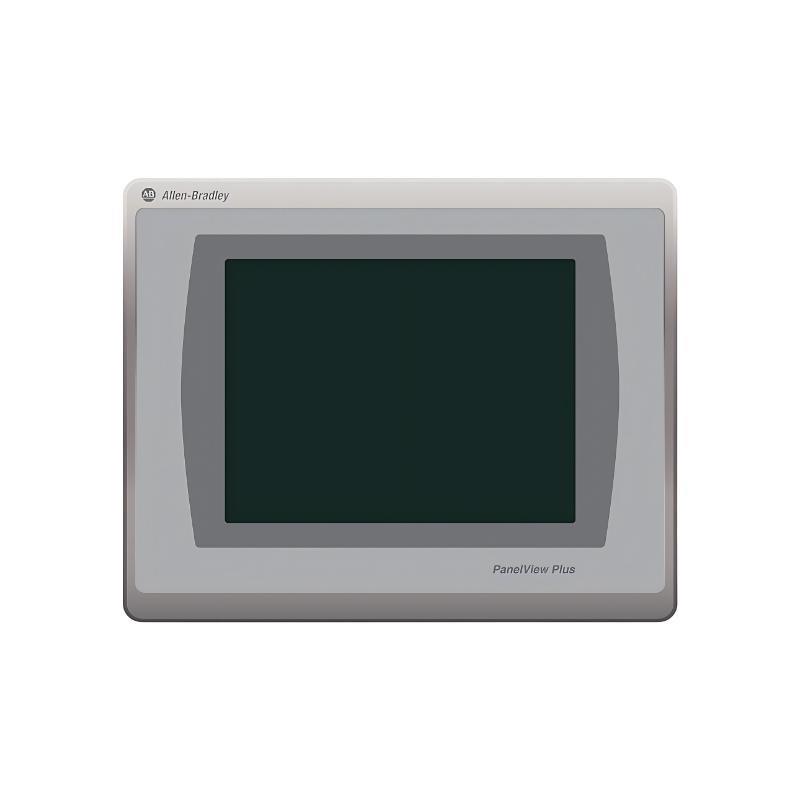

The Allen Bradley 2711P-T10C22D9P PanelView Plus 7 Performance HMI Module is an advanced operator interface built for demanding industrial visualization tasks. Designed to deliver high-speed data access, intuitive control, and flexible network integration, this module provides the power and reliability required for modern manufacturing environments. With its bright, multi-touch 10.4-inch display and enhanced communication options, it brings both clarity and control precision to plant-floor operations.
Detailed Technical Specifications
| Parameter | Specification | Beschreibung |
|---|---|---|
| Product Type | Human Machine Interface (HMI) | PanelView Plus 7 Performance Series |
| Display Type | 10.4″ TFT Color Touchscreen | LED-backlit, high-brightness panel |
| Display Resolution | 800 × 600 pixels (SVGA) | Clear graphics for industrial visualization |
| Touch Input | Analog resistive touch | Supports gloved operation |
| Processor | Dual-core ARM Cortex-A8 | Optimized for fast screen refresh and data processing |
| Memory | 1 GB RAM, 512 MB non-volatile storage | Sufficient for large runtime applications |
| Operating System | Windows CE 6.0 | Supports FactoryTalk View Machine Edition |
| Communication Ports | 2 × Ethernet, 2 × USB, 1 × Serial (RS-232), 1 × SD card slot | For flexible integration |
| Network Support | EtherNet/IP, Modbus TCP | Industrial communication standards |
| Power Supply | 24 VDC | Stable and low-power operation |
| Expansion Capability | SD card for data logging and firmware | Supports FAT32 file system |
| Enclosure Rating | IP66 (front), NEMA Type 12/13/4X | Dustprovon and corrosion-resistant |
| Operating Temperature | 0 °C to +55 °C | Designed for harsh industrial environments |
| Storage Temperature | -25 °C to +70 °C | Safe long-term storage conditions |
| Relative Humidity | 5% – 95% non-condensing | Industrial-grade tolerance |
| Mounting Type | Panel mount | Standard industrial cutout dimensions |
| Dimensions (H × W × D) | 220 mm × 280 mm × 55 mm (8.66″ × 11.02″ × 2.17″) | Compact yet robust construction |
| Gewicht | 2.1 kg (4.63 lb) | Durable with aluminum front bezel |
Industrial Use Cases
-
Advanced Process Control: Ideal for controlling chemical, food & beverage, and water treatment systems.
-
Machine Interface: Provides operators with intuitive control and diagnostics for automated machines.
-
Packaging and Material Handling: Real-time performance visualization and alarm handling.
-
Plant-Wide Monitoring: Integrates seamlessly with FactoryTalk View SE and CompactLogix/ControlLogix systems.
-
Batch Processing: Suitable for regulated industries requiring traceability and event recording.
Key Engineering Advantages
-
Enhanced Visualization: High-brightness display ensures visibility in bright plant conditions.
-
Fast Startup and Data Access: Dual-core processing minimizes lag and ensures responsive operation.
-
Seamless Integration: Full compatibility with Rockwell’s Logix family and FactoryTalk suite.
-
Durable Construction: Industrial-grade materials resist dust, vibration, and humidity.
-
Multi-Network Capability: Dual Ethernet ports simplify network segmentation and redundancy.
-
Efficient Power Use: Operates on 24 VDC, ideal for panel-based power systems.
-
Expandable Storage: SD slot enables data logging and recipe management.
-
User-Friendly Configuration: Supports USB-based application loading and firmware update.
-
Operator Safety: Meets NEMA 4X/IP66 ratings for harsh environments.
-
Lifecycle Longevity: Supported under Rockwell Automation’s long-term product lifecycle program.
