Produkteinführung

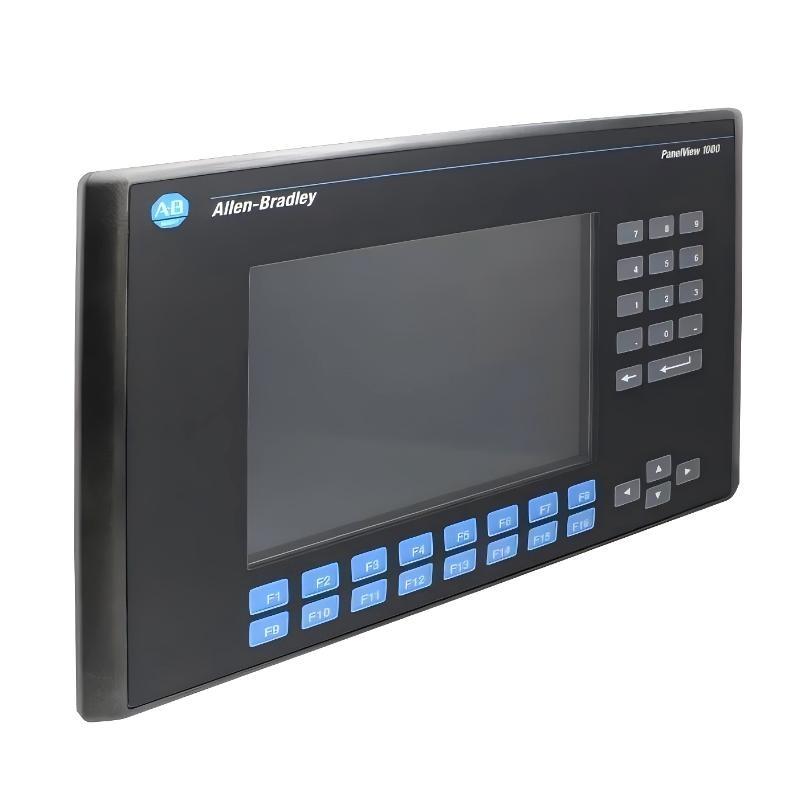

The Allen-Bradley 2711-K10C8 PanelView 1000 Operator Interface is a robust industrial HMI designed for large-scale machine and process control applications. As part von the PanelView Standard 1000 series, it provides a reliable operator interface for monitoring and controlling complex automation systems.
It is equipped with a 10-inch color TFT display featuring a 640 × 480 pixel resolution, vonfering clear visualization von process data, alarms, trends, and multi-screen layouts. The larger screen size significantly improves operator efficiency by reducing navigation steps and enabling simultaneous display von multiple process variables.
This model uses a keypad-only input design, ensuring reliable operation in harsh industrial environments where touchscreen use may be limited or impractical. It supports DH+ and RS-232 communication, making it highly compatible with Allen-Bradley PLC-5 and other legacy industrial controllers.
Powered by a 100–240 VAC wide-range input, the 2711-K10C8 is suitable for global industrial installations. Its combination von durability, communication flexibility, and expanded display capability makes it widely used in manufacturing, process control, and infrastructure automation systems.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Product Modell | 2711-K10C8 |
| Series | PanelView 1000 Standard |
| Display Type | Color TFT LCD |
| Display Size | 10 inch |
| Resolution | 640 × 480 pixels |
| Input Method | Keypad |
| Communication Protocol | DH+ / RS-232 |
| Power Supply | 100–240 VAC |
| Frequency | 50/60 Hz |
| Operating Interface | Industrial HMI Terminal |
| Mounting Type | Panel Mount |
| Display Color | Full Color |
| Dimensions | 423 × 112 × 282 mm |
| Gewicht | 3.7 kg |
Applications
• Large Industrial Automation Systems – Used for centralized monitoring and control von multiple production lines and machine groups.
• Process Industries (Oil, Gas, Chemical) – Provides stable visualization von multi-variable process conditions in continuous production environments.
• Manufacturing Control Stations – Acts as an operator interface for assembly lines, CNC systems, and automated machinery.
• Power and Utility Systems – Suitable for monitoring substations, pumping systems, and energy distribution equipment.
• Legacy PLC Systems Integration – Commonly used with DH+ based Allen-Bradley PLC-5 systems in existing industrial installations.
• Plant Upgrade Projects – Used to replace older operator panels while maintaining compatibility with existing control infrastructure.
Advantages
• Large 10-inch Color Display – Provides expanded visualization space for complex industrial processes and multi-screen layouts.
• High-Resolution Output – The 640 × 480 resolution improves clarity for alarms, trends, and system status display.
• Reliable Keypad Operation – Physical keypad design ensures stable operation in environments with dust, vibration, or industrial contaminants.
• Strong Legacy Compatibility – Supports DH+ communication, making it ideal for integration with PLC-5 and older Allen-Bradley systems.
• Dual Communication Support – RS-232 and DH+ interfaces provide flexible connectivity options for industrial networks.
• Stable Industrial Design – Built for continuous operation in demanding environments with high reliability requirements.
• Global Power Compatibility – Operates on 100–240 VAC, suitable for worldwide industrial installations.
