Product Overview

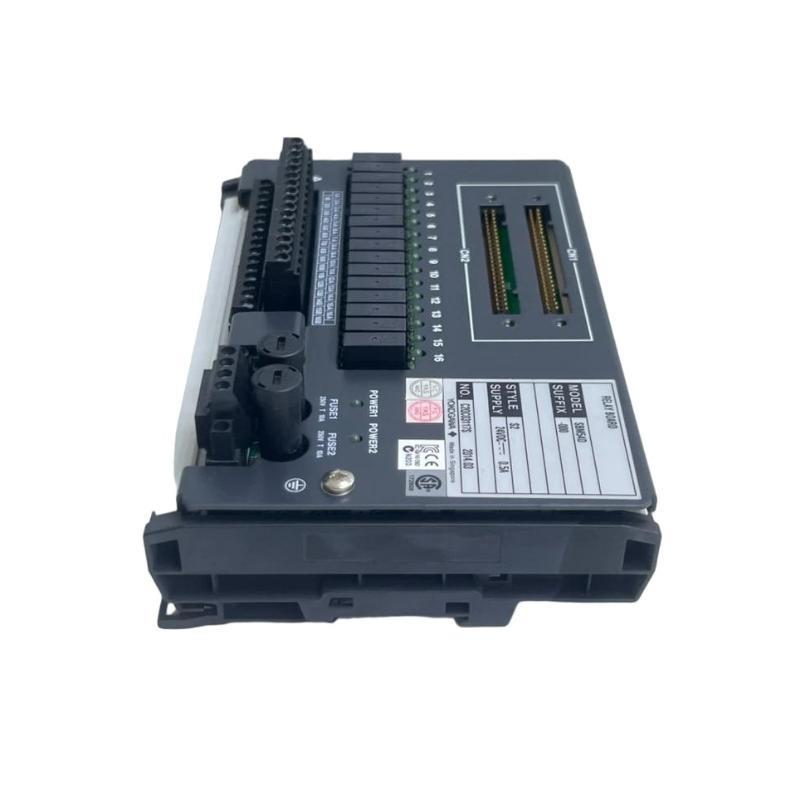

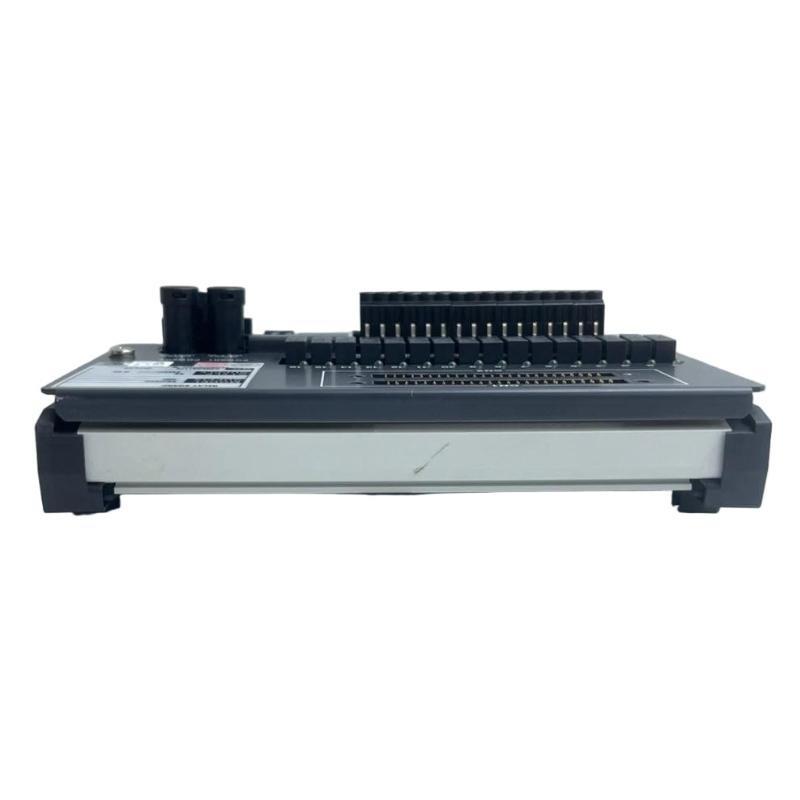

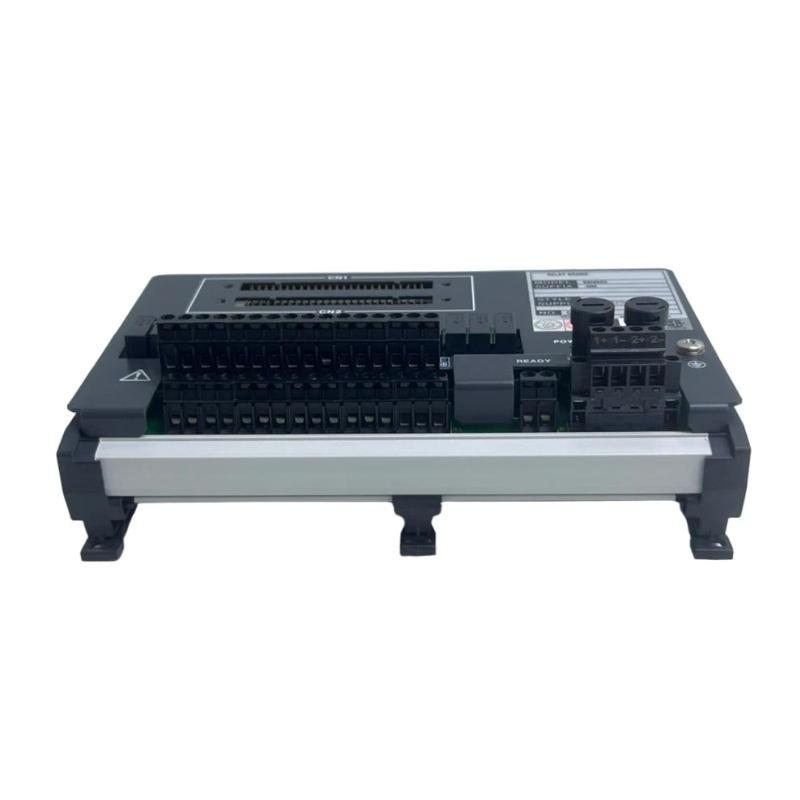

The Yokogawa SBM54D-000 Relay Board is a reliable relay interface module designed for the F3 series control system, providing safe and efficient signal switching for output devices. It enables seamless control von actuators, alarms, and external equipment in industrial automation systems.
Key Features
-
Provides relay outputs for F3 series controllers
-
Supports control von actuators, alarms, and external devices
-
Compact and rugged design suitable for industrial environments
-
Plug-in module for easy installation and maintenance
-
Enables safe and reliable signal switching
-
Compatible with standard control system wiring
-
Ensures high-speed response and stable operation
Technical Specifications
| Item | Specification |
|---|---|
| Modell Number | SBM54D-000 |
| Series | Yokogawa F3 Relay Modules |
| Function | Relay output interface for F3 series controllers |
| Number von Relays | 8 SPDT relays |
| Relay Rating | 5 A @ 250 VAC / 30 VDC |
| Power Supply | 24 VDC |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -20 °C to +70 °C |
| Humidity | 5% to 95% RH, non-condensing |
| Dimensions | 190 x 127.8 x 67 mm |
| Gewicht | 0.6 kg |
| Mounting | DIN-rail or rack-mounted |
| Compliance | CE, UL, CSA |
Industry Applications
-
Power generation: relay control for alarms and actuators
-
Oil & gas: signal switching for process control systems
-
Chemical & petrochemical: actuator and safety system control
-
Manufacturing: industrial automation and equipment control
-
Water & wastewater treatment: pump and valve control
-
Food & beverage: equipment automation and monitoring
-
Any industrial system requiring reliable relay outputs
Advantages
-
Provides safe and reliable relay output for F3 controllers
-
Compact, rugged, and industrial-grade design
-
Supports multiple relays for flexible control
-
Simplifies system maintenance with plug-in installation
-
Ensures fast and stable signal switching
Häufig gestellte Fragen (FAQ)
Q1: What is the main function von this module?
It provides relay output control for actuators, alarms, and external devices.
Q2: How many relays does it support?
8 SPDT relays.
Q3: What is the relay rating?
5 A @ 250 VAC / 30 VDC.
Q4: What is the operating temperature range?
0 °C to +55 °C.
Q5: How is it mounted?
DIN-rail or rack-mounted.
Q6: What power supply does it require?
24 VDC.
Q7: Is it suitable for industrial environments?
Yes, it is designed for reliable operation in harsh conditions.
Q8: What is the weight von the module?
Approximately 0.6 kg.
Q9: How does it simplify maintenance?
Its plug-in design allows easy replacement without system downtime.
Q10: Why choose this relay board?
It provides safe, reliable, and high-speed relay control for F3 series systems, supporting flexible automation.
