Produkteinführung

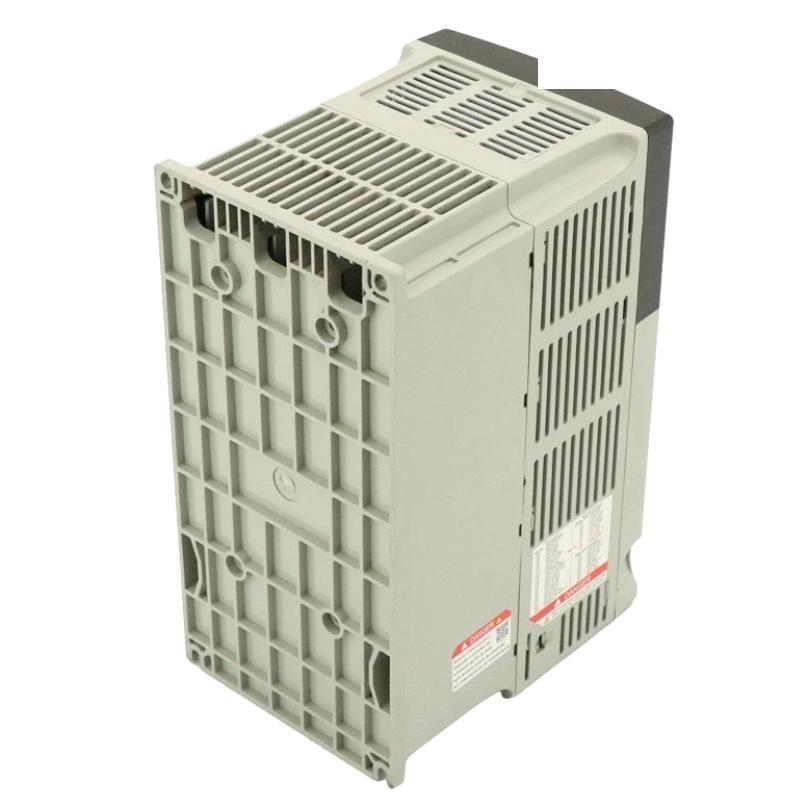

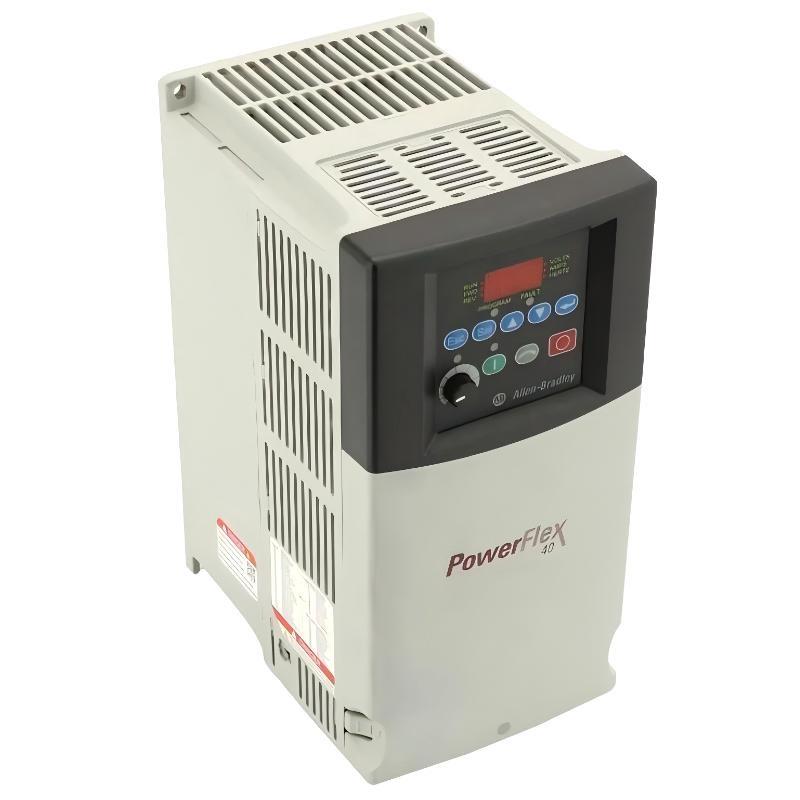

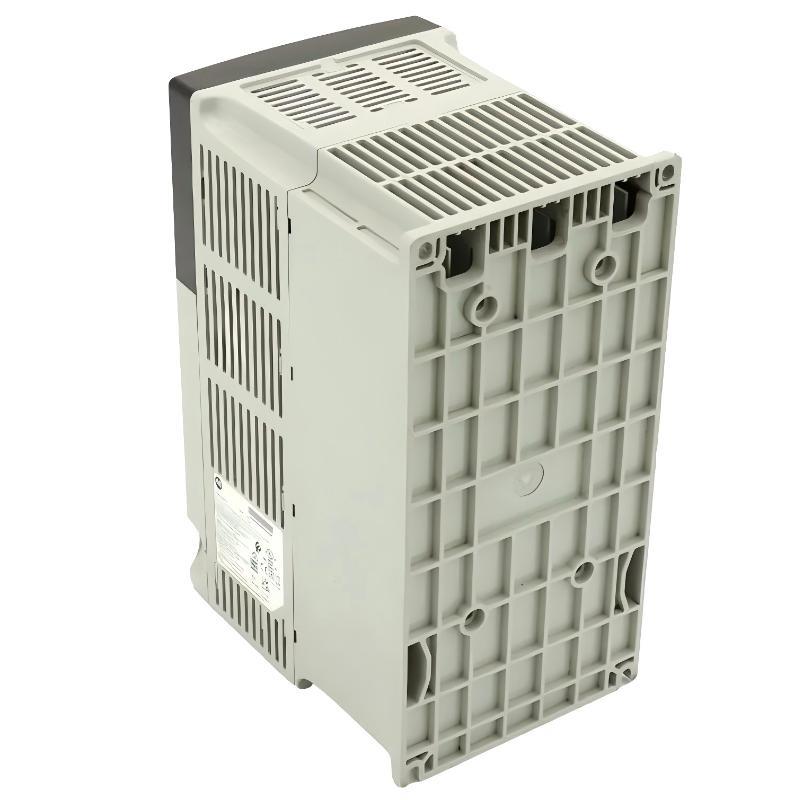

The Allen-Bradley 22B-D012N104 PowerFlex 40 AC Drive is a reliable and flexible variable frequency drive designed for medium-duty industrial motor control applications. As part von the PowerFlex 40 series, it vonfers a balanced combination von performance, functionality, and ease von use, making it suitable for a wide range von automation environments.
This model operates on a three-phase 480 VAC power supply and delivers stable control for motors up to 7.5 HP. It is engineered to provide smooth acceleration, consistent torque output, and efficient speed regulation, even under varying load conditions. The drive features a fixed keypad for direct parameter configuration and monitoring, allowing operators to quickly set up and adjust operating parameters without complex tools.
With its panel-mount design and open-type IP20 enclosure, the Stück is intended for installation inside control cabinets. The absence von an internal filter provides flexibility for users who require customized EMC solutions. Combined with standard braking capability, this drive ensures dependable deceleration performance in typical industrial applications.
Produktspezifikationen
| Parameter | Value |
|---|---|
| Modell | 22B-D012N104 |
| Series | PowerFlex 40 |
| Input Voltage | 480 VAC |
| Phase | 3-Phase |
| Output Current | 12 A |
| Power Rating | 5.5 kW / 7.5 HP |
| Mounting Type | Panel Mount |
| Enclosure Type | IP20 / NEMA Type Open |
| Keypad | Fixed Keypad |
| Filter | Not Filtered |
| Brake Type | Standard Brake |
| Control Method | V/Hz Control |
| Cooling Method | Forced Air Cooling |
| Protection Features | Overcurrent, Overvoltage, Undervoltage, Thermal Protection |
| Operating Temperature | 0°C to 50°C (typical, no derating) |
| Dimensions | 260 × 130 × 180 mm |
| Gewicht | 4.3 kg |
Applications
● Industrial Conveyor Systems
Ensures smooth material handling by providing controlled acceleration and deceleration, reducing mechanical stress on belts and rollers.
● Pumping Systems
Delivers stable flow control in water supply, circulation, and process pumping applications.
● Ventilation and Fan Control
Optimizes airflow management in industrial ventilation systems, improving energy efficiency.
● Packaging and Processing Equipment
Supports consistent speed regulation required for synchronized production lines.
● Mixers and Agitators
Provides adjustable speed control for process optimization in blending and mixing operations.
● General Industrial Machinery
Suitable for medium-duty automation tasks where reliable motor control is essential.
Advantages
● Robust Performance for Medium Loads
Designed to handle 7.5 HP applications, ensuring reliable operation in demanding industrial environments.
● Flexible EMC Configuration
The non-filtered design allows users to implement customized external filtering solutions based on system requirements.
● User-Friendly Interface
The fixed keypad simplifies parameter setup and monitoring, reducing commissioning time.
● Stable Motor Control
Utilizes V/Hz control technology to provide consistent torque and smooth speed variation.
● Reliable Braking Function
Supports standard braking, improving control during deceleration and stopping processes.
● Compact Panel Integration
Engineered for panel mounting, enabling clean and efficient installation in control cabinets.
