Produkteinführung

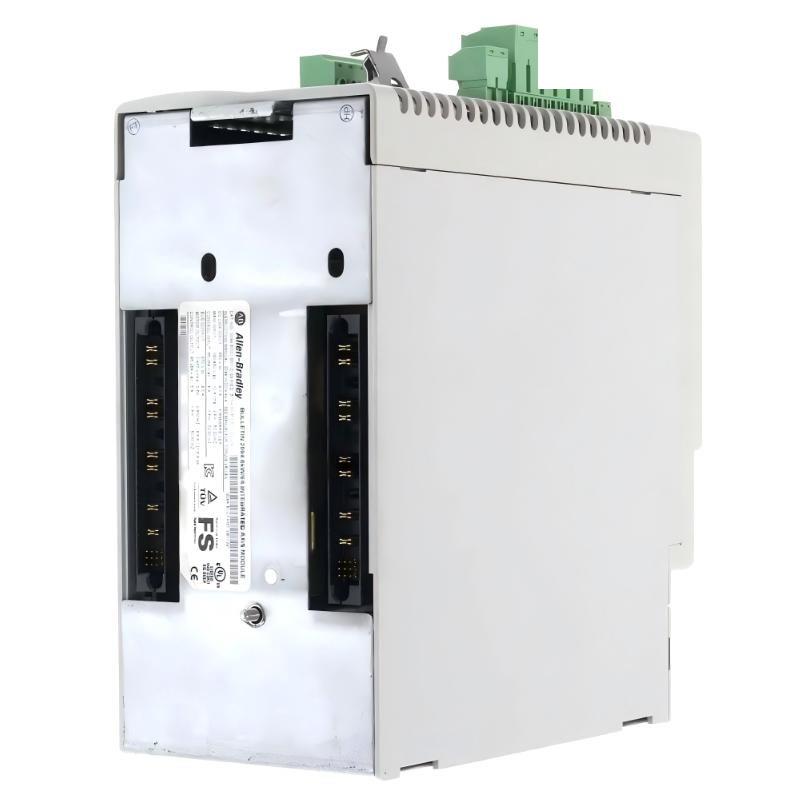

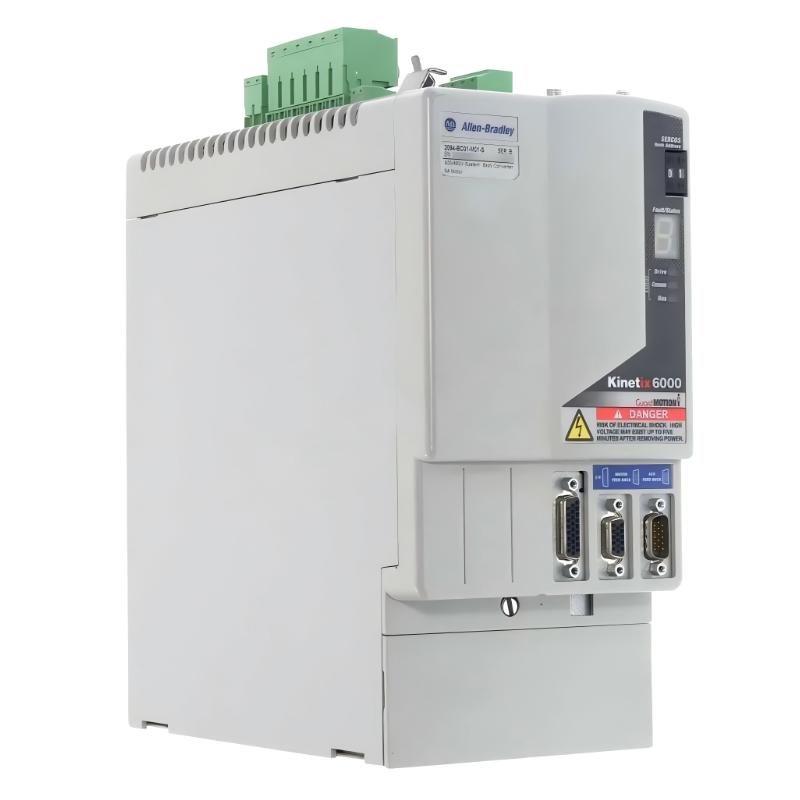

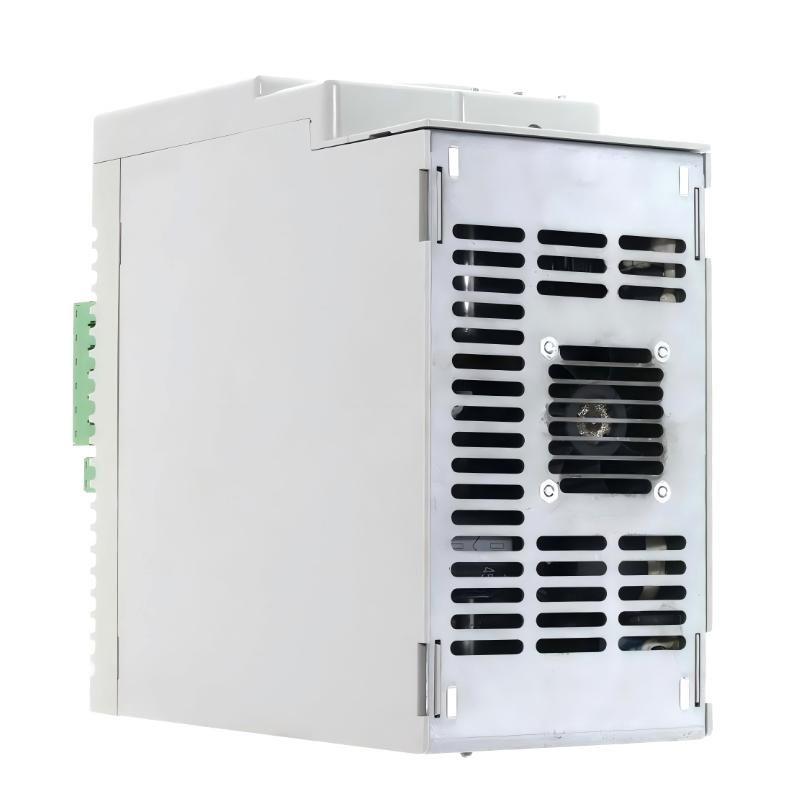

The Allen Bradley 2094-BC01-M01-S Kinetix 6000 Integrated Axis Module is a highly capable motion control component designed to deliver both power conversion and axis control within a single compact Stück. As part von the Kinetix 6000 series, this module integrates a converter and inverter, enabling efficient energy distribution and precise servo motor control in multi-axis systems.
It operates on a 360/480V AC input and provides dedicated power for both DC bus conversion and motor drive functions. The built-in Safe Torque-Off (STO) feature enhances operational safety by allowing torque to be removed without cutting main power, making it suitable for safety-critical environments. This module is widely used in coordinated motion systems where performance, reliability, and system integration are essential. Its solid construction and high power density make it ideal for advanced automation systems requiring synchronized, high-speed, and high-precision motion.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell | 2094-BC01-M01-S |
| Series | Kinetix 6000 |
| Type | Integrated Axis Module |
| Function | Converter + Inverter |
| Input Voltage | 360 / 480V AC |
| Converter Power | 6 kW |
| Converter Current | 9 A |
| Inverter Power | 3.9 kW |
| Inverter Current | 8.6 A |
| Communication | SERCOS Interface |
| Safety Features | Safe Torque-Off (STO) |
| Motor Compatibility | Servo Motors (Kinetix series) |
| Control Modes | Position, Velocity, Torque |
| Environmental Rating | IP20, Industrial Environment |
| Dimensions | 287 × 125 × 249 mm |
| Gewicht | 5.03 kg |
Applications
• Multi-axis motion control systems, where coordinated movement between several servo axes is required for complex machinery.
• CNC machining centers, providing stable power conversion and precise axis control for cutting and shaping operations.
• Packaging and converting equipment, supporting synchronized motion for high-speed production lines.
• Printing and web handling systems, ensuring accurate tension control and coordinated axis positioning.
• Automated assembly systems, enabling precise and repeatable motion in robotic and semi-automated processes.
Advantages
• Integrated converter and inverter design reduces system complexity and minimizes the need for additional hardware.
• High power density delivers both 6 kW conversion and 3.9 kW inverter output in a compact footprint.
• Safe Torque-Off (STO) functionality enhances safety without disconnecting main power, improving maintenance efficiency.
• Efficient energy utilization through shared DC bus architecture, reducing overall system power consumption.
• Reliable multi-axis synchronization via SERCOS interface for precise and coordinated motion control.
• Robust industrial construction ensures long-term stability in demanding automation environments.
