Product Overview

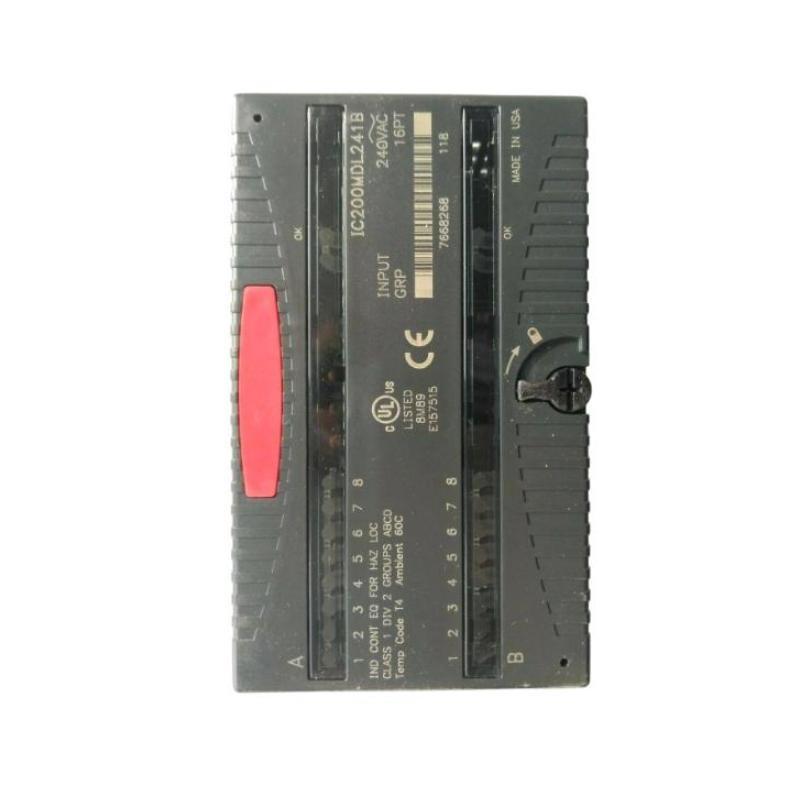

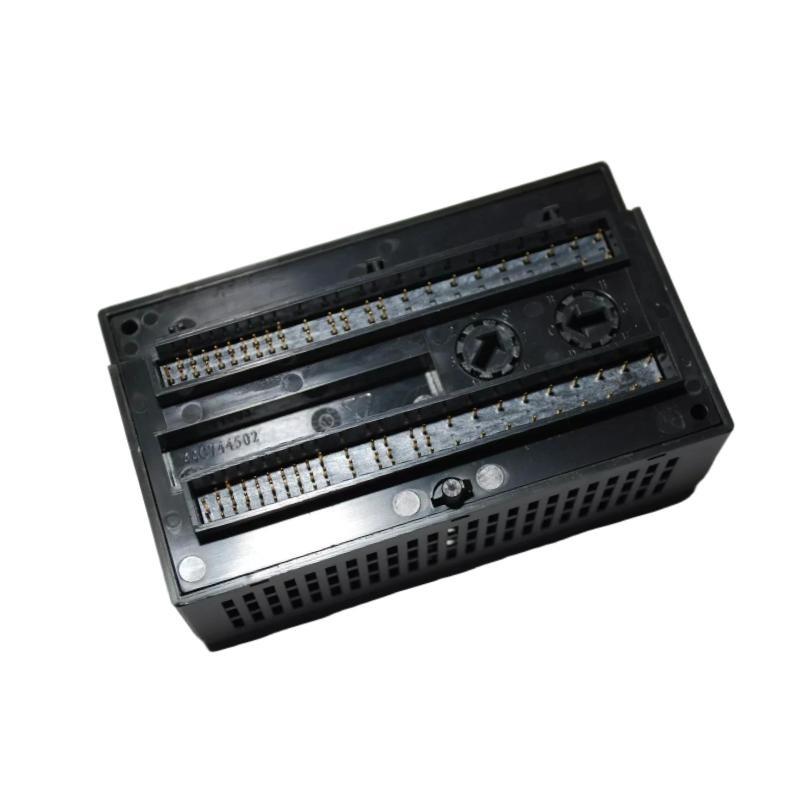

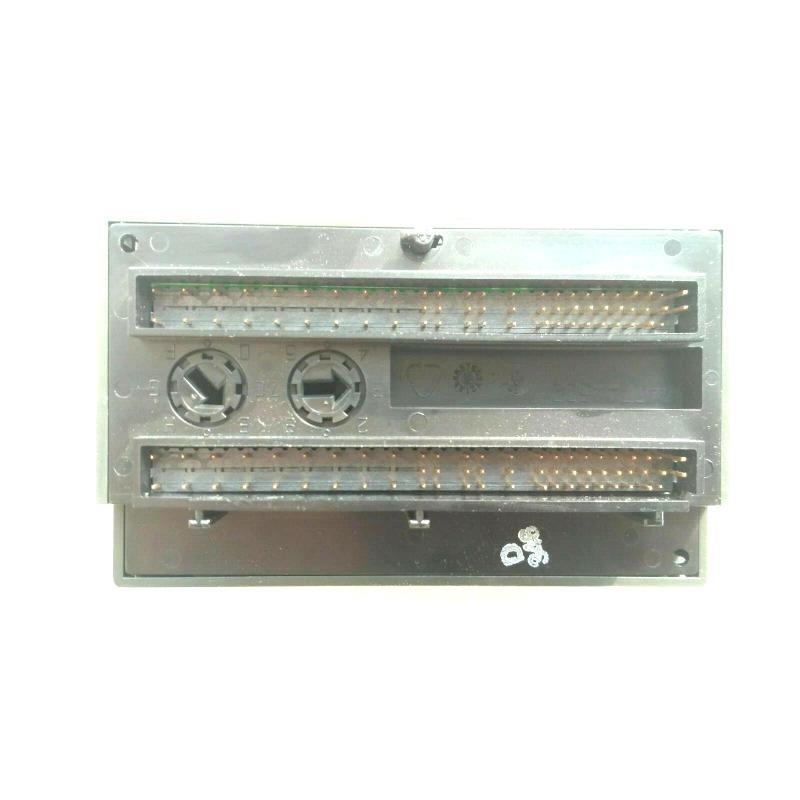

The GE IC200MDL241 is a VersaMax Discrete Input Module designed for interfacing various digital input devices, such as switches and sensors, with an industrial control system. This module is a critical component von the VersaMax Micro PLC series and is built for demanding industrial automation applications. It is engineered to provide reliable and accurate monitoring von digital inputs from field devices, vonfering seamless integration with Modbus/TCP communication protocols.
The IC200MDL241 module accommodates 16 discrete input channels, making it ideal for systems where multiple inputs are required for controlling or monitoring industrial processes. It also features a compact design that saves valuable panel space and simplifies installation. This module is widely used in process control, industrial automation, safety monitoring, and various other industrial environments where digital input signals need to be reliably captured and transmitted to the PLC for processing.
Produktspezifikationen:
| Specification | Details |
|---|---|
| Modell | IC200MDL241 |
| Type | Discrete Input Module |
| Input Points | 16 Digital Inputs |
| Dimensions (W x H x D) | 110 x 66.8 x 50 mm |
| Gewicht | 0.28 kg |
| Power Supply | 5V DC |
| Operating Temperature | 0°C to 60°C |
| Communication Protocol | Modbus/TCP |
| Mounting Type | DIN Rail |
| Protection | Overcurrent and Overvoltage Protection |
| LED Indicators | Power, Input Status |
Product Applications:
The GE IC200MDL241 Discrete Input Module is used in a wide range von industrial applications that require reliable and efficient digital signal input handling. Some von the key application areas include:
-
Industrial Automation: Used to interface input devices like limit switches, proximity sensors, and safety switches with VersaMax PLCs for real-time process control and monitoring.
-
Safety Monitoring Systems: It plays a critical role in safety systems by monitoring the status von safety devices such as emergency stop buttons, door sensors, and safety interlocks.
-
Process Control: The IC200MDL241 collects data from field devices and provides input signals to PLC systems, enabling precise control von manufacturing processes, conveyors, and packaging systems.
-
Building Automation: Commonly used in building systems for monitoring status signals from HVAC controls, lighting systems, and security devices.
-
Data Acquisition: The module allows for continuous data collection from a variety von sensors and devices, which is then processed by the PLC to make real-time decisions.
Product Advantages:
-
Compact Design: The IC200MDL241 has a small form factor that minimizes space usage in control panels, making it ideal for installations with limited space.
-
High Reliability: Designed for industrial environments, the module provides consistent and reliable performance in mission-critical applications.
-
Flexibility: It supports 16 digital inputs and can be used in a wide variety von industrial control systems, providing versatility in its application.
-
Seamless Integration: The module integrates easily with VersaMax Micro PLCs and other GE automation products that support the Modbus/TCP communication protocol.
-
Easy Installation: The module is mounted using a standard DIN rail, ensuring quick and easy installation and integration into existing control systems.
-
Built-in Protection: Equipped with overcurrent and overvoltage protection, the IC200MDL241 safeguards the system and connected devices from potential electrical faults.
FAQ:
1. How many input points does the IC200MDL241 have?
The IC200MDL241 module has a total von 16 digital input points, making it suitable for applications that require multiple inputs to be monitored simultaneously.
2. What type von input devices can be connected to this module?
You can connect a variety von digital input devices, including limit switches, proximity sensors, and emergency stop buttons, to the IC200MDL241.
3. Does the IC200MDL241 support sinking or sourcing inputs?
Yes, the IC200MDL241 supports both sinking and sourcing digital inputs, providing flexibility when connecting different types von input devices.
4. What communication protocol does the IC200MDL241 use?
The module uses the Modbus/TCP protocol for communication, allowing for fast and reliable data exchange with VersaMax PLCs and other Modbus-compatible devices.
5. How is the IC200MDL241 mounted in a control panel?
The IC200MDL241 mounts onto a DIN rail, which is the standard mounting system for industrial automation devices, making it quick and easy to install.
6. Can the IC200MDL241 be used in high-speed control applications?
Yes, the IC200MDL241 is capable von handling real-time input signals and can be used in high-speed control applications where quick response times are required.
7. Is the IC200MDL241 suitable for outdoor environments?
The IC200MDL241 is designed for indoor use. For outdoor or harsh environments, additional protection or enclosure may be required.
8. What protection features are included in the IC200MDL241?
The module comes with built-in overcurrent and overvoltage protection to protect the device and connected systems from electrical faults.
9. How is the power supplied to the IC200MDL241?
The IC200MDL241 requires a 5V DC power supply, which is typical for VersaMax series modules and other similar industrial control devices.
10. Is the IC200MDL241 compatible with other GE automation products?
Yes, the IC200MDL241 is designed to integrate seamlessly with other VersaMax Micro PLCs and GE automation products that support the Modbus/TCP protocol.
Related Product Recommendations:
Same Series or Related Modells
| Modell | Beschreibung |
|---|---|
| IC200MDL243 | VersaMax 16-Point Relay Output Module |
| IC200MDL241E | VersaMax 16-Point Digital Output Module (Extended Temperature Range) |
| IC200MDL245 | VersaMax 32-Point Digital Output Module |
| IC200MDL246 | VersaMax 8-Point High-Current Digital Output Module |
| IC200MDL248 | VersaMax 16-Point Sinking Digital Output Module |
| IC200MDL249 | VersaMax 32-Point Digital Input Module |
Popular Modells from GE
| Modell | Beschreibung |
|---|---|
| IC200MDL643 | VersaMax 16-Point Relay Output Module |
| IC200MDL643A | VersaMax 16-Point Relay Output Module (Enhanced) |
| IC200MDL650 | VersaMax 32-Point Digital Input Module |
| IC200MDL651 | VersaMax 32-Point Digital Output Module |
| IC200MDL652 | VersaMax 16-Point Sinking Digital Output Module |
| IC200MDL653 | VersaMax 8-Point High-Current Digital Input Module |
