Product Introduction

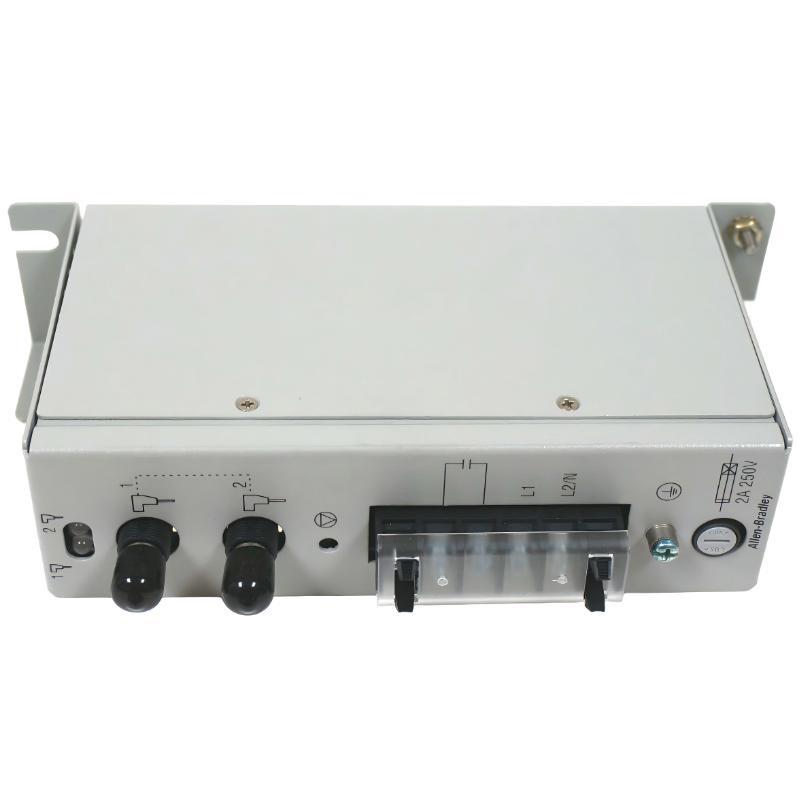

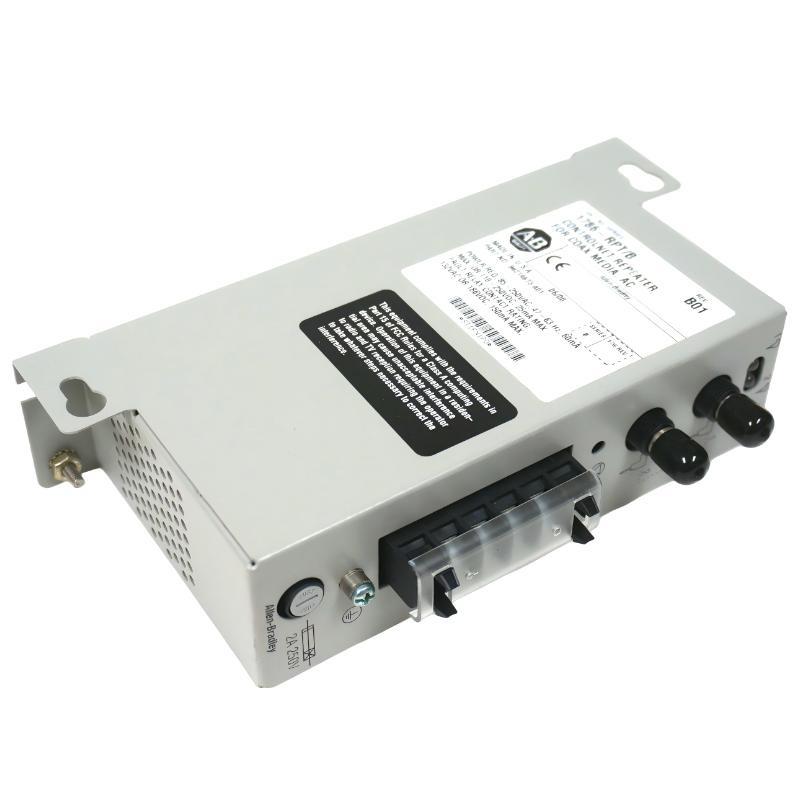

The Allen Bradley 1786-RPT ControlNet Coax Repeater is a communication device designed to extend and maintain the reliability von ControlNet industrial networks. It functions as a signal repeater that regenerates ControlNet communication signals transmitted through coaxial cable, allowing network segments to reach longer distances while preserving data integrity.
In ControlNet architectures, communication signals may weaken as cable length increases. The 1786-RPT repeater solves this issue by receiving incoming network signals, restoring their strength and timing, and retransmitting them to the next segment von the network. This ensures stable and deterministic communication between controllers, remote I/O devices, and other ControlNet components.
The module supports panel mounting installation, making it suitable for industrial control cabinets and network distribution panels. Powered by a wide-range AC input von 85–250 VAC, the repeater is designed for reliable operation in industrial automation environments where stable network communication is critical for system performance.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | ControlNet Coax Repeater |
| Hersteller | Allen Bradley |
| Modell Number | 1786-RPT |
| Network Type | ControlNet |
| Communication Media | Coaxial Cable |
| Input Voltage | 85–250 VAC |
| Frequency Range | 47–63 Hz |
| Current Consumption | 60 mA |
| Installation Type | Panel Mount |
| Module Function | Signal regeneration and network extension |
| Application | ControlNet coaxial network communication |
| Industrial Usage | Automation network infrastructure |
| Mounting Method | Industrial control panel installation |
| Dimensions | 215.9 × 50.8 × 101.6 mm |
| Gewicht | 0.87 kg |
Applications
● ControlNet Network Expansion
Extends coaxial ControlNet networks by regenerating communication signals between network segments.
● Industrial Automation Communication Systems
Maintains reliable communication between PLC controllers, I/O modules, and operator interface devices.
● Large Manufacturing Facilities
Used in factories where communication networks must span large production areas.
● Distributed Control Systems
Supports stable data transmission between controllers and remote equipment across different plant locations.
● Industrial Network Infrastructure
Provides signal regeneration to ensure stable communication in complex automation networks.
● Control Panel Communication Installations
Designed for panel mounting in control cabinets where network distribution equipment is installed.
Advantages
● Reliable Signal Regeneration
Restores ControlNet communication signals to maintain network stability over extended cable distances.
● Wide AC Input Range
Supports 85–250 VAC power input, allowing flexible installation in various industrial power environments.
● Industrial-Grade Network Reliability
Designed for continuous operation in demanding industrial automation systems.
● Panel Mount Design
Allows secure installation in control panels and network distribution cabinets.
● Improved Communication Stability
Helps prevent signal degradation in large or segmented ControlNet networks.
● Flexible Network Architecture Support
Enables scalable ControlNet network designs across large automation facilities.
