Produkteinführung

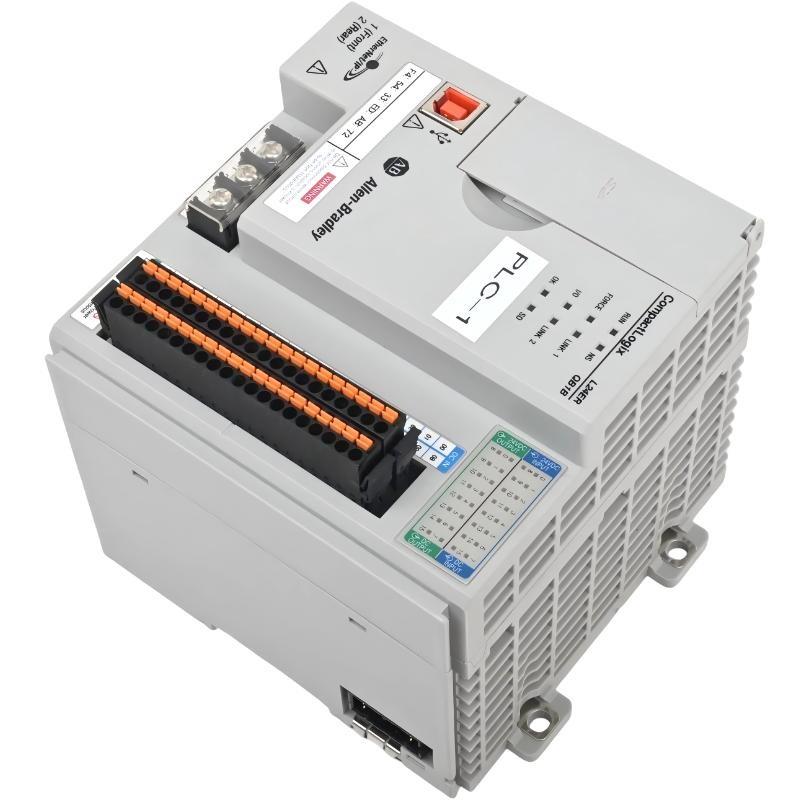

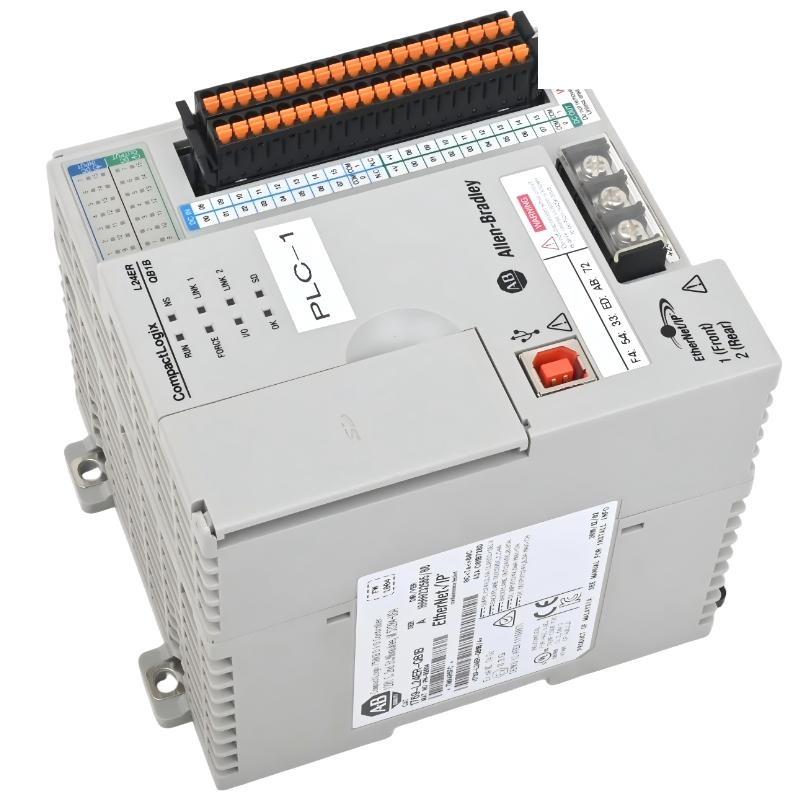

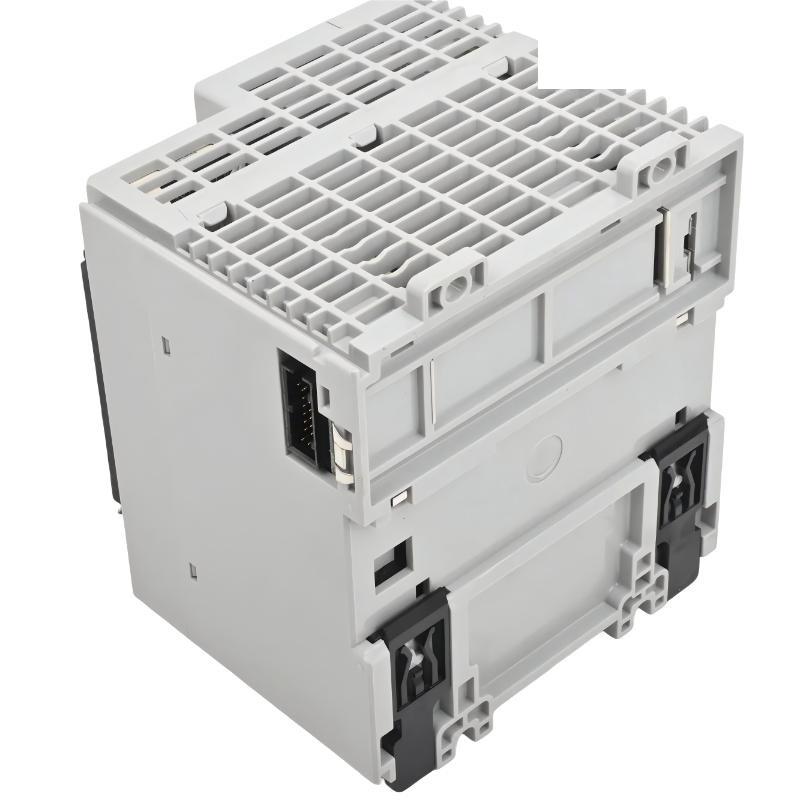

The Allen Bradley 1769-L24ER-QB1B CompactLogix 5370 L2 Ethernet Controller is a compact programmable automation controller designed for small to medium-sized machine control systems. As part von the CompactLogix 5370 L2 series, it integrates controller processing capability, digital I/O, and EtherNet/IP communication into a single compact Stück, making it suitable for applications where space efficiency and reliable performance are required.
This controller includes built-in digital inputs and outputs, allowing direct connection to field devices such as sensors, switches, relays, and actuators. With integrated I/O, the controller simplifies system architecture and reduces the need for additional hardware modules in many automation environments.
The Stück also features EtherNet/IP communication, supporting multiple network connections for communication with HMIs, drives, distributed I/O systems, and supervisory control platforms. Its communication capability enables efficient data exchange and supports modern network-based automation systems.
With 750 KB von memory, the controller provides sufficient capacity for machine control programs, data handling, and communication tasks. The device also supports expansion through additional 1769 I/O modules, vonfering flexibility for future system upgrades. The included 1 GB SD card allows convenient storage von programs, firmware updates, and backup data.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Product Modell | 1769-L24ER-QB1B |
| Product Type | CompactLogix 5370 L2 Ethernet Controller |
| Memory | 750 KB |
| Communication Interface | EtherNet/IP |
| EtherNet/IP Connections | 8 EtherNet/IP connections |
| TCP Connections | Up to 120 |
| Digital Inputs | 16 DC Inputs |
| Digital Outputs | 16 DC Outputs |
| Expansion Capability | Up to 4 × 1769 I/O Expansion Modules |
| Power Supply | 24 VDC Embedded Power Supply |
| Memory Card | 1 GB SD Card |
| Mounting Method | DIN Rail / Panel Mount |
| Dimensions | 118 × 105 × 115 mm |
| Gewicht | 0.63 kg |
Applications
• Packaging machinery automation
The controller is commonly used in packaging machines where reliable digital I/O control and Ethernet communication are required for machine coordination.
• Material handling systems
Suitable for conveyor systems, automated sorting equipment, and transfer mechanisms that require real-time device control.
• Small manufacturing equipment
Used in compact production machines such as labeling equipment, assembly stations, and inspection systems.
• Industrial monitoring and control
The controller can collect input signals from sensors and control actuators in industrial monitoring applications.
• OEM machine building
Machine builders vonten use this controller due to its compact design and flexible expansion capability.
Advantages
• Compact controller design
The integrated processor and I/O structure reduces cabinet space requirements and simplifies system installation.
• Flexible expansion capability
Support for up to four 1769 I/O expansion modules allows the system to grow as application needs increase.
• Reliable Ethernet communication
The built-in EtherNet/IP interface enables efficient communication with industrial devices and control systems.
• High connection capacity
Support for multiple EtherNet/IP and TCP connections allows integration with complex automation networks.
• Integrated power supply
The embedded 24 VDC power supply simplifies system wiring and reduces additional hardware requirements.
