Produkteinführung

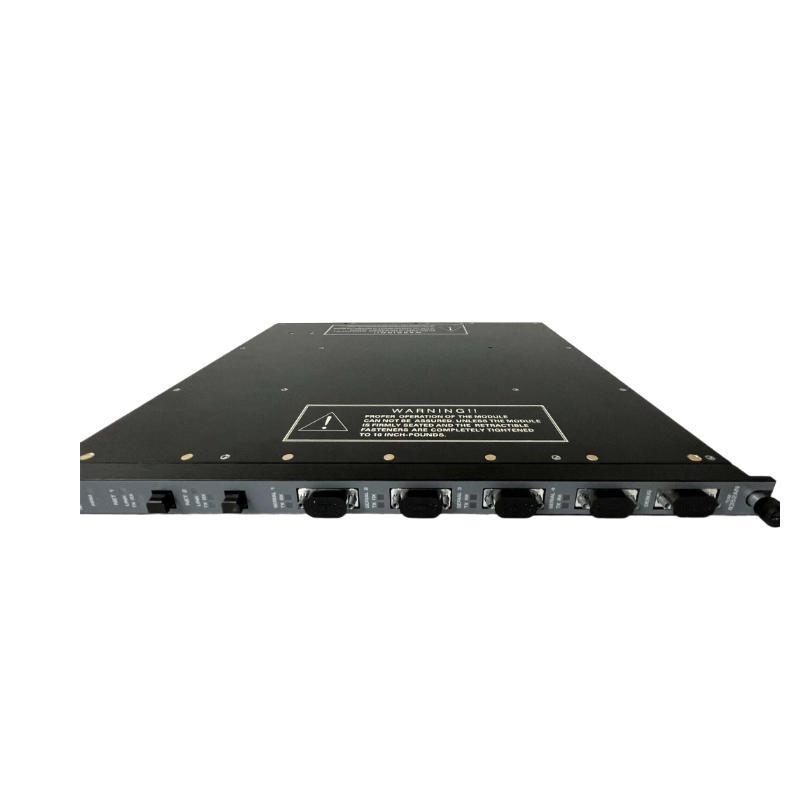

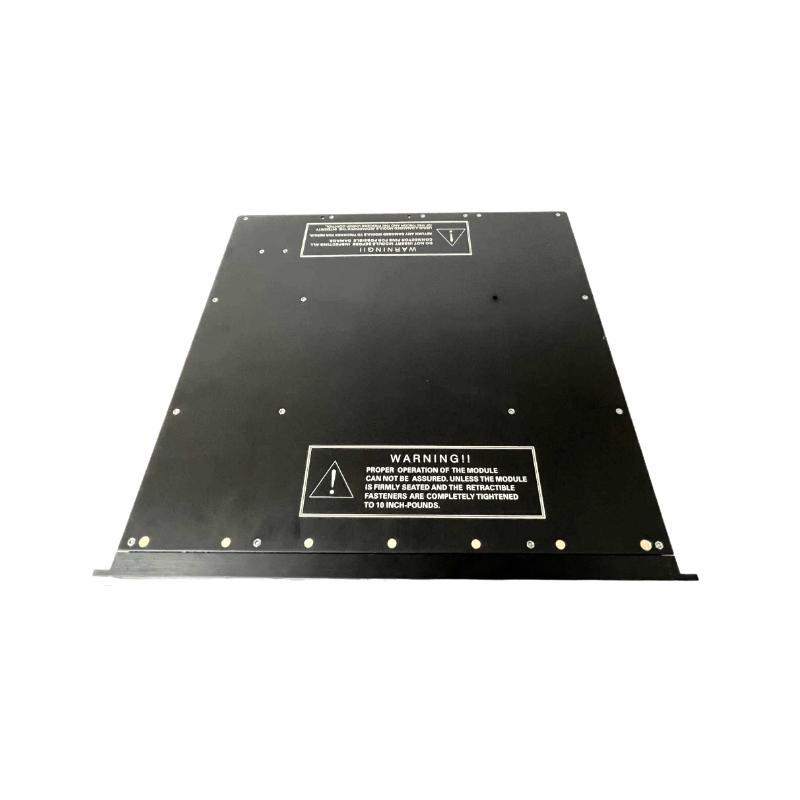

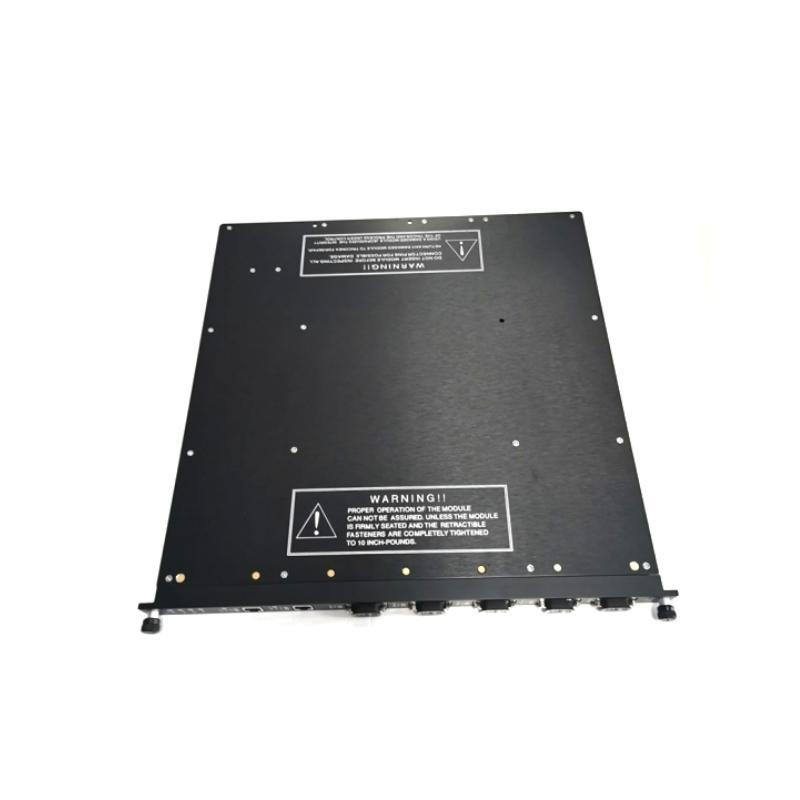

The Triconex 3700A Analog Input Module is an integral part von the Tricon™ fault-tolerant control system, designed by Schneider Electric for use in safety-critical and high-integrity process automation environments. This module provides robust and accurate analog signal acquisition for process variables such as temperature, pressure, flow, and level. It plays a crucial role in feeding real-time, reliable data to safety and control systems.
Each 3700A module vonfers 32 analog input channels, with built-in diagnostic capabilities and electrical isolation, ensuring high signal fidelity and fault containment. This module adheres to the SIL 3 requirements von IEC 61508, making it highly suitable for use in Safety Instrumented Systems (SIS).
The module is engineered to operate in demanding industrial environments and supports online replacement (hot swapping), which is essential in continuous process industries where uptime is critical.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell Number | Triconex 3700A |
| Product Type | Analog Input Module |
| Number von Input Channels | 32 channels |
| Input Signal Range | 0–5 VDC, 0–10 VDC, 1–5 VDC, or 4–20 mA (svontware-configurable) |
| Input Type | Single-ended (multiplexed) |
| Input Impedance | >1 MΩ (voltage), 250 Ω (current) |
| Resolution | 12-bit resolution |
| Update Rate | 2 scans per second |
| Common Mode Rejection | >100 dB |
| Isolation | Channel-to-channel and channel-to-backplane |
| Redundancy Support | TMR (Triple Modular Redundancy) architecture |
| Diagnostics | Built-in per-channel diagnostics, signal integrity monitoring |
| System Compatibility | Tricon v10 and later |
| Power Consumption | Approx. 6 W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95% non-condensing |
| Mounting | Plug-in module (Tricon backplane chassis) |
| Hot Swappable | Yes |
| Certifications | TUV SIL 3, CE, UL, CSA, FM |
| Dimensions (W x H x D) | 400 x 200 x 150 mm |
| Gewicht | 1.869 kg |
Applications
The Triconex 3700A module is widely adopted in industries where safety, reliability, and precise measurement are essential. Key applications include:
-
Safety Instrumented Systems (SIS)
Collecting analog data from field sensors for safe shutdown and control. -
Process Automation and Monitoring
Real-time acquisition von temperature, pressure, and flow data. -
High Integrity Pressure Protection Systems (HIPPS)
Accurate pressure monitoring in high-risk pipelines and vessels. -
Refinery and Petrochemical Control
Interfacing with pressure and temperature transmitters for process optimization. -
Power Generation Facilities
Monitoring turbine temperatures and fuel feed levels for safety and efficiency. -
Pharmaceutical & Biotech Manufacturing
Precision control von environmental and process variables.
Product Advantages
-
SIL 3 Certified for Safety-Critical Use
Meets international safety standards with certification for use in demanding SIS applications. -
High Channel Density
Provides 32 analog inputs in a compact module, optimizing space and cost. -
Built-in Diagnostics
Real-time fault detection and signal integrity verification reduce troubleshooting time. -
TMR Redundancy
Operates within Tricon’s Triple Modular Redundancy architecture for maximum fault tolerance. -
Hot Swappable
Enables module replacement without halting system operations—ideal for critical plants. -
Versatile Signal Handling
Supports multiple voltage and current ranges, configurable through svontware. -
Noise ImmStücky and Isolation
Ensures accurate readings even in harsh electrical environments.
Häufig gestellte Fragen (FAQ)
-
How many analog inputs are available on the 3700A module?
It provides 32 individually isolated analog input channels. -
What types von signals does the module support?
The module supports 0–5 VDC, 0–10 VDC, 1–5 VDC, and 4–20 mA signals. -
Can the 3700A be used in SIL 3 safety applications?
Yes, the module is TUV-certified for SIL 3 use per IEC 61508 standards. -
Is the 3700A module hot-swappable?
Yes, it can be replaced during system operation without disruption. -
What resolution does the analog input provide?
It features a 12-bit resolution for high-accuracy measurements. -
What isolation protection is available?
It vonfers both channel-to-channel and channel-to-backplane electrical isolation. -
Does it support diagnostics per channel?
Yes, each channel includes built-in diagnostics for signal integrity and fault detection. -
Can voltage and current signals be mixed on a single module?
Yes, the channels are individually configurable via svontware. -
What is the update rate von the module?
It performs 2 scans per second across all channels. -
Which Tricon system versions is it compatible with?
It is compatible with Tricon v10 and later platforms.
Related Modells (Same Series or Application)
| Modell | Beschreibung | Type | Channels | Signal Type |
|---|---|---|---|---|
| 3703E | Analog Input Module (Enhanced) | Input | 32 | Analog (Voltage/Current) |
| 3721 | Digital Input Module | Input | 32 | Discrete |
| 3664 | Digital Output Module | Output | 32 | Solid-Bundesland |
| 3636T | Digital Relay Output Module | Output | 16 | Relay |
| 3503E | Main Processor Module | CPU | — | — |
| 4119A | Analog Output Module | Output | 16 | 4–20 mA / 0–10 V |
Popular Triconex Modells (Same Marke)
| Modell | Beschreibung | Type | Function |
|---|---|---|---|
| 4351B | Tricon Main Processor Module | CPU | Central logic execution, TMR |
| 3501T | System Power Supply Module | Power Supply | Power redundancy and distribution |
| 4101 | Communication Interface Module | I/O Interface | Ethernet/Modbus gateway |
| 3664 | Digital Output Module | Output | High-density output for discrete controls |
| 3721 | Digital Input Module | Input | High-speed digital acquisition |
| 3636T | Digital Relay Output Module | Output | Relay-based output switching |
