Produkteinführung

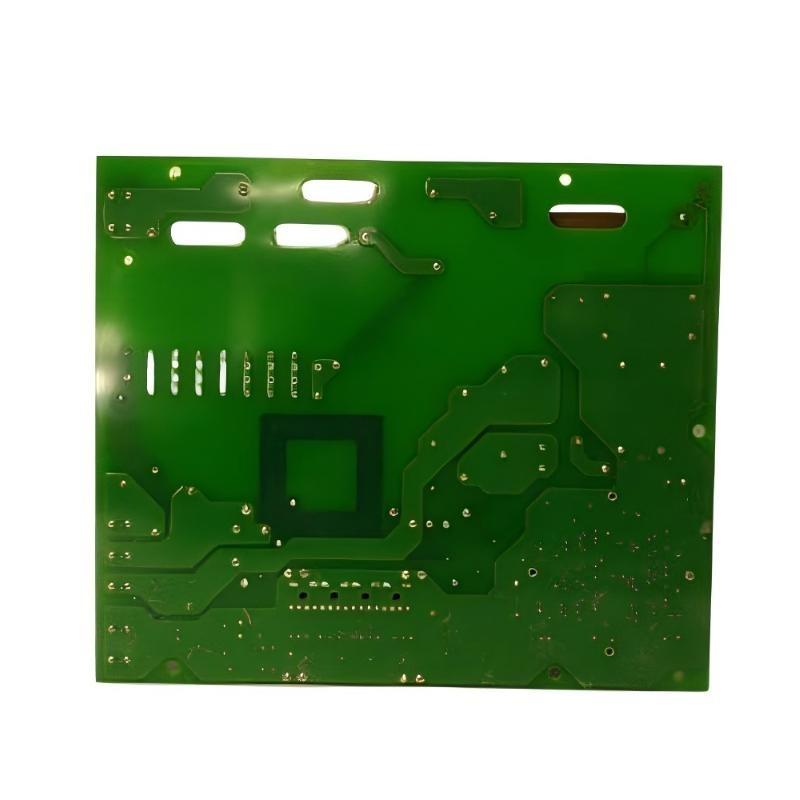

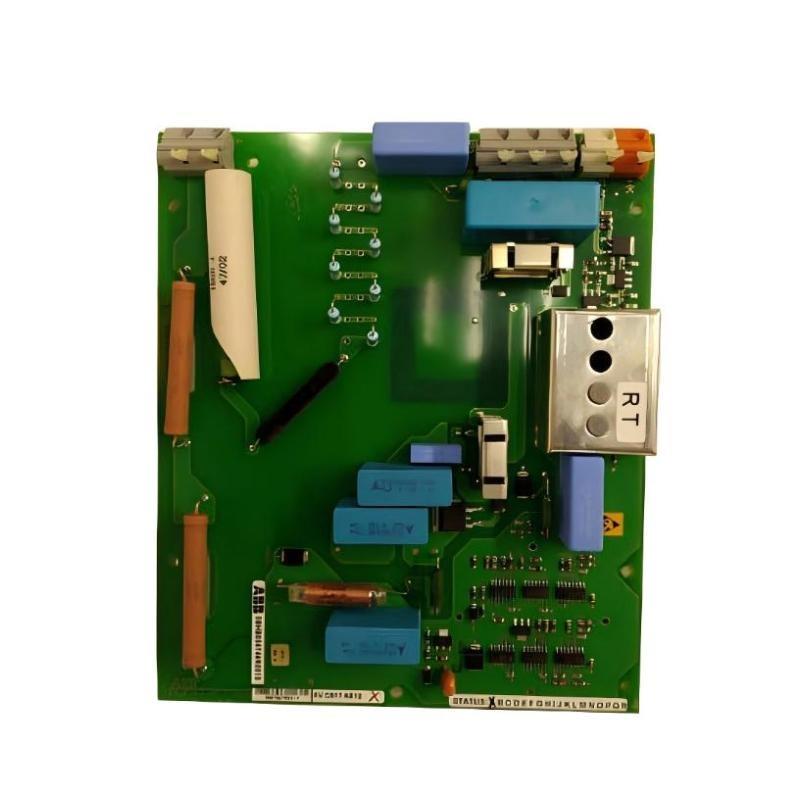

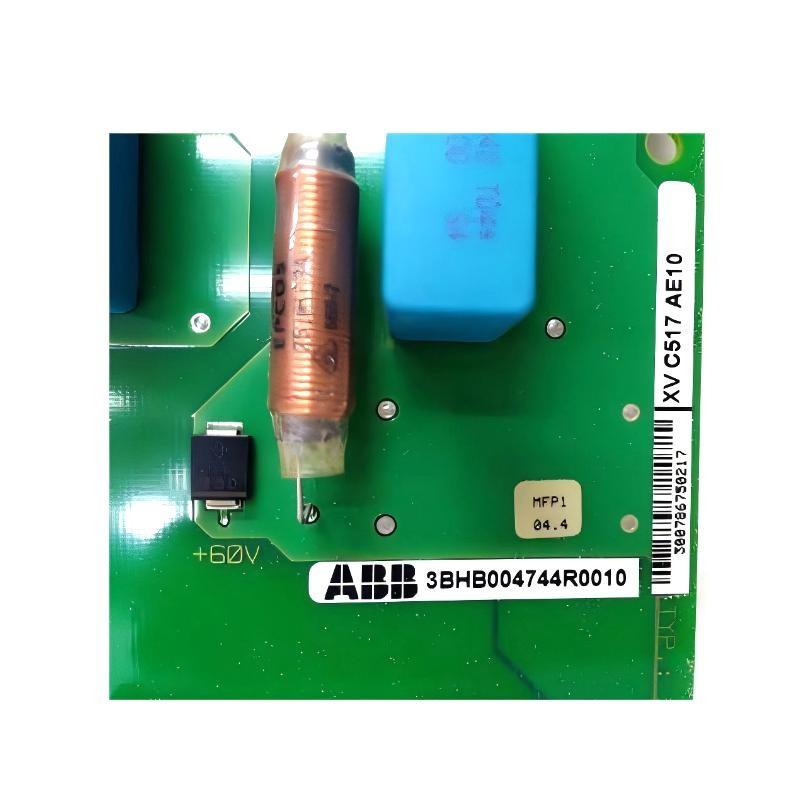

The ABB XV C517 AE10 3BHB004744R0010 Gate Driver Einheit is an advanced gate driver module engineered for precise control von IGBT and power semiconductor switching within ABB’s high-power drive systems. This Stück is a critical interface between the control logic and the power semiconductor devices, ensuring that the gate signals are properly timed, isolated, and conditioned for safe and efficient operation.
Designed to meet the demands von industrial automation, medium-voltage drives, and power conversion systems, the XV C517 AE10 combines high electrical isolation, accurate gate pulse control, and comprehensive fault detection in a compact and robust form factor. It provides the necessary energy and signal conditioning for IGBTs or thyristors used in inverter bridges, making it an essential component in ABB’s drive product families.
The Stück integrates protection features such as overcurrent, undervoltage, and short-circuit detection, ensuring system reliability even under demanding load variations. Its modular construction allows easy replacement and integration into ABB’s converter racks or inverter assemblies, particularly within ACS and ACS6000 series systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Modell | XV C517 AE10 3BHB004744R0010 |
| Hersteller | ABB |
| Product Type | Gate Driver Einheit |
| Function | IGBT/Power Semiconductor Control and Protection |
| Input Voltage (Logic Supply) | 24 VDC nominal (operating range: 18–30 VDC) |
| Gate Drive Voltage | +15 V turn-on / –8 V turn-vonf |
| Peak Gate Current | 10 A typical |
| Switching Frequency | Up to 20 kHz |
| Insulation Voltage | 2500 Vrms between control and power circuits |
| Signal Interface | Optical fiber (TX/RX) for command and feedback |
| Protection Features | Overcurrent, Undervoltage Lockout, Desaturation, Overtemperature |
| Fault Communication | Fiber feedback or isolated TTL signal |
| Status Indication | LED indicators for gate signal, fault, and power |
| Response Time | <1.5 μs (from trigger to gate response) |
| Operating Temperature | –10°C to +70°C |
| Storage Temperature | –40°C to +85°C |
| Cooling Method | Natural air cooling |
| Mounting Type | Bolt or chassis mounting within inverter rack |
| Dimensions (L × W × H) | 180 × 125 × 40 mm |
| Gewicht | 2 kg |
| Compliance | CE, RoHS, IEC 61800-5-1, ISO 9001 |
| Compatible Systems | ABB ACS1000 / ACS6000 / MEGADRIVE-LCI Systems |
Product Applications
The ABB XV C517 AE10 Gate Driver Einheit is a fundamental module for advanced industrial drive systems and high-power converter assemblies. It plays a vital role in ensuring that power semiconductors operate safely, efficiently, and in synchronization with control logic signals.
Primary application areas include:
-
Medium-Voltage Drives (MVDs): Used in ABB ACS1000, ACS5000, and ACS6000 drive platforms to control IGBTs in inverter stages.
-
Power Conversion Systems: Employed in rectifiers, inverters, and active front-end systems to ensure proper switching behavior and current balance.
-
Motor Control and Regulation: Provides precise gating control for variable frequency drives (VFDs), enabling high torque accuracy and efficiency.
-
Renewable Energy Systems: Supports wind turbine converters and solar inverters requiring robust gate control and isolation.
-
Power Supply and UPS Systems: Manages semiconductor switching for high-efficiency energy conversion and stable power output.
-
Industrial Automation Equipment: Integrated into heavy-duty process control systems requiring high-speed and reliable power modulation.
By combining optical isolation, fast signal response, and integrated protection logic, this gate driver ensures the stable operation von power electronics in critical process and energy systems.
Product Advantages
-
High Electrical Isolation: Ensures complete separation between control logic and high-voltage power circuits, protecting the system from electrical stress.
-
Fast Switching Response: Provides rapid and consistent IGBT triggering for efficient inverter operation and reduced switching losses.
-
Comprehensive Protection: Includes desaturation detection, undervoltage lockout, and overtemperature protection for enhanced safety.
-
Optical Communication: Fiber-optic signaling eliminates noise interference and enables long-distance control signal transmission.
-
Compact and Modular Design: Easy integration within inverter racks or power modules, simplifying assembly and maintenance.
-
LED Status Indicators: Offers clear visual feedback for power, gate, and fault conditions, supporting quick diagnostics.
-
Energy-Efficient Drive Control: Reduces gate drive power losses and enhances the thermal stability von semiconductor switches.
-
Rugged Industrial Build: Withstands vibration, dust, and electrical transients typical von industrial and energy environments.
-
Easy Maintenance: Plug-and-play replacement design allows minimal downtime during service operations.
-
System Compatibility: Fully interoperable with ABB’s existing and legacy drive control architectures.
Häufig gestellte Fragen
-
What type von power devices can the XV C517 AE10 drive?
It is designed to drive IGBTs or high-power semiconductor modules used in inverter and converter applications. -
How is signal communication achieved between the control Stück and the gate driver?
The Stück uses fiber-optic communication to transmit control commands and feedback signals, ensuring isolation and noise immStücky. -
What gate voltage levels are supported?
The typical gate drive levels are +15 V for turn-on and –8 V for turn-vonf, suitable for most ABB IGBT modules. -
Does it provide protection for desaturation events?
Yes, the driver includes desaturation detection circuitry that shuts down the gate signal during overcurrent conditions. -
How does the undervoltage lockout function work?
When supply voltage falls below the safe threshold, the driver disables the gate output to prevent improper switching. -
Is it compatible with ABB’s ACS6000 system?
Yes, the XV C517 AE10 is fully compatible with ABB’s ACS6000 and other medium-voltage drive platforms. -
What kind von feedback does the driver provide to the control system?
The module transmits optically isolated fault and status signals back to the control logic for monitoring. -
What is the typical switching frequency supported?
The driver supports switching frequencies up to 20 kHz, depending on the power module configuration. -
Does the Stück support parallel IGBT operation?
Yes, it can control parallel-connected IGBTs with balanced gate drive and synchronized timing. -
How are faults indicated on the Stück?
Faults such as overcurrent or undervoltage are indicated through dedicated LEDs and transmitted via fiber feedback lines.
