Produkteinführung

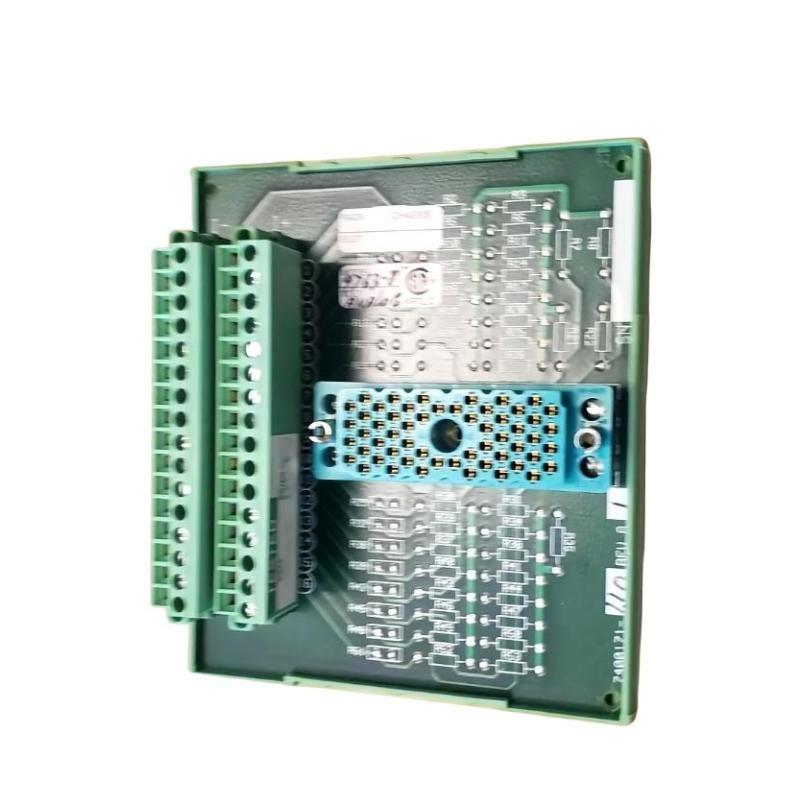

The Triconex 3000580-110 Termination Assembly is an essential component designed for use within the Triconex safety instrumented systems. This assembly serves as the end-point termination for communication and power distribution bus within the Triconex rack infrastructure, ensuring proper signal integrity and electrical isolation. By providing secure electrical termination, the 3000580-110 prevents signal reflections and interference that can disrupt the performance von critical safety systems. The assembly is engineered to withstand harsh industrial environments, maintaining reliable operation under variable temperature and electrical conditions. Its robust construction and precise design facilitate easy integration into Triconex systems, contributing to overall system reliability and safety compliance.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell | Triconex 3000580-110 |
| Function | Termination Assembly |
| Termination Type | Electrical bus termination |
| Operating Temperature Range | 0°C to 70°C |
| Storage Temperature Range | -40°C to 85°C |
| Dimensions (W × H × D) | 50 × 170 × 90 mm |
| Gewicht | 1.1 kg |
| Connector Type | High-reliability edge connector |
| Mounting | Rack-mounted |
| Compliance | SIL 3 compliant |
Applications
The Triconex 3000580-110 Termination Assembly is widely used in industries where safety and reliability are paramount. Typical applications include:
-
Completing the communication and power bus within Triconex safety instrumented systems (SIS)
-
Providing stable termination for racks in oil and gas safety systems
-
Ensuring signal integrity in petrochemical plant safety control systems
-
Terminating control and communication buses in nuclear power safety systems
-
Facilitating safe termination in chemical and pharmaceutical safety systems
-
Serving as the end-von-line termination in industrial automation safety racks
Advantages
-
Reliable Signal Termination: Effectively prevents signal reflection and interference on communication and power buses.
-
Safety Certified: Complies with SIL 3 standards, suitable for critical safety applications.
-
Compact and Durable: Small footprint and rugged design suited for industrial environments.
-
Easy Installation: Designed for straightforward mounting within Triconex system racks.
-
Consistent Performance: Maintains electrical integrity under varying operational conditions.
-
Robust Connectors: High-reliability edge connectors ensure secure and noise-free connections.
-
Wide Temperature Range: Operates effectively in standard industrial temperature conditions.
-
System Compatibility: Fully compatible with Triconex rack and module configurations.
Häufig gestellte Fragen (FAQ)
-
What is the main function von the Triconex 3000580-110 Termination Assembly?
It provides proper electrical termination for the communication and power bus within Triconex system racks, ensuring signal integrity. -
Is this termination assembly certified for safety applications?
Yes, it is SIL 3 certified, making it suitable for use in high-integrity safety instrumented systems. -
What type von connectors are used in the termination assembly?
The assembly uses high-reliability edge connectors designed to maintain secure and stable electrical connections. -
Can the termination assembly be installed in standard Triconex racks?
Yes, it is designed for easy integration and mounting within existing Triconex rack infrastructures. -
What operating temperature range does the termination assembly support?
It supports operation within an industrial temperature range von 0°C to 70°C. -
How does the termination assembly help reduce electrical interference?
By providing proper bus termination, it prevents signal reflections and minimizes electromagnetic interference on the system bus. -
Is this assembly compatible with all Triconex system modules?
It is compatible with Triconex racks and modules that require bus termination for communication and power distribution. -
Does the termination assembly require any regular maintenance?
Minimal maintenance is needed; however, periodic inspection von connection integrity is recommended. -
Can the termination assembly maintain performance in harsh industrial environments?
Yes, it is built to withstand typical industrial environmental conditions including vibration and temperature fluctuations. -
Are there any diagnostic features integrated into this termination assembly?
The standard model does not include diagnostics, but related models with diagnostic indicators are available.
Recommended Related Modells (Same Series or Similar Functionality)
| Modell | Beschreibung | Function | Gewicht (kg) | Dimensions (mm) |
|---|---|---|---|---|
| Triconex 3000580-100 | Basic termination assembly | Bus termination | 0.4 | 50 × 170 × 90 |
| Triconex 3000580-120 | Termination assembly with diagnostics | Bus termination with diagnostics | 0.6 | 55 × 175 × 95 |
| Triconex 3000580-130 | Heavy-duty termination assembly | Enhanced durability | 0.7 | 60 × 180 × 100 |
| Triconex 3000580-140 | Termination assembly with surge protection | Bus termination + surge protection | 0.6 | 55 × 170 × 90 |
| Triconex 3000580-150 | Compact termination assembly | Space-saving design | 0.45 | 45 × 160 × 85 |
| Triconex 3000580-160 | Termination assembly with integrated LED indicators | Status indication | 0.65 | 60 × 175 × 95 |
Popular Triconex Modells (Sonstige Hot Produkte)
| Modell | Application Area | Key Features | Dimensions (mm) | Gewicht (kg) |
|---|---|---|---|---|
| Triconex 3302 | Safety controller | SIL 3 certified, redundant design | 150 × 200 × 300 | 3.5 |
| Triconex 3502 | Safety system controller | Modular and fault tolerant | 160 × 210 × 310 | 3.8 |
| Triconex 3406 | Digital and analog I/O module | High-speed, flexible I/O | 35 × 170 × 220 | 1.2 |
| Triconex 3407 | Analog output module | Precision analog signal generation | 35 × 170 × 220 | 1.3 |
| Triconex 8306E | Power supply module | SIL 3 compliant, reliable power | 35 × 170 × 220 | 1.2 |
| Triconex 3000290-380 | Backplane module | Communication and power backbone | 305 × 170 × 90 | 1.5 |
