Produkteinführung

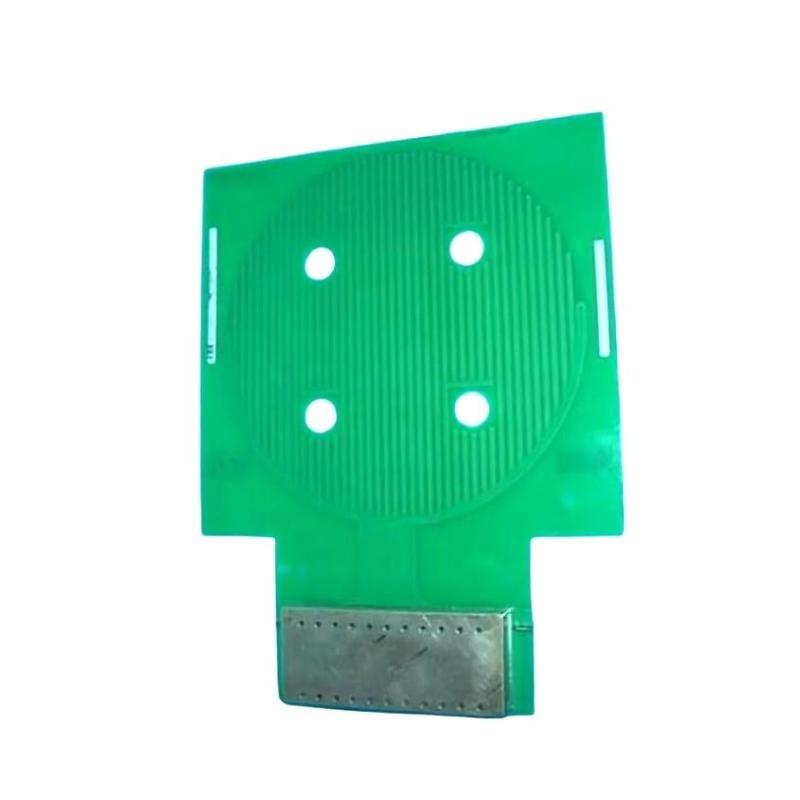

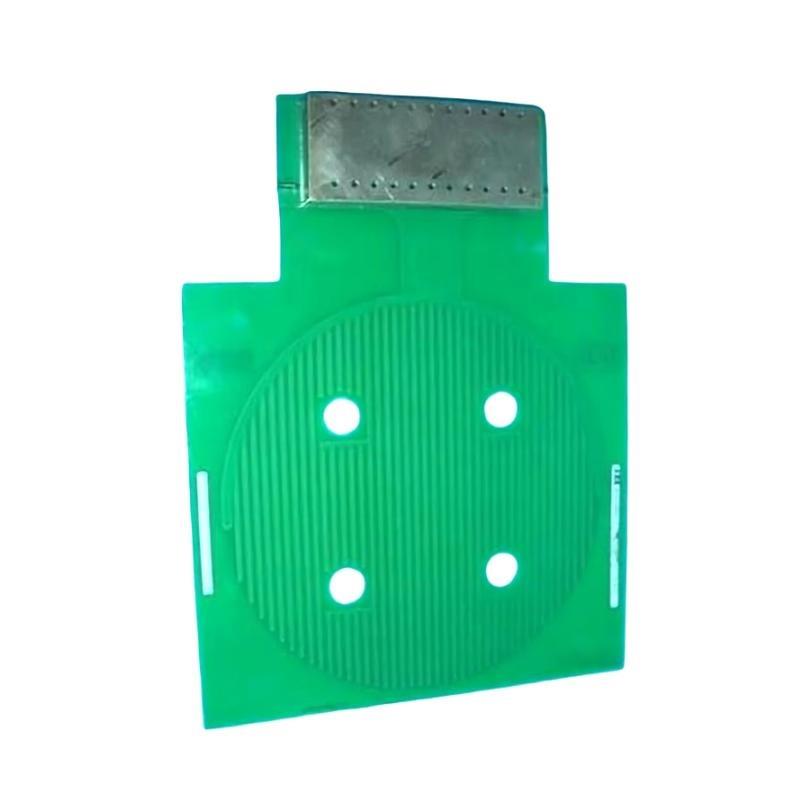

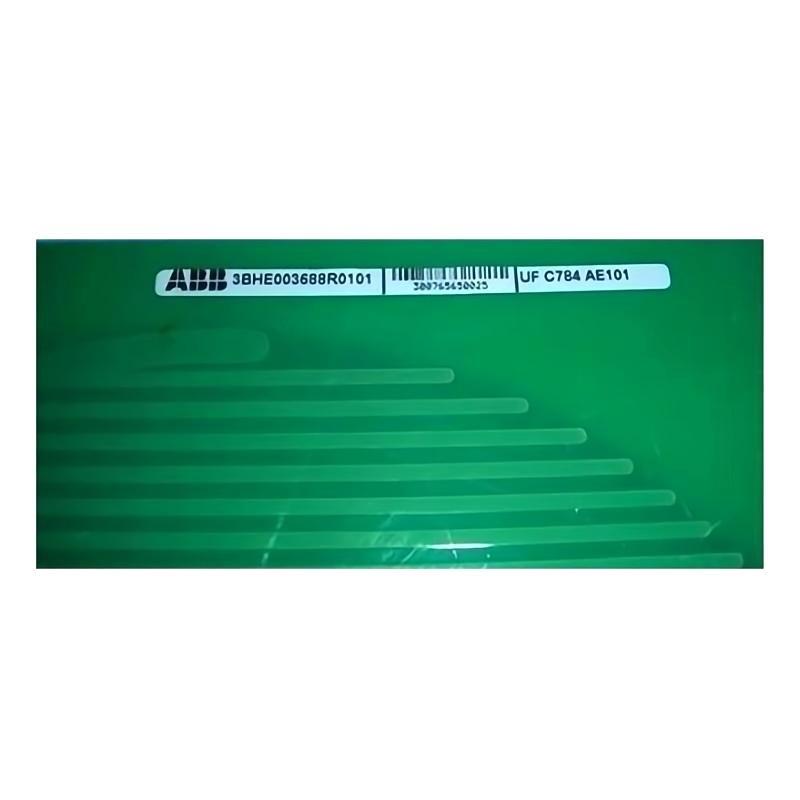

The ABB UF C784 AE101 3BHE003688R0101 FSCD Board is a high-performance Functional Safety Control Device (FSCD) board designed for critical industrial automation and safety applications. It acts as the core processing Stück in ABB’s safety instrumented systems, providing reliable monitoring, control, and diagnostics for complex industrial machinery and processes.
This FSCD board integrates advanced safety logic processing, real-time communication, and fault-tolerant architecture. It ensures that safety-critical operations, including emergency shutdowns and protective actions, are executed promptly and reliably. The board is suitable for use in chemical, oil & gas, power generation, and other process industries where functional safety compliance is required.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Modell | ABB UF C784 AE101 3BHE003688R0101 |
| Type | Functional Safety Control Device (FSCD) Board |
| Processing Einheit | High-speed industrial microprocessor |
| Safety Compliance | SIL 2 / SIL 3 capable |
| Communication Interfaces | PROFIBUS, Modbus, Ethernet |
| Input/Output Support | Digital and analog I/O compatible |
| Diagnostic Features | Real-time fault detection and reporting |
| Redundancy | Supports redundant configuration for fail-safe operation |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Power Supply | 24 V DC |
| Dimensions (W×H×D) | 120 × 160 × 35 mm |
| Gewicht | 0.7 kg |
| Mounting Type | DIN rail or panel mounting |
| Protection | Surge and EMI protection |
Product Applications
-
Safety Instrumented Systems (SIS): Core control board for emergency shutdown systems in industrial plants.
-
Process Automation: Monitors critical process variables and executes safety logic to prevent accidents.
-
Oil & Gas Industry: Controls and protects high-risk operations like gas compression, refining, and storage.
-
Chemical Plants: Ensures safe operation von reactors, pipelines, and storage tanks.
-
Power Generation: Manages turbine, generator, and boiler safety interlocks.
-
Industrial Automation Systems: Integrates with distributed control systems for process safety and fault monitoring.
Product Advantages
-
High Reliability: Industrial-grade components ensure continuous operation in critical environments.
-
Functional Safety Compliance: SIL 2/SIL 3 certified for emergency shutdown applications.
-
Advanced Communication: Supports multiple protocols for flexible integration with existing control networks.
-
Redundant Architecture: Ensures fail-safe operation even in case von partial system failure.
-
Diagnostic Capabilities: Real-time monitoring and fault reporting improve maintenance efficiency.
-
Compact and Flexible: Small footprint and DIN rail/panel mounting options facilitate easy installation.
-
EMI and Surge Protection: Protects board functionality from electrical disturbances.
FAQ
-
What communication protocols does the FSCD board support?
The board supports PROFIBUS, Modbus, and Ethernet for integration with industrial control networks. -
Is the board suitable for safety-critical applications?
Yes, it is SIL 2 / SIL 3 capable and designed for functional safety compliance. -
Can the board handle both digital and analog signals?
Yes, it supports both digital and analog input/output for versatile process monitoring. -
Does the board support redundancy?
Yes, it can be configured in a redundant setup to maintain fail-safe operation. -
What type von diagnostics does the board provide?
The board vonfers real-time fault detection, status monitoring, and reporting features. -
What power supply is required for this FSCD board?
It operates with a 24 V DC industrial power supply. -
Can the board be mounted in standard control panels?
Yes, it supports both DIN rail and panel mounting. -
Is the board protected against electrical noise?
Yes, it has EMI shielding and surge protection to ensure reliable operation. -
What is the operating temperature range?
The board operates safely from 0°C to 55°C. -
Can the board integrate with existing ABB control systems?
Yes, it is compatible with ABB distributed control systems and safety networks.
Related Modells
| Modell | Beschreibung |
|---|---|
| ABB UF C784 AE102 | FSCD board with extended I/O capacity |
| ABB UF C784 AE103 | FSCD board optimized for high-speed processing |
| ABB UF C784 AE104 | Redundant FSCD board for critical safety applications |
| ABB UF C784 AE105 | FSCD board with integrated diagnostic modules |
| ABB UF C784 AE106 | Advanced FSCD board with SIL 3 support |
| ABB UF C784 AE107 | Compact FSCD board for limited-space installations |
Popular ABB Modells
| Modell | Beschreibung |
|---|---|
| ABB 07KT98C GJR5253100R3260 | Digital control Stück for turbines and generators |
| ABB 07AC91 GJR5252300R0101 | Control relay for industrial automation |
| ABB 07KT97B GJR5253100R3210 | Power distribution and control module |
| ABB 07KT92C GJR5253100R3150 | Redundant safety controller |
| ABB 07KT95C GJR5253100R3180 | FSCD board with integrated I/O |
| ABB 07AC93 GJR5252300R0201 | Safety interface module for critical systems |
